PD5LMWP200AWLAN PCMCIA Card Module

Wireless PC Card User Manual Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interfere nce received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna, (2) Increase the separation between the equipment and receiver, (3) Connect the equipment into an outlet on a circuit different from that to wh ich the receiver is connected, (4) Consult the dealer or an experienced radio/TV technician for help. Wireless PC Card iii TABLE OF CONTENT INTRODUCTION ............................................................................. 1 CONNECT THE NETWORK PC CARD TO YOUR NOTEBOOK PC.......... .......................... .......................... .................. 2 H ARDWARE I NSTALLATION ............................................................... 2 DRIVER INSTALLATION............................................................... 2 I NSTALL D RIVER U NDER W INDOWS XP ........................................... 2 I NSTALL D RIVER U NDER W INDOWS 98 ............................................ 5 I NSTALL D RIVER U NDER W INDOWS ME .......................................... 9 I NSTALL D RIVER U NDER W INDOWS 2000 ...................................... 11 I NSTALL D RIVER U NDER W INDOWS NT ......................................... 15 CONFIGURATION UTILITY .... ................... ................... ............. 30 I NSTALL THE C ONFIGURATION U TILITY .......................................... 30 C ONFIGURE THE C ONFIGURATION U TILITY .................................... 33 Wireless PC Card 1 Introduction The Wireless PC card helps you create a wireless network for sharing your broadband cable or DLS internet access among multiple PCs in and around your home of office. It is designed for notebook computers running Microsoft Windows 98, 2000, NT, Millennium and XP. It is 16-bit PCMCIA and 32-bit CardBus compatible and works in any available PCMCIA or CardBus slot. Its auto-sensing capability allows packet transfer in 11Mbps for maximum throughput, or speed reduction to the lower 1Mbps speed for distance or working in a noisy environment. Features ƒ 11 Mbps High-Speed Transfer Rate ƒ Interoperable with IEEE 802.11b(DSSS) 2.4GHz-compliant Equipment ƒ Plug-and Play Operation Provides Easy Setup ƒ Utilizes Intersil HFA3841/HFA3842 chip sets ƒ Advanced Power Management Features Conserve Valuable Notebook PC Battery Life ƒ Direct Sequence Spread Spectrum Compatible to Prevent Lost Connections ƒ Rugged Metal Design with Integrated Antenna ƒ Wired Equivalent Privacy (WEP) 40-bit data encryption Driver Supports Windows 98, Millennium, NT v.4, 2000 and XP Wireless PC Card 2 Connect the Network PC Card to Your Notebook PC Hardware Installation ƒ Locate an available Type II PCMCIA slot on your notebook computer. ƒ With the PCMCIA adapter’s 68-pin connector facing the PCMCIA slot and the “Network PC Card” label facing up, slide the PCMCIA adapter completely into the PCMCIA slot. ƒ Insert the driver CD into your CD drive. ƒ The Hardware Installation is complete. Driver Installation Install Driver Under Windows XP 1. Connect the Wireless PC card into your Notebook PC. Windows XP will automatically recognize a new Intersil PRISM_2_5_ PCMCIA_ADAPTER . Select Install the software automatically [Recommended] and click the Next button to proceed. Wireless PC Card 3 2. Windows will notify you that it has not passed Windows Logo testing to verify its compatibility with Whistler. Click the Continue Anyway button to continue. 3. Windows has now completed installing the network. Click the Finish button to continue. Wireless PC Card 4 4. Click right on My computer and select properties . Select Device Manager and click on the Network adapters . You will find the Intersil PRISM2.5 PCMCIA Adapter if it is installed successfully. The PC card adapter driver installation is finished. Wireless PC Card 5 Install Driver Under Windows 98 1. Connect the Wireless PC card into your Notebook PC. Windows 98 will automatically recognize a new Intersil-PRISM 2_5 PCMCIA ADAPTER . Click the Next button to proceed. 2. Make sure Search for the best driver for your device is selected and click the Next button. Wireless PC Card 6 3. Make sure the Specify a location is selected and click the Browse button. At this point, Windows will ask you to browse for the folder. Simply select the folder in which the driver is located and click the OK button. 4. Windows is now ready to install the driver. Click the Next button to continue. Wireless PC Card 7 5. Windows has now completed installing the network. Click the Finish button to continue. 6. After installing the drivers, the System Setting Change screen will show you that installation is complete. Click the Ye s button to finish. Wireless PC Card 8 7. Click right on My computer and select properties . Select Device Manager and click on the Network adapters . You will find the Intersil PRISM2.5 PCMCIA Adapter if it is installed successfully. The PC c…

Text truncated - open the document above for the full version.

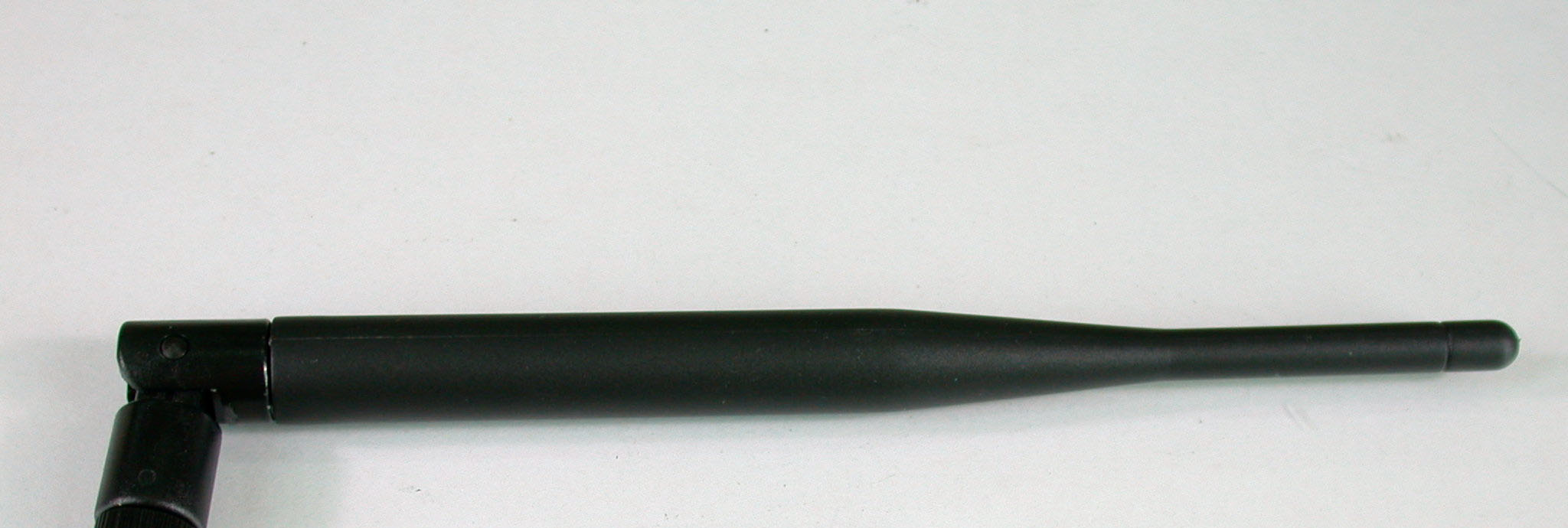

Delta Networks, Inc. WLAN PCMCIA Card LM-WP200 MA401 rev. B Delta Networks, Inc. DNI 252, Shang Ying Road, Kuei Shan Taoyuan Shien, Taiwan, R.O.C. Tel: +886 2 8797 2088 Fax: +886 2 2659 1462 Delta Networks, Inc. Installation Guide for the RF Module This module has been authorized under FCC ID: PD5LMWP200A under mobile module approval category. The integrator of this module has to be aware that this module can only be used in mobile host equipment such as Access Point or Router. The host equipment should provide an internal mini-pci interface for the main board of this module. Also the housing of the host equipment should provide an antenna socket for the installation of the filed antenna. The folded part of these antennas has to be fixed with the housing of the host equipment, which makes the end users impossible to remove the antenna unless destroy the housing. The photo of this antenna is shown below, also the folded part of each antenna type has been indicated. Folded Part Delta Networks, Inc. Warning Statement Since this module is authorized under module approval category. So, the end product integrator should be aware that the antenna of the end product has to be kept at least 20cm away from the human being under normal use condition. Also the end product integrator has to label the end product to insure that the end user is aware of a wireless module has been installed. The statement could be “ This product contains an FCC certified wireless module with FCC ID: PD5LMWP200A” or similar wording.

Delta Network, Inc. 252,Shang Ying Road,Kuei San Taoyuan Shien 333, Taiwan, R.O.C. TEL.:+886+2-8797-2088 FAX:+886+2-2659-1462 Inform Letter Dear Customer, According to FCC’s regulation, the following Declaration of Conformity has to be made by a company located in USA. They are: This device has been confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number RF910731R02. And this compliance is subject to the following two conditions: (1) This device may not cause harmful interference and, (2) This device must accept any interference received, including interference that may cause undesired operation. This declaration can be a separate sheet and be sure that the following message will be also included in this declaration: 1) Product name, model name and trade name. 2) Company name, and address of the one who is responsible for this declaration. 3) Name, title, telephone and fax number as well as the signature of the contact person. Thanks for your attention.

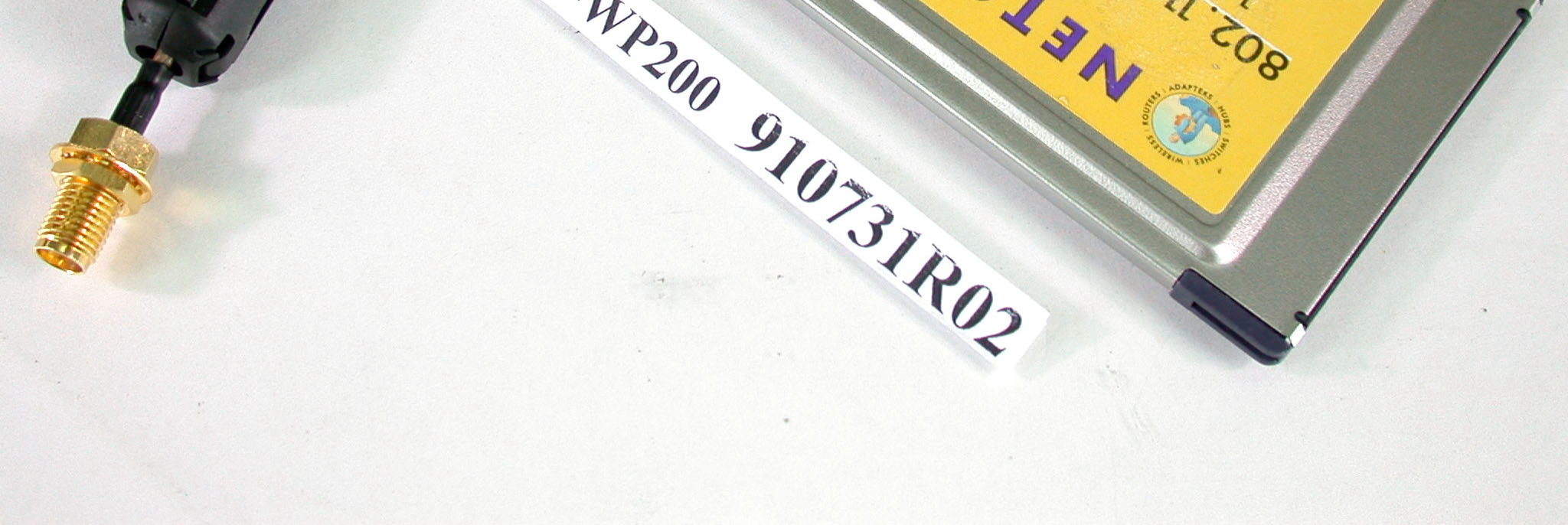

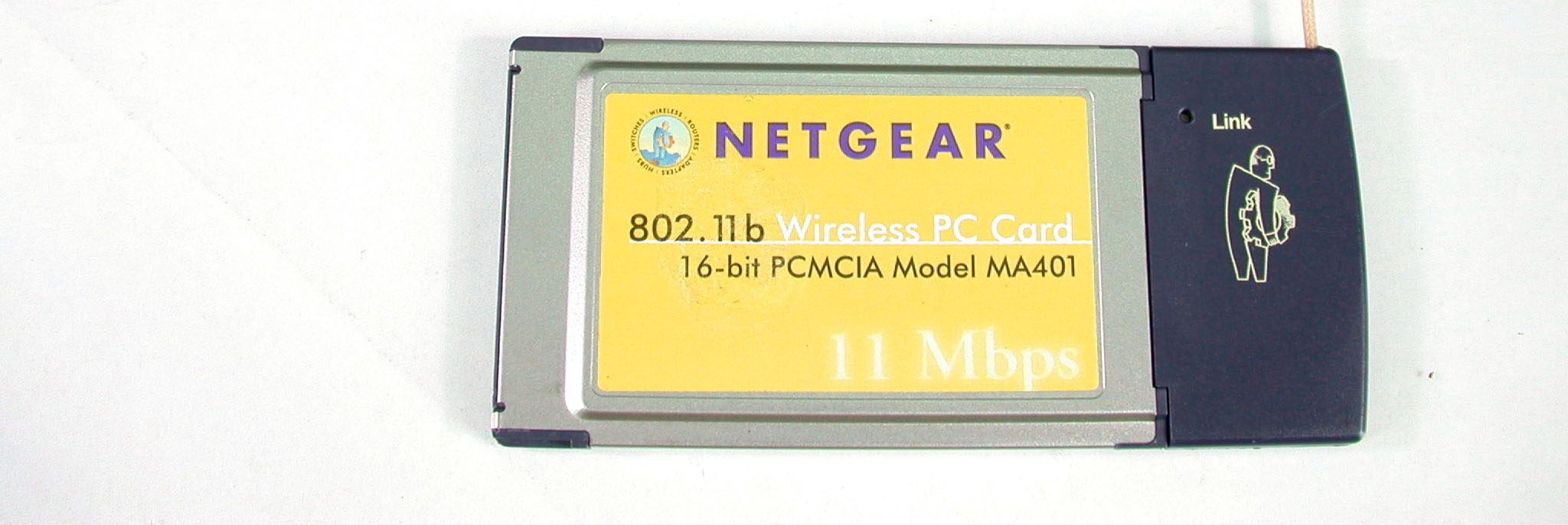

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

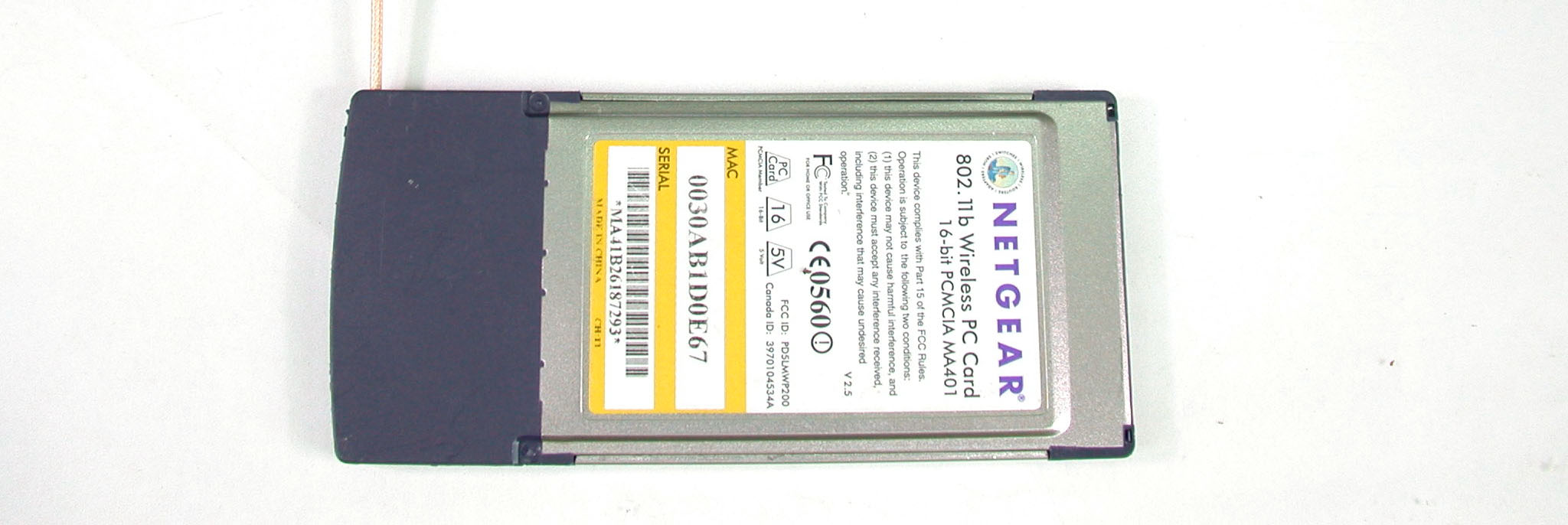

LABEL LOCATION FOR FCC ID: PD5LMWP200A

Page 3 Page 4 Page 5

FCC ID: PD5LMWP200A ADT No.910731R02 Operational Description The transmitter of the EUT (WLAN PCMCIA Card) is powered by host equipment via a PCMCIA interface. The antenna is Dipole antenna, and the antenna connector type is Reversed SMA. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This project is seeking the authorization of limited module approval specific to the mobile device such as Access Point and Router. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: PD5LMWP200A ADT No.: 910731R02 FCC TEST REPORT REPORT NO.: RF910731R02 MODEL NO.: LM-WP200 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:Delta Networks, Inc. ADDRESS:252, Shang Ying Road, Kuei San Taoyuan Shien, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: PD5LMWP200A ADT No.: 910731R02 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: PD5LMWP200A ADT No.: 910731R02 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: PD5LMWP200A ADT No.: 910731R02 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5dBi or 3.16 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241224.662.49 6243724.662.49 11246225.702.54 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 20cm separation distance with the antenna.

FCC ID: PD5LMWP200A Report No.: RF910731R021Issued: August 3, 2002 FCC TEST REPORT REPORT NO.: RF910731R02 MODEL NO.: LM-WP200 RECEIVED: July 31, 2002 TESTED: June 11 ~ August 2, 2002 APPLICANT:Delta Networks, Inc. ADDRESS:252, Shang Ying Road, Kuei San Taoyuan Shien, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 49 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: PD5LMWP200A Report No.: RF910731R022Issued: August 3, 2002 Table of Contents 1CERTIFICATION...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 3GENERAL INFORMATION............................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...............................7 3.4DESCRIPTION OF SUPPORT UNITS..........................................................8 4TEST TYPES AND RESULTS.......................................................................9 4.1CONDUCTED EMISSION MEASUREMENT................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..............................9 4.1.2TEST INSTRUMENTS..................................................................................9 4.1.3TEST PROCEDURES.................................................................................10 4.1.4DEVIATION FROM TEST STANDARD.......................................................10 4.1.5TEST SETUP..............................................................................................11 4.1.6EUT OPERATING CONDITIONS................................................................12 4.1.7TEST RESULTS..........................................................................................13 4.2RADIATED EMISSION MEASUREMENT...................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................19 4.2.2TEST INSTRUMENTS................................................................................20 4.2.3TEST PROCEDURES.................................................................................21 4.2.4DEVIATION FROM TEST STANDARD.......................................................21 4.2.5TEST SETUP..............................................................................................22 4.2.6EUT OPERATING CONDITIONS................................................................22 4.2.7TEST RESULTS..........................................................................................23 4.36dB BANDWIDTH MEASUREMENT...........................................................28 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................28 4.3.2TEST INSTRUMENTS................................................................................28 4.3.3TEST PROCEDURE...................................................................................29 4.3.4DEVIATION FROM TEST STANDARD.......................................................29 4.3.5TEST SETUP..............................................................................................29 4.3.6EUT OPERATING CONDITIONS................................................................29 4.3.7TEST RESULTS..........................................................................................30 4.4MAXIMUM PEAK OUTPUT POWER..........................................................33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........33 4.4.2TEST INSTRUMENTS................................................................................33 FCC ID: PD5LMWP200A Report No.: RF910731R023Issued: August 3, 2002 4.4.3TEST PROCEDURES.................................................................................34 4.4.4DEVIATION FROM TEST STANDARD.......................................................34 4.4.5TEST SETUP..............................................................................................34 4.4.6EUT OPERATING CONDITIONS................................................................34 4.4.7TEST RESULTS..........................................................................................35 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................36 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................36 4.5.2TEST INSTRUMENTS................................................................................36 4.5.3TEST PROCEDURE...................................................................................37 4.5.4DEVIATION FROM TEST STANDARD.......................................................37 4.5.5TEST SETUP..............................................................................................37 4.5.6EUT OPERATING CONDITIONS................................................................37 4.5.7TEST RESULTS..........................................................................................38 4.6BAND EDGES MEASUREMENT................................................................41 4.6.1LIMITS OF BAND EDGES MEASUREMENT..............................................41 4.6.2TEST INSTRUMENTS................................................................................41 4.6.3TEST PROCEDURE...................................................................................41 4.…

Text truncated - open the document above for the full version.

FCC ID: PD5LMWP200A Report No.: RF910731R0245Issued: August 3, 2002 6 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: PD5LMWP200A Report No.: RF910731R0246Issued: August 3, 2002 FCC ID: PD5LMWP200A Report No.: RF910731R0247Issued: August 3, 2002 RADIATED EMISSION TEST FCC ID: PD5LMWP200A Report No.: RF910731R0248Issued: August 3, 2002
