PD5LMWP210RBWireless LAN Module

Wireless PCMCIA card Installation Guide For OEM integrator Federal Communications Comm ission (FCC) Compliance Notice: Radio Frequency Notice This device, Wireless PCMCIA Card (LM-WP210RB), must be installed and used in strict accordance with the manufacture’s instructions as described in the user documentation that comes with the product. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna, (2) Increase the separation between the equipment and receiver, (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected, (4) Consult the dealer or an experienced radio/TV technician for help. Wireless PCMCIA card iii Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. CAUTION: This device is intended only for OEM integrators under the following conditions: 1. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna (installed to end product) shall not be less than 20 cm (8 inches) during normal operation. 2. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter As long as the 2 conditions above are met, further transmitter testing will not be required. Howe ver, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emission, PC peripheral requirements, etc.). Additional Information that Must be Provided to OEM Integrators: The end user should NOT be provided any instructions on how to remove or install the device. Wireless PCMCIA card iv IMPORTANT NOTE. 1) In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. 2) To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter." End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example access points, routers, wireless ASDL modems, and similar equipment). The final end product must be labeled in a visible area with the following: "Contains TX FCC ID: PD5LMWP210RB Technical Support DELTA PRODUCTS CORPORATION 5105 Davis Dr. y P.O. Box 12173 Research Triangle Park, NC 27709 Internet: http://www.deltaww.com Tel: 919-767-3905 Fax: 919-767-2405 E-mail: [email protected] Wireless PCMCIA card v TABLE OF CONTENT Introduction 1 Driver Installation 2 Install Driver Under Windows XP 2 Install Driver Under Windows 98 6 Install Driver Under Windows ME 10 Install Driver Under Windows 2000 12 Install Driver Under Windows CE 18 Configure the Configuration Utility 21 Wireless PCMCIA card 1 Introduction The Wireless PC card helps you create a wireless network for sharing your broadband cable or DLS internet access among multiple PCs in and around your home of office. It is designed for notebook computers running Microsoft Windows 98, 2000, NT, Millennium and XP. It is 16-bit PCMCIA and 32-bit CardBus compatible and works in any available PCMCIA or CardBus slot. Its auto-sensing capability allows packet transfer in 11Mbps for maximum throughput, or speed reduction to the lower 1Mbps speed for distance or working in a noisy environment. Features ƒ 11 Mbps High-Speed Transfer Rate ƒ Interoperable with IEEE 802.11b(DSSS) 2.4GHz-compliant Equipment ƒ Plug-and Play Operation Provides Easy Setup ƒ Utilizes Intersil Prism2.5 chip sets ƒ Advanced Power Management Features Conserve Valuable Notebook PC Battery Life ƒ Direct Sequence Spread Spectrum Compatible to Prevent Lost Connections ƒ Rugged Metal Design with Integrated Antenna ƒ Wired Equivalent Privacy (WEP) 64/128-bit data encryption Driver Supports Windows 98, Millennium, NT v.4, 2000 and XP Wireless PCMCIA card 2 Driver Installation Install Driver Under Windows XP 1. Connect the Wireless PC card into your Notebook PC. Windows XP will automatically recognize a new Wireless 802.11b PCMCIA Card 2.5 . Select Install the software automatically [Recommended] and click the Next button to proceed. Wireless PCMCIA card 3 2. Windows will notify you that it has not passed Windows Logo testing to verify …

Text truncated - open the document above for the full version.

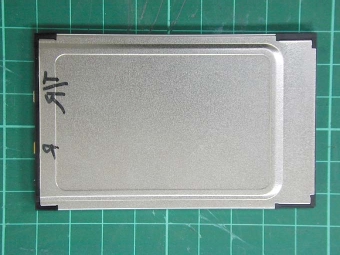

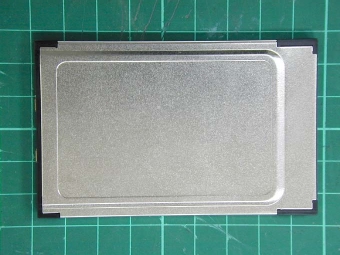

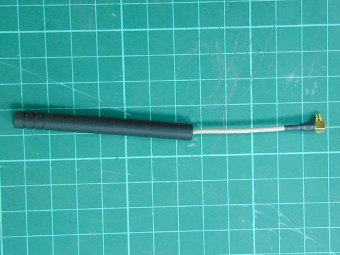

FCC ID: PD5LMWP210RB Date: Jan. 13, 2003 Modular Approval Request Letter Dear Sir, There’s a Wireless PCMCIA card that would like to have your authorization as a modular approval. The specific product as below, Wireless PCMCIA card, with its designed features and specified description, meets special requirements for full modular approval on FCC Public Notice DA 00-1407 by cross-reference list below. Company : Delta Networks, Inc. Model Name : Wireless PCMCIA card Model Number : LM-WP210RB FCC ID : PD5LMWP210RB Requirement of Public Notice DA00-1407 Reference to LM-WP210RB 1. The modular transmitter must have its own RF shielding. The module has its own RF shielding. Please see external photo.pdf 2. The modular transmitter must have buffered modulation/data inputs. The modular has buffered data inputs, it is in chip U5 (39VF010) of LM-WP210RB. Please see diagram.pdf 3. The modular transmitter must have its own power supply regulation. All power lines derived from the host device are regulated by U17 before energizing other circuits internal to the LM-WP210RB. Please see circuit.pdf 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The LM-WP210RB meets the FCC antenna requirements. Please see external photo.pdf 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. The LM-WP210RB was tested in a stand-alone configuration via a PCMCIA extender. Please see conducted set-up photo.pdf and spurious set-up photo.pdf 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The label position of LM-WP210RB is clearly indicated. Please see the label.pdf 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The LM-WP210RB is compliant with all applicable FCC rules. Detail instructions are given in the Users Manual. Please see Installation guide.pdf 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). The LM-WP210RB comply with applicable RF exposure requirements. Please see RF safety evaluation. pdf Yours sincerely, Elton Chen Supervisor Intertek Testing Service Taiwan Ltd.



















FCC ID Label Location FCC ID: PD5LMWP210RB 63.00 mm 39.50 mm













Intertek Testing Services ETL SEMKO FCC ID. : PD5LMWP210RB Report No.: EME-021514 Page 1 of 7 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : EME-021514 Model No. : LM-WP210RB Issued Date : Jan. 10, 2003 Applicant : DELTA NETWORKS, INC. 252, Shang Ying Road, Kuei San Taoyuan Hsien 333, Taiwan, R.O.C. Test By : Intertek Testing Services Taiwan Ltd. No. 11, Ko-Tze-Nan Chia-Tung Li, Shiang-Shan District, Hsinchu, Taiwan, R.O.C. This test report consists of 7 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of ITS Laboratory. The test result in this report only applies to the tested sample. Jerry Liu Project Engineer Reviewed By Elton Chen Intertek Testing Services ETL SEMKO FCC ID. : PD5LMWP210RB Report No.: EME-021514 Page 2 of 7 Table of Contents Summary of Tests ............................................................................................................. 3 1. Introduction .................................................................................................................. 4 2. RF Exposure Limit ....................................................................................................... 5 3. RF Exposure calculations ............................................................................................. 6 Test Condition: Single antenna......................................................................................... 6 Test Condition: A set of two antennas.............................................................................. 7 Intertek Testing Services ETL SEMKO FCC ID. : PD5LMWP210RB Report No.: EME-021514 Page 3 of 7 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997/ IEEE C95.1-1999 Wireless PCMCIA card-Model: LM-WP210RB FCC ID: PD5LMWP210RB Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Complies Intertek Testing Services ETL SEMKO FCC ID. : PD5LMWP210RB Report No.: EME-021514 Page 4 of 7 1. Introduction The EUT operates in the 2.4GHz ISM band. The EUT (antenna included) is compliant with modular approval and the normal operation distance (after installing in other device, such as router or access point), 20cm from the human body; therefore, the EUT is defined as a Mobile Device. The EUT can be equipped with two kinds of antenna, the two combinations are listed as below: Type of EUT Definition in this report Single antenna LM-WP210RB (with antenna A) A set of two antennas LM-WP210RB (with antenna B) The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited distance from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter, therefore, the user must maintain a minimum distance of 20 cm from the device at all time. Intertek Testing Services ETL SEMKO FCC ID. : PD5LMWP210RB Report No.: EME-021514 Page 5 of 7 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz Intertek Testing Services ETL SEMKO FCC ID. : PD5LMWP210RB Report No.: EME-021514 Page 6 of 7 3. RF Exposure calculations From FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1mW/(cm*cm), where, (cm*cm) = square cm. The electric field generated for a 1mW/(cm*cm) exposure (S) is calculated as follows: S = E*E/Z where, S = Power density E = Electric field Z = Impedance so, 1mW/(cm*cm) = 10 W/(m*m) Z is 377 ohm of the impedance of free space, where E and H field are perpendicular. Thus the Electric field to produce a 1mW/(cm*cm) exposure is: E = (10 x 377) ½ = 61.4 V/m, which is equivalent to 1mW/(cm*cm) Test Condition: Single antenna Maximum conducted peak output power is 16.99 dBm and maximum antenna gain is 3 dBi. The maximum radiated output power resulted in 99.77 mW. Using the relationship between electric field E, effective radiated power in watts P, and distance in meters D, the corresponding distance D to produce a 1mW/(cm*cm) is calculated by the following expression: D = (P x 30) ½ /E = (99.77 x 10 x 30) ½ /61.4 = 2.817 cm where, P: maximum effective radiated power measured, 19.99 dBm (99.77 mW) E: electric field equivalent to 1mW/(cm*cm), 61.4 V/m The minimum distance by calculation and normal use distance were listed in the table as below: E.I.R.P. Calculated RF Exposure Allowable Minimum Separation Distance(cm) Normal Use Minimum RF Exposure Separation Distance(cm) dBm mW 19.99 99.77 2.817 20 The calculated Minimum allowable distance is very close to the antenna, and is far away from the normal use distance. Intertek Testing Services ETL SEMKO FCC ID. : PD5LMWP210RB Report No.: EME-021514 Page 7 of 7 Test Condition: A set of two antennas Maximum conducted peak output power is 16.99 dBm and maximum antenna gain is 2.4 dBi. The maximum radiated output power resulted in 86.896 mW. Using the relationship between electric field E, effective radiated power in watts P, and distance in meters D, the corresponding distance D to produce a 1mW/(cm*cm) is calculated by the following expression: D = (P x 30)…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA DateRevision Model Name==> 29761674XX A Engineer File name===> Schematic Engineering Specification LM-WP210RB-SERIES 06/15/2001(PCB ==> 2976167400) Description PCB NO.=====> Create WIRELESS LAN DRAWNDESIGNEDAPPROVEDFILE NAME SCHEMATICS OF LM-WP210RB-SERIES.DSN CHECKED Matk.Fan Badd regulator(PCB ==> 2976167401)Mark.Fan06/21/2001 c delta 748 VCO change U17 Mark.Fan04/08/2002 (PCB ==> 2976203900) (PCB ==> 2976203900) 4AESS-010031 A Delta Networks, Inc 5 5 4 4 3 3 2 2 1 1 DD CC BB AA ISL3873 PIN NUMBERS NOTED DIGI TAL ANAL OG NOTE:HRESET IS ACTIVE HIGH AND TIED HIGH INTERNALLY IN THE ISL3873 NO P OP NO POP EEPROM (U2,C1,AND R101) WHEN USING PARALLEL FLASH NO POP NO P OP 5MA NO POP R41,R23,R26,R27,R29 WHEN USING PARALLEL FLASH ISL3873 PIN NUMBERS NOTEDISL3873 PIN NUMBERS NOTE <Doc>C3 LM-WP210 A 24, 10 , 20 03 1746 Title SizeDocument NumberRev Date:Sheetof Z0204 MA16 Z0213 Z0205 Z0210 Z0207 MA17 Z0214 Z0212 Z0203 Z0216 Z0206 Z0209 MEM_CTRL[5..0] MEM_CTRL[5..0] Z0211 Z0208 Z0215 MA16 MA17 MA16 MD10 MA11 MEM_CTRL3 MEM_CTRL3 MA15 MA9 MA9 MD2 MA5 MA3 HA0 MEM_CTRL2 MEM_CTRL1 MA10 MD11 MD14 MEM_CTRL2 HA2 MA3 MA1 MA[17..1] MD10 HA1 MD7MD15 MD8 HA2 MEM_CTRL0 MA7 MA[17..1] MD0 MA5 HA1 HA6 MA10 MD0 MD3 MD2 MD15 MEM_CTRL1 MA10 MD1 MD1 MD7 MD5 MA2 MA1 MA14 MA8 MA2 MA9 MA7 MD0 MD2 HA5 MEM_CTRL3 MA15 MA14 MD3 MA3 MD1 MA8 MA5 HA3 MA1 HA0 MA7 MEM_CTRL2 MD9 MD5 MD7 MA2 MA11 MEM_CTRL0 MD5 MA11 MEM_CTRL5 MEM_CTRL5 MEM_CTRL1 MA14 MD3 MA8 MA15 HA7 Z0219 MA12 MD12 MA12 MA12 MD[15..0] MD[15..0] MD14 MD11 MD9 MD12 MD8 HA4 MEM_CTRL4 MA4 MD4 MEM_CTRL4 HA8 MD4 MD4 HA7 HA6 MA4 HA4 HA[9..0] MA4 HA5 HA3 HA9 MD6 MA13 MD6 MA6 MA13 MA13 MA6 MA6 MD6 MD13 MD13 HA9 HA8 XTAL_OUT Z0220 HC5 HC6 HC1 HC5 HC9 HC8 HC0 HC0 HC9 HC4 HC1 HC11 HC7 HC8 HC4 HC10 HC2 HC6 HC3 HC[11..0] HC7 HC3 HC2 HC10 HC11 Z0201 Z0221 Z021 8 HD13 HD8 HD9 HD8 HD14 HD2 HD[15..0] HD10 HD11 HD4 HD7 HD9 HD7 HD3 HD6 HD11 HD5 HD10 HD12 HD13 HD1 HD4 HD3 HD6 HD1 HD15 HD0 HD15 HD5 HD12 HD0 HD14 HD2 Z0202 XTAL_IN VREF RXQ+ RXI+ RXI- T/R_SW IF_DET TX_DET RXQ- TXQ+ TXQ- TXI+ SCLK_RF_IF T/R_SW* RX_IF_AGC RX_RF_AGC TX_IF_AGC CAL_EN RADIO_PE LE_IF LE_RF PE1 PE2 SD_RF_IF PA_PE ANTSEL ANTSEL* TXI- 44MHZ_REF 44MHZ_REF LED1 +3.3V VCCS +3.3V +3.3VVCCS VCCS VCCS VCCS +3.3V VCCS VCCS VCCS VCCS+5V +5V R28 619 C17 0.1UF C81 0.1UF C138 220P F C15 270PF C102 10UF TP7 C31 0.1UF TP8 C25 0.01UF C34 10UF TP9 R32 12.1K R103 NC,0 TP10 C26 0.1UF R102 NC,0 TP12 C30 0.1UF R101 NC,47K TP13 C32 0.1UF U17MIC5209 23 14 5678 VINVOUT ENBYP 5678 TP11 TP6 TP2 C7 0.1UF C1 NC,0.1UF TP4 C122 0.1UF C60.1UF TP5 R5 47K C180.1UF TP1 R2 560 U3 32.768KHZ 14 23 14 23 TP3 R29 10K R3319.1K R23 10K R3419.1K R27 10K C11 0.1UF C21 0.1UF R26 10K L3 BLM21P300SPT K4 C20 0.1UF R41 10K L17 BLM21P300SPT K1 C2 0.1UF R11 10K R14 560 K2 C5 0.1UF U1 EM128L16B E4 F4 F3 G4 G3 H5 H4 H3 H2 D4 C4 C3 B4 B3 A5 A4 A3 G1 F1 F2 E2 D2 C2 C1 B1 G6 F6 F5 E5 D5 C5 C6 D1E6 E1D6 B5 A2 G5 A1 B2 H6 H1 G2 E3 D3 A6 B6 A16 A15 A14 A13 A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 I/O15 I/O14 I/O13 I/O12 I/O11 I/O10 I/O9 I/O8 I/O7 I/O6 I/O5 I/O4 I/O3 I/O2 I/O1 VSSVSS VCCVCC CE* OE* WE* LB* UB* NC NC NC NC NC NC I/O0 R110K K3 C4 0.1UF P1 PCMCIA/68P 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 GND1 D3 D4 D5 D6 D7 CE1* A10 OE* A11 A9 A8 A13 A14 WE*/PGM* IREQ* VCC1 VPP1 A16 A15 A12 A7 A6 A5 A4 A3 A2 A1 A0 D0 D1 D2 IOIS16* GND2 GND3 CD1* D11 D12 D13 D14 D15 CE2* RFSH IORD* IOWR* A17 A18 A19 A20 A21 VCC2 VPP2 A22 A23 A24 A25 RFU RESET WAIT* INPACK* REG* SPKR* STSCHG* D8 D9 D10 CD2* GND4 R3 10M C3 0.1UF U2 NC,AT24C08A 8 7 6 5 1 2 3 4 VCC WP SCL SDA A0 A1 A2 GND R4 220 K C10 0.1UF U5 SST39VF010 10 11 5 4 12 1 31 2 3 13 14 15 16 17 18 19 20 30 32 7 24 29 28 27 26 25 23 22 21 9 6 8 A16 A15 A14 A13 A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 CE* OE* WE* VSS DQ7 DQ6 DQ5 DQ4 DQ3 DQ2 DQ1 DQ0 NC NC VDD C37 10UF C8 0.1UF U4 ISL3873 A13 B12 C12 A15 D13 B14 E13 F15 F16 H15 A12 C9 C6 B8 C10 F14 F13 H16 C11 C8 D8 C7 A9 H13 H14 G15 D11 D16 B11 D10 B9 A10 E15 D9 G14 D14 B13 C16 B16 C14 A7 B7 D6 K13 P3 P2 T3 T1 R1 T15 P13 R13 C5 K1 J1 J2 G16 M14 E4 C2 R2 N5 R3 P14 R15 T16 P15 R16 N14 P16 C15 A16 B15 D12 A1 B2 K14K15P9P5M15M3L13K4G13E16E3E1D7C13A11A5N10P10T11T13N13N9 F2 G4 D1 E2 F4 C1 D3 D2 B3 A2 C3 B4 A3 D4 C4 A4 D5 B6 A6 N2 P1 N4 N3 N1 M1 M4 L2 L1 L4 L3 H3 G1 H4 G2 F1 K2 K3 H2 J4 J3 F3 P11 N12 R14 T14 R12 T12 R9 T9 R7 T7 T4 P6 T6 N15 L14 N16 R10 T10 P7 N6 P4 R5 R4 T5 N7 R6 L16 L15 J16 J15 J13 D15P8N8M13T8R11R8P12N11T2M16M2K16J14H1G3E14B10B5B1A14A8 HA9 HA8 HA7 HA6 HA5 HA4 HA3 HA2 HA1 HA0 HD15 HD14 HD13 HD12 HD11 HD10 HD9 HD8 HD7 HD6 HD5 HD4 HD3 HD2 HD1 HD0 HOE HREG HIORD HIOWR HCE1 HCE2 HINPACK HRDY/HIREQ HSTSCHG HWAIT HWE RESET DBG4 DBG3 DBG2 DBG1 DBG0 TESTMODE TCLKIN(CS)EEPROM PJ2(MISO)EEPROM PJ6(LED1) PJ0(SCLK)EEPROM PJ1(SDATA)EEPROM COMPRES1 COMPRES2 COMPCAP2 CLKOUT CLKIN XTALIN XTALOUT BBP_CLK COMPCAP1 NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC GNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDVSUBVSUBVSSAVSSAVSSAVSSA MA1 MA2 MA3 MA4 MA5 MA6 MA7 MA8 MA9 MA10 MA11 MA12 MA13 MA14 MA15 MA16 MA17 MA18 MA19 MD0 MD1 MD2 MD3 MD4 MD5 MD6 MD7 MD8 MD9 MD10 MD11 MD12 MD13 MD14 MD15 MOE* MWEL* MLBE* NVCS* RAMCS* MWEH_MA0* VREF IREF TXQ+ TXQ- TXI+ TXI- RXQ+ RXQ- RXI+ RXI- PK1(SYNTHCLK) PL7(TR_SW) PL3(TR_SW) RX_IF_AGC RX_RF_AGC TX_IF_AGC RX_IF_DET TX_AGC_IN PK7(CAL_EN) PJ7(RADIO_PE) PJ5(LE_IF) PK0(LE_RF) PJ4(PE1) PK4(PE2) PK2(SYNTHDATA) PK3(PA_PE) ANT_SEL ANT_SEL* PL5-USB+ PL6-USB- USB_DET SUPPLY/5V VDDAVDDAVDDAVDDAVDDAVDDAVDDA VDDVDDVDDVDDVDDVDDVDDVDDVDDVDDVDDVDDVDDVDD C13110PF R5710K C14 0.1UF R30 976 R200 NC,0 C9 10UF 5 5 4 4 3 3 2 2 1 1 DD CC BB AA NO POP L22 WHEN USING EPCOS FILTER NO P OP NOTE: CALCULATED FOR ICP=250UA <Doc>C3 LM-WP210 A 34, 10 , 20 03 1746 Title SizeDocument NumberRev Date:Sheetof Z0305 Z0306 Z0311 Z0308 Z0309 Z0303 Z0304 Z0302 Z0301 Z0317 Z0318 Z0316 Z0314 Z0313 Z0307 Z0323…

Text truncated - open the document above for the full version.

Intertek Testing Services ETL SEMKO FCC ID. : PD5LMWP210RB Report No.: EME-021514 Page 1 of 37 EMC TEST REPORT Report No. : EME-021514 Model No. : LM-WP210RB Issued Date : Jan. 10, 2003 Applicant : DELTA NETWORKS, INC. 252, Shang Ying Road, Kuei San Taoyuan Hsien 333, Taiwan, R.O.C. Test By : Intertek Testing Services Taiwan Ltd. No. 11, Ko-Tze-Nan Chia-Tung Li, Shiang-Shan District, Hsinchu, Taiwan, R.O.C. This test report consists of 37 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of ITS Laboratory. The test result in this report only applies to the tested sample. Jerry Liu Project Engineer Reviewed By Elton Chen Intertek Testing Services ETL SEMKO FCC ID. : PD5LMWP210RB Report No.: EME-021514 Page 2 of 37 Table of Contents Summary of Tests ............................................................................................................. 4 1. General information...................................................................................................... 5 1.1 Identification of the EUT........................................................................................ 5 1.2 Additional information about the EUT................................................................... 5 1.3 Antenna description ................................................................................................ 6 1.4 Peripherals equipment ............................................................................................ 6 2. Test specifications.........................................................................................................7 2.1 Test standard ........................................................................................................... 7 2.2 Operation mode ...................................................................................................... 7 2.4 Test equipment........................................................................................................ 8 3. Minimum 6dB Bandwidth test ..................................................................................... 9 3.1 Operating environment ........................................................................................... 9 3.2 Test setup & procedure ........................................................................................... 9 3.3 Measured data of Minimum 6dB Bandwidth test results ....................................... 9 4. Maximum Output Power test...................................................................................... 10 4.1 Operating environment ......................................................................................... 10 4.2 Test setup & procedure ......................................................................................... 10 4.3 Measured data of Maximum Output Power test results ....................................... 10 5. RF Antenna Conducted Spurious test......................................................................... 11 5.1 Operating environment ......................................................................................... 11 5.2 Test setup & procedure ......................................................................................... 11 5.3 Measured data of the highest RF Antenna Conducted Spurious test result.......... 11 6. Radiated Emission test ............................................................................................... 12 6.1 Operating environment ......................................................................................... 12 6.2 Test setup & procedure ......................................................................................... 12 6.3 Emission limits ..................................................................................................... 13 6.4 Radiated spurious emission test data .................................................................... 14 6.4.1 Measurement results: frequencies equal to or less than 1 GHz ......................... 14 6.4.2 Measurement results: frequency above 1GHz................................................... 20 7. Power Spectrum Density test...................................................................................... 32 7.1 Operating environment ......................................................................................... 32 7.2 Test setup & procedure ......................................................................................... 32 Intertek Testing Services ETL SEMKO FCC ID. : PD5LMWP210RB Report No.: EME-021514 Page 3 of 37 7.3 Measured data of Power Spectrum Density test results ....................................... 32 8. Emission on the band edge §FCC 15.247(C) ............................................................. 33 9. Power Line Conducted Emission test §FCC 15.207 .................................................. 34 9.1 Operating environment ......................................................................................... 34 9.2 Test setup & procedure ......................................................................................... 34 9.3 Power Line Conducted Emission test data ........................................................... 35 Intertek Testing Services ETL SEMKO FCC ID. : PD5LMWP210RB Report No.: EME-021514 Page 4 of 37 Summary of Tests Wireless PCMCIA card-Model: LM-WP210RB FCC ID: PD5LMWP210RB Test Reference Results Minimum 6dB Bandwidth test 15.247(a)(2) Complies Maximum Output Power test 15.247(b) Complies RF Antenna Conducted Spurious test 15.247(c) Complies Radiated Spurious Emission test 15.205, 15.209 Complies Power Spectrum Density test 15.247(d) Complies Power Line Conducted Emission test 15.207 Complies Intertek Testing Services ETL SEMKO FCC ID. : PD5LMWP210RB Report No.: EME-021514 Page 5 of 37 1. General information 1.1 Identification of…

Text truncated - open the document above for the full version.
