PD5LMWU300WLAN 802.11b USB Adapter

Quick User Guide INSTALLATION PROCEDURES Installing the Driver Under Windows 98 1.Plug the Wireless USB Adapter into the USB port of a notebook or desktop PC. 2.The Add New Hardware Wizard indicates that Windows have recognized a new hardware device. 3.Instruct the Wizard to search for the best driver for your device. 4.Insert the Driver CD into your CD-ROM drive. 5.Specify the location of the drivers. 6.Click the Next button when Windows is ready to install the driver. 7.A dialog will inform you that the installation is complete. Installing the Driver Under Windows 2000 1.Plug the Wireless USB Adapter into the USB port of a notebook or desktop PC. 2.The Found New Hardware Wizard indicates that Windows have recognized a new hardware device. 3.Instruct the Wizard to search for a suitable driver for your device. 4.Insert the Driver CD into your CD-ROM drive. 5.Specify the location of the drivers. 6.Click the Next button when Windows have located the driver. 7.Windows may display the message "Digital Signature Not Found". Ignore it by clicking "Yes". 8.A dialog will inform you that the installation is complete. Installing the Driver Under Windows ME 1.Plug the Wireless USB Adapter into the USB port of a notebook or desktop PC. 2.The Add New Hardware Wizard indicates that Windows have recognized a new hardware device. 3.Instruct the Wizard to search for the location of the driver for your device. 4.Insert the Driver CD into your CD-ROM drive. 5.Specify the location of the drivers. 6.Click the Next button when Windows is ready to install the driver. 7.A dialog will inform you that the installation is complete. MW110 V00WU CONFIGURATION AND MONITOR How to Install the Configuration and Monitor Utility 1.Find the setup.exe program in the "Config_Utility" folder on the installation CD. 2.Execute the program setup.exe to do the installation. 3.Run the Configuration and Monitor Utility under Start -> Program -> Wireless 802.11 USB Utility -> Configuration & Monitor Utility. Using the Configuration and Monitor Utility The configuration and monitor utility appears as an icon on the system tray of Windows every time the Wireless USB Adapter is running. 1.Double-click the icon on the system tray of Windows. 2.The Configuration and Monitor screen3.The Statistics screen is shown is shown below.below. 4.The Site Survey screen is shown below.5.The Encryption screen is shown below. 6.The Advanced screen is shown 7.The Version screen is shown below.below. How to Uninstall the Configuration and Monitor Application Go to Start -> Programs -> Wireless 802.11 USB -> Uninstall. How to do firmware upgrage 1.Go to Start -> Programs -> Wireless 802.11 USB -> Firmware Upgrade Utility 2.The Window of Firmware Upgrade Utility will appear. 3.Click the Upgrade button. An open file dialog appears. Open the ***.rom file which contains the new firmware. 4.Once the upgrade procedure has been completed successfully, the device will be working with the new firmware. FIRMWARE UPGRADE UTILITY 23

SQA, DELTA NETWORK, INC. Inform Letter Dear Customer, According to FCC’s regulation, the following Declaration of Conformity has to be made by a company located in USA. They are: This device has been confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number RF910320R04. And this compliance is subject to the following two conditions: This device may not cause harmful interference and, This device must accept any interference received, including interference that may cause undesired operation. This declaration can be a separate sheet and be sure that the following message will be also included in this declaration: Product name, model name and trade name. Company name, and address of the one who is responsible for this declaration. Name, title, telephone and fax number as well as the signature of the contact person. Thanks for your attention.

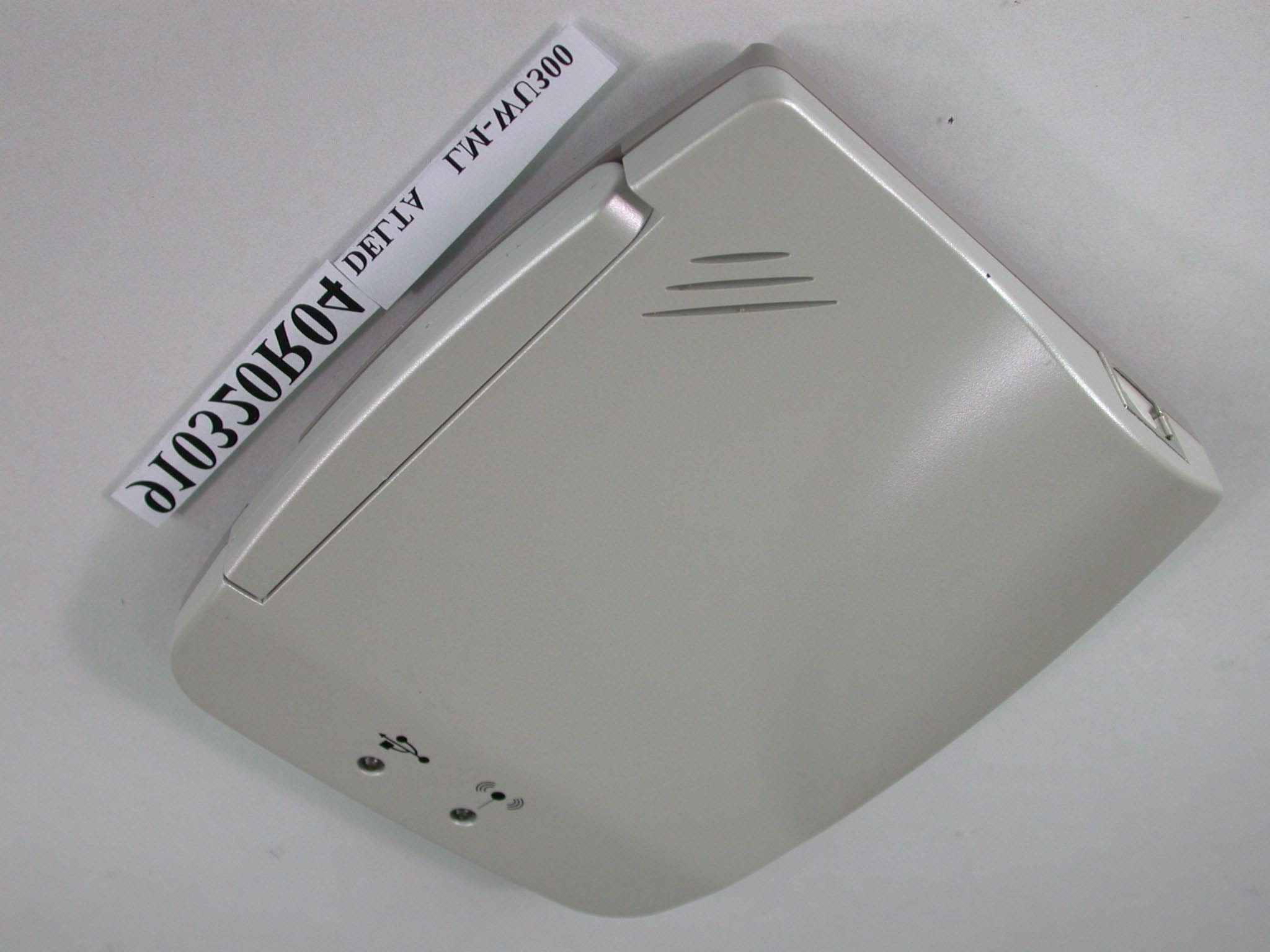

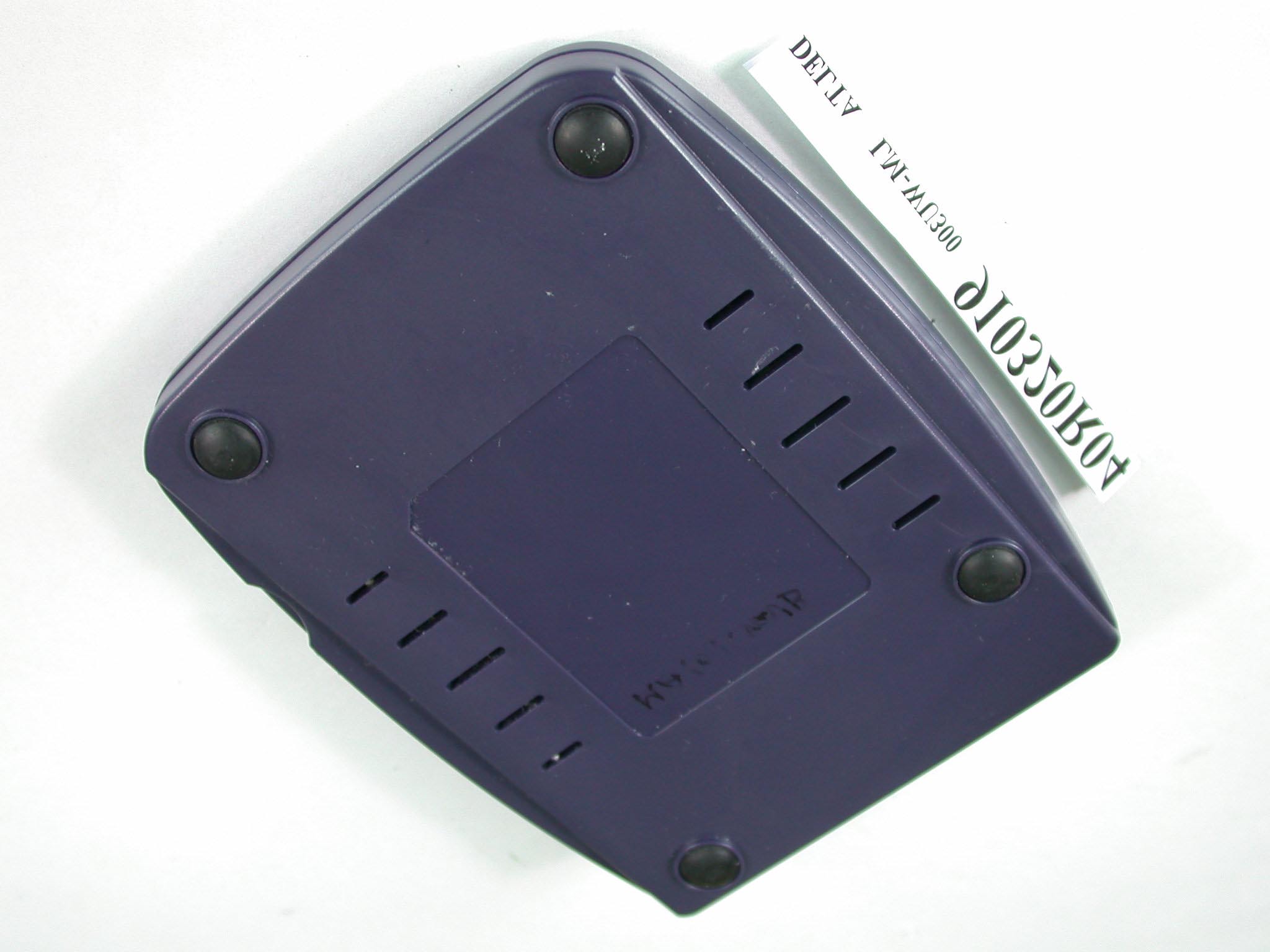

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 6 Page 7

FCC ID Label Location

3

Page 3 Page 4 Page 5

FCC ID: PD5LMWU300 ADT No.910320R04 Operational Description The transmitter of the EUT (Wireless 802.11b USB Adapter) is powered by host equipment from USB port. The antenna is Dipole antenna, and there is no antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: PD5LMWU300 Report No.: RF910320R04 1 Issued: March 25, 2002 FCC TEST REPORT REPORT NO.: RF910320R04 MODEL NO.: LM-WU300 OEM MODEL NO.: MA101 rev.B RECEIVED: March 20, 2002 TESTED: March 21, 2002 APPLICANT:DELTA NETWORKS INC ADDRESS:252,Shang Ying Road,Kuei San Taoyuan Shien 333, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 48 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: PD5LMWU300 Report No.: RF910320R04 2 Issued: March 25, 2002 Table of Contents 1CERTIFICATION........................................................................................... 4 2SUMMARY OF TEST RESULTS .................................................................. 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ............................................................. 6 3.2DESCRIPTION OF TEST MODES ............................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .............................. 7 3.4DESCRIPTION OF SUPPORT UNITS ......................................................... 8 4TEST TYPES AND RESULTS ...................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................................... 9 4.1.2TEST INSTRUMENTS ...........................................................................................................9 4.1.3TEST PROCEDURES .......................................................................................................... 10 4.1.4TEST SETUP ....................................................................................................................... 10 4.1.5EUT OPERATING CONDITIONS......................................................................................... 11 4.1.6TEST RESULTS ................................................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 18 4.2.2TEST INSTRUMENTS ......................................................................................................... 19 4.2.3TEST PROCEDURES .......................................................................................................... 20 4.2.4TEST SETUP ....................................................................................................................... 21 4.2.5EUT OPERATING CONDITIONS......................................................................................... 21 4.2.6TEST RESULTS ................................................................................................................... 22 4.36dB BANDWIDTH MEASUREMENT .......................................................... 26 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................ 26 4.3.2TEST INSTRUMENTS ......................................................................................................... 26 4.3.3TEST PROCEDURE ............................................................................................................27 4.3.4TEST SETUP ....................................................................................................................... 27 4.3.5EUT OPERATING CONDITIONS......................................................................................... 27 4.3.6TEST RESULTS ................................................................................................................... 28 4.4MAXIMUM PEAK OUTPUT POWER.......................................................... 32 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 32 4.4.2INSTRUMENTS.................................................................................................................... 32 4.4.3TEST PROCEDURES .......................................................................................................... 33 4.4.4TEST SETUP ....................................................................................................................... 33 4.4.5EUT OPERATING CONDITIONS......................................................................................... 33 4.4.6TEST RESULTS ................................................................................................................... 34 4.5POWER SPECTRAL DENSITY MEASUREMENT ..................................... 35 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ........................................... 35 4.5.2TEST INSTRUMENTS ......................................................................................................... 35 4.5.3TEST PROCEDURE ............................................................................................................36 4.5.4TEST SETUP ....................................................................................................................... 36 4.5.5EUT OPERATING CONDITION ........................................................................................... 36 4.5.6TEST RESULTS ................................................................................................................... 37 FCC ID: PD5LMWU300 Report No.: RF910320R04 3 Issued: March 25, 2002 4.6BAN…

Text truncated - open the document above for the full version.

FCC ID: PD5LMWU300 Report No.: RF910320R04 46 Issued: March 25, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: PD5LMWU300 Report No.: RF910320R04 47 Issued: March 25, 2002 RADIATED EMISSION TEST
