Preliminary GemWave™ Smarto L122 EAS System User Guide Version 3.0 Copyright © TAGSYS, November 2001 FCC Compliance Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and the receiver • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technical for help Preliminary Specific Warning Notice All information herein is either public information or is the property of, and owned solely by, TAGSYS, who shall have and keep the sole right to file patents or applications or any other kind of intellectual property protection in connection with such information. Nothing herein shall be construed as implying or granting to you any rights by licence, grant or otherwise, under any intellectual and/or industrial property rights of or concerning any of TAGSYS' information. This document can be used for informational, non-commercial, internal and personal use only provided that: @ the copyright notice below, the confidentiality and proprietary legend and this full warning notice appear in all copies @ this document shall not be posted on any network computer or broadcast in any media, and no modification of any part of this document shall be made Use for any other purpose is expressly prohibited and may result in severe civil and criminal liabilities. The information contained in this document is provided "AS IS "without any warranty of any kind. Unless otherwise expressly agreed in writing, TAGSYS makes no warranty as to the value or accuracy of information contained herein. The document could include technical inaccuracies or typographical errors. Changes are periodically added to the information herein. Furthermore, TAGSYS reserves the right to make any change or improvement in the specifications data, information, and the like described herein, at any time. TAGSYS hereby disclaims all warranties and conditions with regard to the information contained herein, including all implied warranties of merchantability, fitness for a particular purpose, title and non-infringement. In no event shall TAGSYS be liable, whether in contract, tort or otherwise, for any indirect, special or consequential damages or any damages whatsoever including, but not limited to, damages resulting from loss of use, data, profits, revenues, or customers, arising out of or in connection with the use or performance of information contained in this document. TAGSYS does not and shall not warrant that this product/system/equipment will be resistant to all possible attacks, and shall not incur, and disclaims, any liability in this respect. Even if each product is compliant with current security standards in force on the date of their design, security mechanisms' resistance necessarily evolves according to the state-of-the-art in security and notably under the emergence of new attacks. Under no circumstances shall TAGSYS be held liable for any third party actions, and in particular in case of any successful attack against systems or equipment incorporating TAGSYS products. TAGSYS disclaims any liability with respect to security for direct, indirect, incidental or consequential damages that result from any use of its products. It is further stressed that independent testing and verification by the person using the product is particularly encouraged, especially in any application in which defective, incorrect, or insecure functioning could result in damage to persons or property, denial of service, or loss of privacy. Copyright © TAGSYS Smart Labels and Couplers are patents protected by TAGSYS and are produced by TAGSYS. MS-DOS® and Windows® are registered trademarks of Microsoft Corporation. Version 2.0 © TAGSYS 2001Smarto L122i Preliminary Contents WELCOME................................................................................................................................................1 Assumptions.........................................................................................................1 About this manual................................................................................................2 Getting help.........................................................................................................2 Quality assurance.................................................................................................2 Warranty..............................................................................................................3 1INTRODUCING THE SMARTO L122 EAS SYSTEM.................................................................................5 1.1Introduction................................................................................................5 1.2Anti-theft system overview.........................................................................6 Smart labels................................................................................................6 1.3Smarto L122 EAS system overview............................................................8 1.4Smarto L122 components...........................................................................8…

Text truncated - open the document above for the full version.

PO Box 99, Rundle Mall SA 5000, Ground Floor, 212 Pirie Street, Adelaide SA 5000, AUSTRALIA Tel +618-8100 8300 Fax +618-8232 3720 - Internet : http://www.tagsys.net Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21045 6 th June 2002 Reference: FCC ID: PDEMEDIOL122EAS Subject: Request for confidentiality for FCC Certification Application – TAGSYS Australia Pty Ltd - Low power transmitter (Electronic Article Surveillance System - Smarto L122 EAS) Pursuant to Rule 47 CFR, Chapter 1, Section 0.459, TAGSYS Australia Pty Ltd, requests that the following detailed technical data regarding the Smarto L122 EAS (Electronic Article Surveillance) System, be classified and deemed confidential by the Federal Communications Commission (FCC) and as such be withheld from public inspection. Pursuant to 47 CFR, Chapter 1, Section 0.457, the exhibits contain details of trade secrets and technical data that is not made available to competitors and the general public. This information is treated in a confidential manner by TAGSYS Australia Pty Ltd. and guarded from disclosure to our competitors. The exhibits outlined are not routinely made available to TAGSYS Australia Pty Ltd staff, with such access granted only to those specifically involved with this particular project. All employees treat this technical documentation in a confidential manner. The manufacture of this product has taken place after an extensive research and development process that has seen the company invest a considerable amount of time and money. The time and effort taken has enabled the product to meet the specific demands of the competitive market for which it is intended and it would be therefore detrimental to allow competitors easy access to design and development details. Apart from a limited number of employees, the information has previously only been disclosed to the Test House responsible for conducting testing and authorized to act as our agent during the Certification process. Page 2 of 2 PO Box 99, Rundle Mall SA 5000, Ground Floor, 212 Pirie Street, Adelaide SA 5000, AUSTRALIA Tel +618-8100 8300 Fax +618-8232 3720 - Internet : http://www.tagsys.net The following information submitted as part of the FCC certification process should be held confidential: Exhibit - PCB Layouts 47 CFR 2.1033(c)10 Complete technical PCB Layouts Exhibit – Schematics 47 CFR 2.1033(c)10 Complete technical schematic circuit diagrams Exhibit – Block Diagram 47 CFR 2.1033 Detailed technical RF block diagram Sincerely Yours, Alfio Grasso Technical Manager TAGSYS Australia Pty Ltd

FCC ID: PDEMEDIOL122EAS Response to TCB findings 1 Hi Donna, We have identified these issues following our review: 1. Please provide a description of the product as tested and deployed. We need a complete description of the cables attached to the transmitter (length, type, shielded/unshielded). We note that the manual says that two antennas are always used, but that the test configuration only includes one antenna. Please address this discrepancy. Response - The EUT was setup as floor standing equipment with one pedestal connected to the Electronic Unit. Radiated emission testing was performed without an RF 12 - 14 MHz Isolator. (Refer to Appendix B - Test setup photographs and Appendix H - Technical manual) CAT-5 cable, standard. Cable length is 8.5 m and is equivalent to half wavelength for 13.56 MHz. The cable is made of quad twisted pairs 100 ohm each -two twisted pairs in parallel (=50 ohm impedance) is used to conduct RF transmit power to pedestal antennas via standard RJ45 plug. The cable is unshielded. Leakage - according to Belden specification is less than -65 dB @ 13.56 MHz. The rationale for testing the single unit is that each Pedestal (antenna) is an electrically independent unit, with its own electronics, power supply etc. we NEVER connect the Medio L122 (electronics box) to more than one pedestal (antenna). The Smarto L122 Product is the combination of one Medio L122 and one Pedestal. It is the Smarto Product we are seeking FCC certification of. This is how the product is sold. 2. 15.225 (b) requires that emissions appearing outside of the 13.553-13.567 band not exceed the 15.209 limits. Scaling the very low signal shown in the bandwidth photo up to the maximum peak level shown in test report of 96.1dBuV, it appears that the first few spurs of the fundamental outside of the band may exceed the limit. Please provide actual measured data for the first spurs outside the band on the high and low side. It may be to your benefit to acquire these readings at a 30 meter distance or to use the extrapolation factor allowed in 15.31 (f) (2). Response - In response to you query regarding out of band emissions not exceeding the 15.209 limits: Normal bandwidth was used for the frequency band 9 kHz – 1000 Hz, except the frequency band 13.52 - 13.6 MHz (outside the operating frequency) was tested with the resolution bandwidth of 1 kHz and video bandwidth of 100 kHz. Plot 6 was plotted with lower resolution bandwidth (1kHz). 3. Please supply 3 (external, internal & test setup) separate PDF files for the photos. Response – supplied. 4. The confidentiality request states that all photos shall be considered confidential. It is not permitted for the external and test setup photos to be confidential. Also internal photos can only be considered confidential if it is not possible to gain access to the interior or some form potting material is used. How is interior access achieved? Please supply a new confidentiality request. Response - We of course respect FCC's rules relating to this. People can get access to the product, and there is no potting used, so we accept that the confidentiality does not apply. 5. Grantee code PDE and FRN 0004073201 are still assigned to Gemplus. Response - I have contacted Bette Taube and she has indicated that the grantee code has now been assigned to TAGSYS. I have also checked this via the web page. 6. Please supply details of the antenna connector. Response - The antenna connector is SMB plug. This plug is mating with SMB socket on adaptor board located in the bottom of pedestal. The other side of adaptor board is holding the RJ45 socket. Best regards Barry C. Quinlan Certification Manager Curtis-Straus TCB

FCC ID: PDEMEDIOL122EAS Response to TCB findings 2 Hi Donna, All issues have been resolved with the exception of issue 2. There appears to be a problem with graph 6. The fundamental is significantly lower than result on page 9 of the grant. I have attached the FCC procedure for band edge measurements. Response - The fundamental measurement result on page 9 was correct 96.1 dBmV/m @ 3m test distance. Refer to graph 5, complete frequency range 0.009 - 30 MHz with normal bandwidths used. The limits used for graph 5 were not corrected (and the product passed by a margin of 3.9 dB). An extrapolation factor of 20 dB/decade was used instead of 40 dB/decade. Refer to attachment (graph 5 amended limits) with the corrected limits as per section 15.31(f)(2). An extrapolation factor of 40 dB/decade was used (by using the square of an inverse linear distance extrapolation factor). The replacement graph also lists two out-of- band emissions (one on each side of the fundamental) as well as the fundamental. Both out-of-band emissions were measured and found to be under the limits. The reason these out-of-band emissions were not originally listed on the graph was that they were over the (20 dB/decade) limits. Graph 6 was the zoom in around the fundamental frequency. The fundamental level appeared lower as the resolution bandwidth was reduced. This graph also had uncorrected limits. The reason that we supplied graph 6 was to show the out of band emissions around the fundamental not exceeding the limits. This graph is now not necessary as the out of band emissions (one on each side of the fundamental) were under the limits (refer to replacement graph -attachment graph 5 amended limits). I hope this information is sufficient. Please do not hesitate me if you require any further information. Barry

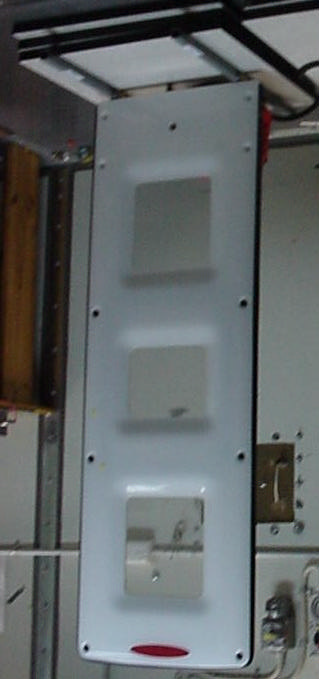

FCC ID:PDEMEDIOL122 EMC Technologies Report No. M020411FCC Page 1 of 2 5292 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15. This document shall not be reproduced, except in full. APPENDIX B2 TEST SAMPLE – EXTERNAL PHOTOS FCC ID:PDEMEDIOL122 EMC Technologies Report No. M020411FCC Page 2 of 2 5292 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15. This document shall not be reproduced, except in full. Test Sample – external identification

FCC ID:PDEMEDIOL122EAS EMC Technologies Report No. M020411FCC Page 1 of 3 5292 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15. This document shall not be reproduced, except in full. APPENDIX F TEST SAMPLE LABELING Label Material: Matte Silver Mylar material Labels manufactured by Adhesive Labels (Australia - Ph: +618 8347 3411 This device complies with part 15 of the FCC rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: MEDIOL122EAS GDT P/N: HWP106469 A0 S.N: ACxxxxxxxxx Made in Australia GREEN BLUE CABLES TO AERO L122 EAS PEDESTAL N 139 Medio L122 EAS This device complies with part 15 of the FCC rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: MEDIOL122EAS GDT P/N: HWP106469 A0 S.N: ACxxxxxxxxx Made in Australia GREEN BLUE CABLES TO AERO L122 EAS PEDESTAL N 139 Medio L122 EAS This device complies with part 15 of the FCC rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: MEDIOL122EAS GDT P/N: HWP106469 A0 S.N: ACxxxxxxxxx Made in Australia GREEN BLUE CABLES TO AERO L122 EAS PEDESTAL N 139 Medio L122 EAS Medio L122 EAS combines with AERO L122 EAS to form Smarto L122 EAS system Caution: No User Servicable Parts Inside, See Installation Instruction Before Connecting to Supply Medio L122 EAS combines with AERO L122 EAS to form Smarto L122 EAS system Caution: No User Servicable Parts Inside, See Installation Instruction Before Connecting to Supply Medio L122 EAS combines with AERO L122 EAS to form Smarto L122 EAS system Caution: No User Servicable Parts Inside, See Installation Instruction Before Connecting to Supply This device complies with part 15 of the FCC rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: MEDIOL122EAS GDT P/N: HWP106469 A0 S.N: ACxxxxxxxxx Made in Australia GREEN BLUE CABLES TO AERO L122 EAS PEDESTAL N 139 Medio L122 EAS Medio L122 EAS combines with AERO L122 EAS to form Smarto L122 EAS system Caution: No User Servicable Parts Inside, See Installation Instruction Before Connecting to Supply This device complies with part 15 of the FCC rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: MEDIOL122EAS GDT P/N: HWP106469 A0 S.N: ACxxxxxxxxx Made in Australia GREEN BLUE CABLES TO AERO L122 EAS PEDESTAL N 139 Medio L122 EAS Medio L122 EAS combines with AERO L122 EAS to form Smarto L122 EAS system Caution: No User Servicable Parts Inside, See Installation Instruction Before Connecting to Supply This device complies with part 15 of the FCC rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: MEDIOL122EAS GDT P/N: HWP106469 A0 S.N: ACxxxxxxxxx Made in Australia GREEN BLUE CABLES TO AERO L122 EAS PEDESTAL N 139 Medio L122 EAS Medio L122 EAS combines with AERO L122 EAS to form Smarto L122 EAS system Caution: No User Servicable Parts Inside, See Installation Instruction Before Connecting to Supply FCC ID:PDEMEDIOL122EAS EMC Technologies Report No. M020411FCC Page 2 of 3 (App F) B A D C E 3 4 1 2 F to third parties in any form what-ever is not permitted All rights strictly reserved. Reproduction or issue without written authority from Gemplus Tag Australia Pty. Ltd.. Gemplus Tag Australia Pty. Ltd. C 2001 A.C.N. 008 031 945 APPDCHK'DDRN Date Signature All dimensions in [mm] unless stated otherwise. Scale: --- Gemplus Tag Australia Pty. Ltd. reserves the right to change the above specifications without notice. Finish:Material:Title:Used on:Drg No.:File No.:SS Drg. for: Sheet size Sheet No.: 1 of 2 565031.AD MEDIO L122 EAS READER ASSEMBLY VARIOUS Model No.: SEE SEPARATE PARTS LIST. --- L122 EAS --- Do Not Scale! 563031AD1-b.dwg A4 Iss Change Date Name B 01/093 13.06.2001 KL A 01/061 05.05.2001 KL 13.06.2001 GDT P/N: HWP106469 A0 S.N.: ACxxxxxxxxx Made in Australia Medio L122 EAS Caution: No User Servicable Parts Inside, See Installation Instruction Before Connectingto Supply Medio L122 EAS combineswith Aero L122 EAS to form Smarto L122 EAS System. This device complies with part 15 of the FCC rules,operation is subject to the following (1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: PDEMEDIOL122EAS CABLES TO AERO L122 EAS PEDASTAL GREEN BLUE THEFT TRIGGER POWER ON 12 VAC OPTIONAL OUTPUTS (refer to instructions) 1 2 3 4 5 5 VIEW A VIEW B VIEW A VIEW B 4 2 N139 FCC ID:PDEMEDIOL122EAS EMC Technologies Report No. M020411FCC Page 3 of 3 (App F)

FCC ID:PDEMEDIOL122 EMC Technologies Report No. M020411FCC Page 1 of 2 5292 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15. This document shall not be reproduced, except in full. APPENDIX B3 TEST SAMPLE – INTERNAL PHOTOS Test Sample - internal view FCC ID:PDEMEDIOL122 EMC Technologies Report No. M020411FCC Page 2 of 2 5292 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15. This document shall not be reproduced, except in full. Test Sample - internal view

Page 1 of 10 EMI TEST REPORT for CERTIFICATION of FCC PART 15.225 & FCC PART 15.207 TRANSMITTER FCC ID: PDEMEDIOL122EAS Manufacturer: TAGSYS Australia Pty Ltd Test Sample: Smarto L122 EAS System Report Number: M020411FCC Issue Date: 4 th June 2002 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. Copyright is owned by EMC Technologies Pty Ltd. 5292 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15. EMC Technologies Pty Ltd A.C.N. 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID:PDEMEDIOL122EAS EMC Technologies Report No. M020411FCC Page 2 of 10 5292 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15. This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION OF FCC PART 15.225 & FCC PART 15.207 TRANSMITTER FCC ID: PDEMEDIOL122EAS EMC Technologies Report Number: M020411FCC Date: 4 th June 2002 CONTENTS 1. SUMMARY of TEST RESULTS 2. GENERAL INFORMATION 3. CONDUCTED EMI RESULTS 4. RADIATED EMI RESULTS 5. FREQUENCY TOLERANCE 6. CONCLUSION APPENDIX A. MEASUREMENT INSTRUMENTATION DETAILS APPENDIX B. TEST SETUP PHOTOGRAPHS APPENDIX C. TEST SAMPLE SCHEMATICS APPENDIX D. TEST SAMPLE PCB LAYOUTS APPENDIX E. TEST SAMPLE BLOCK DIAGRAM APPENDIX F. LABELLING - DRAWING AND LOCATION APPENDIX G. GRAPHS of EMI MEASUREMENT APPENDIX H. USER INSTRUCTIONS (TECHNICAL MANUAL) FCC ID:PDEMEDIOL122EAS EMC Technologies Report No. M020411FCC Page 3 of 10 5292 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15. This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION OF FCC PART 15.225 & FCC PART 15.207 TRANSMITTER Report Number: M020411FCC Test Sample: Smarto L122 EAS (Electronic Article Surveillance) System Model Number: Smarto L122 Serial Number: AC01B021146 Part Number: HWP106468 FCC ID: PDEMEDIOL122EAS Manufacturer: TAGSYS Australia Pty Ltd Tested for: TAGSYS Australia Pty Ltd Ground Floor, 212 Pirie Street Adelaide SA 5000 Australia Phone: + 61 8 8100 8300 Fax: + 61 8 8232 3720 Responsible Party: Alastair McArthur Managing Director TAGSYS Australia Pty Ltd Equipment Type: Intentional Radiator, Low Power Transmitter Test Standards: FCC Part 15 Section 225 Intentional Radiators. FCC Part 15 Section 207 Conducted limits ANSI C63.4-1992 OET Bulletin No. 63 Test Dates: 12 th December 2001 - 25 th May 2002 Test Officers: Chieu Huynh Kevin Hansen Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signature: _________________ Chris Zombolas EMC Technologies Pty Ltd FCC ID:PDEMEDIOL122EAS EMC Technologies Report No. M020411FCC Page 4 of 10 5292 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15. This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION of FCC PART 15.225 & FCC PART 15.207 TRANSMITTER Smarto L122 EAS (Electronic Article Surveillance) System 1.0 SUMMARY of RESULTS This report details the results of EMI tests and measurements performed on the Smarto L122 EAS (Electronic Article Surveillance) System in accordance with the Federal Communications Commission (FCC) regulations as detailed in Title 47 CFR, Part 15 Rules for intentional radiators. All results are detailed in this report. The EUT complied with requirements for fundamental frequencies and spurious emissions of Part 15.225 and the conducted limits of Part 15.207. Part 15.225 Carrier Signal Field Strength: Complied, margin of 3.9 dB Radiated Emissions (Section 15.209) *Complied, margin of 0.0 dB Frequency Tolerance: Complied Part 15.207 Conducted Emissions: Complied, margin of 2.2 dB The measurement procedure was in accordance with ANSI C63.4-1992, and OET Bulletin No. 63. The instrumentation conformed to these requirements. * Refer to Section 6.0 Conclusion 2.0 GENERAL INFORMATION 2.1 General Description of Test Setup Test Sample: Electronic Article Surveillance System Model Number: Smarto L122 Serial Number: AC01B021146 Part Number: HWP106468 FCC ID: PDEMEDIOL122EAS Equipment Type: Intentional Radiator, Low Power Transmitter 2.2 Test Sample Functional Description Refer to Appendix H - Technical manual 2.3 Technical Specifications and System Overview Refer to Appendix H - Technical manual FCC ID:PDEMEDIOL122EAS EMC Technologies Report No. M020411FCC Page 5 of 10 5292 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15. This document shall not be reproduced, except in full. 2.4 Test sample configuration Refer to Appendix B - Test Setup Photographs Refer to Appendix H - Technical manual 2.5 Test Sample Block Diagram Refer to Appendix E - Test Sample Block Diagram 2.6 Test Facility FCC Registration Radiated Emission measurements of fundamental frequency 13.56 MHz (H-Field) and 30 MHz - 1000 MHz (E-Field) were performed at EMC Technologies open area test site (OATS) situated at Lerderderg Gorge, near the town of Bacchus Marsh, Victoria, Australia. Radiated Emission measurements in the ranges 9 kHz – 30 MHz (H-Field) and conducted emission measurements were performed at EMC Technologies Laboratory in Tullamarine, V…

Text truncated - open the document above for the full version.

FCC ID:PDEMEDIOL122EAS EMC Technologies Report No. M020411FCC Page 1 of 8 5292 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15. This document shall not be reproduced, except in full. APPENDIX G GRAPHS OF EMI MEASUREMENT APPENDIX G GRAPHS OF EMI MEASUREMENTS CONDUCTED EMI Graph 1 Active Line 0.45-30 MHz Graph 2 Neutral Line 0.45 - 30 MHz RADIATED EMI Graph 3: Vertical Polarisation 30 - 1000 MHz Graph 4: Horizontal Polarisation 30 - 1000 MHz RADIATED EMI Graph 5: 0.009 - 30 MHz (LOOP ANTENNA) OUT of BAND EMISSIONS at the CARRIER SIGNAL FREQUENCY Graph 6: (13.52 – 13.6 MHz) FCC ID:PDEMEDIOL122EAS EMC Technologies Report No. M020411FCC Page 2 of 8 EMC Technologies Pty. Ltd. - Global Product Certification FCC Class B Job No:M020411 Test Date: 21/05/02 GRAPH No. 1 r:\pcf\m020411_1.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260 Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019 TAGSYS Smarto L122 EAS System Conducted Emissions - Active Line Conducted Emissions dBuV Peak M020411c ~--- = AV Level *--- = QP Level Limits:Legend: Source: _ FCC_BQP FCC CLASS B CONDUCTED QP LIMITS __ Active Line 8 9 10 Ver 5.5 Build 27 conducted lab 1 t:L0220403 c1:C1520902 c2:C1570702 p:NONE a:L0170902 Site ID: Melb Room#1 Test Officer:Chieu Huynh Peaks: NoFreqPeakQp ValFCC_BQP dL1Av Val dL2 (MHz)(dBuV)(dBuV)(dB) 113.5643.345.848.0-2.2 Frequency (MHz) 1 10 .45 30 10 20 30 40 50 60 70 v ^ 1 ~ * FCC ID:PDEMEDIOL122EAS EMC Technologies Report No. M020411FCC Page 3 of 8 (App G) EMC Technologies Pty. Ltd. - Global Product Certification AS/NZS3548 Job No:M020411 Test Date: 21/05/02 GRAPH No. 2 r:\pcf\m020411_2.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260 Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019 TAGSYS Smarto L122 EAS System Conducted Emissions - Neutral Line Conducted Emissions dBuV Peak M020411c ~--- = AV Level *--- = QP Level Limits:Legend: Source: _ FCC_BQP FCC CLASS B CONDUCTED QP LIMITS __ Neutral Line 11 12 13 Ver 5.5 Build 27 conducted lab 1 t:L0220403 c1:C1520902 c2:C1570702 p:NONE a:L0170902 Site ID: Melb Room#1 Test Officer:Chieu Huynh Peaks: NoFreqPeakQp ValFCC_BQP dL1Av Val dL2 (MHz)(dBuV)(dBuV)(dB) 113.5641.239.248.0-8.8 Frequency (MHz) 1 10 .45 30 10 20 30 40 50 60 70 v ^ 1 ~ * FCC ID:PDEMEDIOL122EAS EMC Technologies Report No. M020411FCC Page 4 of 8 (App G) EMC Technologies Pty. Ltd. - Global Product Certificat…
