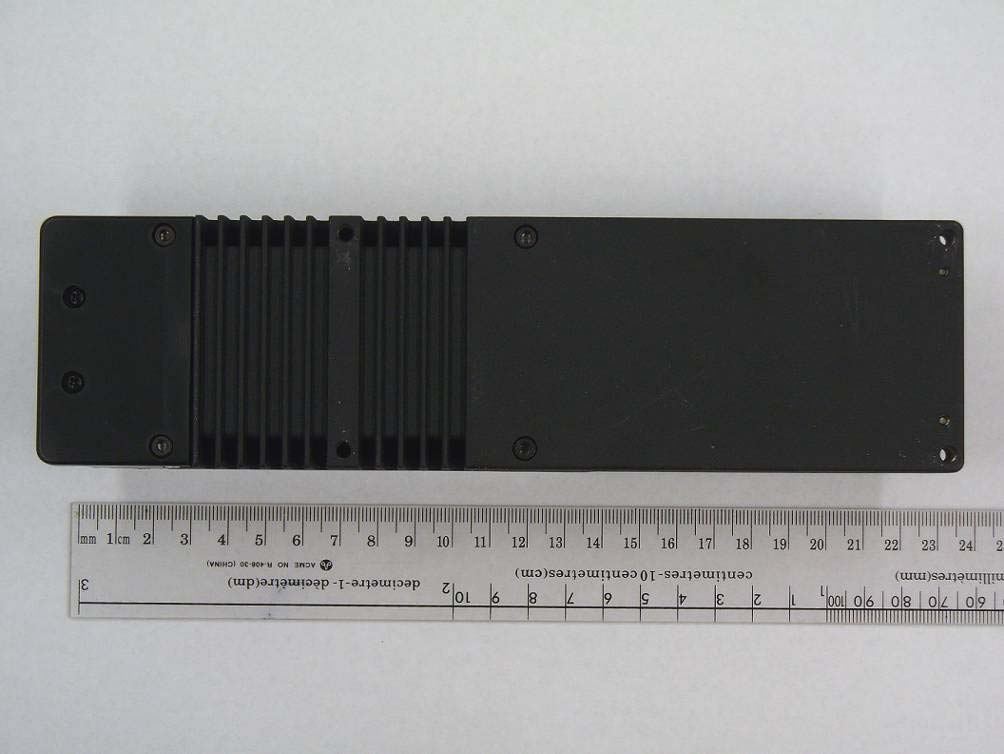

PDGBR-29015Ballistic Doppler Radar

BR-29015 User Manual (North America) Rev. 1 Important Safety Instructions Carefully read all of the instructions provided and save them for later use. Read all warnings and instructions marked on the BR-29015. ! Do not place the BR-29015on an unstable stand or surface as it may fall resulting in serious damage. ! The radar antenna should be handled with great care at all time to avoid damaging the antenna radome. Radome damage can result in serious performance degradation. ! The BR-29015 must be operated from a 115Vac 60Hz power source. Ensure that the supply voltage available at the installation site meets the input electrical characteristic of the unit. ! The BR-29015 power cord is equipped with a three-prong grounding plug that will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact a qualified person to replace the obsolete outlet. Do not tamper with the grounding prong to force fit into the outlet. ! Do not allow any objects to rest on the power cord or place the BR-29015 where the power cord will be trampled on. ! If an extension cord is used with the BR-29015, make sure that the total ampere ratings of the devices plugged into the extension cord do not exceed the extension cord ampere rating. ! Infinition Inc. Rev. 01 1 Do NOT plug in, turn on or attempt to operate an obviously damaged unit. ! ! No operator serviceable parts inside the BR-29015 radar unit. Please refer servicing to service qualified personnel. Infinition Inc. Rev. 01 2 1. General The BR-29015 radar can be used to measure the radial velocity of any moving object located in the radar beam coverage. The output of the radar is an analog signal with a frequency and amplitude proportional to the radial velocity and distance of the moving object. 2. Microwave Safety Warning Based on limits specified by the Federal Communication Commission (FCC) on Radio Frequency (RF) emissions in a general population environment, continued exposure to radiation should be avoided within 10.5 meter in front of the radar. Radiation levels outside this region fall within regulations of 1 mW/cm 2 and are not considered safety hazards. When setting up the antenna, special care should be taken to avoid situations where the antenna radiates towards individuals. The antenna should be positioned such that bystanders are located behind the antenna. During antenna setup, the antenna power cord should be unplugged to avoid accidental hazardous exposures to radiations. Always turn the antenna transmitter off during periods of inactivity. Direct visual contact with the radar when transmitting should be avoided at all times. ! 3. Specifications Description Specification Power Requirement 115Vac, 2.0A, 60Hz Nominal Frequency 10.500 GHz Nominal Transmitting Power 16.0 W – 1.0 W, selectable Antenna Gain 29 dBi Transmitter Stability ±5 ppm Beamwidth 4° x 4° Dimension (without yoke) 33” x 18” x 5.00” Operating Temperature -20degC to 45degC 4. Installation The BR-29015 is mounted on a yoke. The yoke provides the flexibility for radar alignment in both azimuth and elevation. 5. Operation The BR-29015 is powered on 115Vac 60Hz. A power cord is provided for connection in standard power outlet. The radar is interfaced to a Doppler processor a single four-wire cable equipped with military connectors. This cable is used to carry out the radar Doppler signal to the Infinition Inc. Rev. 01 3 processing unit and the antenna transmission control. You should connect your radar cable from this connector to the appropriate radar input on your processing unit. The radar head has an override transmitter control switch that can be used to activate the transmitter locally at the antenna. In addition, the radar has a transmitter power control switch that can be used to select between low or high output power levels. At the low setting, the transmitter output power is 1.0 Watt and at the high setting, the output is 15.0 Watts. The BR-29015 has three LED indicators, one green for the main power, one red for the transmitter on/off status and one red for the transmitter output power selection (off for low and on for high). Also, the BR-29015 has a provision for connecting a 12 VDC (2 amperes maximum) warning device. The warning device is automatically enabled when the radar transmitter is switched on. This safety feature is useful to warn bystanders when the radar is radiating. The warning device is not mandatory and is therefore not provided as a standard equipment with the radar. Depending on the environment in which the radar is going to be used, it is the responsibility of the operator to install such device to provide additional safety for the personnel. 6. Maintenance The BR-29015 radar does not require much maintenance. Attention should however be paid to a few points: - Keep the connectors clean from dirt and moisture to avoid corrosion and bad connections. - Now and then wipe the radar enclosure and antenna panels with a soft and wet cloth. - The radar radiating elements are protected by a plastic radome. Special attention should be paid when handling the radar antenna to avoid damaging the radome as it could result in performance degradation. The radar fuses are located inside the radar unit. To replace them, refer the radar system to qualified personnel. Warning: No operator serviceable parts inside the radar unit. Please refer servicing to service qualified personnel ! Infinition Inc. Rev. 01 4 7. Power Connector Specification Connector type: Amphenol T3110-000 Pin Description 1 AC Neutral 2 115Vac, 1.0A, 60Hz 3 n/c 4 Protective ground 8. Antenna Connector Specification Connector type: ITT CANNON MS3124E16-8P Pin Description A Not Connected B Not Connected C Not Connected D Remote Make for Antenna Transmitter Control (+ 5 Vdc Output, 1.5kOhm current limiting resistor) E Make return F Doppler Signal + (5 Vpp max.) G Doppler Signal - (5 Vpp max.) H Ground The processor does the remote acti…
