PDHGMRS200FRS/GMRS COMBINATION

128-XXXX 1 of 24 General Mobile Radio Service (GMRS) Model: GMRS200 Released:3- 03 - 2005 Owner's Manual 128-xxxx 2 of 28 THIS PAGE LEFT BLANK INTENTIONALLY 2 [RF EXPOSURE STATEMENT : PDHGMRS200 / TTI TECH CO., LTD.] - CAUTION! - IMPORTANT SAFETY INFORMATION Your wireless hand-held portable transceiver contains a radio frequency transmitter. When the PTT button is pushed, the transmitter sends out RF signals. The device is authorized to operate at a transmit duty factor not exceeding 50% using Ni-Mh / alkaline “AAA” size batteries to comply with Federal Communications Commissions (FCC) RF exposure safety level guidelines for hand-held wireless devices. For body-worn operation, this device has been tested for SAR (Specific Absorption Rate) and meets the FCC RF exposure guidelines when used with the accessories supplied or designated for this device by the manufacturer. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Use the manufacturer-supplied antenna only. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. To maintain compliance with the FCC’s RF exposure guidelines, hold the transceiver at least 1 inch (2.5 centimeters) from your face and speak in a normal voice, with the antenna pointed up and away. GMRS License : Use of GRMS radios within the United States requires a FCC GMRS license. An individual of 18 years of age or older, who is not a representative of a foreign government is eligible to apply for a GMRS system license. You will need two forms from the FCC - FCC FORM 159 and FCC Form 605 Main Form and Schedule F. You can find the forms online at http://www.fcc.gov/formpage.html or call 1-800- 418-3676. 128-xxxx 3 of 28 CAUTION SAFETY INFORMATION Your wireless hand-held portable transceiver contains a low power transmitter. When the PTT button is pushed (or the VOX mode is enabled) it sends out radio frequency (RF) signals. The device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless devices. Important:To maintain compliance with the FCC’ s RF exposure guidelines hold the transmitter at least 1 inch (2.5 centimeters) from your face and speak in a normal voice, with the antenna pointed up and away. If you wear the handset on your body while using the headset accessory, use only the Audiovox supplied carry clip for this product and ensure that the antenna is at least 1 inch (2.5 centimeters) from your body when transmitting. Use only the supplied antenna. Do not use your transceiver with a damaged antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. Performance: Your transceiver will only achieve its maximum operating range when communicating with other transceivers across open and flat areas or between elevated points. Normally occurring environmental factors such as buildings, trees, terrain and weather, or interference from other radio or electrical equipment, may have adverse effects on the transceiver’s effective range. These are not indicative of a fault condition. Avoid placing the GMRS200 radio transceiver for prolonged periods of time in direct sunlight or temperatures below -4 °F(-20°C) or above 140 °F (60°C). Place the rubber cover on jacks when not in use. 3 128-xxxx 4 of 28 WARNINGS: Battery Care Never attempt to charge alkaline or dry cell batteries, as batteries may burst causing personal injury and damage to the product. If rechargeable batteries are used, such as Nickel Metal Hydride (NiMH), use only Audiovox- approved rechargeable batteries. Use of the optional Audiovox charger with other brands of batteries is not recommended, as battery charging times will vary with different brands. Refer to the Manufacturer’s instructions for charging other brands of batteries. Battery Disposal In general, if handled improperly, batteries pose a risk of fire or burns. Do not disassemble, crush, puncture, short external contacts, or dispose of the batteries in fire or water. Dispose of the batteries in a environmentally safe manner and recycle whenever possible. FCC WARNING Replacement or substitution of transistors, diodes or other parts of a unique nature, with parts other than those recommended by the manufacturer, may cause a violation of the technical regulations of Part 15 of FCC Rules. GMRS LICENSE: USE OF THIS RADIO WITHIN THE UNITED STATES REQUIRES AN FCC GMRS LICENSE. AN INDIVIDUAL 18 YEARS OF AGE OR OLDER, WHO IS NOT A REPRESENTATAIVE OF A FOREIGN GOVERNMENT, IS ELIGIBLE TO APPLY FOR A GMRS SYSTEM LICENSE. YOU WILL NEED TWO FORMS FROM THE FCC: FCC FORM 159, AND FCC FORM 605 (MAIN FORM AND SCHEDULE F). YOU CAN FIND THE FORMS ONLINE AT: HTTP://WWW.FCC.GOV/FORMPAGE.HTML, OR CALL 1-800-418-3676. 4 128-xxxx 5 of 28 5 1.Battery Cover 2.Keylock/Monitor (M) Button 3.Detachable Carry Clip 4.Push-To-Talk (PTT) and Func- tion Confirmation Button 5.Antenna 6.External Speaker (SP)/ Microphone (MIC)/CHG Jack 7.Built-in Speaker Model GMRS200 (FCC License Required) 8.Liquid Crystal Display (LCD) 9.Built-in Microphone 10.Up Channel/Volume Button 11.Down Channel/Volume Button 12.MODE/Weather Button 13.Power On/Off and SCAN Button 14.Battery Charging Contacts 3 5 4 1 2 12 11 13 3 (REF) 14 7 1 (REF) 10 9 6 8 PTT- M- 128-xxxx 6 of 28 6 Model GMRS200 DISPLAY 1. Beep Tone Indicator: Icon appears when beep button confirmation tone is selected; icon disappears when tone is off. 2. Key Lock Indicator: Icon appears when the keypad is locked. This function disables keys such as channel up/down, SCAN and MODE. 3. Monitor Indicator: Icon appears when the Monitor (M) button is pressed and the channel monitor function is activated. 4. Signal Strength Indicator: Icon appears when a signal is being transmitted. The icon consists of five bars to indicate transmit signal power level. 5. HI/L…

Text truncated - open the document above for the full version.

tti.... TTI Tech Co., Ltd. TTI House, 163-4, Poi-Dong Kangnam-Ku, Seoul, Korea 135-260 (T) +82 2 518 2417/8 (F) +82 2 518 2419 June 13, 2005 Federal Communications Commission Authorization and Evaluation Division Re : Confidentiality Request - FCC ID : PDHGMRS200 To whom it may concern : Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we, TTI Tech Co., Ltd., hereby request the confidential treatment of the information accompanying the applications for certification of FCC ID : PDHGMRS200 as outlined below : ° Block Diagram ° Schematic Diagram(s) ° Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, the disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Thank you. Sincerely, H. J. Lee / Senior Manager Overseas Sales - TTI

LOCATION NAME LABEL 2:1 FCC ID : PDHGMRS200 TRADE NAME : FM TRANSCEIVER MODEL NO. : GMRS200 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 1:1 36.7 9.9 FCC ID : PDHGMRS200 TRADE NAME : FM TRANSCEIVER MODEL NO. : GMRS200 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. GMRS200 NAME LABEL DATE : JUNE 20, 2005 (REV. 00)

GMRS200 SEMICONDUCTOR DESIGNATIONS AND FUNCTIONS Page 1 Designator Description Application D1 KDS114E RX TX switch D3 KDS114E Squelch Retifier D5 KDS115 VOX Rectifier D6 KDS113 VCO VCC Switch D7 KDS114E RX TX Switch D9 KDS114E VCO RX TX Switch D10 KDS120 Charger diode D201 KDS121s KEY Button LED1 SML210MT Backlit LED IC1 Sl5018 IF IC IC2 LM386 Speaker Amp IC3 XC6201B402MR 4V Regulator IC4 LM324 OP Amp IC5 LM324 OP Amp IC6 TB31202 PLL IC IC7 W742C81A Micro-controller IC8 Reset 2.7V Reset IC Q1 NE5510279A TX PA Q2 BFQ67W TX Driver Q4 KRC404E Speaker Amp enable Q5 KRC404E CTCSS limiter Q6 2SC4226 LNA Q7 KTA2014E PTT Switch Q8 2SC4226 Mixer Q9 2SC4083 IFA Q10 KRA306E VCO B+ Switch Q11 BFQ67W TX Pre-driver Q12 BFQ67W TX Driver Q13 KRA226 TX B+ Switch Q14 KRA306E RX B+ Switch Q16 KRA226S Speaker Amp. Enable Q17 KRC405E TX Audio Mute Q18 KRA226S Main B+ Switch Q19 KRC401E VCO RX TX Switch Q20 KRA306E TX Power Hi/Low control Q23 KTC405E RX Audio Mute Q24 KRA306E TX Power Hi/Low control Q25 KRC405E RX TX Switch Q26 2SC4226 VCO Q27 2SC4226 VCO Q201 2SC4083 WX VCO GMRS200 SEMICONDUCTOR DESIGNATIONS AND FUNCTIONS Page 2 Q202 KRA306E WX B+ Switch Q203 2SC4083 WX mixer

GMRS200 ALIGNMENT PROCEDURE Page 1 1. REFERENCE TEST EQUIPMENT A. HP8921A Cell site test set or HP8920A, B Communication Test Set with Spectrum Analyzer option. B. Fluke 187 Digital Voltmeter C. HP E3615A Power supply 2. TEST POINT A. ANTENNA : Test point is not prepared. Use antenna contact with TP11(antenna ground). B. GMRS VCO reference voltage: Test point 1 is prepared. C. WX VCO reference voltage : Test point 23 is prepared. C. RX audio output : Speaker terminals (TP10) & ear jack are prepared. D. TX Mic. Input : Use ear-jack(3.5mm) with 10uF coupling capacitor. E. Battery Vcc : Test point is not prepared. Please use mechanical contact. Plus terminal is posited on bottom right corner of PCB (Battery cover side view). F. Up Key : Test point TP3 is prepared. G. Down Key : Test point TP4 is prepared. H. Function Key : Test point TP8 is prepared. I. Monitor Key : Test point TP2 is prepared. J. PTT Key : Test point TP1 is prepared. K. Power Key : Test point TP6 is prepared. L. Scan key : Test point TP6 is prepared. Note. : All key can be activated when connect with ground. 3. VCO ALIGNMENT A. Set unit to Channel 1 and connect a voltmeter to TP1 (VCO PD). B. Press & hold PTT. C. Extend L20 until the voltmeter reads 2.0V. D. Put shield-can on VCO area and monitor the voltage on TP1. The voltage should be 2.0Vdc +/-0.2Vdc. If the voltage is not 2.0Vdc +/-0.2Vdc, realign L20 until meet to requirement. E. Release PTT button so units is in receiving mode and monitor the voltage on TP1. The voltage should be in the range 2.0Vds +/-0.5V F. Set unit to channel 14. 6. Press & hold the PTT switch and observe the voltage on TP1. The voltage should be 2 – 3,5 Vdc. 7. Release PTT and observe the voltage on TP1. The voltage should read between 2.0 - 3.5 Vdc. Note : VCO shield-can should be soldered after VCO alignment is finished. 4. TRANSMITTER FREQUENCY ALIGNMENT A. Press & hold the PTT button. B. Align CT201 trimmer capacitor such that the output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. CT201 is located on the left side of 20.95MHz X-tal. GMRS200 ALIGNMENT PROCEDURE Page 2 5. TRANSMITTER OUTPUT POWER CONFIRMATION A. Set unit to channel 1. B. Press & hold the PTT button. C. Transmit power should normally be between 2.3W to 2.9W. D. Set unit to channel 14. E. Press & hold the PTT button. Ensure that Tx Power meets 0.2W – 0.6W. 6. TRANSMITTER DEVIATION ALIGNMENT A. Connect an audio generator (600 ohms) to the ear jack. The audio frequency should be set at 1KHz with a level of 200mV RMS. B. Connect an FM deviation meter (communications test set) to Antenna contact. Set the monitor to read peak to peak divided by two [(pk-pk)/2] deviation. Set filter of equipment from 25Hz to 15KHz. C. Press & hold the PTT button. D. Align RV2 for +/- 2.1 kHz deviation (+/-0.1KHz). RV2 is located on the below of VCL shield can. E. Decrease audio generator level until deviation reads +/- 1.5 kHz (approximately 8mV) and record generator level. Level should be between 6 mV and 10 mV. F. Confirm that transmit audio distortion is less than 5%. 7. RECEIVER ALIGNMENT A. Set the output level of the RF signal generator for -47dBm. The generator should be set for 1.5 kHz deviation at 1 kHz audio. B. Set volume level 4 (It is initial.). C. Connect Audio analyzer to TP10. D. Set equipment filter 25Hz to 15KHz. E. Align IFT1 to get a maximum output level & a minimum distortion and confirm that Rx audio distortion is less than 5%. F. Confirm that Rx Sensitivity is less than –120dBm (nominally –123dBm) by reducing the output level of the RF signal generator until a 12 dB SINAD reading is achieved. H. Set SSG output level until 9dB sinad sensitivity and align RV1 until the unit is un-squelched. I. Set signal generator level to –47dBm. J. With 1.5KHz deviation at 1KHz modulation, set volume for maximum audio. Audio level should be on over than 1.9Vrms. 8. LOW BATTERY INDICATOR CONFIRMATION A. Set unit to receiving mode. Don’t set transmitter mode.. B. Set power supply voltage to 6V. C. Decrease power supply voltage until low battery icon blinks. 9. POWER OFF CURRENT CONSUMPTION A. Set power supply voltage to 6V and connect to unit. B. Confirm current. It must be less than 100uA. GMRS200 ALIGNMENT PROCEDURE Page 3 10. FREQUENCIES TABLE Channel Freq. MHz Channel Freq. MHz 1 462.5625 12 467.6625 2 462.5875 13 467.6875 3 462.6125 14 467.7125 4 462.6375 15 462.5500 5 462.6625 16 462.5750 6 462.6875 17 462.6000 7 462.7125 18 462.6250 8 467.5625 19 462.6500 9 467.5875 20 462.6750 10 467.6125 21 462.7000 11 467.6375 22 462.7250 GMRS200 LABORATORY TESTING PROCEDURES Page 1 UNIT TEST - (UNIT ASSEMBLED) TEST PREPARATION 1) Install 4 “AAA” alkaline batteries (observe polarity markings). z Right bottom terminal is the system plus polarity z Left bottom terminal is the system minus polarity. 2) Turn on unit by pressing the power button. SYSTEM TEST 1) Radiated Transmit and Receive performance may be observed. 2) Audio out & Audio in are available at the Headset jack. LABORATORY TEST - (UNIT UN-ASSEMBLED) TEST PREPARATION 1) Disassemble unit (4 screws – 2 behind battery cover). Remove the PCB from the cabinet. 2) Remove the antenna and install a 50 ohm coax cable in its place. 3) Either clip alligator leads or solder test leads to the power supply connections. The positive terminal is the lower right PCB mounting hole below the VCO shield can. (battery side view). The negative terminal is the lower left PCB mounting hole. 4) Connect 5VDC power source to the terminals, observing correct polarity. 5) Connect an 12-ohm load through the Headset jack (3.5mm stereo-phone right plug). 6) Connect a audio generator with 10uF coupling capacitor through the Headset jack ( 3.5mm stereo-phone left plug). 7) Select desired channel 1-22 using CH up/down keypad switch. The rubber keypad may be removed from the front cabinet and used directly on the PCB. GMRS200 LABORATORY TESTING PROCEDURES Page 2 SPECIFIC TEST METHODS AND GUIDAN…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX A – SAR TEST PLOTS Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX B – EUT TEST SETUP PHOTOGRAPHS Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 25mm 25mm Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr [Tissue Liquid Depth : 15cm] 15cm Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Date : January 6, 2005 Federal Communications Commission Authorization and Evaluation Division 7435 Oskland Mills Road Columbia, MD21046 Subject : GMRS200 Model Battery Type To whom it may concern Here we would like to confirm that the ‘AAA’ type batteries only should be used For this subject model GMRS200.(FCC ID: PDHGMRS200)

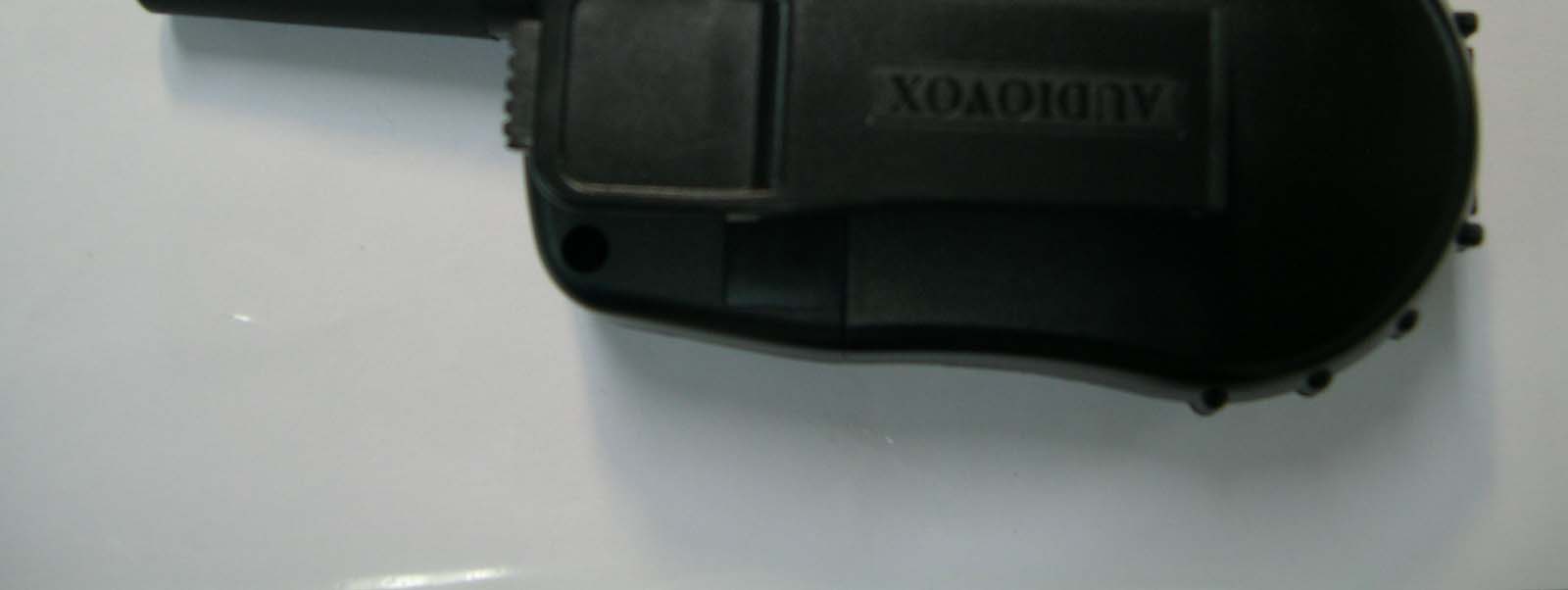

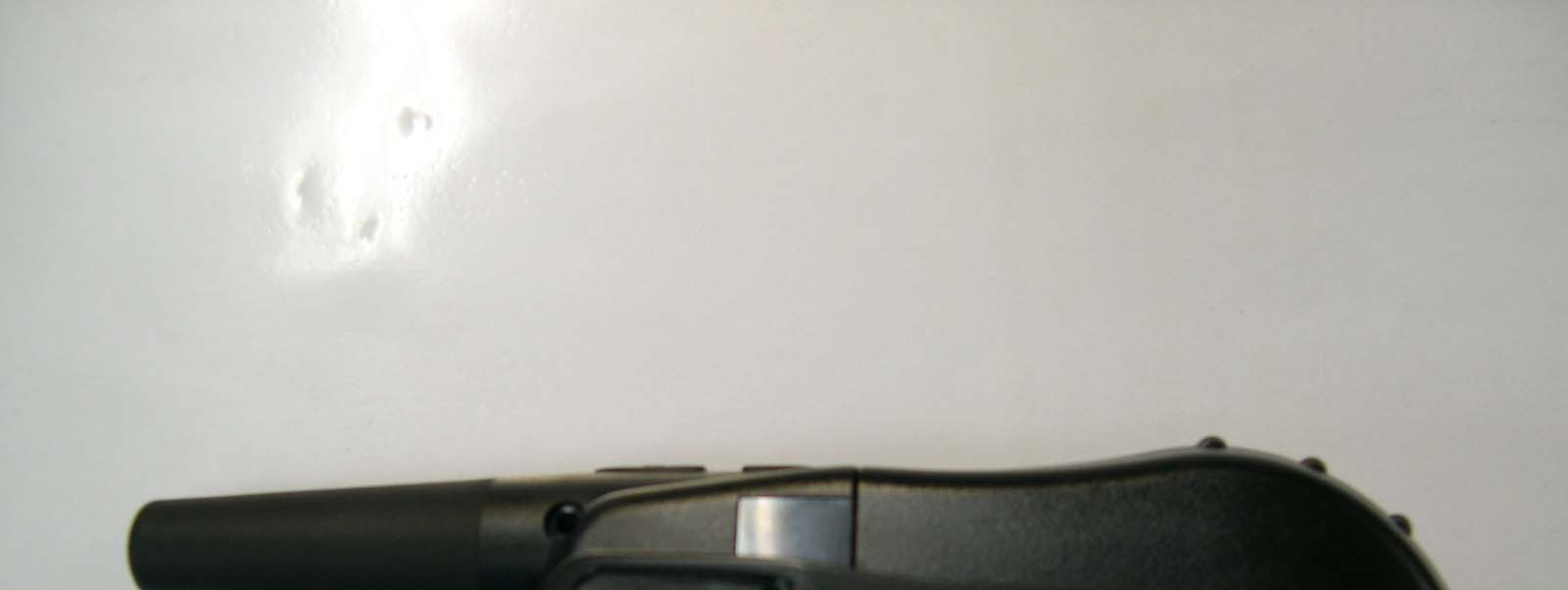

Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX C – EUT PROFILE PHOTOGRAPHS Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX D – DIPOLE VALIDATION PLOTS Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX E – PROBE CALIBRATION DATA Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX F – DIPOLE CALIBRATION DATA Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0703 FCC ID: PDHGMRS200 DATE: July 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Date of Issue: July 3, 2005 Test Report No.: HCT-SAR05-0703 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005866421 Manufacture; TTI TECH CO., LTD. Eundo Bldg. Room 402, 737-19 Banpo-1dong, Seocho-ku, Seoul Korea, 137-041 FRN: 0005-8660-25 PDHGMRS200 TTI TECH CO., LTD. FCC ID : APPLICANT : EUT Type: GMRS(General Mobile Radio Service) and FRS(Family Radio Service) Bands. Model(s): GMRS200 Tx Frequency: 462.5500 MHz – 462.7250 MHz (GMRS) 462.5625 MHz – 467.7125 MHz (FRS) Max. SAR Measurement(s): 1.008mW/g(1g) GMRS Face SAR ; 1.381mW/g(1g) GMRS Body SAR Max. RF Output Power: 2.345W ERP( 33.7 dBm) GMRS ; 0.238W ERP( 23.8 dBm) FRS Conducted Power: 2.45W (33.89dBm) / GMRS; 0.60W (27.78dBm) FRS Emission Designator: 10K5F3E Channel Capacity: 22 Application Type: Certification Trade Name(s): TTI FCC Rule Part(s): §95(A)(B), 2(J) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled Environment Occupational exposure limits specified in ANSI/ IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in ANSI/ IEEE Std. C9…

Text truncated - open the document above for the full version.
