PE6AWL-1100UDSSS WLAN IEEE802.11b USB Card

AcroLAN Card User’s Guide Version 20002.5 Copyright© Acrowave Systems 2000DOC – xxx - yyy Page 1 of 38 Corporate Headquarters Acrowave Systems Co .Ltd . 6Fl .Maru Building 86-6 Nonhyun-dong Gangnam-gu Seoul 135-818 Korea http://www.acrowave.com Tel:82-2-547-8778 Fax:82-2-547-4779 Acrowave Systems £ ££ £ Wireless LAN PC Card User’s Guide AWL-1100C/AWL-1100P AWL-1100U/AWL-1100M AcroLAN Card User’s Guide Version 20002.5 Copyright© Acrowave Systems 2000DOC – xxx - yyy Page 2 of 38 Contents Chapter 1Introduction To The Wireless LAN 1.1 What’s the Wireless LAN? .......................................... 5 1.2 Wireless LAN Standard and Structure.............................. 6 Chapter 2Before You Start AcroLAN................................. .12 Chapter 3Installing AcroLAN Card Driver...........................13 Chapter 4Connecting the AcroLAN Card to your computer 4.1 Installing AcroLAN PCMCIA Card...........................16 4.2 Installing AcroLAN PCI Card..................................16 4.3 Installing AcroLAN USB Card..................................20 4.4 Installing AcroLAN Mini-PCI Card ............................20 Chapter 5Configuring the Wireless LAN Card 5.1 Installing Network Protocols... ..........................................22 5.2 Uninstalling AcroLAN Card Driver..................................27 5.3 Remove AcroLAN Card from you computer....................... 27 5.4 Wireless AcroLAN Card Configuration Utility...................30 Chapter 6Troubleshooting...................................................35 Appendix Appendix A Cell Planning (Radio Range)................................... 37 Appendix BTechnical Specification....................................... .39 Appendix C Channel Allocation............................................... 42 AcroLAN Card User’s Guide Version 20002.5 Copyright© Acrowave Systems 2000DOC – xxx - yyy Page 3 of 38 THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE .ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED .USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS. THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE .IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR ACROWAVE REPRESENTATIVE FOR A COPY. The following information is for FCC compliance of Class B devices: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules .These limits are designed to provide reasonable protection against harmful interference in a residential installation .This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications .However, there is no guarantee that interference will not occur in a particular installation .If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: lReorient or relocate the receiving antenna. lIncrease the separation between the equipment and receiver. lConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. lConsult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device my not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.This equipment must be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Modifications to this product not authorized by Acrowave Systems Co., Ltd. could void the FCC approval and negate your authority to operate the product. NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH ALL FAULTS .ACROWAVE AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE. IN NO EVENT SHALL ACROWAVE OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF ACROWAVE OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AcroLAN, the Acrowave logo are registered trademarks of Acrowave Systems Co., Ltd. or its affiliates in the Korea, U.S. and certain other countries .All other trademarks mentioned in this document are the property of their respective owners .The use of the word partner does not imply a partnership relationship between Acrowave and any of its resellers. Using the Acrowave AcroLAN Card Copyright© 2000,Acrowave Systems Co., Ltd All rights reserved. AcroLAN Card User’s Guide Version 20002.5 Copyright© Acrowave Systems 2000DOC – xxx - yyy Page 4 of 38 Chapter 1 Introduction To The Wireless LAN A wireless LAN (WLAN) is a flexible data communication system implemented as an extension to, or as an alternative for, a wired LAN within a building or campus .Using electromagnetic waves, WLANs transmit and receive data over the air, minimizing the need for wired connections .Thus, WLANs combi…

Text truncated - open the document above for the full version.

1of1 Date:5/2002 Federal Communications Commission Authorization and Evaluation Division Laboratory Division 7435 Oakland Mills Road Columbia, MD 21046 Re: Acrowave Systems Co. Ltd. , AWL-1100U Request for withholding from public disclosure proprietary information submitted pursuant to an application for certification of a Wireless LAN Sir/Madam: FCC RF Radiation Expoure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Sincerely yours, Engineer R&D Center H/W Team Nam-Hee Kim

July 29, 2002 CONFIDENTIALITY REQUEST Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re: Acrowave Systems Co. Ltd. , FCC ID: PE6AWL-1100U Gentlemen: AcrowaveSystemsCo.Ltd., herein submits a request for Confidentiality for the specified attachments that are filed forFCCID:PE6AWL-1100U. Certification is sought under the TCB certification program pursuant to the requirements of the Federal Communications Commission for a spread spectrum transmitter under FCC Rules Part 15.AcrowaveSystemsCo.Ltd, requests, pursuant to 47CFR 0.459, post grant confidentiality for portions of the material contained in this application such that the identified material will be withheld from public inspection by the Commission following the grant of this authorization. This material, as indicated by request for confidentiality of the item during the electronic submission process and further identified below, includes: 1.Circuit diagrams, BOM, and PCB submitted as Equipment Authorization Electronic Filing attachment:"schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram ”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment:“operational description” If you have any questions, please feel free to contact me at the address shown below. Regards, (signed) Gerald Schmidt, Cetecom ICT Services GmbH, Untertürkheimer Strasse 6-10 D-66117 Saarbrücken Germany Email:[email protected] Phone: +49 681 598 8723

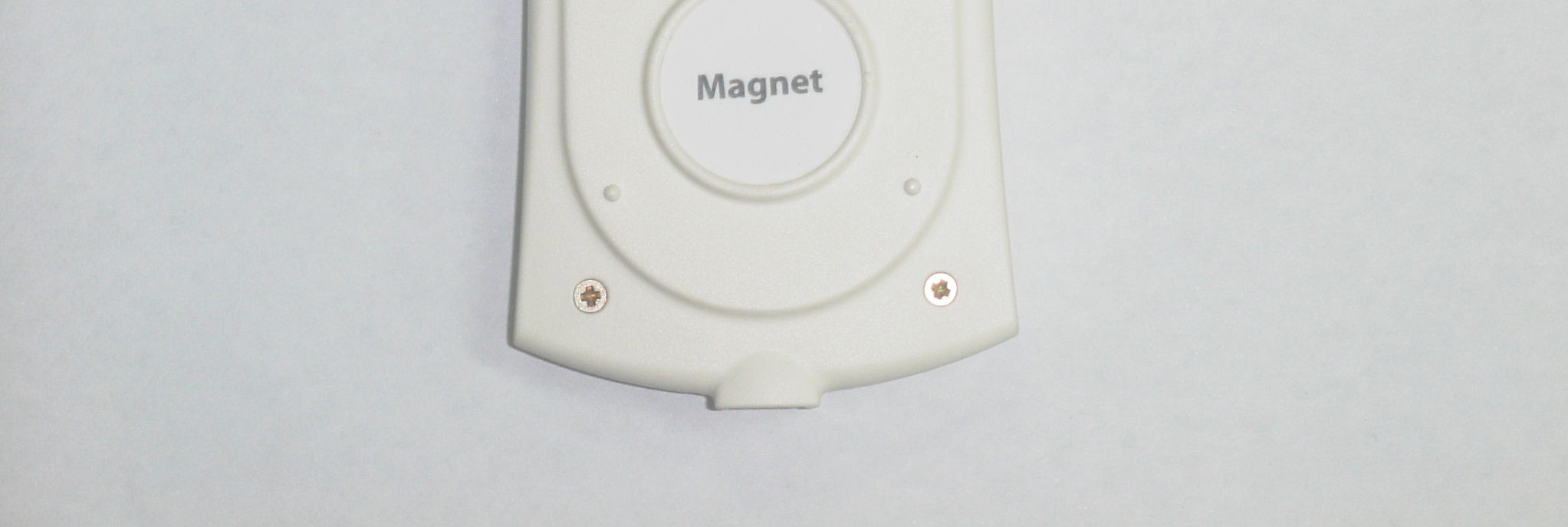

14 of 18 8. 8.8. 8. Photographs PhotographsPhotographs Photographs 8.1 TOP View 8.2 Bottom View 8.3 PBA Top View 16 of 18

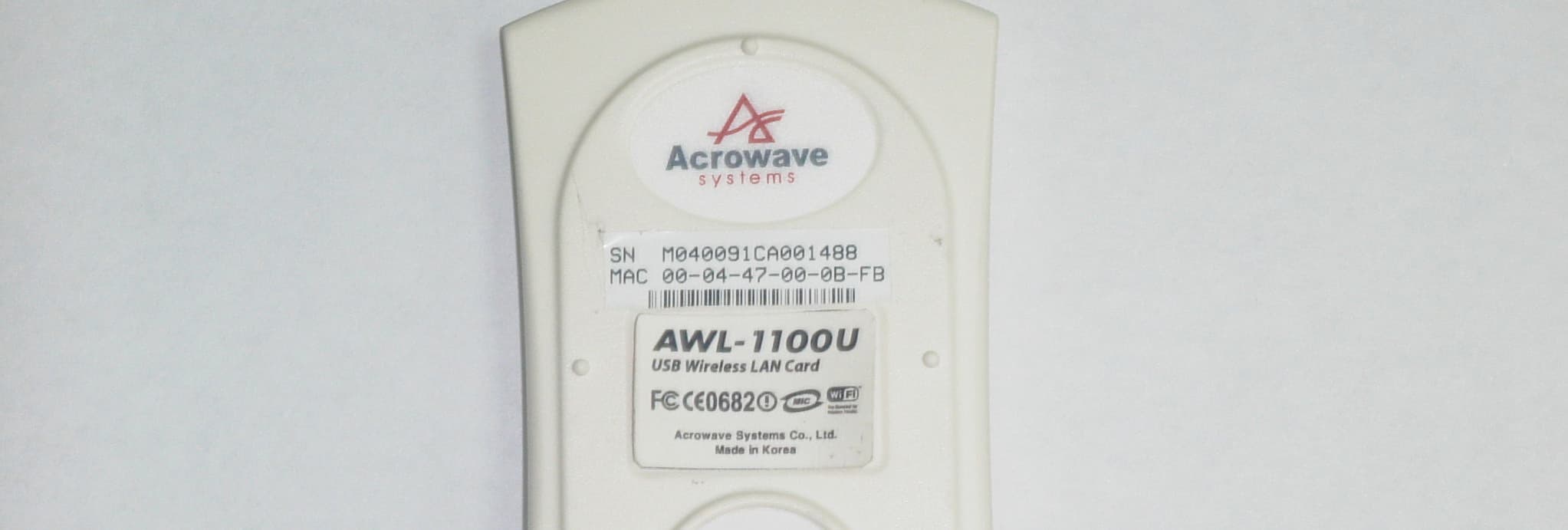

*FCC LABEL *FCC LABEL*FCC LABEL *FCC LABEL * LABEL LOCATION * LABEL LOCATION* LABEL LOCATION * LABEL LOCATION

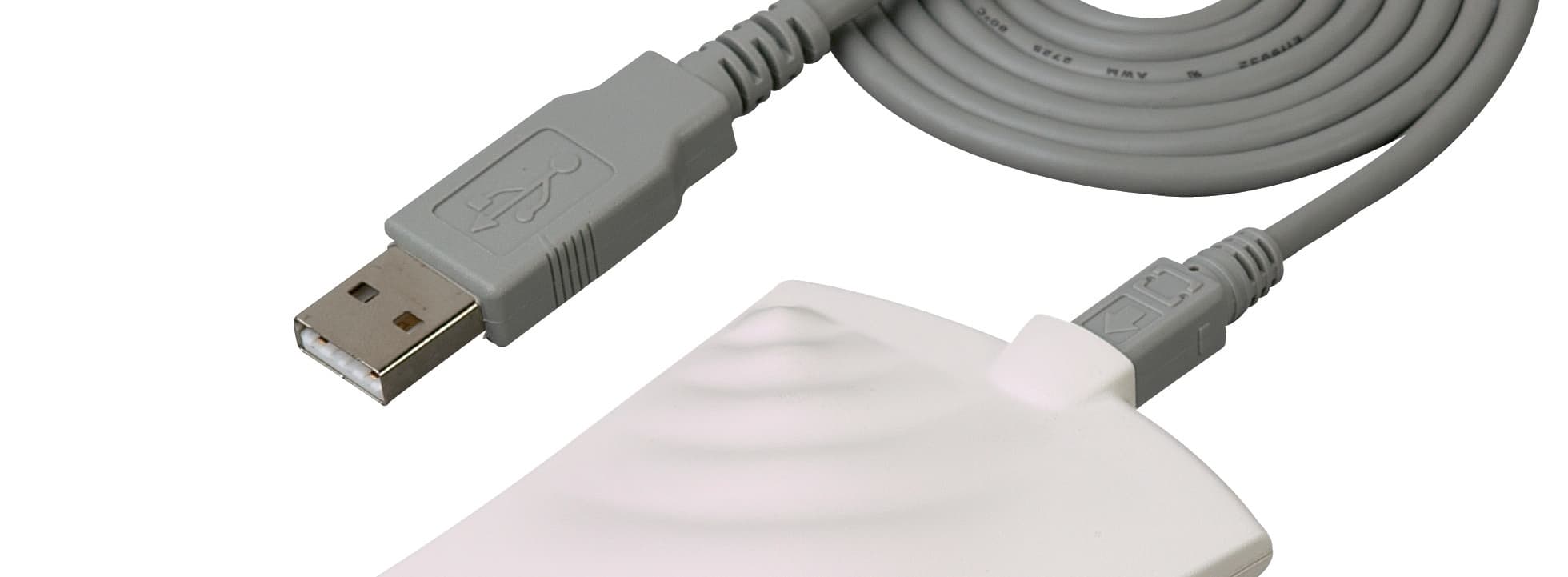

15 of 18 8.4 PBA Bottom View 8.5 Top View(With cable)

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-0Telefax: -9075 RSC14issue test report consist of64 PagesPage 1 (64) Accredited Bluetooth Test Facility (BQTF) Test report no.: 2-2883-01-02/02 FCC Part15.247/CANADA RSS-210 WLAN USB card AWL-1100U CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 TTI-P-G166/98 CETECOM ICT Services GmbH Test report nr.:2-2883-01-02/021Issue date: 2002-06-10Page 2 (64) Table of Contents 1General information 1.1Notes 1.2Testing laboratory 1.3Details of applicant 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test report 1General information 1.1Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax: + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom.de Accredited testing laboratory DAR-registration number : TTI-P-G-166/98-30 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM isatrademarkownedbyBluetoothSIG,Inc.andlicensedtoCETECOM CETECOM ICT Services GmbH Test report no.:2-2883-01-02/02Issue date:2002-06-10Page 3 (64) 1.3Details of applicant Name: ACROWAVE System Co., Ltd. Street: 6F Maru Bldg, #86-6 Nonhyun-dong Kangnam Gu City: Seoul 135-818 Country: Korea Telephone : +82 2 547 8778 Telefax: +82 2 547 4779 Contact: Mr. Sanghee Song Telephone: +82 2 539 9666 1.4Application details Date of receipt of application: 2002-06-02 Date of receipt of test item: 2002-06-02 Date of test: 2002-06-04 to 2002-06-06 1.5Test item Type of equipment: DSSS RLAN IEEE802.11b USB card Type designation: AWL-1100U Manufacturer:applicant Street: City: Country: Serial number:M040091CA001500 Additional information : Frequency:2400 – 2483.5 MHz Power Output:83,18 mW (EIRP) Type of modulation:22M0P7D (DSSS) Number of channels:13 Antenna:print antenna Power supply:5.0 V DC from PC Type of equipment:Plug-in radio device Temperature range :±0°C - +55°C 1.6Test standards:FCC Part 15 §15.247 / CANADA RSS-210 The detector function and selection of bandwidth are according ANSI C63.2-1996 item 8.2.1 and ANSI C63.4-1992 Item 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna >1GHz: Average, RBW 1MHz, VBW 1 MHz, waveguide horns. CETECOM ICT Services GmbH Test report no.:2-2883-01-02/02Issue date:2002-06-10Page 4 (64) 2Technical test 2.1Summary of test results The radiated measurements were performed with the build-in antenna and a measuring system including turntable and antenna lift to cover all three antenna planes. The radiated measurements were performed vertical and horizontal, horizontal results are about 6 dB lower over the complete frequency range. The antenna gain measurement was performed by the difference between conducted and radiated output measurement. 1. In an anechoic antenna test chamber, a half-wave dipole antenna for the frequency band of interest is placed at the reference center of the chamber. An RF Signal source for the frequency band of interest is connected to the dipole with a cable that has been constructed to not interfere with the radiation pattern of the antenna. A known (measured) power (Pin) is applied to the input of the dipole, and the power received (Pr) at the chamber's probe antenna is recorded. 2. A "reference path loss" is established as Pin + 2.1 - Pr. 3. The EUT is substituted for the dipole at the reference center of the chamber. The EUT is put into TX mode and a scan is performed to obtain the radiation pattern. 4. From the radiation pattern, the coordinates where the maximum radiated power occurs is identified. 5. Power measurements are performed with the receiving antenna placed at the coordinates determined in Step 3 to determine the output power. The "reference path loss" from Step 1 is added to this result. 6. This value is EIRP since the measurement is calibrated using a half-wave dipole antenna of known gain (2.1 dBi) and known input power (Pin). 7. ERP can be calculated from EIRP by subtracting the gain of the dipole, ERP = EIRP -2.1dBi. The conducted power measurement was performed by a temporary added coax adapter. All measurement settings are according to FCC 15.35, 15.205, 15.209, 15.247 and the „Measurement guidelines for DSSS systems“. No deviations from the technical specification(s) were ascertained in the course of the tests performed. The product fulfils also the requirements for CANADA RSS-210. FINAL VERDICT : PASS Technical responsibility for area of testing : 2002-07-26RSC 8414 Ames H. DateSectionNameSignature Technical responsibility for area of testing : 2002-07-26RSC8412Hausknecht D. DateSectionNameSignature 2.2Test report CETECOM ICT Services GmbH Test report no.:2-2883-01-02/02Issue date:2002-06-10Page 5 (64) TEST REPORT Test report no. : 2-2883-01-02/02 CETECOM ICT Services GmbH Test report no.:2-2883-01-02/02Issue date:2002-06-10Page 6 (64) TEST REPORT REFERENCE LIST OF MEASUREMENTS ParagraphPARAMETER TO BE MEASUREDPAGE Transmitter parameters § 15.204Antenna gain7 § 15.247 (a)(2) Spectrum bandwidth of a DSSS System8 § 15.247 (b)(1) Maximum peak output power12…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report no.:2-2883-01-02/02Issue date:2002-06-10Page 56 (64) Test site RADIATED EMISSIONS CETECOM ICT Services GmbH Test report no.:2-2883-01-02/02Issue date:2002-06-10Page 57 (64) Test site RADIATED EMISSIONS CETECOM ICT Services GmbH Test report no.:2-2883-01-02/02Issue date:2002-06-10Page 58 (64) Test site Radiated Emissions
