PE9YD163568349Toy RC Savage Car

User Manual Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment such modifications could void the user authority to operate the equipment. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Block Diagram Filter RF power amplifier and Modulator Oscillator 49.860MHz Encoder Control key 49.860MHz ANT IC1, 128KHz

Label Artwork and Location

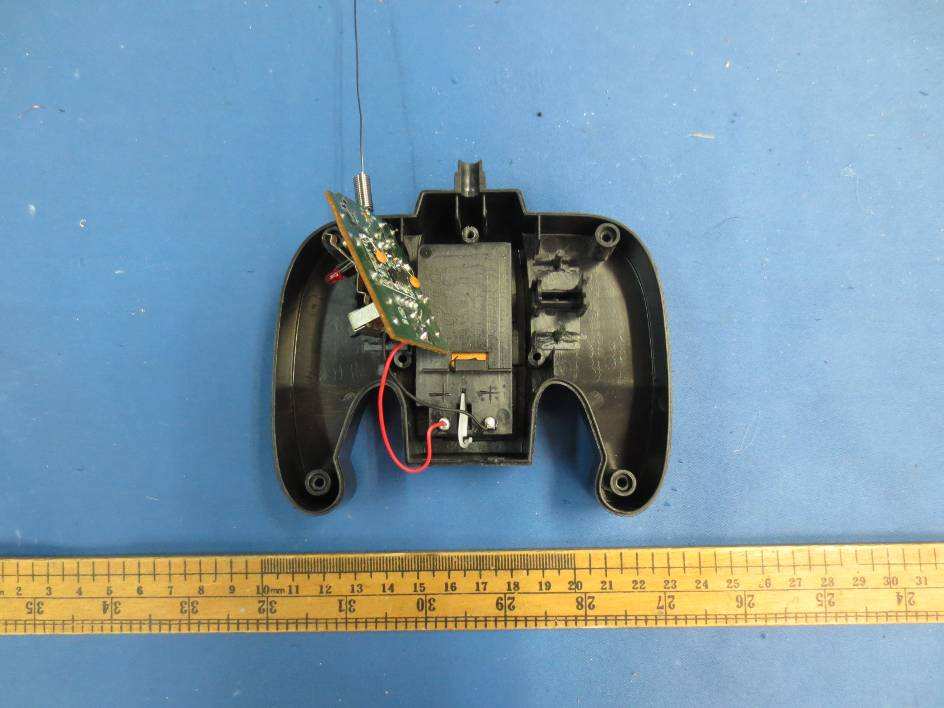

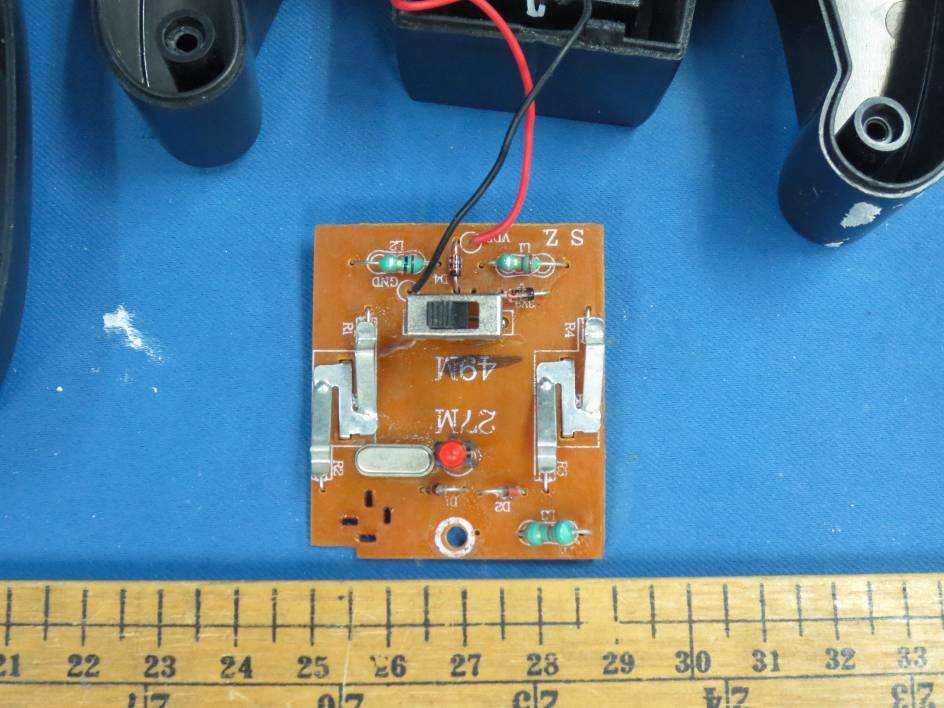

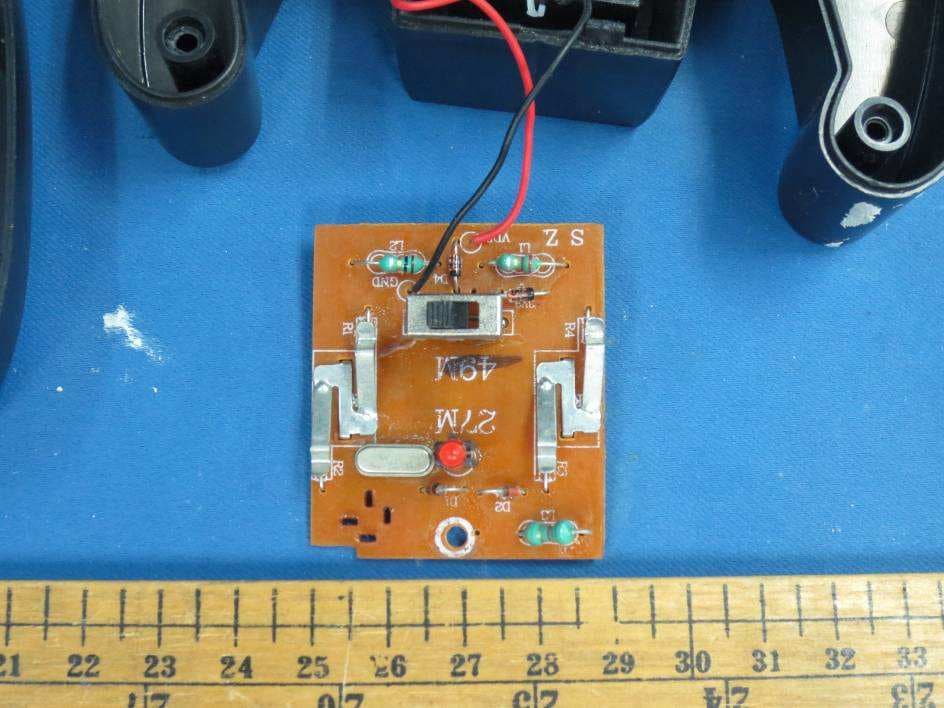

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L1, C3,C9 RF power amplifier and modulation Modulate the carrier and amplify the modulated RF signal Q1 Oscillator Generate 49.860MHz carrier TX1, Q2 Encoder IC Generate code signal to modulator IC1 Type of antenna: Internal antenna Type of modulation: Pulse modulation

1234 A B C D 4 321 D C B A ANT C9 22P C5 47P C4 22P R6 10K R3 220K VCC+9V LEFTB RIGHTB BACKWARDB FORWARDB R4 3.3K Q2 1815Y Q1 2222 COMPANY: MODEL NO: MODEL NAME: TITLE: DRAWING NO:REV: CODE: SIZE: SHEET: DEZIGN: CHECKED: APPROVED: L2 3.3UH R5 330R C8 104 L1 2.2UH TX1 49.860MHZ R2 0R C3 2P C11 10P R1 47K TX-49MHZ 1 2 3 4 5 6 78 9 10 11 12 13 14 IC1 HEADER 7X2 L3 2.2UH C10 104 LED C6 33P D1 3V3 D4 4148 BATTERY SW
