PE9YD201349Toy RC Savage Car

User Manual RC Savage Car YD2013 Use instruction 1) Turn the power switch of car-body to “ON” position; 2) When the user control the control stick, the LED light will be turn on; When the light is turning dimmer, the batteries are to be replaced; 3) Operate the handle of the controller, the car can move Forward and Backward clockwise. After play, turn the power switches of car-body to “OFF” position. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment such modifications could void the user authority to operate the equipment. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. MerchSource LLC Address: 15 Cushing Ave Irvine CA 92618 Phone, Fax: 949-900-0924, 949-707-2780

Terry Chan

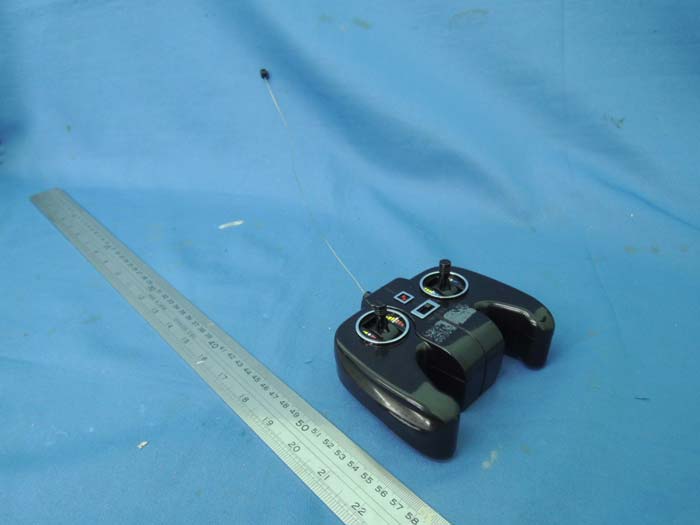

INTERTEK TESTING SERVICE Report No.: 13041374HKG-001R1 FCC ID: PE9YD201349 Equipment Photographs Model: YD2013 (External)

1635683-27MHz FCC ID label Size: 30mm*20mm 1635683-49MHz FCC ID label Size: 30mm*20mm (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID ： PE9YD201349 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID ： PE9YD201327 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1635683- 49MHz FCC DOC label

INTERTEK TESTING SERVICE Report No.: 13041374HKG-001R1 FCC ID: PE9YD201349 Equipment Photographs Model: YD2013 (Internal) INTERTEK TESTING SERVICE Report No.: 13041374HKG-001R1 FCC ID: PE9YD201349 Equipment Photographs Model: YD2013 (Internal) INTERTEK TESTING SERVICE Report No.: 13041374HKG-001R1 FCC ID: PE9YD201349 Equipment Photographs Model: YD2013 (Internal)

Model: YD2013 (Transmitter portion) Technical Description of Transmitter The transmitter is operating at 49.860 MHz as dictated by a crystal. The EUT has two forward or backward control levers to control the left wheel and right wheel of the receiver. The circuit of the transmitter comprises of, 1. Encodi ng circuit Consisting: IC1 (HEADER 7X2) 2. RF Oscillator Consisting: TX1 (49.860MHz) 3. Amplifier and modulator Consisting: Q1 4. Filter Consisting: C9, L1,C3 5. Power Supply Consisting: One 9.0V battery The transmitter uses an external, integral and non-detachable antenna. The nominal rated field strength is 72.6dBuV/m @ 3m Production tolerance of field strength is +/- 3dB Antenna gain is 0dBi

Analysis Report Report No.: 13041374HKG-001 The Equipment Under Test (EUT) is a transmitter of a RC Car operating at 49.860 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9V battery). The EUT has two forward or backward control levers to control the left wheels and right wheel of the receiver. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward, left or right. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 72.6dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 75.6dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.011mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.011mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 13041374HKG-001R1 Shantou Yida Toys Co., Ltd. Application For Certification (Original Grant) (FCC ID: PE9YD201349) Transmitter This report supersedes previous report with report number 13041374HKG-001 dated June 01, 2013 Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: August 01, 2013 INTERTEK TESTING SERVICES Report No.: 13041374HKG-001R1 FCC ID: PE9YD201349 i GENERAL INFORMATION Shantou Yida Toys Co., Ltd. BRAND NAME: N/A, MODEL: YD2013 FCC ID: PE9YD201349 Grantee: Shantou Yida Toys Co., Ltd. Grantee Address: 12 Building, Mian Bei Ping Bei Industrial District, Chaoyang, Shantou, Guangdong, China. Contact Person: Barry Tang Tel: +86754-82388629 ext. 820 Fax: +86754-82388629 ext. 824 e-mail: N/A Manufacturer: N/A Manufacturer Address: N/A Buyer: MerchSource, LLC Brand Name: N/A Model: YD2013 Manufacturer ID: 29767 Type of EUT: Transmitter Description of EUT: Toy RC Savage Car Serial Number: N/A FCC ID: PE9YD201349 Date of Sample Submitted: April 24, 2013 Date of Test: April 30, 2013 to May 21, 2013 Report No.: 13041374HKG-001R1 Report Date: August 01, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 13041374HKG-001R1 FCC ID: PE9YD201349 ii SUMMARY OF TEST RESULT Shantou Yida Toys Co., Ltd. BRAND NAME: N/A, MODEL: YD2013 FCC ID: PE9YD201349 TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.235 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 13041374HKG-001R1 FCC ID: PE9YD201349 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Equipment Modification...................................................................................... 2 2.5 Measurement Uncertainty .................................................................................. 2 2.6 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 4.0 Equipment Photographs ..................................................................................... 6 5.0 Product Labelling................................................................................................ 6 6.0 Technical Specifications ..................................................................................... 6 7.0 Instruction Manual .............................................................................................. 6 8.0 Miscellaneous Information................................................................................. 7 8.1 Measured Bandwidth / RF Output Signal.............…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13041374HKG-001R1 FCC ID: PE9YD201349 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: YD2013 INTERTEK TESTING SERVICE Report No: 13041374HKG-001R1 FCC ID: PE9YD201349 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: YD2013
