PED-SKYROUTE1SKYROUTE, SKYROUTE MAX, SKYROUTE UT

Installation Manual Version 1.0 WARNING:WARNING: WARNING:WARNING: WARNING: You must be enrolled with Connect 24 You must be enrolled with Connect 24 You must be enrolled with Connect 24 You must be enrolled with Connect 24 You must be enrolled with Connect 24 before activating this unit. Call 1-888-251-7458 inbefore activating this unit. Call 1-888-251-7458 in before activating this unit. Call 1-888-251-7458 inbefore activating this unit. Call 1-888-251-7458 in before activating this unit. Call 1-888-251-7458 in the U.S. or 1-888-955-5583 in Canadathe U.S. or 1-888-955-5583 in Canada the U.S. or 1-888-955-5583 in Canadathe U.S. or 1-888-955-5583 in Canada the U.S. or 1-888-955-5583 in Canada Skyroute Skyroute UT Skyroute max FCC COMPLIANCE STATEMENT CAUTION: Changes or modifications not expressly approved by SG Wireless Communications could void your authority to use this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 and Part 22 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Re-orient the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/television technician for help. The user may find the following booklet prepared by the FCC useful: “How to Identify and Resolve Radio/Television Interference Prob- lems”. This booklet is available from the U.S. Government Printing Office, Washington D.C. 20402, Stock # 004-000-00345-4. INDUSTRY CANADA COMPLIANCE STATEMENT This Class B digital apparatus meets all requirements of the Canadian interference-causing equipment regulations. Cet appareil numérique de la Classe B respecte toutes les exigences de règlement sur le matériel brouilleur du Canada. WARNING:To satisfy FCC RF exposure requirements for fixed station transmitting devices, a separation distance of 30 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended. Table of Contents Generic Reporting5 Description................................................................... 5 Normal Alarm Condition ................................................ 5 Notice.......................................................................... 5 STEP 4 - Programming Sections6 Configuration Options - Section [006] ............................. 6 Skyroute max Transceiver SID (System ID) - Section [007] . 6 Skyroute max Test Time - Section [010] ........................... 6 Test Transmission Day Mask - Section [011] .................... 6 STEP 5 - Activating the Skyroute max Transceiver6 Calling Connect24......................................................... 6 Transmitting and Receiving............................................. 6 Testing Your Control to the Central Station6 Skyroute max Programming with PC4020 [00][18]Skyroute max Programming7 [00][18] Skyroute max Programming .............................. 7 [006]Skyroute max Configuration Options....................... 7 [007Home SID Number.................................................. 7 [010]Skyroute max Test Time ......................................... 7 [011]Test Transmission Day Mask................................... 7 [013]Skyroute max Test Rates........................................ 7 Sections [030]-[047]..................................................... 8 Skyroute max Transceiver Trouble Shooting12 Antenna Relocation Diagram13 Supervised Power Supply Connection Diagram14 Standard Connection with PC402015 For Your Records16 Appendix A – Reporting Codes for SIA and Contact ID17 Appendix B - Zone Reporting codes18 Limited WarrantyBACK Contentsii Important Information ................................................. ii Skyroute max Glossary of Termsii Introducing the Skyroute max Transceiver1 Specifications.............................................................. 1 Communications Method ............................................ 1 Dual Path Communications ......................................... 1 Antenna ....................................................................... 1 RF Power Output ......................................................... 1 Power Supply Ratings .................................................. 1 Dimension................................................................... 1 Weight ......................................................................... 1 Operating Temperature.................................................. 1 How the Skyroute max Transceiver Works1 Cellemetry Communication............................................ 1 Installation2 Mounting the Skyroute max Transceiver .......................... 2 Combus Connection....................................................... 2 Bell IN Terminal ............................................................. 2 Bell OUT Terminal.......................................................... 2 Tamper Terminal........................................................... 2 Secure Installation......................................................... 2 Connection Diagram...................................................... 2 STEP 1 - Location of the Skyr…

Text truncated - open the document above for the full version.

SUR-GARD Security Systems Ltd. 401 Magnetic Drive Units 24-29, Downsview, O ntario, Canada M3J 3H9, Tel: 416-665-5597 December 18, 2001 Federal Communications Commission, 7435 Oakland Mills Road, Columbia, Maryland 21046 AUTHORITY TO ACT AS AGENT TO THE FEDERAL COMMUNICATIONS COMMISSION Applicant : Sur-Gard Security Systems Ltd. Product : SG-Skyroute Model : Skyroute, Skyroute Max, Skyroute UT FCC ID : PED-SKYROUTE 1 I hereby appoint Nemko Canada Inc. to act as my agent in preparation of this application to F.C.C. for authorization of equipment under F.C.C. Rules. I also certify that the information provided, properly described the device or system for which authorization is required Regards, Dan Nita Approvals Supervisor

SUR-GARD Security Systems Ltd. 401 Magnetic Drive Units 24-29, Downsview, O ntario, Canada M3J 3H9, Tel: 416-665-5597 December 18, 2001 Federal Communications Commission, 7435 Oakland Mills Road, Columbia, Maryland 21046 Applicant : Sur-Gard Security Systems Ltd. Product : SG-Skyroute Model : Skyroute, Skyroute Max, Skyroute UT FCC ID : PED-SKYROUTE1 Please accept this letter as official authorization for the multiple listing of the Standard Communications Ltd. model CMM7700 under the Sur-Gard Security Systems Ltd. model SG-Skyroute. Please contact me should you require any additional information or clarification. Regards, Dan Nita Approvals Supervisor

SUR-GARD Security Systems Ltd. 401 Magnetic Drive Units 24-29, Downsview, O ntario, Canada M3J 3H9, Tel: 416-665-5597 December 18, 2001 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U. S.A. Subject: Request for withholding from public disclosure the schematic diagrams and system block diag ra ms purs ua nt to a n a pplicatio n fo r ce rtificatio n. Applicant:Sur-Gard Security Systems Ltd. Product:SG-Skyroute Mo de l:Skyro ute , Skyro ute MAX & Skyroute UT FCC ID:PED-SKYROUTE 1 Dear Sir/Madam, We, Sur-Gard Security Systems Ltd, would like to request that the schematic diagrams and system block diagrams submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission's Rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize as a withholding from public inspection materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. The detailed confidential materials are listed as follows: No. Title Drawing No. Sheet No. 1 UA001 SKYROUTE CN Rev. 02 schematic707000201 2 Parts List81005247all 3 4 5 If you have any queries, please do not hesitate to contact us by our TOLL FREE numbers: OUR TELEPHONE NO.: 888-888-7838 Yours tr ul y, Dan Nita Approvals Supervisor

SUR-GARD Security Systems Ltd. 401 Magnetic Drive Units 24-29, Downsview, O ntario, Canada M3J 3H9, Tel: 416-665-5597 Front Model No.: SG-SKYROUTE Serial No.: xxxxxxxxxxxx Made In Canada This device complies with Part 15 of the FCC rules. Operatio n is s ubje ct to the fo llo wing two co nd itio ns : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: PED-SKYROUTE 1 Back Antenna Location The Label (4.00” x 1.00”) is placed on the back of the metal bracket that holds the PCB and the radio modem. Please see attached drawing. December 18, 2001 Dan Nita Approvals Supervisor SG-SKYROUTE BOTTOM METAL BRACKET

SUR-GARD Security Systems Ltd. 401 Magnetic Drive Units 24-29, Downsview, O ntario, Canada M3J 3H9, Tel: 416-665-5597 LABEL FORMAT Model No.: SG-SKYROUTE Serial No.: xxxxxxxxxxxx Made in Canada This device complies with Part 15 of the FCC rules. Operatio n is s ubje ct to the fo llo wing two co nd itio ns : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: PED-SKYROUTE 1 The FCC Label (4.00” x 1.00”) is placed on the back of the metal bracket that holds the PCB and the radio modem. Please see attached drawing. December 18, 2001 Dan Nita Approvals Supervisor

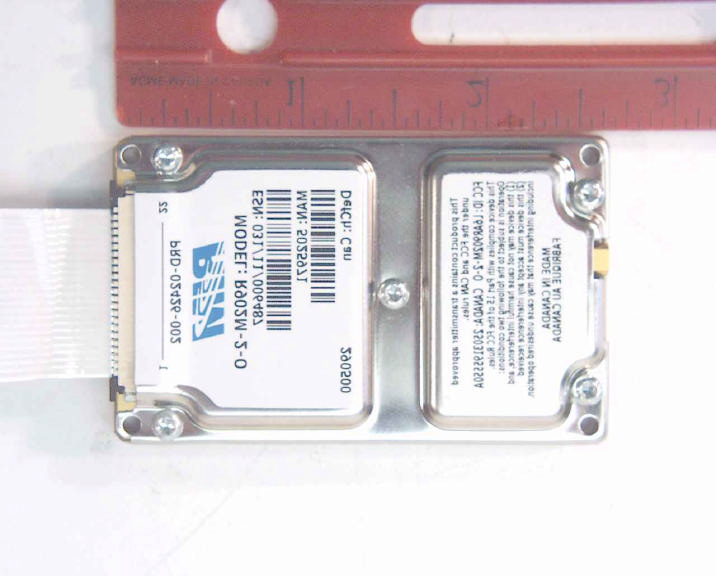

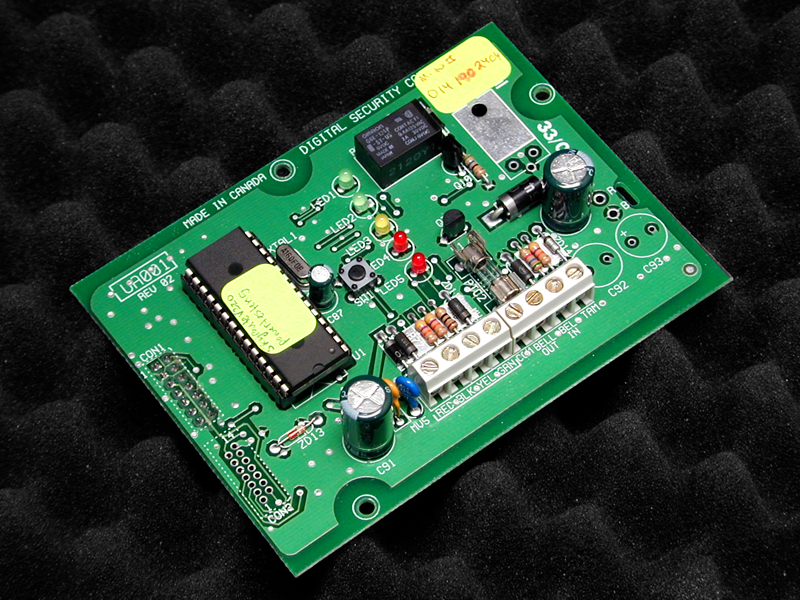

CIRCUIT DESCRIPTION Device: Skyroute Model: Skyroute, Skyroute Max, Skyroute UT ESI Identifier: Description: The Skyroute transceiver offers a new wireless communication method for transmission of event information using Cellemetry service. Events are transmitted from the Skyroute transceiver via Cellemetry network to the Clearing House and than to the Central Monitoring Station in a faster manner, maximum 2 seconds on every transmitter’s activation. The transceiver consists of the OEM radio module, Standard Model CMM7700 and a digital interface board UA001 rev. 02 assembled together on a metal bracket. The digital interface receives the alarm events from the alarm control panel and communicates them over to the radio module which then transmit the information over the RF network.

MPE Statement FCC Radio Frequency Exposure Limits 1.1310 Health Canada Safety Code 6 Industry Canada RSS 102 The measured power density is within 0.2 dB of the calculated power density at 30 cm. The first page of the installation manual contains an RF exposure warning statement. Page ii cautions against the use of any antenna except that which is provided by the manufacturer. Measurements were made using a Narda Microwave Radiation Monitor 22 /549.0 1500 824 / 1500 cmmWcmmW f atoinLimitGenralPopu=== Limit R GP Therefore≤ 2 4π cmcm x L GP R305.29 549.04 30002 4 ≈==≥ ππ cmcmmWMeasured30@/552.0 2 = 2 2 /531.0 304 30002 cmmW x x tyPowerDensiCalculated== π

MPE Statement FCC Radio Frequency Exposure Limits 1.1310 Health Canada Safety Code 6 Industry Canada RSS 102 The measured power density is within 0.2 dB of the calculated power density at 30 cm. The first page of the installation manual contains an RF exposure warning statement. Page ii cautions against the use of any antenna except that which is provided by the manufacturer. Measurements were made using a Narda Microwave Radiation Monitor 22 /549.0 1500 824 / 1500 cmmWcmmW f atoinLimitGenralPopu=== Limit R GP Therefore≤ 2 4 π cmcm x L GP R 305.29 549.04 30002 4 ≈==≥ ππ cmcmmWMeasured 30@/552.0 2 = 2 2 /531.0 304 30002 cmmW x x tyPowerDensiCalculated== π

Master: Generic FCC Date: October 16, 2001 Test Report:1W04436 Applicant:Sur-Gard Security Systems 3301 Langstaff Road Vaughan, Ontario L4K 4L2 Equipment Under Test:SKYROUTE Cellemetry Transceiver (EUT) FCC ID:PED-SKYROUTE1 In Accordance With:FCC Part 22 Tested By:Nemko Canada Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: G. Westwell, Wireless Technologist Date:January 4, 2002 Total Number of Pages:13 Authorized Copy:Soft Copy Nemko Canada Inc.FCC PART 22 PROJECT NO.: 1W04436 EQUIPMENT: SKYROUTE Cellemetry Transceiver FCC ID: PED-SKYROUTE1 Page 2 of 13 Table of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. RF Power Output..................................................................................................8 Section 4. Field Strength of Spurious Emissions..................................................................9 Section 5. Block Diagrams...................................................................................................12 Section 6. Test Equipment List...........................................................................................13 Nemko Canada Inc.FCC PART 22 PROJECT NO.: 1W04436 EQUIPMENT: SKYROUTE Cellemetry Transceiver FCC ID: PED-SKYROUTE1 Page 3 of 13 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 22. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: DATE: January 4, 2002 Russell Grant, Wireless Group Manager Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The results apply only to the samples tested. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc.FCC PART 22 PROJECT NO.: 1W04436 EQUIPMENT: SKYROUTE Cellemetry Transceiver FCC ID: PED-SKYROUTE1 Page 4 of 13 Summary Of Test Data Name Of TestPara. No.Result RF Power Output2.1046Complies Audio Frequency Response2.1047N/A Audio Low-Pass Filter Response2.1047N/A Modulation Limiting2.1047Not Tested Occupied Bandwidth2.1049Not Tested Spurious Emissions at Antenna Terminals 2.1051Not Tested Field Strength of Spurious Emissions2.1053Complies Frequency Stability2.1055Not Tested Transient Frequency Behavior——N/A Footnotes For N/A’s:This equipment does not use voice modulation. This equipment has been previously approved for user under FCC ID: APV09001. The approval is for OEM integration using 2.5 dBi antenna. The applicant has changed the antenna to 3 dBi and has mounted the transceiver module on a digital interface card for installation in an alarm control panel. Therefore measurements made were Transmitter Power Output and Transmitter Radiated Spurious Emissions. The applicant has permission from the original certificate holder to obtain equipment authorization based on the original certificate. IndoorTemperature:22 °C Humidity:52 % OutdoorTemperature:25 °C Humidity:54 % . Nemko Canada Inc.FCC PART 22 PROJECT NO.: 1W04436 EQUIPMENT: SKYROUTE Cellemetry Transceiver FCC ID: PED-SKYROUTE1 Page 5 of 13 Section 2.General Equipment Specification Model No.: SKYROUTE, SKYROUTE MAX & SKYROUTE UT Serial No.: None Date Received In Laboratory: October 24, 2001 Nemko Identification No.: Item #34 Tx:824 – 849 MHz Rx:826 – 894 MHz 3 Watts 36K0F1D Block Diagram Alarm Control Panel Radio Module 120 VAC Wall Plug Power Supply Digital Interface Board UA001 Communication Bus Nemko Canada Inc.FCC PART 22 PROJECT NO.: 1W04436 EQUIPMENT: SKYROUTE Cellemetry Transceiver FCC ID: PED-SKYROUTE1 Page 6 of 13 MPE Statement FCC Radio Frequency Exposure Limits 1.1310 Health Canada Safety Code 6 Industry Canada RSS 102 General Population Limit = 22 /549.0 1500 824 / 1500 cmmWcmmW f == Therefore 2 4R GP π ≤ Limit R ≥ 549.04 30002 4ππ x L GP == 29.5cm ≈ 30cm Measured = 0.552mW / cm 2 @ 30cm Calculated Power Density = 2 304 30002 π x = 0.531mW / cm 2 The measured power density is within 0.2 dB of the calculated power density at 30 cm. The first page of the installation manual contains an RF exposure warning statement. Page ii cautions against the use of any antenna except that which is provided by the manufacturer. Measurements were made using a Narda Microwave Radiation Monitor Nemko Canada Inc.FCC PART 22 PROJECT NO.: 1W04436 EQUIPMENT: SKYROUTE Cellemetry Transceiver FCC ID: PED-SKYROUTE1 Page 7 of 13 Equipment Setup Photograph Front View: Nemko Canada Inc.FCC PART 22 PROJECT NO.: 1W04436 EQUIPMENT: SKYROUTE Cellemetry Transceiver FCC ID: PED-SKYROUTE1 Page 8 of 13 Section 3.RF Power Output Para. No.: 2.1046 Test Performed By: Russell GrantDate of Test: December 20, 2001 Minimum Standard:22.913(a), 500 Watts ERP Test Results:Complies within ± 1 dB of rated power. Measurement Data:Measured:35.7 dBm Rated:34.8 dBm Antenna Gain:3 dBi, 0.9 dBd ERP:35.7 + 0.9 = 36.6 dBm Nemko Canada Inc.FCC PART 22 PROJECT NO.: 1W04436 EQUIPMENT: SKYROUTE Cellemetry Transceiver FCC ID: PED-SKYROUTE1 Page 9 of 13 Section 4.Field Strength of Spurious Emissions Para. No.: 2.1053 Test Performed By: Russell GrantDate of …

Text truncated - open the document above for the full version.
