PEG35170-BCordless Telephone Base

SENTON Enterprises Limited 信 通 企 業 有 限 公 司 Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街26-28號 26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心17樓10室 Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線) E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五 1 032104A-1 IMPORTANT SERVICE INFORMATION Read this manual before attempting to setup or use this instrument. It contains important information regarding safe installation and use. Keep this manual for future reference. Also save the carton, packing and proof of purchase to simplify and accelerate any needed action. If you need assistance or service, call (800) 888-8990 between 8:00 a.m. and 4:30 p.m. Pacific Standard Time, Monday through Friday. You can also visit our web site at http://www.nwbphones.com for technical support and information on our other products WARNING To prevent fire or shock hazard, do not expose this product to rain or any type of excess moisture. If accidentally dropped into water, the AC adapter should immediately be unplugged from the wall along with the telephone line cord. THIS SYMBOL IS INTENDED TO ALERT THE USER OF THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE OWNER'S MANUAL. Excursion ® 35170 CARTON CONTENTS • Excursion ® 35170 Base and Handset • Rechargeable Ni-Cd Battery Pack • Telephone Line Cord(Short and Long) • AC Adaptor • User’s Manual • Warranty Card • Accessory Order Form • Wall Mount Screws and Hardware SENTON Enterprises Limited 信 通 企 業 有 限 公 司 Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街26-28號 26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心17樓10室 Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線) E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五 2 032104A-1 SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool. 5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 6. Slots and openings in the cabinet and the back or bottom are provided for ventilation, to protect it from overheating. These openings should never be blocked or covered. The openings should never be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided. 7. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. 8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it. 9. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. 10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product. 11. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service contractor when some service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustments of other controls may result in damage and will often SENTON Enterprises Limited 信 通 企 業 有 限 公 司 Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街26-28號 26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心17樓10室 Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線) E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五 3 032104A-1 require extensive work by a qualified technician to restore the product to normal operation. E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits a distinctive change in performance. 13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 14. Do not use the telephone to report a gas leak in the vicinity of the leak. INSTALLATION PRECAUTIONS 1. Never install telephone wiring during a lightning storm. 2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. 3. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. 4. Use caution when installing or modifying telephone lines. MAINTENANCE 1. Use a damp cloth to clean the plastic cabinet. A mild soap will help to remove grease or oil. Never use polish, solvents, abrasives or strong detergents since these can damage the finish. 2. Your phone should be situated away from heat sources such as radiators, heate…

Text truncated - open the document above for the full version.

SENTON Enterprises Limited Flat 10, 17/F, Fo Tan Industrial Centre, 26-28 26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 1710 Tel: (852) 2687-1712 Fax: (852) 2687-4125 : () () E-mail address: [email protected] : () APPENDIX B Company SENTON Enterprises Limited Address Flat10, 17/F., Fotan Ind. Centre, 26-28 Au Pui Wan St., Fo Tan, Shatin, N.T. Hong kong. Country Telephone number (852) 2687-1712 Fax number (852) 2687-4125 Internet Federal Communications Commission Authorization and Evaluation Division Confidentiality Request RE: FCC ID: PEG35170 -B Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics.pdf Block Diagram.pdf Operational Descriptions.pdf The above materials contain trade secrets and proprietary information not customarily release to the public. The public disclosure of these matters might be harmful to the Applicant and Provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the data of the Grant for this application. Sincerely, Wan Cheuk Man Engineering Manager SENTON Enterprises Limited

SENTON Enterprises Limited Flat 10, 17/F, Fo Tan Industrial Centre, 26-28 26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 1710 Tel: (852) 2687-1712 Fax: (852) 2687-4125 : () () E-mail address: [email protected] : () APPENDIX A "I, an officer of SENTON Enterprises Limited do hereby authorize Intertek Testing Services to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853(a). By Signature Printed Title Engineering Manager

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 23, 2004 RE: Senton Enterprises Limited FCC ID: PEG35170-B After a review of the submitted information, I have a few comments on the above referenced Application. 1) Technical information in the operational description states this device TX’s at 2468.0 – 2479.7. However, the application appears to be for a 5 GHz. Please explain. 2) The schematics are missing for the RF portion of the device. Please update. 3) The users manual appears to be missing information required by 15.105. Please revise. 4) The BiLog antenna and possibly the preamplifier appears out of calibration during the test. Please explain. 5) The Base appears large enough that the label should include the 2 part FCC statements from 15.19(a)(3). Please add/correct. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Dear Timothy Thank you for your comments. About your comment 1, we modified the technical description, and upload to ATCB website the file name as "Technical description-revised". About your comment 2, we supplied RF schematics to ATCB website, the file name as "RF circuit". About your comment 3, we added the 15.105 requirement in the manual and upload to ATCB website the file name as " Manual-revised" About your comment 4, the BiLog antenna and possibly the preamplifer appears out of calibration during the test, the above equipments are calibration biyearly. About your comment 5, we modified the lebal and upload to ATCB website, the file name as "label-revised" If you have any question, please feel free to let me know. Thank you & Best Regards Sunny Liu

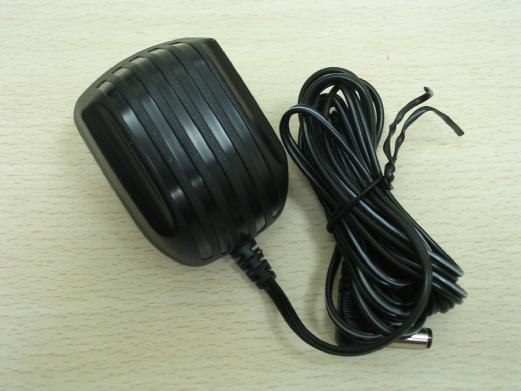

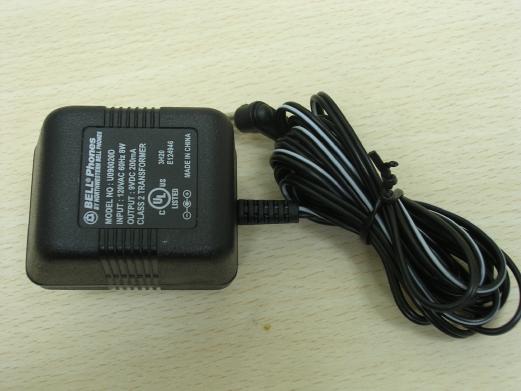

Photo 1: External photo of EUT Photo 2: External photo of EUT Photo 3: External photo of EUT Photo 4: External photo of Antenna Antenna Photo 5: External photo of Adapter (DVR-0920-3512) Photo 6: External photo of Adapter (DVR-0920-3512) Photo 7: External photo of Adapter (U090020D) Photo 8: External photo of Adapter (U090020D)

FCC ID Location

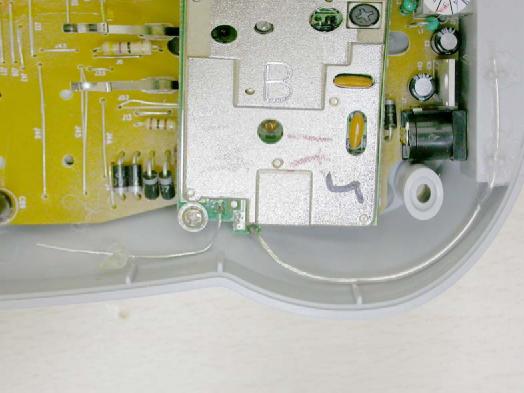

Photo 1: Internal photo of EUT Photo 2: Internal photo of EUT Photo 3: Internal photo of EUT Photo 4: Internal photo of EUT Photo 5: Internal photo of EUT Photo 6: Internal photo of EUT Photo 7: Internal photo of EUT Photo 8: Internal photo of EUT Photo 9: Internal photo of EUT Photo 10: Internal photo of EUT Photo 11: Internal photo of EUT

FCC ID. : PEG35170-B Report No.: EME-040451 Page 1 of 25 EMC TEST REPORT Report No. : EME-040451 Model No. : 35170 Issued Date : July 15, 2004 Applicant : SENTON Enterprises Limited Flat 10, 17/F., Fotan Ind. Centre, 26-28 Au Pui Wan St., Fo Tan Shatin, N.T. Hong Kong Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 25 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Kevin Chen Project Engineer Reviewed By Jerry Liu FCC ID. : PEG35170-B Report No.: EME-040451 Page 2 of 25 Table of Contents Summary of Tests.........................................................................................................3 1. General information..................................................................................................4 1.1 Identification of the EUT....................................................................................4 1.2 Additional information about the EUT................................................................4 1.3 Antenna description............................................................................................5 1.4 Peripherals equipment........................................................................................5 2. Test specifications.....................................................................................................6 2.1 Test standard......................................................................................................6 2.2 Operation mode..................................................................................................6 2.4 Test equipment...................................................................................................7 3. Radiated emission test FCC 15.249 (C).....................................................................8 3.1 Operating environment.......................................................................................8 3.2 Test setup & procedure.......................................................................................8 3.3 Emission limit....................................................................................................9 3.3.1 Fundamental and harmonics emission limits....................................................9 3.3.2 General radiated emission limits....................................................................10 3.4 Radiated spurious emission test data.................................................................11 3.4.1 Measurement results: frequencies equal to or less than 1 GHz.......................11 3.4.2 Measurement results: frequency above 1GHz................................................12 3.4.2.1 Measurement results: Fundamental and harmonics emission.......................12 4. Conducted emission test FCC 15.207......................................................................15 4.1 Operating environment.....................................................................................15 4.2 Test setup & procedure.....................................................................................15 4.3 Emission limit..................................................................................................16 4.4 Conducted emission data FCC 15.207..............................................................17 5. Radiated emission on the band edge FCC 15.249(C)...............................................21 FCC ID. : PEG35170-B Report No.: EME-040451 Page 3 of 25 Summary of Tests Cordless Phone -Model: 35170 FCC ID: PEG35170-B Test Reference Results Conducted Emission of AC Power 15.207 Complies Radiated Emission test 15.249(c), 15.209 Complies FCC ID. : PEG35170-B Report No.: EME-040451 Page 4 of 25 1. General information 1.1 Identification of the EUT Applicant : SENTON Enterprises Limited Product : Cordless Phone Model No. : 35170 FCC ID. : PEG35170-B Frequency Range : 5803.019MHz to 5816.019MHz Channel Number : 40 channels Frequency of Each Channel : 5803.019 ＋ 0.3333k MHz, k=0~39 Type of Modulation : FM Power Supply : 120Vac, 60Hz with adapter (DVR-0920-3512 or U090020D) Power Cord : N/A Sample Received : May 4, 2004 Test Date(s) : May 5, 2004 ~ July 9, 2004 1.2 Additional information about the EUT The EUT is a Cordless Phone, it consists of handset unit and base unit. The test performed based unit and recorded in this report. We verify the model number for different brand serves as marketing strategy listed below. Model Number Trade Name SENTON 35178 Bell Phone 35178 For more detail features, please refer to User ' s manual as file name “Installation guide.pdf” FCC ID. : PEG35170-B Report No.: EME-040451 Page 5 of 25 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain : 0 dBi max Antenna Type : Copper Wire Connector Type : N/A 1.4 Peripherals equipment Peripherals Manufacturer Product No. Serial No. Handset Senton 35178 N/A Dummy Load: 50 Ω FCC ID. : PEG35170-B Report No.: EME-040451 Page 6 of 25 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Paragraph 15.249 for non-spread spectrum devices. The test of radiated measurements according to FCC Part15 Section 15.33(a) had been conducted and the field strength of this frequency band were all meet limit requirement, thus we evaluate the EUT pass the specified test. 2.2 Operation mode In the conducted emission test, the EUT was operated in charging mode and tested with adapter 1(DVR-0920-3512) and adapter 2 (U090020D), the final data recorded in this report. During the other tests, the EUT was operated in continuously transmitting status. Not at normal operation for users. FCC ID. : PE…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up Photo 2: Conducted Emission Test Set-up Photo 3: Conducted Emission Test Set-up

Photo 1: Radiated Emission Test Set-up Photo 2: Radiated Emission Test Set-up
