PEG35808Cordless Telephone Base and Handset

SENTON Enterprises Limited 信 通 企 業 有 限 公 司 Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街26-28號 26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心17樓10室 Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線) E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五 031804A-1 1 IMPORTANT SERVICE INFORMATION Read this manual before attempting to setup or use this instrument. It contains important information regarding safe installation and use. Keep this manual for future reference. Also save the carton, packing and proof of purchase to simplify and accelerate any needed action. If you need assistance or service, call (800) 888-8990 between 8:00 a.m. and 4:30 p.m. Pacific Standard Time, Monday through Friday. You can also visit our web site at http://www.nwbphones.com for technical support and information on our other products. WARNING To prevent fire or shock hazard, do not expose this product to rain or any type of excess moisture. If accidentally dropped into water, the AC adapter should immediately be unplugged from the wall along with the telephone line cord. THIS SYMBOL IS INTENDED TO ALERT THE USER OF THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE OWNER'S MANUAL. SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Excursion ® 35808 CARTON CONTENTS • Excursion ® 35808 Base and Handset • Rechargeable Ni-Cd Battery Pack • Telephone Line Cord(Short and Long) • AC Adaptor • User’s Manual • Warranty Card • Accessory Order Form SENTON Enterprises Limited 信 通 企 業 有 限 公 司 Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街26-28號 26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心17樓10室 Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線) E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五 031804A-1 2 When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool. 5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 6. Slots and openings in the cabinet and the back or bottom are provided for ventilation, to protect it from overheating. These openings should never be blocked or covered. The openings should never be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided. 7. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. 8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it. 9. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. 10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product. 11. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service contractor when some service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustments of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits a distinctive change in performance. 13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 14. Do not use the telephone to report a gas leak in the vicinity of the leak. INSTALLATION PRECAUTIONS 1. Never install telephone wiring during a lightning storm. 2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. 3. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. 4. Use caution when installing or modifying telephone lines. SENTON Enterprises Limited 信 通 企 業 有 限 公 司 Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街26-28號 26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心17樓10室 Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線) E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五 031804A-1 3 MAINTENANCE 1. Use a damp cloth to clean the plastic cabinet. A mild soap will help to remove grease or oil. Never use polish, solvents, abrasives or strong detergents since these can damage the finish. 2. Your phone should be situated away from heat sources such as radiators, heaters, stoves or any other applianc…

Text truncated - open the document above for the full version.

SENTON Enterprises Limited Flat 10, 17/F, Fo Tan Industrial Centre, 26-28 26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 1710 Tel: (852) 2687-1712 Fax: (852) 2687-4125 : () () E-mail address: [email protected] : () APPENDIX A "I, an officer of SENTON Enterprises Limited do hereby authorize Intertek Testing Services to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853(a). By Signature Printed Title Engineering Manager

SENTON Enterprises Limited Flat 10, 17/F, Fo Tan Industrial Centre, 26-28 26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 1710 Tel: (852) 2687-1712 Fax: (852) 2687-4125 : () () E-mail address: [email protected] : () APPENDIX B Company SENTON Enterprises Limited Address Flat10, 17/F., Fotan Ind. Centre, 26-28 Au Pui Wan St., Fo Tan, Shatin, N.T. Hong kong. Country Telephone number (852) 2687-1712 Fax number (852) 2687-4125 Internet Federal Communications Commission Authorization and Evaluation Division Confidentiality Request RE: FCC ID: PEG35808 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics.pdf Block Diagram.pdf Operational Descriptions.pdf The above materials contain trade secrets and proprietary information not customarily release to the public. The public disclosure of these matters might be harmful to the Applicant and Provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the data of the Grant for this application. Sincerely, Wan Cheuk Man Engineering Manager SENTON Enterprises Limited

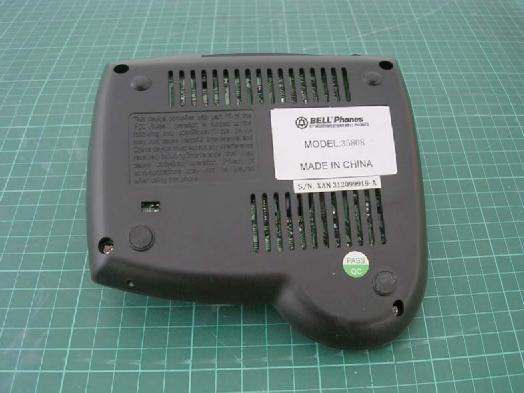

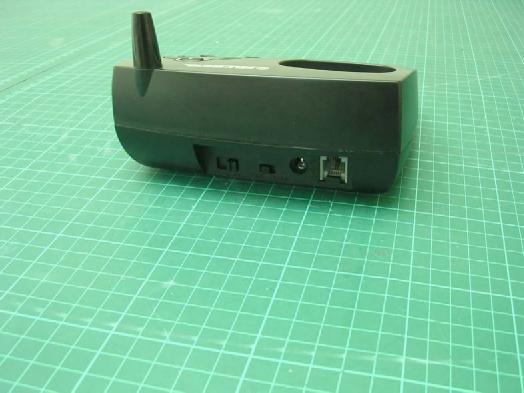

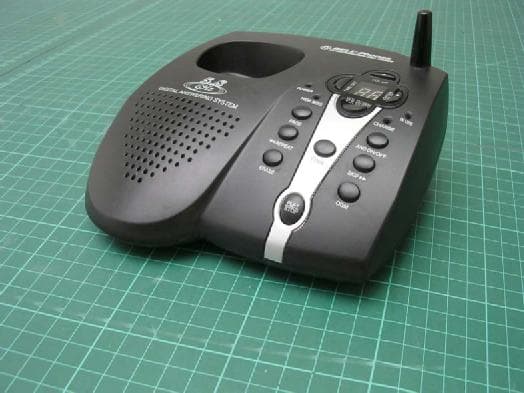

Photo 1: External photo of EUT (Base) 35808 Photo 2: External photo of EUT (Base) 35808 Photo 3: External photo of EUT (Base) 35808 Photo 4: External photo of EUT (Base) 35808 Photo 5: External photo of EUT (Base) 35808 Photo 6: External photo of EUT (Base) 35808

Photo 1: Externalphoto of EUT (Handset) 35808 Photo 2: Externalphoto of EUT (Handset) 35808 Photo 3: Externalphoto of EUT (Handset) 35808 Photo 4: Externalphoto of EUT (Handset) 35808 Photo 5: Externalphoto of EUT (Handset) 35808

FCC ID Location FCC ID Location

FCC ID Location FCC Warning FCC ID Location

Photo 1: Internal photo of EUT (Base) 35808 Photo 2: Internal photo of EUT (Base) 35808 Photo 3: Internal photo of EUT (Base) 35808 Photo 4: Internal photo of EUT (Base) 35808 Photo 5: Internal photo of EUT (Base) 35808 Photo 6: Internal photo of EUT (Base) 35808 Photo 7: Internal photo of EUT (Base) 35808 Photo 8: Internal photo of EUT (Base) 35808 Photo 9: Internal photo of EUT (Base) 35808 Photo 10: Internal photo of EUT (Base) 35808 Photo 11: Internal photo of EUT (Base) Photo 12: Internal photo of EUT (Base)

Photo 1: Internal photo of EUT (Handset) 35808 Photo 2: Internal photo of EUT (Handset) 35808 Photo 3: Internal photo of EUT (Handset) 35808 Photo 4: Internal photo of EUT (Handset) 35808 Photo 5: Internal photo of EUT (Handset) 35808 Photo 6: Internal photo of EUT (Handset) 35808 Photo 7: Internal photo of EUT (Handset) 35808

FCC ID. : PEG35808 Report No.: EME-040333 Page 1 of 35 EMC TEST REPORT Report No. : EME-040333 Model No. : 35808 Issued Date : May 10, 2004 Applicant : SENTON Enterprises Limited Flat 10, 17/F., Fotan Ind. Centre, 26-28 Au Pui Wan St., Fo Tan, Shatin, N. T. Hong Kong Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 35 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result in this report only applies to the tested sample. Jackey Chiu Project Engineer Reviewed By Victor Wen FCC ID. : PEG35808 Report No.: EME-040333 Page 2 of 35 Table of Contents Summary of Tests.........................................................................................................3 1. General information..................................................................................................4 1.1 Identification of the EUT....................................................................................4 1.2 Additional information about the EUT................................................................4 1.3 Antenna description............................................................................................5 2. Test specifications.....................................................................................................6 2.1 Test standard......................................................................................................6 2.2 Operation mode..................................................................................................6 2.4 Test equipment...................................................................................................7 3. Radiated emission test FCC 15.249 (C).....................................................................8 3.1 Operating environment.......................................................................................8 3.2 Test setup & procedure.......................................................................................8 3.3 Emission limit....................................................................................................9 3.3.1 Fundamental and harmonics emission limits....................................................9 3.3.2 General radiated emission limits....................................................................10 3.4 Radiated spurious emission test data.................................................................11 3.4.1 Measurement results: frequencies equal to or less than 1 GHz.......................11 3.4.2 Measurement results: frequency above 1GHz................................................13 3.4.3 Measurement results: Fundamental and harmonics emission..........................17 4. Conducted emission test FCC 15.207......................................................................23 4.1 Operating environment.....................................................................................23 4.2 Test setup & procedure.....................................................................................23 4.3 Emission limit..................................................................................................24 4.4 Conducted emission data FCC 15.207..............................................................25 5. Radiated emission on the band edge FCC 15.249(C)...............................................27 FCC ID. : PEG35808 Report No.: EME-040333 Page 3 of 35 Summary of Tests 5.8GHz Cordless Phone-Model: 35808 FCC ID: PEG35808 Test Reference Results Conducted Emission of AC Power 15.207 Complies Radiated Emission test 15.249(c), 15.209 Complies FCC ID. : PEG35808 Report No.: EME-040333 Page 4 of 35 1. General information 1.1 Identification of the EUT Applicant : SENTON Enterprises Limited Product : 5.8GHz Cordless Phone Model No. : 35808 FCC ID. : PEG35808 Frequency Range (Base) : 5803.019 MHz ~ 5816.019MHz Frequency Range (Handset) : 2468.000 MHz ~ 2479.700MHz Channel Number : 40 channels Frequency of Each Channel (Base) : 5803.019＋0.333333k, k=0~39 Frequency of Each Channel (Handset) : 2468＋0.3k, MHz, k=0~39 Type of Modulation : FM Power Supply (Base) : 120Vac, 60Hz with adapter (U090050D) Rated Power (Handset) : 3.6Vdc battery Power Cord : N/A Sample Received : Apr. 12, 2004 Test Date(s) : Apr. 12, 2004 ~ May 6, 2004 1.2 Additional information about the EUT The EUT is a Cordless Phone, it consists one handset, which operated at 2468.000MHz - 2479.700MHz and one base which operated at 5803.019MHz. - 5816.019MHz. For more detail features, please refer to User's manual as file name “Installation guide.pdf” FCC ID. : PEG35808 Report No.: EME-040333 Page 5 of 35 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain : 0dBi Antenna Type : Copper Wire Connector Type : N/A FCC ID. : PEG35808 Report No.: EME-040333 Page 6 of 35 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Paragraph 15.249 for non-spread spectrum devices. The test of radiated measurements according to FCC Part15 Section 15.33(a) had been conducted and the field strength of this frequency band were all meet limit requirement, thus we evaluate the EUT pass the specified test. 2.2 Operation mode During the conduction test, it operated at charging mode, while in other test, it works in status of continuously transmitting. FCC ID. : PEG35808 Report No.: EME-040333 Page 7 of 35 2.4 Test equipment Equipment Brand Frequency range Model No. Series No. Last Cal.Date EMI Test Receiver Rohde & Schwarz 9kHz~2.75GHz ESCS 30 825788/014 Feb. 18, 2004 EMI Test Receiver Rohde & Schwarz 20Hz~26.5GHz ESMI 825428/005 June 10, 2003 Spectrum Analyzer Rohde & Schwarz 9kHz~30GHz FSP 30 100137 July 10, 2003 Spectrum A…

Text truncated - open the document above for the full version.

FCC ID. : PEG35808 Report No.: EME-040333 Page 1 of 36 EMC TEST REPORT Report No. : EME-040333 Model No. : 35808 Issued Date : May 10, 2004 Applicant : SENTON Enterprises Limited Flat 10, 17/F., Fotan Ind. Centre, 26-28 Au Pui Wan St., Fo Tan, Shatin, N. T. Hong Kong Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 36 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result in this report only applies to the tested sample. Jackey Chiu Project Engineer Reviewed By Victor Wen FCC ID. : PEG35808 Report No.: EME-040333 Page 2 of 36 Table of Contents Summary of Tests.........................................................................................................3 1. General information..................................................................................................4 1.1 Identification of the EUT....................................................................................4 1.2 Additional information about the EUT................................................................4 1.3 Antenna description............................................................................................5 2. Test specifications.....................................................................................................6 2.1 Test standard......................................................................................................6 2.2 Operation mode..................................................................................................6 2.4 Test equipment...................................................................................................7 3. Radiated emission test FCC 15.249 (C).....................................................................8 3.1 Operating environment.......................................................................................8 3.2 Test setup & procedure.......................................................................................8 3.3 Emission limit....................................................................................................9 3.3.1 Fundamental and harmonics emission limits....................................................9 3.3.2 General radiated emission limits....................................................................10 3.4 Radiated spurious emission test data.................................................................11 3.4.1 Measurement results: frequencies equal to or less than 1 GHz.......................11 3.4.2 Measurement results: frequency above 1GHz................................................13 3.4.3 Measurement results: Fundamental and harmonics emission..........................18 4. Conducted emission test FCC 15.207......................................................................24 4.1 Operating environment.....................................................................................24 4.2 Test setup & procedure.....................................................................................24 4.3 Emission limit..................................................................................................25 4.4 Conducted emission data FCC 15.207..............................................................26 5. Radiated emission on the band edge FCC 15.249(C)...............................................28 FCC ID. : PEG35808 Report No.: EME-040333 Page 3 of 36 Summary of Tests 5.8GHz Cordless Phone-Model: 35808 FCC ID: PEG35808 Test Reference Results Conducted Emission of AC Power 15.207 Complies Radiated Emission test 15.249(c), 15.209 Complies FCC ID. : PEG35808 Report No.: EME-040333 Page 4 of 36 1. General information 1.1 Identification of the EUT Applicant : SENTON Enterprises Limited Product : 5.8GHz Cordless Phone Model No. : 35808 FCC ID. : PEG35808 Frequency Range (Base) : 5803.019 MHz ~ 5816.019MHz Frequency Range (Handset) : 2468.000 MHz ~ 2479.700MHz Channel Number : 40 channels Frequency of Each Channel (Base) : 5803.019＋0.333333k, k=0~39 Frequency of Each Channel (Handset) : 2468＋0.3k, MHz, k=0~39 Type of Modulation : FM Power Supply (Base) : 120Vac, 60Hz with adapter (U090050D) Rated Power (Handset) : 3.6Vdc battery Power Cord : N/A Sample Received : Apr. 12, 2004 Test Date(s) : Apr. 12, 2004 ~ May 6, 2004 1.2 Additional information about the EUT The EUT is a Cordless Phone, it consists one handset, which operated at 2468.000MHz - 2479.700MHz and one base which operated at 5803.019MHz. - 5816.019MHz. For more detail features, please refer to User's manual as file name “Installation guide.pdf” FCC ID. : PEG35808 Report No.: EME-040333 Page 5 of 36 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain : 0dBi Antenna Type : Copper Wire Connector Type : N/A FCC ID. : PEG35808 Report No.: EME-040333 Page 6 of 36 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Paragraph 15.249 for non-spread spectrum devices. The test of radiated measurements according to FCC Part15 Section 15.33(a) had been conducted and the field strength of this frequency band were all meet limit requirement, thus we evaluate the EUT pass the specified test. 2.2 Operation mode During the conduction test, it operated at charging mode, while in other test, it works in status of continuously transmitting. FCC ID. : PEG35808 Report No.: EME-040333 Page 7 of 36 2.4 Test equipment Equipment Brand Frequency range Model No. Series No. Last Cal.Date EMI Test Receiver Rohde & Schwarz 9kHz~2.75GHz ESCS 30 825788/014 Feb. 18, 2004 EMI Test Receiver Rohde & Schwarz 20Hz~26.5GHz ESMI 825428/005 June 10, 2003 Spectrum Analyzer Rohde & Schwarz 9kHz~30GHz FSP 30 100137 July 10, 2003 Spectrum A…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up Photo 2: Conducted Emission Test Set-up

Photo 1: Radiated Emission Test Set-up (Base) Photo 2: Radiated Emission Test Set-up (Base) Photo 3: Radiated Emission Test Set-up (Handset) Photo 4: Radiated Emission Test Set-up (Handset) Photo 5: Radiated Emission Test Set-up (Handset)

Photo 1: Radiated Emission Test Set-up (Handset) Photo 2: Radiated Emission Test Set-up (Handset) Photo 3: Radiated Emission Test Set-up (Handset)
