PEG36270Cordless Phone

36270 English I/B Ver. 09122A-1 09122A-1 OWNER’S MANUAL#36270 VER. 09122A-1 PAGE: 0 U.S. English Version Excursion ® 36270 Congratulations on your selection of the Excursion ® 36270 from Northwestern Bell Phones. This quality 2.4GHz two line cordless telephone with speakerphone, like all Genuine BELL ® products, has been designed to give you many years of continuous service and represents the best value for your money. It requires little maintenance and is easy to 36270 English I/B ver. 09122A-1 1 09122A-1 OWNER’S MANUAL#36270 VER. 09122A-1 PAGE: 1 U.S. English Version setup and operate. IMPORTANT SERVICE INFORMATION Read this manual before attempting to setup or use this instrument. It contains important information regarding safe installation and use. Keep this manual for future reference. Also save the carton, packing and proof of purchase to simplify and accelerate any needed action. If you need assistance or service, call (800) 888-8990 between 8:00 a.m. and 4:30 p.m. Pacific Standard Time, Monday through Friday. You can also visit our web site at: http://www.nwbphones.com for technical support and information on our other products. WARNING To prevent fire or shock hazard, do not expose this product to rain or any type of excess moisture. If accidentally dropped into water, the adapter should immediately be unplugged from the wall along with the telephone line cord. THIS SYMBOL IS INTENDED TO ALERT THE USER OF THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE OWNER'S MANUAL. 36270 English I/B ver. 09122A-1 09122A-1 2 OWNER’S MANUAL#36270 VER. 09122A-1 PAGE: 2 U.S. English Version CARTON CONTENTS HANDSET BASE UNIT RECHARGEABLE Ni-Cd BATTERY PACK ADAPTER TELEPHONE BELT CLIP (DC9V, 300mA) LINE CORD BRACKET (Short & Long) WALL MOUNT USER’ S MANUAL WARRANTY CARD ACCESSORY ORDER FORM 36270 English I/B ver. 09122A-1 3 09122A-1 OWNER’S MANUAL#36270 VER. 09122A-1 PAGE: 3 U.S. English Version SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool. 5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 6. Slots and openings in the cabinet at the back or bottom are provided for ventilation, to protect it from overheating. These openings should never be blocked or covered. The openings should never be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided. 7. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. 8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it. 9. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. 10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product. 11. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service contractor when some service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustments of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. 36270 English I/B ver. 09122A-1 09122A-1 4 OWNER’S MANUAL#36270 VER. 09122A-1 PAGE: 4 U.S. English Version E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits a distinctive change in performance. 13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 14. Do not use the telephone to report a gas leak in the vicinity of the leak. SAVE THESE INSTRUCTIONS BATTERY SAFETY INSTRUCTIONS CAUTION: To reduce the risk of fire or injury to persons, read and follow these instructions: 1. Use only the following type and size of handset battery pack: Cordless Telephone Battery Pack DC3.6V, 450mAh, Ni-Cd Battery Pack 2. Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible special disposal instructions. 3. Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed. 4. Exercise care in handling the battery in order not to short the battery with conducting material such as rings, bracelets and keys. The battery or conductor may ove…

Text truncated - open the document above for the full version.

SENTON Enterprises Limited Flat 10, 17/F, Fo Tan Industrial Centre, 26-28 26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 1710 Tel: (852) 2687-1712 Fax: (852) 2687-4125 : () () E-mail address: [email protected] : () APPENDIX A "I, an officer of SENTON Enterprises Limited do hereby authorize Intertek Testing Services to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853(a). By Signature Printed Title Engineering Manager

SENTON Enterprises Limited Flat 10, 17/F, Fo Tan Industrial Centre, 26-28 26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 1710 Tel: (852) 2687-1712 Fax: (852) 2687-4125 : () () E-mail address: [email protected] : () APPENDIX B Company SENTON Enterprises Limited Address Flat10, 17/F., Fotan Ind. Centre, 26-28 Au Pui Wan St., Fo Tan, Shatin, N.T. Hong kong. Country Telephone number (852) 2687-1712 Fax number (852) 2687-4125 Internet Federal Communications Commission Authorization and Evaluation Division Confidentiality Request RE: FCC ID: PEG36270 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics.pdf Block Diagram.pdf Operational Descriptions.pdf The above materials contain trade secrets and proprietary information not customarily release to the public. The public disclosure of these matters might be harmful to the Applicant and Provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the data of the Grant for this application. Sincerely, Wan Cheuk Man Engineering Manager SENTON Enterprises Limited

Photo of Base unit Photo 1: Exterior photo 36270 36270 Photo 2: Exterior photo Photo 3: Photo of Antenna 36270 Photo 4: Photo of Adapter

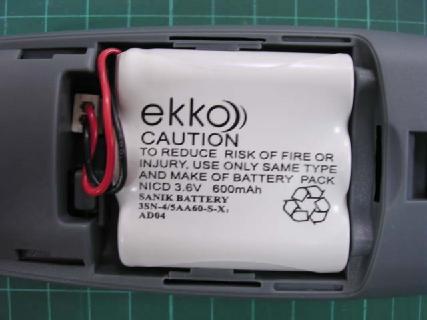

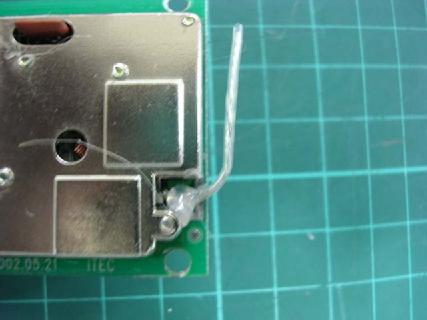

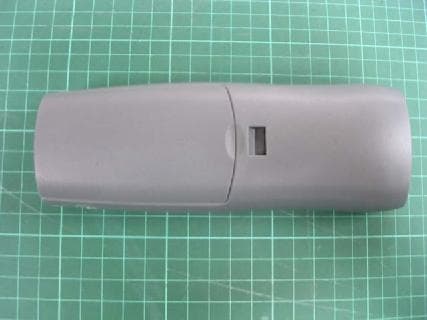

Photo of Handset Photo 1: Exterior photo 36270 36270 Photo 2: Photo of Antenna Photo 3: Battery

Base unit label SIZE: WIDTH X HEIGHT = 49.5 X29.5 mm FCC ID label location Model/Modéle: 36270 IC: 2371B-10442A FCC ID: PEG36270 Made in China/Fabriqué en Chine REN:0.3A Imported By/Importé par: Bell Distribution Inc. Brampton, ON L6T 5A3 9801113 R C US Handset label SIZE: WIDTH X HEIGHT = 16.8 X6.7 mm Model/Modéle: 36270 IC: 2371B-10442A FCC ID: PEG36270 FCC ID Label Location

Photo of Base unit Photo 1: Interior photo 36270 Photo 2: Interior photo 36270 Photo 3: Interior photo 36270 Photo 4: Interior photo 36270 Photo 5: Interior photo 36270 Photo 6: Interior photo 36270 Photo 7: Interior photo 36270

Photo of Handset Photo 1: Interior photo 36270 Photo 2: Interior photo 36270 Photo 3: Interior photo 36270 Photo 4: Interior photo 36270 Photo 5: Interior photo 36270 Photo 6: Interior photo 36270 Photo 7: Interior photo 36270 Photo 8: Interior photo 36270 Photo 9: Interior photo 36270

Intertek Testing Services ETL SEMKO FCC ID. : PEG36270 Report No.: EME-030528 Page 1 of 42 EMC TEST REPORT Report No. : EME-030528 Model No. : 36270 Issued Date : July 28, 2003 Applicant : SENTON Enterprises Limited Flat 10, 17/F., Fotan Ind. Centre, 25-28 Au Pui Wan St., Fo Tan Shatin, N.T. Hong Kong Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 42 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of ITS Laboratory. The test result in this report only applies to the tested sample. Jerry Liu Project Engineer Reviewed By Elton Chen Intertek Testing Services ETL SEMKO FCC ID. : PEG36270 Report No.: EME-030528 Page 2 of 42 Table of Contents Summary of Tests.........................................................................................................3 1. General information..................................................................................................4 1.1 Identification of the EUT....................................................................................4 1.2 Additional information about the EUT................................................................4 1.3 Antenna description............................................................................................5 1.4 Peripherals equipment.........................................................................................5 2. Test specifications.....................................................................................................6 2.1 Test standard.......................................................................................................6 2.2 Operation mode...................................................................................................6 2.4 Test equipment....................................................................................................7 3. Radiated emission test FCC 15.249 (C).....................................................................8 3.1 Operating environment........................................................................................8 3.2 Test setup & procedure........................................................................................8 3.3 Emission limit...................................................................................................10 3.3.1 Fundamental and harmonics emission limits...................................................10 3.3.2 General radiated emission limits.....................................................................10 3.4 Radiated emission test data FCC 15.249............................................................11 3.4.1 Fundamental & harmonics radiated emission data..........................................11 3.4.2 Fundamental & Harmonics Radiated Emission Data.......................................15 4. Conducted emission test FCC 15.207......................................................................23 4.1 Operating environment......................................................................................23 4.2 Test setup & procedure......................................................................................23 4.3 Emission limit...................................................................................................24 4.4 Conducted emission data FCC 15.207...............................................................25 5. Radiated emission on the band edge FCC 15.249(C)...............................................34 Intertek Testing Services ETL SEMKO FCC ID. : PEG36270 Report No.: EME-030528 Page 3 of 42 Summary of Tests Cordless Phone -Model: 36270 FCC ID: PEG36270 Test Reference Results Conducted Emission of AC Power 15.207 Complies Radiated Emission test 15.249(c), 15.209 Complies Intertek Testing Services ETL SEMKO FCC ID. : PEG36270 Report No.: EME-030528 Page 4 of 42 1. General information 1.1 Identification of the EUT Applicant : SENTON Enterprises Limited Product : Cordless Phone Model No. : 36270 FCC ID. : PEG36270 Frequency Range : 2400MHz to 2483.5MHz Channel Number : 40 channels Frequency of Each Channel (Base) : 2402.55 + 50k MHz, k=0~39 Frequency of Each Channel (Handset) : 2474.00 + 50k MHz, k=0~39 Type of Modulation : FM Rated Power (Base) : 120Vac, 60Hz Rated Power (Handset) : 3.6Vdc battery Power Cord : N/A Sample Received : April 24, 2003 Test Date(s) : May 13, 2003 to July 18, 2003 1.2 Additional information about the EUT The EUT is a Cordless Phone, it consists of handset unit and base unit. For more detail features, please refer to User's manual as file name “Installation guide.pdf” Intertek Testing Services ETL SEMKO FCC ID. : PEG36270 Report No.: EME-030528 Page 5 of 42 1.3 Antenna description The antenna description for handset and base unit are the same and listed as below: The EUT uses a permanently connected antenna. Antenna Gain : 0dBi Antenna Type : Monopole antenna Connector Type : N/A 1.4 Peripherals equipment Peripherals Manufacturer Product No. Serial No. FCC ID Exchange board Teltone 250-00193-07 94948 FCC DoC Approval Telephone Tozai ATC-814 9904000066 FCC DoC Approval Intertek Testing Services ETL SEMKO FCC ID. : PEG36270 Report No.: EME-030528 Page 6 of 42 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Paragraph 15.249 for non-spread spectrum devices. The test of radiated measurements according to FCC Part15 Section 15.33(a) had been conducted and the field strength of this frequency band were all meet limit requirement, thus we evaluate the EUT pass the specified test. 2.2 Operation mode The EUT were composted of “Base Unit” and “Handset Unit”, only Base Unit need to comply with conducted emission test, and it was tested in normal mode during this test. Dur…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-Up photo

Photo 1: Spurious Test Set-Up photo (Base unit) Photo 2: Spurious Test Set-Up photo (Handset) Photo 3: Spurious Test Set-Up photo (Handset)
