PEGSH50310Home Automation Outlet Adapter Dimmer




SYLVANIA Z-Wave Lighting and Appliance Control System Manual 1 Page Important Safety Instructions 5 Maintenance 6 Fcc part 15 warning 7 1 Introduction 8 2 SYLVANIA Z-Wave Products 10 2.1 Description of the SYLVANIA Z-Wave Remote Control with display 11 2.1.1 Introduction to the Remote Control 11 2.1.2 Button Layout 12 2.1.3 Menu structure 13 2.2 SYLVANIA Z-Wave Outlet Adaptor Dimmer 14 2.3 Introduction to the SYLVANIA Z-Wave the Outlet Adaptor High Power 15 3 How to get started 16 3.1 Preparing the Remote Control 16 3.2 Assigning the Outlet Adaptor to the Remote Control 17 4 How to use the features of the SYLVANIA Z-Wave Lighting and Appliance Control System 18 4.1 Groups/Scenes 18 4.1.1 Add Outlet Adaptor to a group 18 Table Of Contents SYLVANIA Z-Wave Lighting and Appliance Control System Manual 2 4.1.2 Controlling Groups 20 4.1.2.1 Using Speed buttons 20 4.1.2.2 Using Navigation buttons 21 4.1.2.3 Dim a group of lamps 22 4.1.3 Program a scene 23 4.1.4 Add Outlet Adaptor dimmer to scene 23 4.1.5 Controlling scenes 24 4.1.6 Remove Outlet Adaptor from group/scene 25 4.1.7 Delete group/scene 26 4.1.8 Name a group/scene 27 4.2 All ON and All OFF 29 4.3 Timer 30 4.3.1 Create/Edit a Timer 30 4.3.2 Delete Timer 32 4.4 Child Protection 33 4.4.1 Activate Child Protection 33 4.4.2 Deactivate Child Protection 34 4.5 Burglar Deterrent 35 4.5.1 Activate Burglar Deterrent 36 4.5.2 Exclude Unit 37 4.5.3 Include Unit 38 SYLVANIA Z-Wave Lighting and Appliance Control System Manual 3 5 Set-up Commands 39 5.1 Set Clock 39 5.2 Adjust the display contrast 40 5.3 Setup All ON/OFF 41 5.3.1 Exclude or Include an Outlet Adaptor in the All ON/OFF functionality 41 5.3.2 Activate/Deactivate the All ON Function 42 5.4 Add new Remote Control to system 42 5.4.1 Send information 44 5.4.2 Receive information 45 5.5 Reconfigure the system 46 5.5.1 Reset Outlet Adaptor 46 5.5.2 Reset Remote Control 47 6 Operation Mode 48 6.1 Operation display 48 6.2 Slave Remote Control indication 48 6.3 No active group indication 48 6.4 Scene indication 48 6.5 Low battery indication 49 7 Product Support 49 8 Troubleshooting 50 SYLVANIA Z-Wave Remote Control 52 SYLVANIA Z-Wave Lighting and Appliance Control System Manual 4 SYLVANIA Z-Wave Outlet Adaptor Dimmer 53 SYLVANIA Z-Wave Outlet Adaptor High Power 54 SYLVANIA Z-Wave Lighting and Appliance Control System Manual 5 IMPORTANT SAFETY INSTRUCTIONS When using your telephone product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool. 5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 6. Slots and openings in the cabinet and the back or bottom are provided for ventilation, to protect it from overheating. These openings should never be blocked or covered. The openings should never be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided. 7. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. 8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it. 9. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. 10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product. 11. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service contractor when some service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used. SYLVANIA Z-Wave Lighting and Appliance Control System Manual 6 12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustments of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits a distinctive change in performance. 13. Void using a product (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 14. Do not use the product to report a gas leak in the vicinity of the leak. 15. Only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. MAINTENANCE 1. Use a damp cloth to clean the plastic cabinet. A mild soa…

Text truncated - open the document above for the full version.

SENTON Enterprises Limited Flat 10, 17/F, Fo Tan Industrial Centre, 26-28 26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 1710 Tel: (852) 2687-1712 Fax: (852) 2687-4125 : () () E-mail address: [email protected] : () "I, an officer of SENTON Enterprises Limited do hereby authorize Intertek Testing Services to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853(a). By Signature Printed Title Engineering Manager

SENTON Enterprises Limited Flat 10, 17/F, Fo Tan Industrial Centre, 26-28 26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 1710 Tel: (852) 2687-1712 Fax: (852) 2687-4125 : () () E-mail address: [email protected] : () Company SENTON Enterprises Limited Address Flat10, 17/F., Fotan Ind. Centre, 26-28 Au Pui Wan St., Fo Tan, Shatin, N.T. Hong kong. Country Telephone number (852) 2687-1712 Fax number (852) 2687-4125 Internet Federal Communications Commission Authorization and Evaluation Division Confidentiality Request RE: FCC ID: PEGSH50310 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics.pdf Block Diagram.pdf Operational Descriptions.pdf The above materials contain trade secrets and proprietary information not customarily release to the public. The public disclosure of these matters might be harmful to the Applicant and Provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the data of the Grant for this application. Sincerely, Printed Name Position Company name

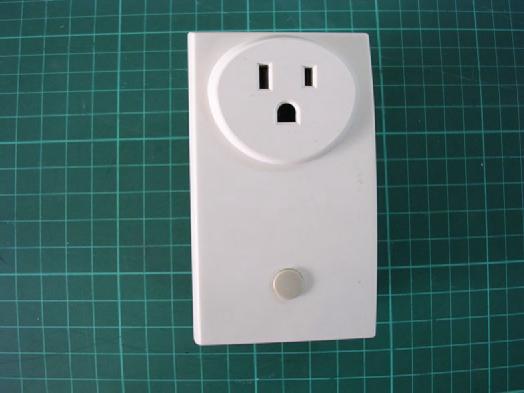

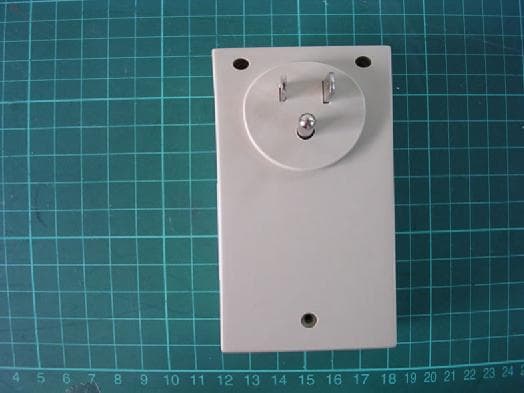

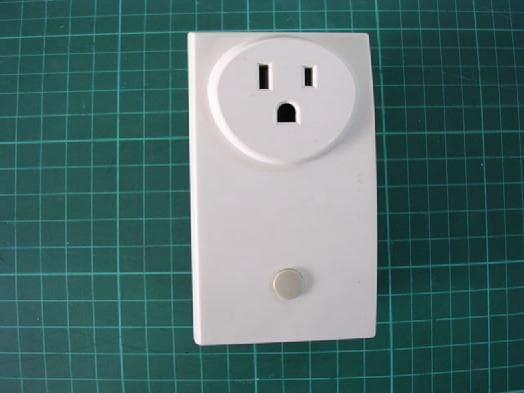

Photo 1: Exterior photo SH50310 Photo 2: Exterior photo SH50310

FCC ID Label Location 30 mm 20 mm SH50310

Photo 1: Interior photo Photo 2: Interior photo Photo 3: Interior photo Photo 4: Interior photo Photo 5: Interior photo Photo 6: Interior photo

FCC ID. : PEGSH50310 Report No.: EME-030832 Page 1 of 19 EMC TEST REPORT Report No. : EME-030832 Model No. : SH50310 Issued Date : Aug. 14, 2003 Applicant : SENTON Enterprises Limited Flat 10, 17/F., Fotan Ind. Centre, 26-28 Au Pui Wan St., Fo Tan Shatin, N.T. Hong Kong Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 19 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of ITS Laboratory. The test result in this report only applies to the tested sample. Jerry Liu Project Engineer Reviewed By Elton Chen FCC ID. : PEGSH50310 Report No.: EME-030832 Page 2 of 19 Table of Contents Summary of Tests.........................................................................................................3 1. General information..................................................................................................4 1.1 Identification of the EUT....................................................................................4 1.2 Additional information about the EUT................................................................4 1.3 Antenna description............................................................................................5 1.4 Peripherals equipment........................................................................................5 2. Test specifications.....................................................................................................6 2.1 Test standard......................................................................................................6 2.2 Operation mode..................................................................................................6 2.4 Test equipment...................................................................................................7 3. Radiated emission test FCC 15.249 (C).....................................................................8 3.1 Operating environment.......................................................................................8 3.2 Test setup & procedure.......................................................................................8 3.3 Emission limit....................................................................................................9 3.3.1 Fundamental and harmonics emission limits....................................................9 3.3.2 General radiated emission limits......................................................................9 3.4 Radiated spurious emission test data.................................................................10 3.4.1 Measurement results: frequencies equal to or less than 1 GHz.......................10 3.4.2 Measurement results: frequency above 1GHz................................................11 4. Conducted emission test FCC 15.207......................................................................13 4.1 Operating environment.....................................................................................13 4.2 Test setup & procedure.....................................................................................13 4.3 Emission limit..................................................................................................14 4.4 Conducted emission data FCC 15.207..............................................................15 5. Radiated emission on the band edge FCC 15.249(C)...............................................18 FCC ID. : PEGSH50310 Report No.: EME-030832 Page 3 of 19 Summary of Tests Home Automation -Model: SH50310 FCC ID: PEGSH50310 Test Reference Results Conducted Emission of AC Power 15.207 Complies Radiated Emission test 15.249(c), 15.209 Complies FCC ID. : PEGSH50310 Report No.: EME-030832 Page 4 of 19 1. General information 1.1 Identification of the EUT Applicant : SENTON Enterprises Limited Product : Home Automation Model No. : SH50310 FCC ID. : PEGSH50310 Frequency Range : 902MHz to 928MHz Channel Number : 1 channel Frequency of Each Channel : 908.42MHz Type of Modulation : FSK (TDD) Power Supply : 120Vac, 60Hz Power Cord : N/A Sample Received : July 14, 2003 Test Date(s) : July 21, 2003 ~ Aug. 21, 2003 A DoC report has been generated for the client. 1.2 Additional information about the EUT The EUT is Home Automation, and it can control user’s lights wirelessly from the sofa, the bed, the kitchen, or wherever. It has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the instructions and warnings contained in instruction manual. For more detail features, please refer to User ' s manual as file name “Installation guide.pdf” FCC ID. : PEGSH50310 Report No.: EME-030832 Page 5 of 19 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain : -4dBi Antenna Type : Internal, wire (whip) antenna Connector Type : N/A 1.4 Peripherals equipment Peripherals Manufacturer Product No. Serial No. FCC ID Remote control SENTON SH50201 N/A PEGSH50201 Load: Lamp (330W) FCC ID. : PEGSH50310 Report No.: EME-030832 Page 6 of 19 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Paragraph 15.249 for non-spread spectrum devices. The test of radiated measurements according to FCC Part15 Section 15.33(a) had been conducted and the field strength of this frequency band were all meet limit requirement, thus we evaluate the EUT pass the specified test. 2.2 Operation mode The EUT was operated at normal mode during conducted emission test. The EUT was transmitted continuously during the other test. FCC ID. : PEGSH50310 Report No.: EME-030832 Page 7 of 19 2.4 Test equipment Equipment Brand Frequency range Model No. Series No. Last Cal.Date EMI Test Receiver Rohde & Schwarz 9kHz~2.75GHz ESC…

Text truncated - open the document above for the full version.

Photo 1: Conducted Test Set-up (front) Photo 2: Conducted Test Set-up (rear)

Photo 1: Spurious Set-up photo
