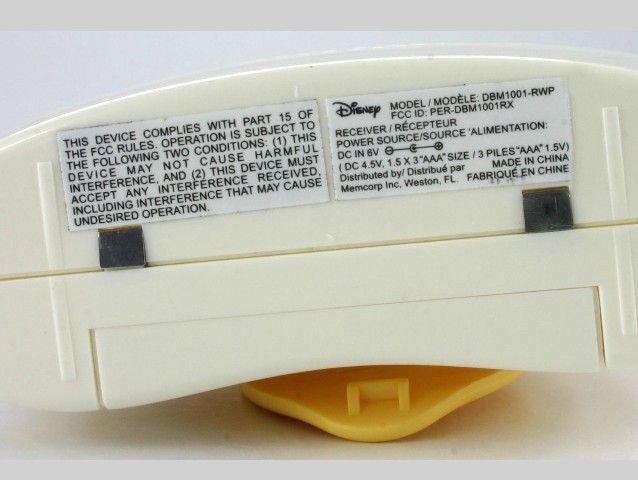

PER-DBM1001RXWinnie The Pooh Baby Phone

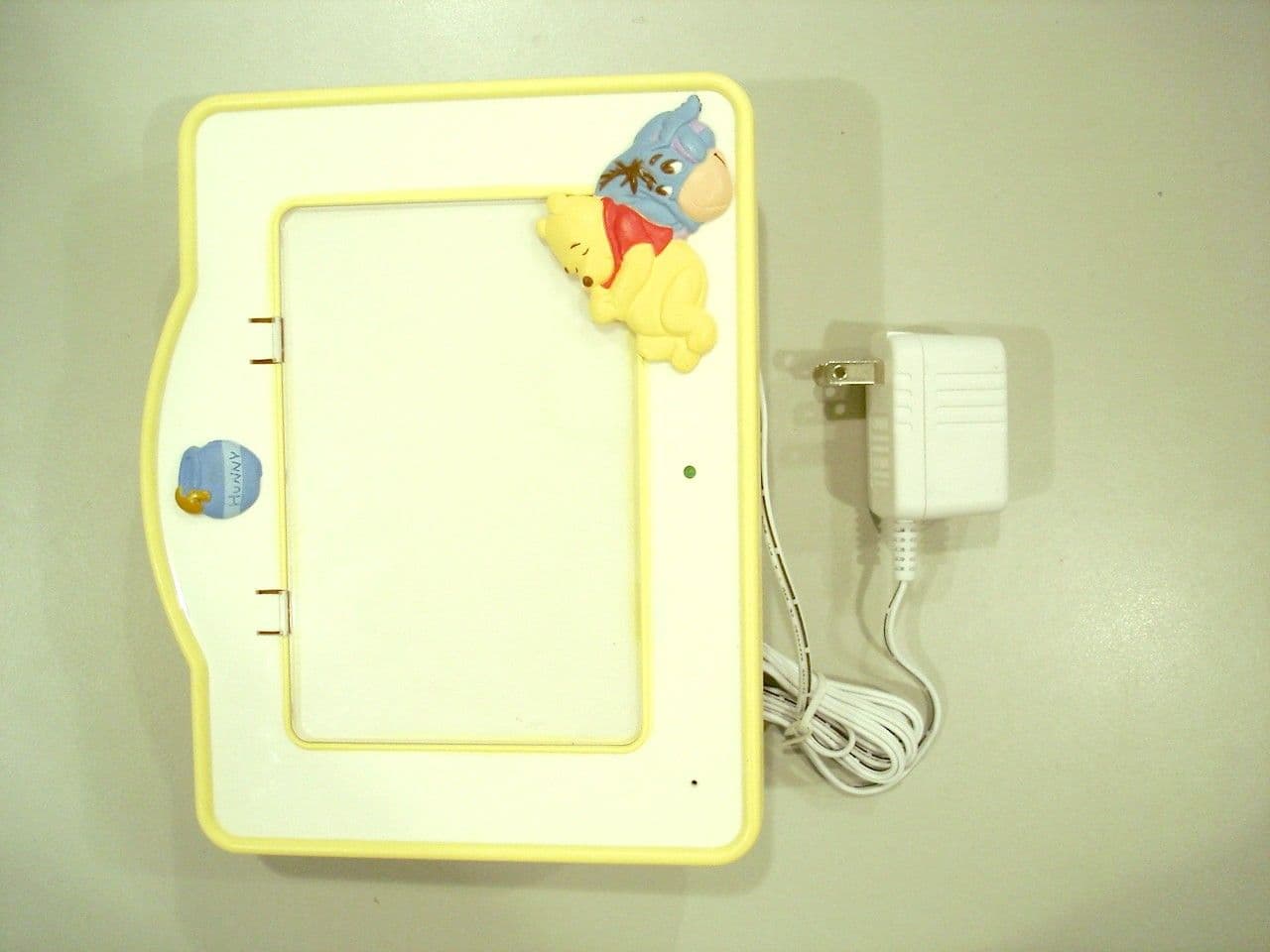

DBM1001-RWP Baby Monitor Picture Frame User’s Guide Monitor de Bebé con Cuadro Para Fotos Manual del Usuario Moniteur de Bébé en Forme de Cadre Guide d'utilisation For additional set-up or operating assistance, please visit our website at www.disneyelectronics.com or contact customer service at (954) 660-7026. Please keep all packaging material for at least 90 days in case you need to return this product to your place of purchase or Memcorp. For parts and accessories, contact Fox International at 1-800-321-6993. Distributed by Memcorp Inc., Weston, FL, Disney Elements © Disney 2005. Para informacion adicional sobre la configuracion o si necesita asistencia con la operacion del equipo, por favor visitenos en nuestra pagina web www.disneyelectronics.com o si requiere asistencia directa, comuniquese con nuestro departamento de servicio al cliente al numero (954) 660-7026. Por favor mantenga todo el material de empaque por lo menos por 90 dias, en caso que usted necesite devolver el producto donde lo compro a directamente a Memcorp Inc. Para Accesorios o Partes en general, por favor comuniquese con Fox International al numero 1-800-321-6993. Distribuido por Memcorp Inc. Weston, FL, Disney Elements ©Disney 2005. Pour obtenir des informations supplémentaires sur l’installation ou une assistance concernant l’emploi de votre produit, veuillez visiter notre site Web sur www.disneyelectronics.com ou contacter notre service clientèle au (954) 660-7026. Veuillez conserver tout matériel d’emballage pendant au moins 90 jours au cas où vous devriez renvoyer votre produit à votre revendeur ou directement à Memorex. Pour les pieces et les accessoires, contactez Fox International at au 1-800-321-6993. Éléments Disney ©Disney 2005. Distribué par MEMCORP. Inc. Weston, Floride Job # DBM1001-RWP Colors: 1-color print Pantone 659c 5.5”wideFO LD FO LD 8” high

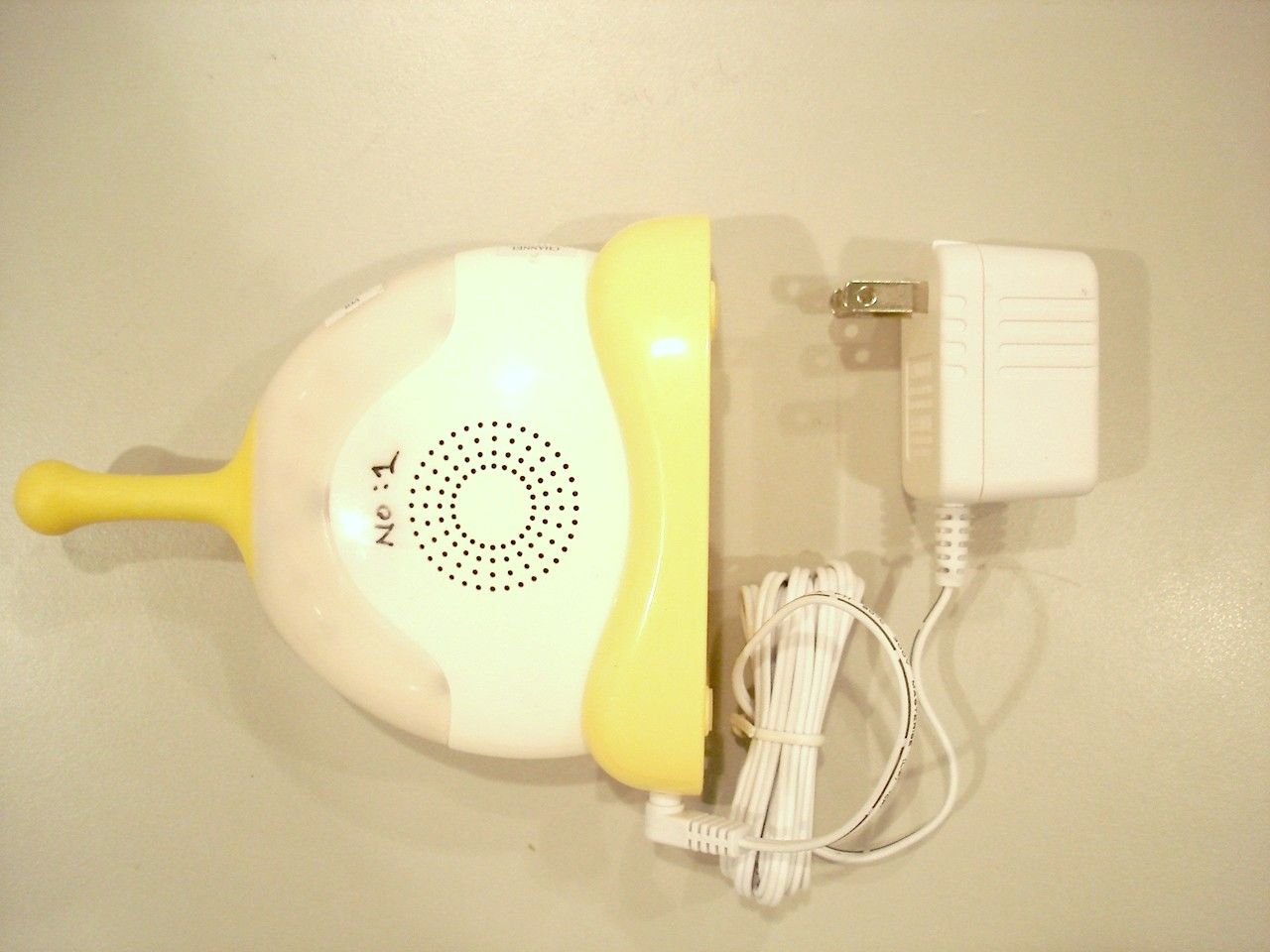

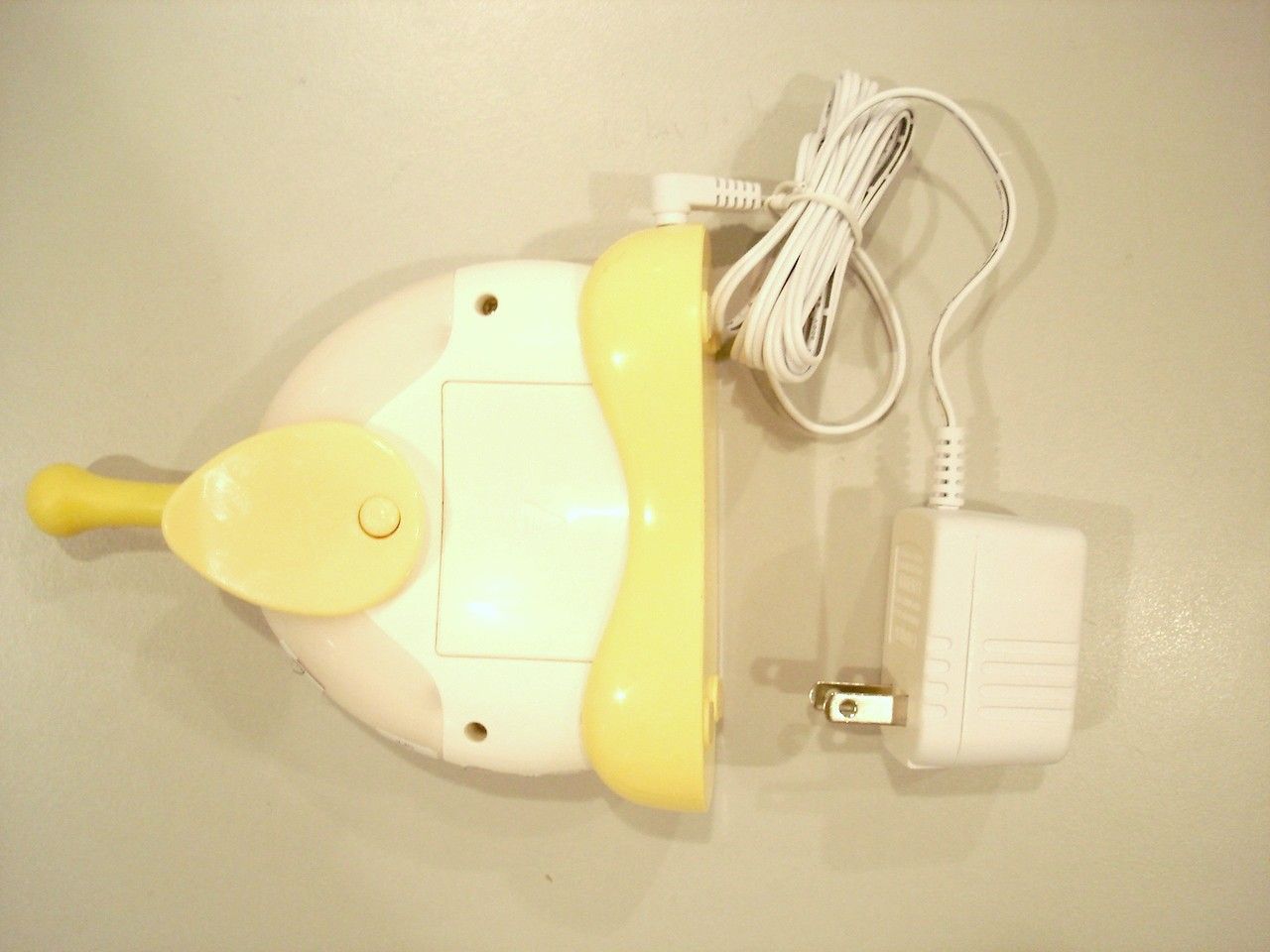

The Quick Reference guide is given to provide basic operation of the unit. Please completely read the user’s guide to take advantage of all the features this unit has to offer. QUICK REFERENCE GUIDE 1 Lights when the power is on Built-In Mic detects sounds Slide to turn the unit On or Off Slide to select a Channel to transmit the sound Insert a 6V Adapter Antenna Lights when the power is on Lights when sound is received Speaker Rotate to turn the unit on and adjust the volume Lights when the batteries are low Slide to select a Channel to receive the sound SIMPLIFIED OPERATION 1. For the Monitor (Transmitter), connect the AC adapter (included) to the DC 6V IN jack. For the Receivers, connect the AC adapter (included) to the DC 6V IN jack or insert batteries. Place the transmitter in the same room as the child. Point the micro- phone toward the crib or play area. Place the receiver(s) in the room where you will be or if using batteries, connect to your belt using the belt clip. 2. Slide the POWER switch on the transmitter to the ON position; the POWER indicator will light. 3. Slide the CHANNEL switch on the transmitter to the 1 or 2 position. 4. Slide the CHANNEL switch on one or both of the receivers to the 1 or 2 position to match the transmitter’s setting made in step 3. 5.Rotate the Power/VOLUME control on one or both receivers counterclockwise until a click is heard; the POWER indicator will light. Then, adjust the volume as desired. When a sound is heard, the SOUND LEVEL indicators will light (the more lights, the louder the sound) and the sound will be heard through the speaker(s). Rotate the Power/VOLUME control clockwise until a click is heard to turn the unit of f; the POWER indicator will turn off. Dear Customer, Please read this manual thoroughly before operating the unit to become more famil- iar with it and obtain the performance that will bring you continued enjoyment for many years. Keep these instructions handy for future reference. PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX. For future reference, record the serial number of the unit printed on the rear of the cabinet. Serial Number _______________________________________ 2 FCC INFORMATION Warning: Modifying, tampering and/or adjusting this unit or replacement of any transmitter component (crystal, semiconductor, etc.) in this unit could result in a violation of the rules. RF EXPOSURE This Baby Monitor contains a low power transmitter. When the power is on, it send out radio frequency (RF) signals. In August 1996, the Federal Communications Commissions (FCC) adopted RF exposure compliance guidelines with safety lev- els for wireless devices. IMPORTANT NOTE: To adhere to the FCC RF exposure compliance require- ments, no change to the antenna or the unit is permitted. Any change to the anten- na or the unit could result in the system exceeding the RFexposure requirements. IMPORTANT To maintain compliance with the FCC’s RF exposure guidelines hold the transmit- ter and antenna at least 1 inch (2.5 centimeters) away from your face, with anten- na pointed up and away from your face. Ensure that the antenna is at least 1 inch (2.5 centimeters) from your body when using your Baby Monitor’s transmitter. Use only the supplied antenna. Unauthorized antennas, modifications or attachments could damage the transmitter and may violate FCC regulations. Warning:Changes or modifications not expressly approved by the party respon- sible for compliance could void the user’s authority to operate the equipment. 3 INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. ADDITIONAL PRECAUTIONS • Non-Use Periods: When the units are not in use, unplug the AC adapters from the wall outlets and remove the batteries from the units until they are ready to be used again. • Adapters: Make sure cords are free of any entanglements and are not in areas where people might come in con- tact with them. Please use only those AC adapters that are included with the product. Do not use AC adapters which are damaged or which have frayed or worn cords. •Positioning: Do not place the unit in cribs, playpens or anywhere within the child's reach. Keep adapter cords out of child’s reach. Do not place the units or adapters where a child could use them as a step. •Safety: Please be careful when locat- ing the monitor and camera that the cord is situated in an area that will elim- inate the chance of tripping over the cord. Also, make sure the antenna is in an area that will eliminate the possibility of poking your eye, etc. IMPORTANT SAFETY INSTRUCTIONS WARNING Choking Hazard–Small Parts and Packaging Materials. Not for children under 8 years. •All materials for fastening or packing purposes are not part of the unit and should be discarded for children’s safety. • Please keep all information for future reference. • This is not a toy. CAUTION! ELECTRONICALLY OPERATED PRODUCT:…

Text truncated - open the document above for the full version.

1 2 34 ABCD 4 3 2 1 D CBA 1 TSUEN SHING ELECTRONICS LTD 1 BLK-DBM1001-02A A Title Size: Model No.: Rev.: Sheet of A4 BABY PHONE(RX) DWG.: Drawing No.: CHK.:APP.: DBM1001 ENG-015-B NOTE: REV:NAME:DATE:REV:NAME:DATE:REV:NAME:DATE:REV:NAME:DATE:REV:NAME:DATE:REV:NAME:DATE:REV:NAME:DATE: ' ( 0 2 ' 8 / $ 7 , 2 1 6 4 8 ( / & + $ )  $ 0 3 / , ) < 5 )  $ 0 3 ANT CH1 39.130MHz CH239.160MHz CHANNELSWITCH $ 8 ' , 2  / ( 9 ( / , 1 ' , & $ 7 , 2 1 BAT14.5V 6.0V INPUT ON/OFF VDD 2 6 &     0 + ]  , )  $ 0 3 0 , ; , 1 * 10.245MHz ᇍᑨ⬉ॳ⧚೒˖ SCH-DBM1001-02A $ 66=+$1*  3 2 : ( 5  6 8 3 3 / < VCC VSS VSSVCC 3 2 : ( 5 , 1 ' , & $ 7 , 2 1 3 2 : ( 5 ADJUSTOR   2 005 - 08 - 05

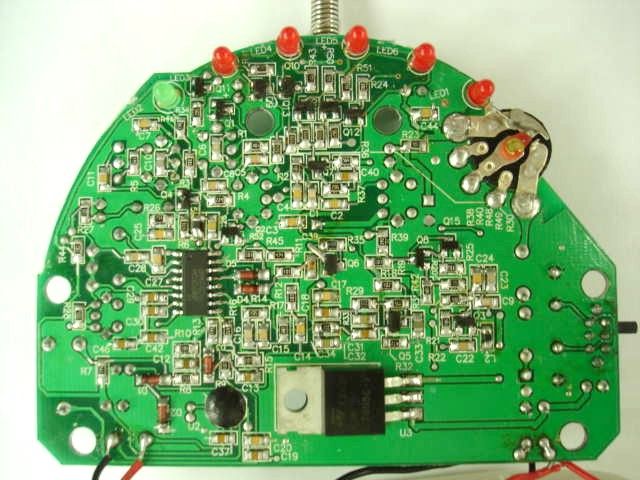

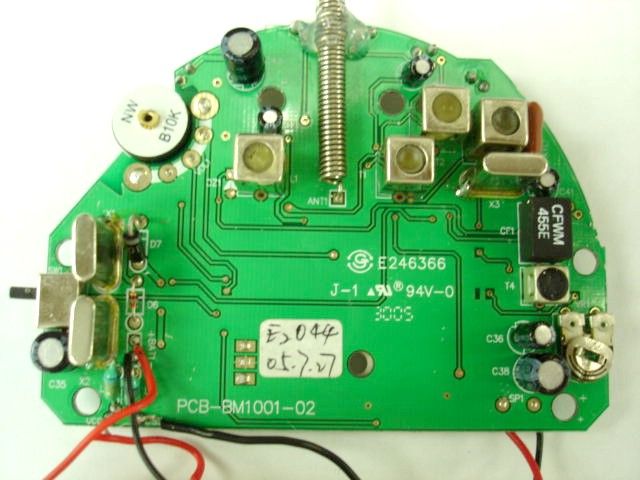

Technical Description RECEIVER UNIT A. CIRCUIT OPERATION : 1. FM RF RECEIVER MODULE ,OPERATION FREQUENCY CHANNEL 1 49.830MHz, CHANNEL 2 49.860MHz. 2. DC VOLTAGE REGULATOR 3. DUAL MIXINFG; FIRST INTERMEDIATE FREQUENCY 10.7MKHz, SECONDLY INTERMEDIATE FREQUENCY 455KHz. 4. AUDIO LEVEL INDICATION. 5. DIMENSIONAL SOUND STEREO AMPLIFY. 6. LED INDICATION OF POWER ON AND BATTERY LOW. B. COMPONENT DESCRIPTION CATEGORY NUMBER NAME DESCRIPTION TRANSISTOR 9018H AMPLIFIER TRANSISTOR RECEIVE THE RF SIGNAL AMPLIFIER TRANSISTOR 2SC5343 AMPLIFIER SWITCH TRANSISTOR RECEIVE THE AF SIGNAL AMPLIFIER, AUDIO LEVEL INDICATION TRANSISTOR MMBT3906 MMBT3904 SWITCH TRANSISTOR LED INDICATION OF POWER ON AND BATTERY LOW INTEGRATED CIRCUIT 7805 VOLTAGE REGULATOR REGULATED THE DC OUTPUT VOLTAGE INTEGRATED CIRCUIT 5018 INTEGRATED CIRCUIT IC SECONDLY LOCAL OSCILATOR, SECONDLY IF AMPLIFIER, AF DEMODULATION, TONE SQUELCH. INTEGRATED CIRCUIT HT82V733 AUDIO AMPLIFIER AUDIO POWER AMPLIFIER QUARTZ CRYSTAL X1 39.130MHz X2 39.160MHz X3 10.245MHz OSCILLATOR FIRST LOCAL OSCILATOR: CHANNEL 1 39.130MHz; CHANNEL 2 39.160MHz. SECONDLY LOCAL OSCILATOR: 10.245MHz. FILTER XTL1 10.7MHz CF1 455KHz FILTER CIRCUIT FIRST FILTER INTERMEDIATE FREQUENCY 10.7MHz; SECONDLY FILTER INTERMEDIATE FREQUENCY 455KHz INDUCTANE COIL T1 T2 T3 INDUCTANE COIL CIRCUIT FILTER CHOOSE FREQUENCY CIRCUIT

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA 1 TSUEN SHING ELECTRONICS LTD 1 SCH-DBM1001-01A A Title Size: Model No.: Rev.: Sheet of A3 BABY PHONE(RX) DWG.: Drawing No.: CHK.: APP.: DBM1001RX ENG-015-B NOTE: REV: NAME:DATE: REV: NAME:DATE: REV: NAME:DATE: REV: NAME:DATE: REV: NAME:DATE: REV: NAME:DATE: REV: NAME:DATE: REV: NAME:DATE: REV: NAME:DATE: REV: NAME:DATE: XIN 1 XOUT 2 MIXO 3 VCC 4 LIMO 5 C2 7 COIL 8 AF 9 PFI 10 PFO 11 MUTEI 12 SCAN 13 MUTEO 14 GND 15 IFI 16 C1 6 U1 5018 Q132SC5343Q102SC5343Q92SC5343 L1 C27 24P X3 10.245MHZ CF1455KHZ C29 100N C30100N C42100N + C4147uF R164.7K R141M R1510K R176.8K C174.7N C18100N C1647P C1533P C13100N R7560 C4410N +C43 220uF C19100N C2010N +C38 220uF + C361uF C37100N R2843K R1210K C1410N Q62SC5343 Q72SC5343 R35220K R36560K R375.6K C3910N C40100N R48 47K R40 47K R38 47K R50 150 R43150R41150 + C4547uF LED5 LED4 LED3 T4 ANT1 R2710 SP132OHM/0.25W 1 2 3 45 6 7 8 U2 HT82V733 Q142SC5343 R49 47K R51150 LED6 R875K R10 100K C121uF VR1 10K R13560 R910K D3 1N4148 BAT11.5V × 3 D71N4001 L3 6.8uH L46.8uH VOL1A10K VOL1BON/OFF D6BAT85 C568P Q19018H T2 C615P R1 100K C410N C868P R2330 Ω Q2 9018H R4 220K T3 C10150P C7 10N Q3 9018H C2224P C2315P R21100K X1 39.160MHz X2 39.130MHz SW1A Channel Switch R2215K C2410N VDD VDD R3330 Ω C310N R5560 XTL1 10.7MHz C111N VDD VDD VDD C2868P Q52SC5343 R31560K R181K C3347N VDD R2922K R324.7K C3120N C32100N R332.2K C3422N D51N4148 VDD C21N T1 C115P D1 1N4148 D2 1N4148 Q49018H C261N R26150 C2510N L50.82uH R647K VDD D41N4148 R1110K C912P R2310 + C2147uF DZ1non R5210K C46100N SW1B A 首次发行 ZHCHANG 2005.09.01 L20.82uH Q15 MMBT3904 Q8 MMBT3904 R305.6K R24330 LED1 RED R1910K R393.9K R25 330 Ω R42100KR2026K Q12 MMBT3906 Q11MMBT3906 + C35220uF R441K R45470K VCC VSS DC 6.0V/200mA 1 2 3 U3 7805 V 3.6 V 3.6 LED2 GREEN R345.6K R46560

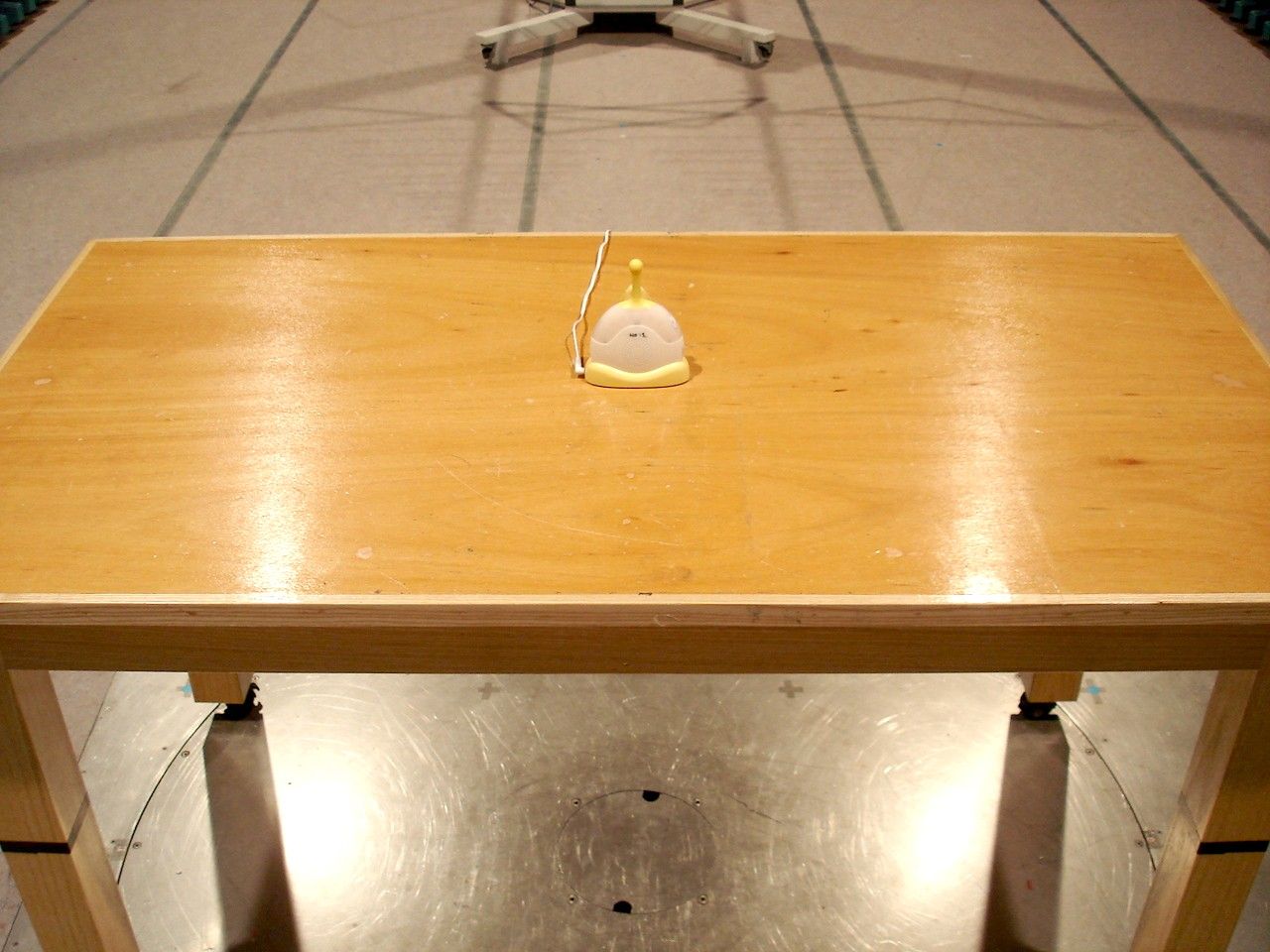

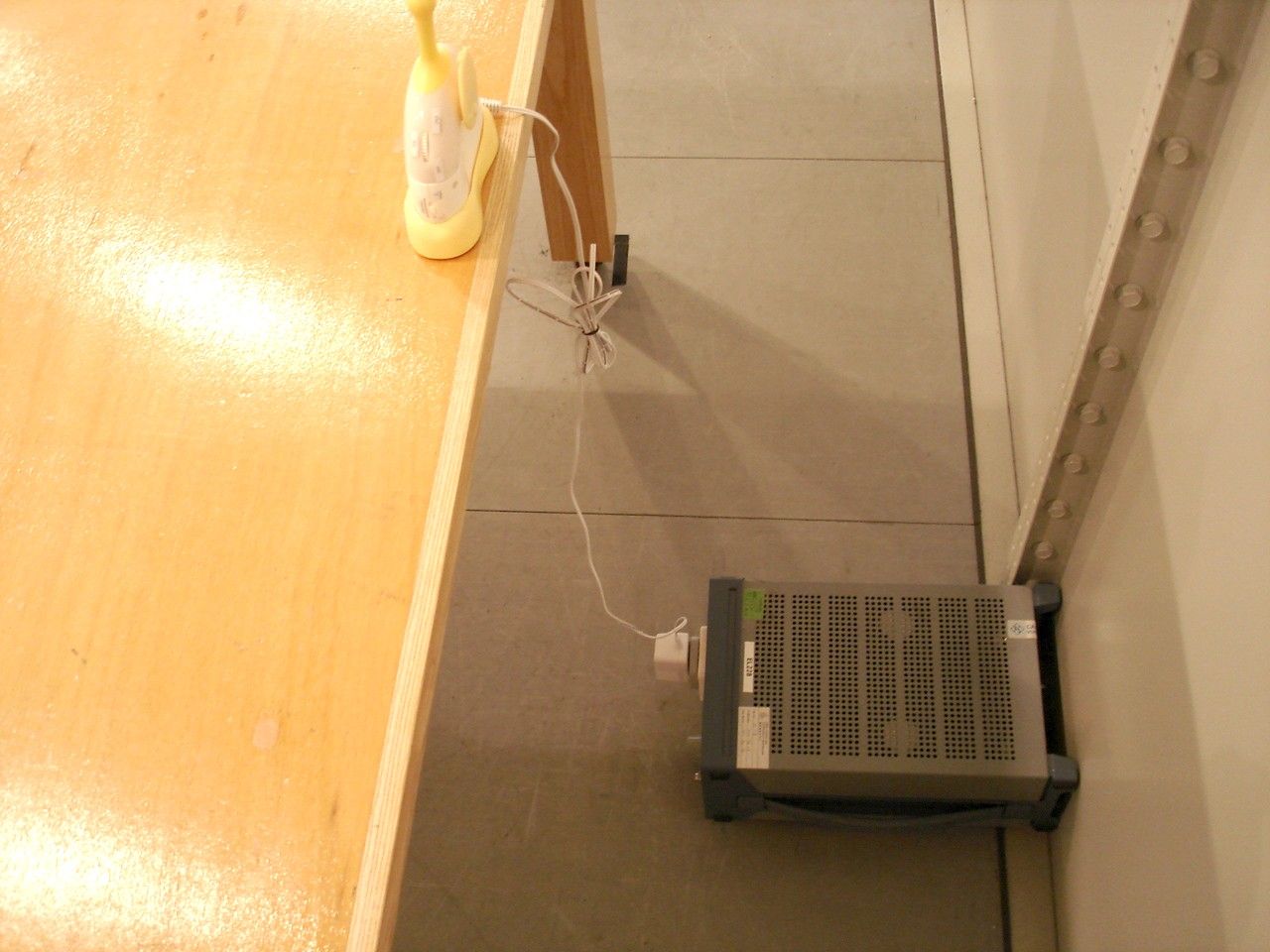

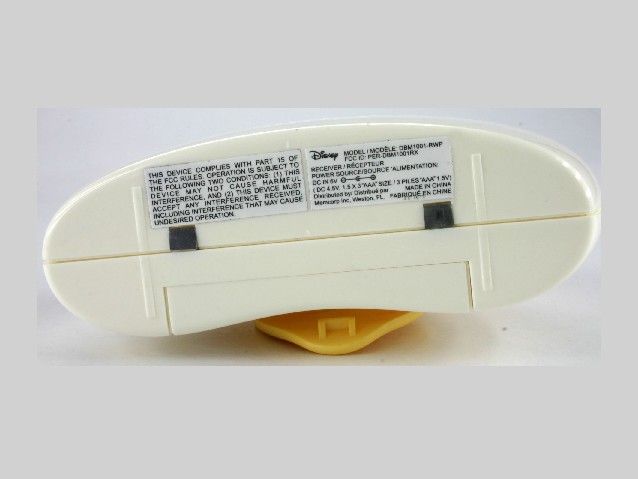

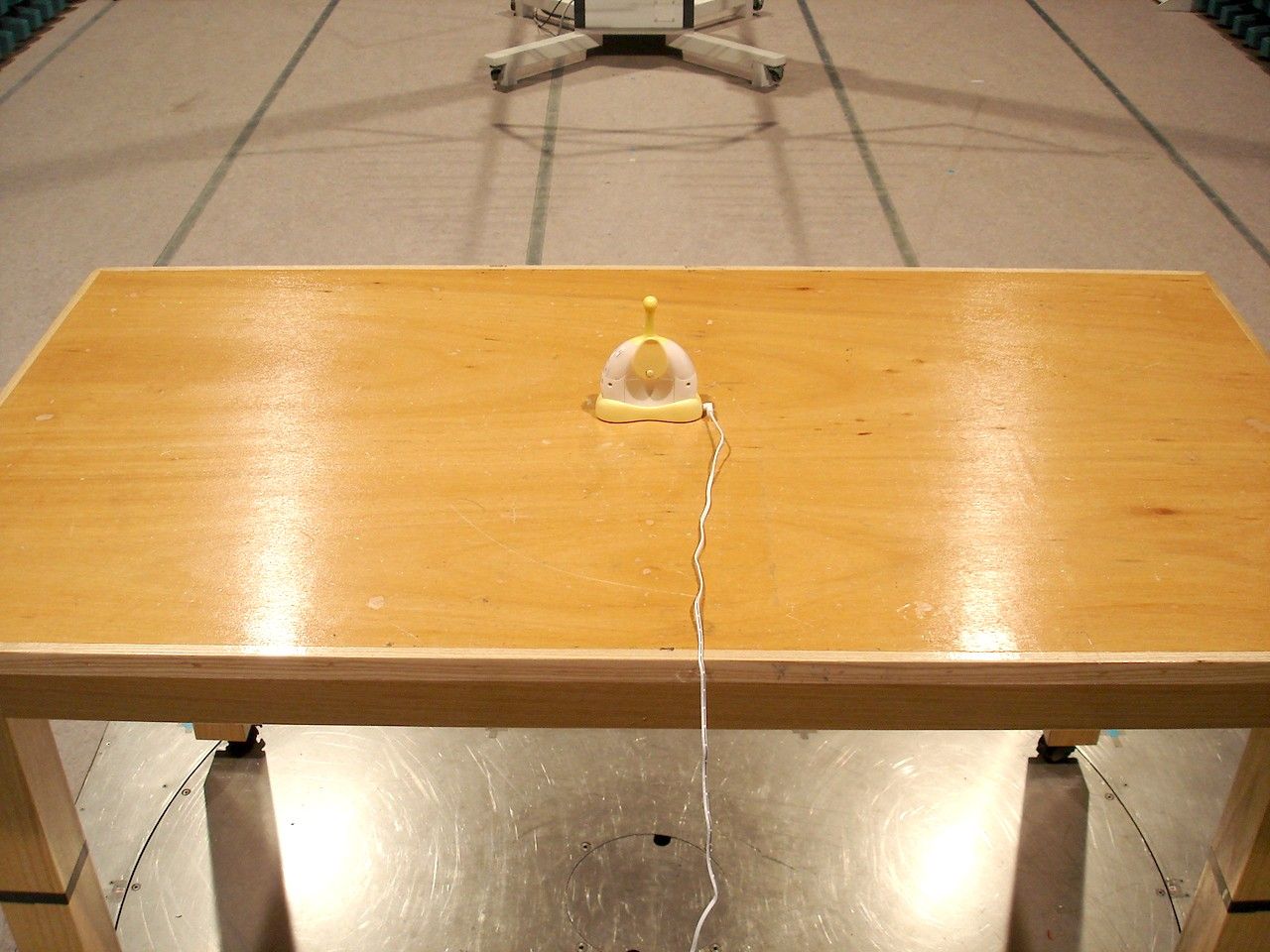

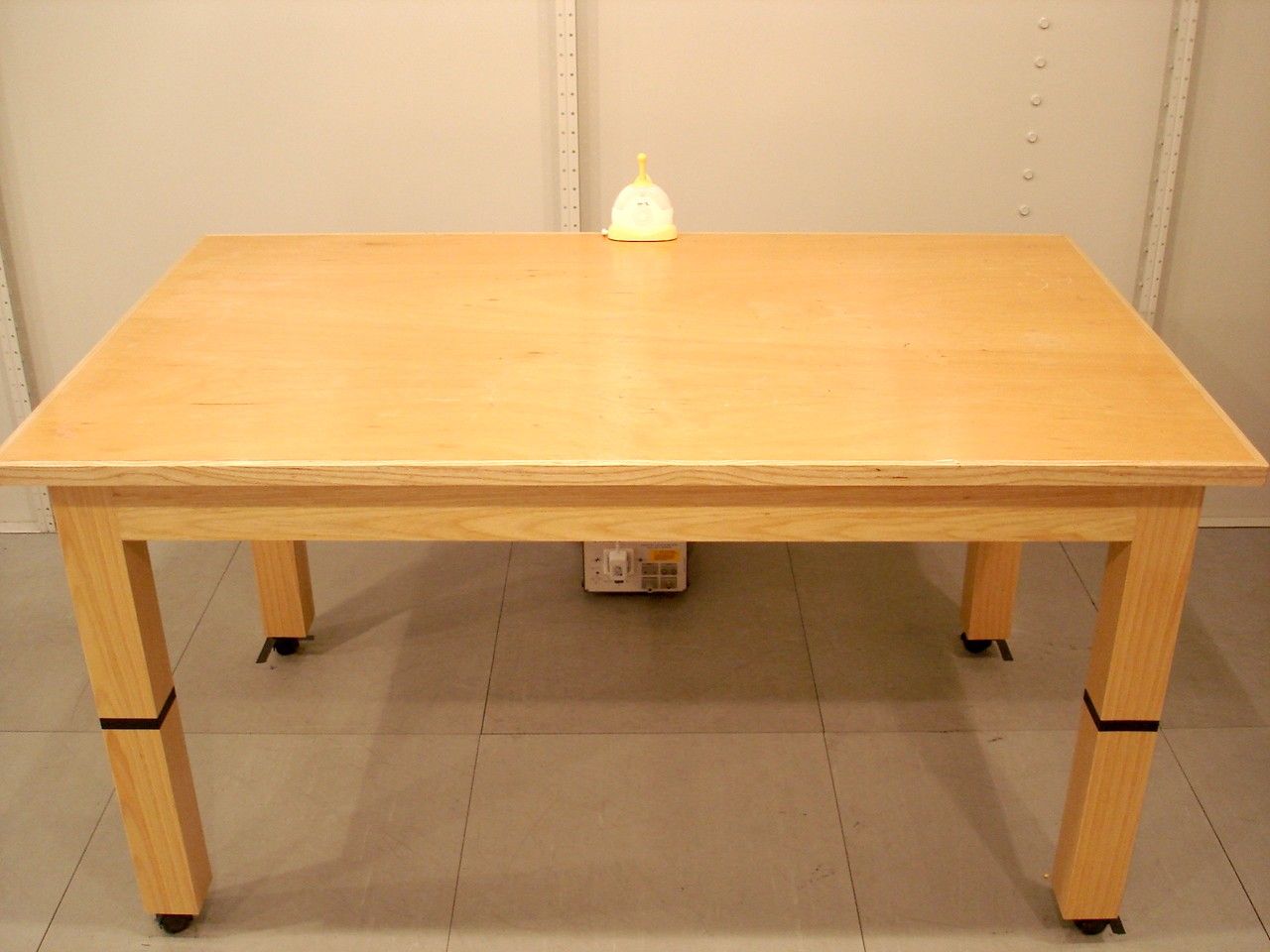

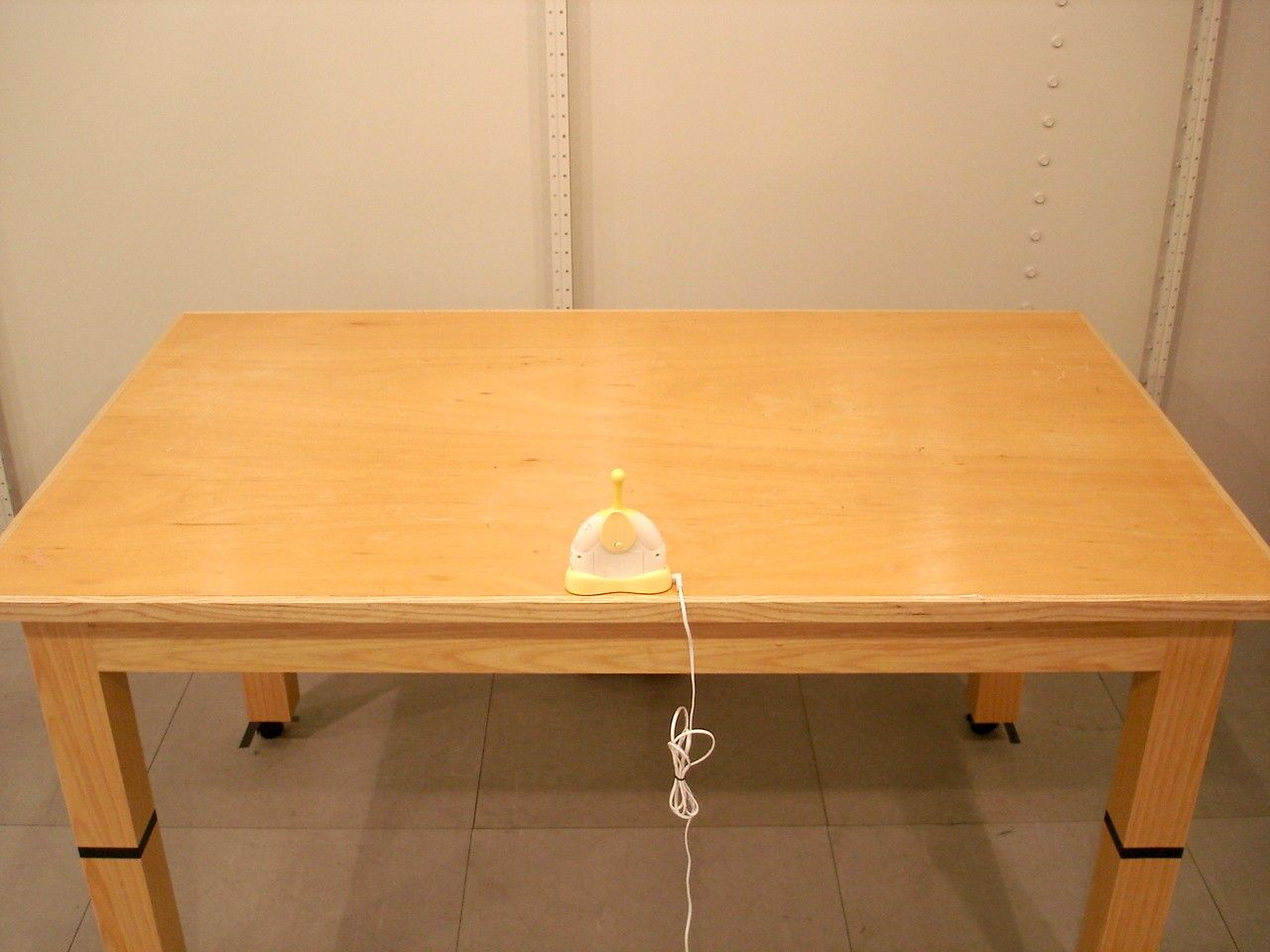

TEST REPORT Report No. : AF021015-001 Date : 2005 September 08 For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 12 Danny Chui EMC Engineer - EL. Division FCC ID : PER-DBM1001RX This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LF213743(9) Applicant : Tsuen Shing Enterprises Ltd. 19/F., Billion Plaza, No. 8 Cheung Yue Street, Cheung Sha Wan, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be Winnie The Pooh Baby Phone of Model No. DBM1001-RWP, DBM1001-CWP Rating : 3 x 1.5V AAA size battery DC 6V AC 120V No. of submitted sample : Two (2) piece(s)*** Date Received : Test Period : Test Requested : Test Method : Test Result : Conclusion : 2005 August 25 2005 August 25 – 2005 September 06 FCC Part 15 Certification FCC Rules and Regulations Part 15 – July 2004 ANSI C63.4 – 2003 See attached sheet(s) from page 2 to 12. The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. Remark : All two models are the same in circuitry and components and construction, and therefore model DBM1001-RWP was chosen to be the representative of the test sample. TEST REPORT Report No. : AF021015-001 Date : 2005 September 08 Page 2 of 12 FCC ID : PER-DBM1001RX This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .................................................................................................................................. 3 1.1 General Description ........................................................................................................................... 3 1.2 Location of the test site ...................................................................................................................... 4 1.3 List of measuring equipment.............................................................................................................. 5 2 Description of the radiated emission test .................................................................................................. 6 2.1 Test Procedure ................................................................................................................................... 6 2.2 Test Result ......................................................................................................................................... 6 2.3 Radiated Emission Measurement Data .............................................................................................. 7 2.3 Radiated Emission Measurement Data .............................................................................................. 8 3 Description of the Line-conducted Test .................................................................................................... 9 3.1 Test Procedure ................................................................................................................................... 9 3.2 Test Result ......................................................................................................................................... 9 3.3 Graph and Table of Conducted Emission Measurement Data ........................................................... 9 4 Photograph .............................................................................................................................................. 10 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission........................... 10 4.2 Photographs of the External and Internal Configurations of the EUT............................................. 10 5 Supplementary document ......................................................................................................................... 11 5.1 Bandwidth ........................................................................................................................................ 11 5.2 Duty cycle ........................................................................................................................................ 11 6 Appendices .............................................................................................................................................. 12 TEST REPORT Report No. : AF021015-001 Date : 2005 September 08 Page 3 of 12 FCC ID : PER-DBM1001RX This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a superheterodyne receiver for Winnie The Pooh Baby Phone. Operating at 49.830MHz or 49.860MHz which is controlled by a crystal. The EUT is powered by an AC 120V to 6V adaptor or 3 x 1.5V AAA size battery. There are speaker and channel selector in front of the EUT. When Channel 1 (49.830MHz) or Channel 2 (49.860MHz) is selected, it will receive a radio signal from transmitter and amplify it to the speaker. The brief circuit description is listed as follows : - X1, X2 and associated circuit act as oscillator. - U1 5018 and associated circuit act as integrated circuit. - U2 HT82V733 and associated circuit act as audio amplifier. - 9018 H and associated circuit act as RF amplifier. - U3 7805 and associate…

Text truncated - open the document above for the full version.
