PFCIT910HDTV Receiver

HDTV R ECEIVER U SER G UIDE Philips HD receiver User Guide 1 Safety Instruction z Be sure to read this User’s Manual before starting the operation of the receiver. z Never open the cover. It is dangerous to touch the inside of the receiver due to possible electric hazard. z When the receiver is unused for a long time, unplug the power cord. z Do not use a damaged power cord that may cause a fire or an electric shock. z Place the HD receiver in well ventilated and no-heat environment. z When connecting cables, the receiver must have been powered off. Philips HD receiver User Guide 2 CONTENTS CHAPTER 1. INTRODUCTION ................................................................5 1.1. I NTRODUCTION ..................................................................................................5 CHAPTER 2. SETUP AND CONNECTION...............................................6 2.3. C ONNECTING T O TV OR M ONITOR .....................................................................6 2.3. V IDEO S ETUP ...................................................................................................10 2.3. C HANNEL S ETUP ...............................................................................................12 2.4. F RONT AND R EAR P ANEL ...................................................................................14 2.5. J ACKS AND C ABLES ..........................................................................................16 CHAPTER 3. USING THE REMOTE........................................................18 3.1. R EMOTE C ONTROL B UTTONS .............................................................................18 3.2. P ROGRAMMING T HE R EMOTE C ONTROL ............................................................20 CHAPTER 4. BASIC OPERATION.........................................................21 4.1. M ENU T REE ......................................................................................................21 4.2. H OW TO U SE THE M ENU ....................................................................................22 4.3. N AVIGATION K EYS AND I CONS ..........................................................................23 4.4. C HANNEL B ANNER AND I CONS ..........................................................................24 4.5. C HANNEL S TATION AND A LTERNATE L ANGUAGE ..................................................25 4.6. M ULTIPLE F UNCTIONS OF INFO K EY ...................................................................26 CHAPTER 5. USING THE PROGRAM GUIDES......................................27 5.1. G RID G UIDE AND L IST G UIDE ............................................................................27 5.2. W HAT C AN Y OU G ET I N THE P ROGRAM G UIDE ...................................................28 5.3. T UNE OR S CHEDULE ? ........................................................................................30 Philips HD receiver User Guide 3 CHAPTER 6. USER PREFERENCE ..........................................................31 6.1. S ET F AVORITE C HANNELS ..................................................................................31 6.2. S ET S CHEDULE ..................................................................................................32 6.3. S ET C OLOR .....................................................................................................33 6.4. S ET C LOSED C APTION ......................................................................................34 6.5. S ET F AVORITE M ENUS .......................................................................................35 6.6. S ET G UIDE F ORMAT ..........................................................................................36 CHAPTER 7. PARENTAL CONTROL .....................................................37 7.1. C HANGE P ASSWORD .......................................................................................37 7.2. S ET R ATING L IMIT ..............................................................................................38 7.3. S ET C HANNEL L IMIT ..........................................................................................39 7.4. S ET H OUR L IMIT ................................................................................................40 CHAPTER 8. SYSTEM SETUP.................................................................41 8.1. S YSTEM S ETUP ..................................................................................................41 8.2. C HANNEL S ETUP ...............................................................................................41 8.3. S CAN C HANNELS .............................................................................................42 8.4. S CAN T ERRESTRIAL ............................................................................................43 8.5. S CAN C ABLE ...................................................................................................44 8.6. M ODIFY C HANNELS .........................................................................................46 8.7. C HECK S IGNAL ................................................................................................48 8.8. V IDEO S ETUP ...................................................................................................49 8.9. S ET M ONITOR T YPE / F ORMAT ...........................................................................50 8.10. S ET O UTPUT M ODE ...........................................................................................51 8.11. A UDIO S ETUP ...................................................................................................52 8.12. S ELECT D EFAULT L ANGUAGE ..............................................................................53 8.13. S ELECT SPDIF O UTPUT .....................................................................................54 8.14. S ET V OLUME C ONTROL ..........................…

Text truncated - open the document above for the full version.



             !!!" !
         !   "!
  !# #    $   $  % %

      !  ! #!

  &'



         !

                    !" #$% $& ' ( '   ) *$&   ) *$&   ) *$&   ) *$&  $*+ $*+ $*+ $*+ $ $&)  $ $&)  $ $&)  $ $&)  $*+ $*+ $*+ $*+  ) *$&   ) *$&   ) *$&   ) *$&  $*+ $*+ $*+ $*+  ) *$&$'   ) *$&$'   ) *$&$'   ) *$&$'  $*+ $*+ $*+ $*+ $ $&)$'  $ $&)$'  $ $&)$'  $ $&)$'  $*+ $*+ $*+ $*+ ##"(   ! ! )"*"  +,




 -   "!    !"  * #$&

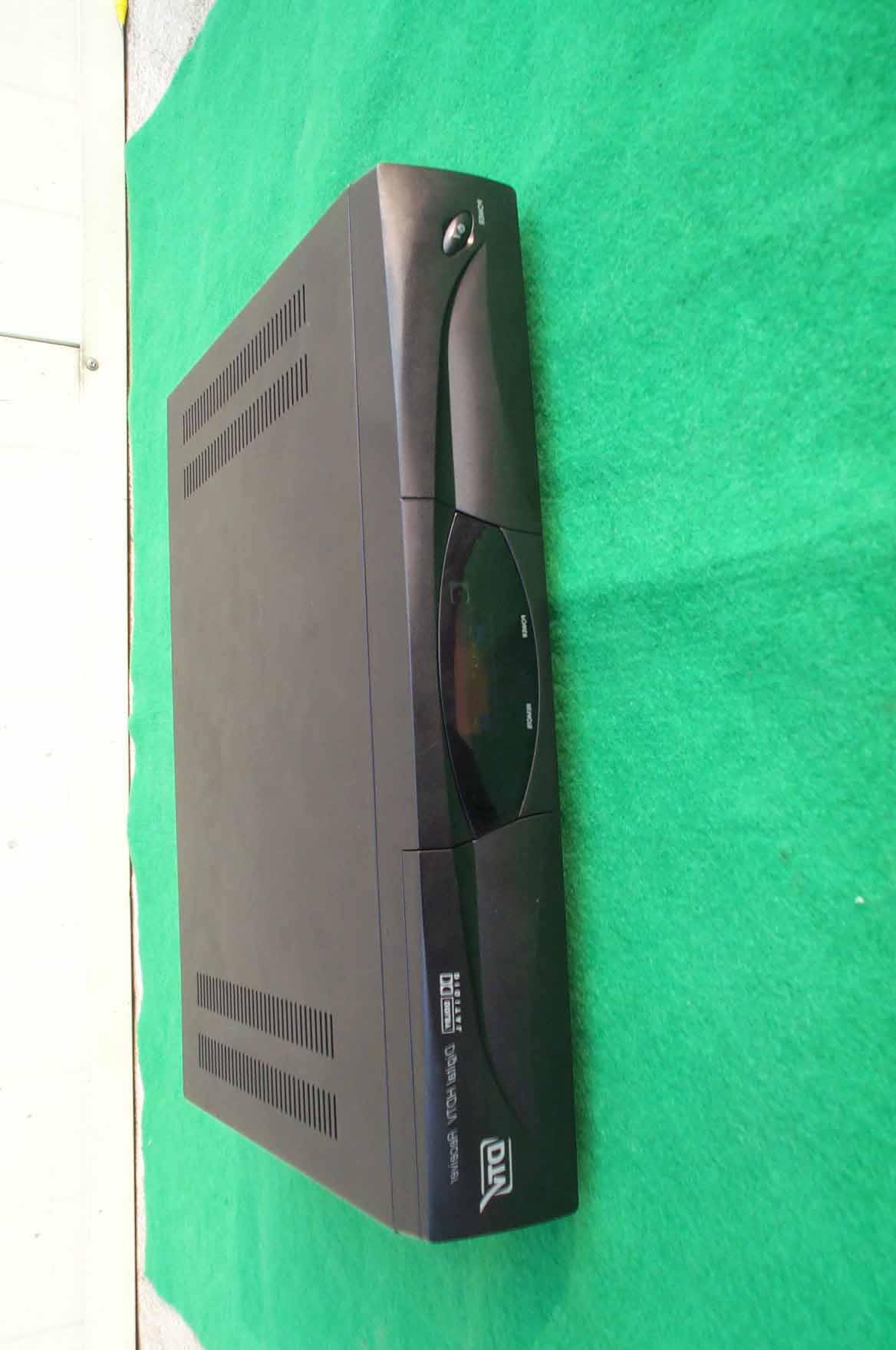

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-00157 FCC ID : XXXIT910 External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-00157 FCC ID : XXXIT910

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-00157 FCC ID : XXXIT910 FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER ∫∫∫∫ ∫∫∫∫∫∫∫∫ ∫∫∫∫2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : PFCIT910 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-00157 FCC ID : XXXIT910 FCC ID Label Sample

SK TECH CO., LTD. Page 1 of 7 SKT SKTOS-00157 FCC ID : XXXIT910 Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 7 SKT SKTOS-00157 FCC ID : XXXIT910 SK TECH CO., LTD. Page 3 of 7 SKT SKTOS-00157 FCC ID : XXXIT910 SK TECH CO., LTD. Page 4 of 7 SKT SKTOS-00157 FCC ID : XXXIT910 SK TECH CO., LTD. Page 5 of 7 SKT SKTOS-00157 FCC ID : XXXIT910 SK TECH CO., LTD. Page 6 of 7 SKT SKTOS-00157 FCC ID : XXXIT910 SK TECH CO., LTD. Page 7 of 7 SKT SKTOS-00157 FCC ID : XXXIT910

SK TECH CO., LTD. Page 1 of 14 SKT SKTOS-00157 FCC ID : XXXIT910 Certificate of Compliance Test Report No.: SKTOS-00157 NVLAP CODE : 200220-0 Applicant: INTEGRA TELECOM CO., LTD. Applicant Address: 7 th , Hwayoung Bldg., 112-2, Garak-Dong, Songpa-Gu, Seoul, 138-160, Korea Product: HDTV Receiver FCC ID: XXXIT910 Model No.: IT910 Receipt No.: SKE20000904-665 Date of receipt: Sep. 04, 2000 Date of Issue: Dec. 19, 2000 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 1992 , FCC/OET MP-2 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H. Kang Tested by:K.H.Nam/Engineer Approved by: J.Y.Hyun /Lab.Manager Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ ☞☞ ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 14 SKT SKTOS-00157 FCC ID : XXXIT910 》》 》》》》 》》 Contents 《《 《《《《 《《 Contents 2 List of Tables 2 List of Figures 2 List of Photographs 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Data 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical characteristics 5 3.2 Submitted documents 5 4. Measurement conditions 6 4.1 Modes of operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 7 4.4 Test Setup 7 4.5 Uncertainty 7 5. Emission Test 8 5.1 Conducted Emissions 8 5.2 Radiated Emissions 12 5.3 Receiver Radiated Emissions Measurement 14 5.4 UHF Noise Figures Measurement 14 》 》》 》List of Tables Table 1 List of test and measurement equipment 4 Table 2 Test Data, Conducted Emissions 11 Table 3 Test Data, Radiated Emissions 13 Table 4 Test Data, Radiated Emissions Measurement 14 》 》》 》List of Figures Figure 1 Spectral Diagram, LINE-PE 9 Figure 2 Spectral Diagram, Neutral-PE 10 SK TECH CO., LTD. Page 3 of 14 SKT SKTOS-00157 FCC ID : XXXIT910 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ANSI C63.4/1992 for measurement of radio interference. SK TECH CO., LTD. Page 4 of 14 SKT SKTOS-00157 FCC ID : XXXIT910 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment z Conducted Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESHS 10 862970/019 04.2001 LISN KNW-407 M63284 07.2001 LISN ESH2-Z5 862060/029 06.2001 Conducted Cable N/A N/A 07.2001 z Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESVS 10 825120/013 04.2001 Spectrum Analyzer R3361A 11730187 07.2001 Amplifier 8447F 3113A05153 05.2001 Log Periodic Antenna UHALP9107 91071238 04.2001 Biconical Antenna BBA9106 N/A 04.2001 Open Site Cable N/A N/A 07.2001 Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 91X519 N/A Amp & Receiver connection cable N/A N/A 07.2001 Amp & Spectrum connection cable N/A N/A 07.2001 50Ω Switcher MP59B M93083 07.2001 z UHF Noise Figures Measurement Kind of Equipment Type S/N Calibrated until Noise Figure Meter 8970A 2612A03568 08.2001 Noise Source (10MHz ~ 18GHz) 346B 3228A10636 05.2001 SK TECH CO., LTD. Page 5 of 14 SKT SKTOS-00157 FCC ID : XXXIT910 2.3 Test Date Date of Application : Sep. 04, 2000 Date of Test : Nov. 27, 2000 2.4 Test Environment See each test item’s description. 3. Description of the tested samples The EUT is HDTV Receiver. 3.1 Rating and Physical Characteristics System & Memory • Main Process : ST20-TP4 C2 Core • Flash Memory : 2 MB • System RAM : 4 MB • MPEG SDRAM : 16 MB • EEPROM : 8 KB • Front : 7 Keys • Remote : 47 Keys, Universal Type 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 14 SKT SKTOS-00157 FCC ID : XXXIT910 4. Measurement Conditions Testing Input Voltage : AC 120V, 60Hz 4.1 Modes of Operation The EUT was in the following operation mode during all testing; Using NTSC pattern Generator, The color Bar signal feed through into EUT and Monitoring on TV. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID Pattern Generator Leader Elec. Corp. 401YB 0100064 N/A TV Samsung CT-14F1S 35PN800912 N/A 4.3 Type of Used Cables Description Length Type of shield Manufacturer Remark EUT power cord 1.2m Shield None S-Video cable 1.2m Shield None (x2) RS-232 cable 1.2m Shield None A/V cable (EUT) 1.2m Non-Shield None (x12) VGA cable 1.2m Shield None VSB cable 1.2m Shield None Pattern Generator power cord 1.2m Non-Shield None Pattern Generator BNC cable 1.0m Shield None TV power cord 1.2m Non-Shield None A/V cable (TV) 1.2m Non-Shield None SK TECH CO., LTD. Page 7 of 14 SKT SKTOS-00157 FCC ID : XXXIT910 4.4 Test Setup The test setup photographs showed the external supply connections and interfaces. 4.5 Uncertainty 1) Radiated disturbance Uc (Combined standard Uncertainty) = ±1.9dB Expanded uncertainty U = KUc K = 2 ∴ U = ±3.8dB 2) Conducted disturb…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 3 SKT SKTOS-00157 FCC ID : XXXIT910 Test set up photos Photograph 1: Setup for Conducted Emissions SK TECH CO., LTD. Page 2 of 3 SKT SKTOS-00157 FCC ID : XXXIT910 Photograph 2: Setup for Radiated Emissions SK TECH CO., LTD. Page 3 of 3 SKT SKTOS-00157 FCC ID : XXXIT910 Photograph 3: Setup for UHF Noise Figures
