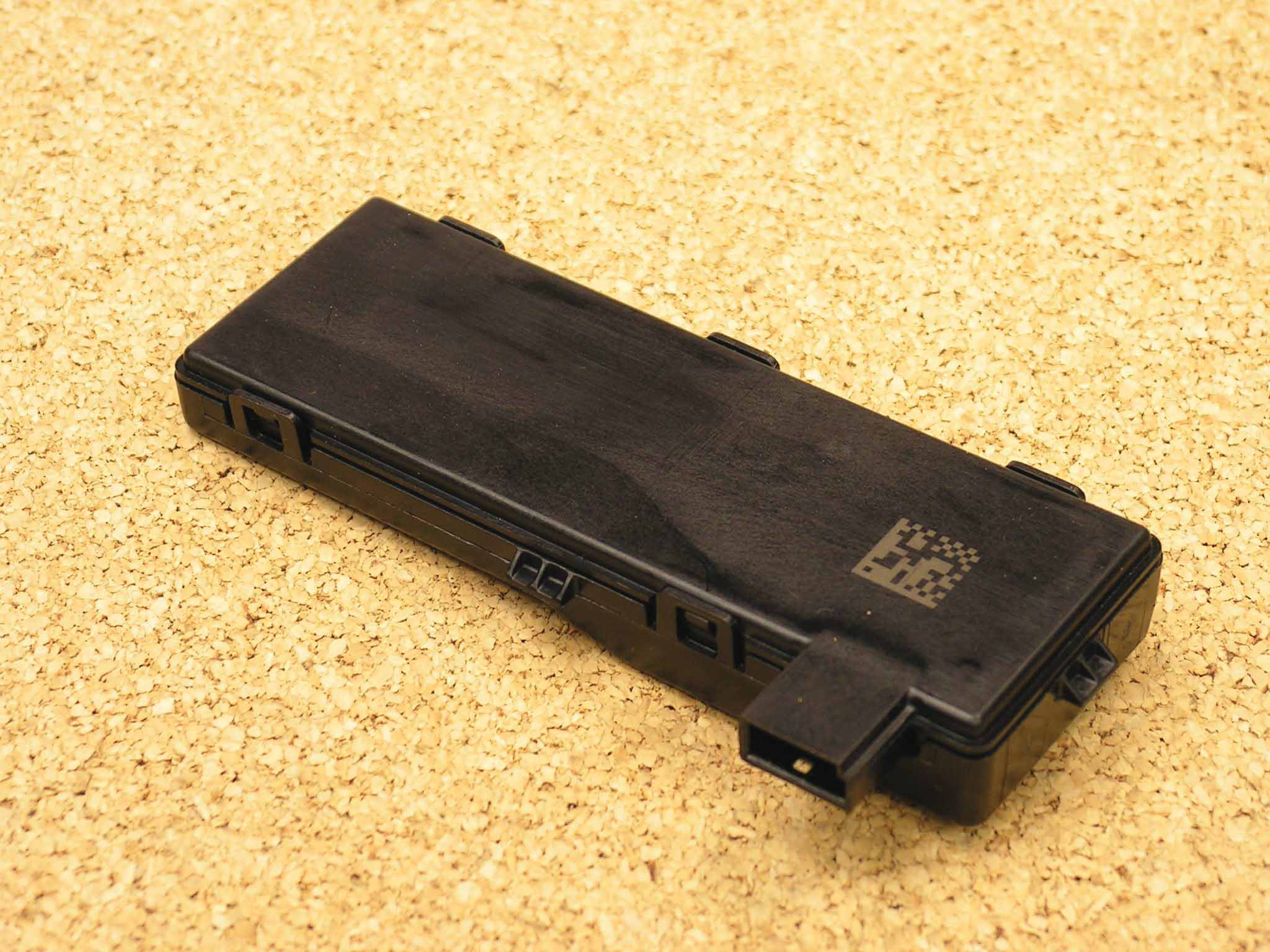

RF Receiver Description of Operation The RF Receiver accepts RF signals from a transmitter, demodulates the messages from these signals, and transmits the messages to the body control module via a dedicated serial link.

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-647 Page 1 of 11 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Fax: (734) 647-2106 Measured Radio Frequency Emissions From Robert Bosch Corporation Receiver FCC ID: PFJG2THN3 Test Report No. 417124-647 October 22, 2012 Copyright © 2012 For: Robert Bosch Corporation 15000 Haggerty Rd. Plymouth, Michigan 48170 Contact: Marco Toppi [email protected] Phone: (734) 979-3035 Fax: (734) 979-3781 Testing supervised by: Measurements made by: Valdis V. Liepa Report Approved by:__________________________ Valdis V. Liepa Test report written by: Valdis V. Lipea Research Scientist Summary Tests for compliance with FCC Regulations, CFR 47, Part 15 and verification under Industry Canada RSS-210/Gen, were performed on a Bosch, FCC ID: PFJG2THN3. This device under test (DUT) is subject to the rules and regulations as a Receiver. In testing completed on October 17, 2012, the DUT tested met the allowed specifications for radiated emissions by more than 5.9 dB. Conducted emissions are not subject to regulation as the DUT is powered by a 12 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-647 Page 2 of 11 Table of Contents 1. Introduction ...................................................................................................................................... 3 2. Equipment Used ............................................................................................................................... 3 3. Device Under Test ........................................................................................................................... 4 3.1 Description & Block Diagram .............................................................................................. 4 3.2 Variants & Samples .............................................................................................................. 4 3.3 Modes of Operation .............................................................................................................. 4 3.4 Exemptions ........................................................................................................................... 4 3.5 EMC Relevant Modifications ............................................................................................... 4 4. Emissions Limits .............................................................................................................................. 5 4.1 Radiated Emissions Limits .................................................................................................... 5 4.2 Power Line Conducted Emissions Limits ............................................................................. 5 5. Measurement Procedures ................................................................................................................. 5 5.1 Semi-Anechoic Chamber Radiated Emissions ...................................................................... 5 5.2 Outdoor Radiated Emissions ................................................................................................. 5 5.3 Radiated Field Computations ................................................................................................ 6 5.4 Indoor Power Line Conducted Emissions ............................................................................. 6 5.5 Supply Voltage Variation ...................................................................................................... 6 6. Test Results : Radiated Emissions ................................................................................................... 7 6.1.1 Emission Spectrum ........................................................................................................... 7 6.1.2 Supply Voltage and Supply Voltage Variation ................................................................. 7 University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-647 Page 3 of 11 1. Introduction This Bosch Receiver was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87- 389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 8. Tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057A-1). 2. Equipment Used The test equipment commonly used in our facility is listed in Table 2.1. Except where indicated as a pre- test, monitoring, or support device; all equipment listed below is a part of the University of Michigan Radiation Laboratory (UMRL) quality system. This quality system has been established to ensure all equipment has a clearly identifiable classification, calibration expiry date, and that all calibrations are traceable to national standards. Table 2.1 Test Equipment. Test Instrument Used Manufacturer/Model Q Number Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8593E, SN: 3412A01131 HP8593E1 Spectrum Analyzer (9kHz-6.5GHz) Hewlett-Packard 8595E, SN: 3543A01546 JDB8595E Power Meter Hewlett-Packard, 432A HP432A1 Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 HP11970A1 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 HP11970U1 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 HP11970W1 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 PMPGMA1 S-Band Std. Gain Horn S/A, Model SGH-2.6 SBAND1 C-Band Std. Gain Horn University of Mich…
