PFNDC10HDDIGITAL CABLE SETTOP-BOX (ZIGBEE EMBEDDED)

Digital Multimedia Technology Co., Ltd

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Apr 11, 2012
Application Purpose: Original Equipment
Date of Application: Apr 11, 2012
Equipment Note: DIGITAL CABLE SETTOP-BOX (ZIGBEE EMBEDDED)
Frequency Range: 2425.00000000 - 2475.00000000
Company: Digital Multimedia Technology Co., Ltd
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Instruction Manual For DC10HD Digital Multimedia Technology Co., Ltd HDuDTA Manual 2 Contents I. Installing DC10HD 1. Component .......................................................................................... 3 2. Name of parts and role ....................................................................... 3 2-1. Remote control ................................................................................ 5 II. Notice DC10HD 3. Installing .............................................................................................. 7 1. Dolby ................................................................................................... 8 2. UL ........................................................................................................ 9 3. FCC .................................................................................................... 11 HDuDTA Manual 3 I. Installing DC10HD 1. Component The following parts are included in the product package. Make sure that you received all the parts.  Main body of DC10HD  Remote Control  Power adaptor  RF Cable  User Manual  HDMI Cable 2. Name of parts and role  LED : LED Lights up green when power is on. Lights up red when in Stand-By Mode.  IR Receiver 1 2 HDuDTA Manual 4 Cable In (Coax Cable) Connects the All Digital Device to a TV, VCR or receiver using a coax cable. TV Out (Coax Cable) Connects the All Digital Device to a TV, VCR or receiver using a coax cable. HDMI Out (HDMI Cable) Connects All Digital Device to a high definition TV, VCR or receiver. CH3/CH4 Selects TV Channel 3 or 4 as the output channel to your TV when the All Digital Device is connected using a coax cable from TV Out. Power In Connects the All Digital Device to a power source. Cable In TV out CH3/CH4 HDMI Out Power In HDuDTA Manual 5 2-1. Remote control ► Pressing the MUTE button on your remote control will mute the audio. ► Use the VOLUME UP/DOWN buttons (V +/-) on your remote control to raise and lower the volume. ► Use the CHANNEL UP/DOWN buttons (CH +/-) on your remote control to change channels. ► Press the NUMERIC buttons (0-9) on your remote control to tune directly to a specific channel. ► If the All Digital Device does not tune immediately after entering channel numbers, press the ENTER button on your remote control. HDuDTA Manual 6 POWER Switches the All Digital Device’s power on or into Stand-By Mode. MUTE Mutes the audio. 0~9 Enters Channel Numbers. In text windows, enters PIN-Code Numbers and various characters. LAST Switches between the current and previous channel. In the MENU SYSTEM LAST returns to the previous screen. VOLUME +/- Increases or decreases volume levels. CHANNEL +/- Selects the previous and next available channels. INFO Displays various information about the current program. ARROWS Moves to highlight items in respective direction. OK Confirms a selection. MENU Opens the MENU FEATURES screen of the MENU SYSTEM. EXIT Returns video to full screen from any INFO or MENU SYSTEM screen. HDuDTA Manual 7 3. Installing 1) Peripheral device setting A. Connect the wall cable source to CABLE IN on the All Digital Device. B. Connect the All Digital Device to the TV. Use a coaxial cable to connect TV OUT on the All Digital Device to the ANT jack on the TV C. Connect the All Digital Device to the TV. Use an HDMI cable (not included) to connect HDMI OUT on the All Digital Device to the HDMI input on the TV D. Connect the AC Adaptor to the POWER input on the All Digital Device. Connect the AC Adaptor to a power outlet on the wall. (A surge protected power outlet is recommended.) HDuDTA Manual 8 II. Notice 1. Dolby Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. HDuDTA Manual 9 2. UL Care and Maintenance Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Ensure that the power cord receptacle is accessible such that power can be easily disconnected if required. 11. Only use the attachments/accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicingis required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. The shock Hazard Marking and Associated Graphical Symbol is provided on the back panel of unit. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. HDuDTA Manual 10 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOIST…

Text truncated - open the document above for the full version.

Attestation Statements

Cover Letter(s)

Digital Multimedia Technology Co.,Ltd. 2nd Fl., 926, Gwanyang-dong, Dongan-gu, Anyang-si, Gyeonggi-do, Korea TEL : +82-31-420-7501 FAX : +82-31-420-7502 March 22, 2012 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : Digital Multimedia Technology Co., Ltd. FCC ID : PFNDC10HD Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Digital Multimedia Technology Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Digital Multimedia Technology Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name Schematics CONF APPENDIX PFNDC10HD SCH DIA.pdf Parts list CONF APPENDIX PFNDC10HD PL.pdf Block diagram CONF APPENDIX PFNDC10HD BLK DIA.pdf CONFIDENTIAL Operational description CONF APPENDIX PFNDC10HD OpDes.pdf External Photos SHORT-TERM CONF PFNDC10HD EXT Photo.pdf Internal Photos SHORT-TERM CONF PFNDC10HD INT Photo.pdf Test-Setup Photos SHORT-TERM CONF PFNDC10HD Test Photo.pdf SHORT-TERM CONFIDENTIAL User’s Manual SHORT-TERM CONF PFNDC10HD Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Kee-Chul Lee/ Manager Digital Multimedia Technology Co., Ltd.

External Photos

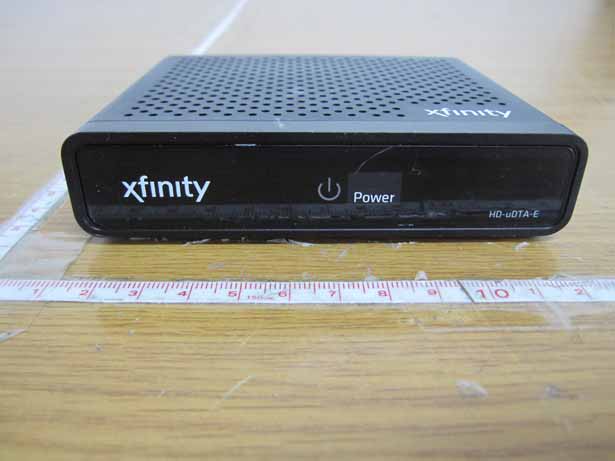

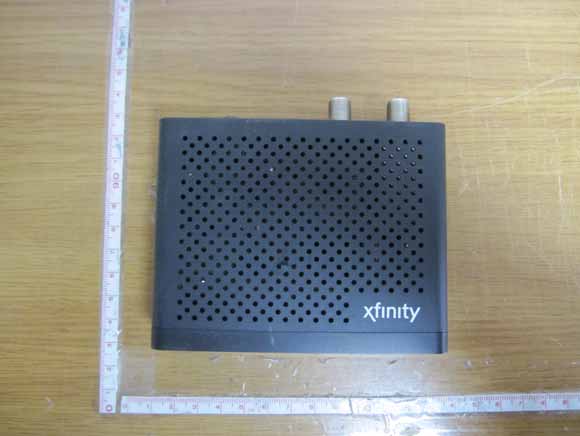

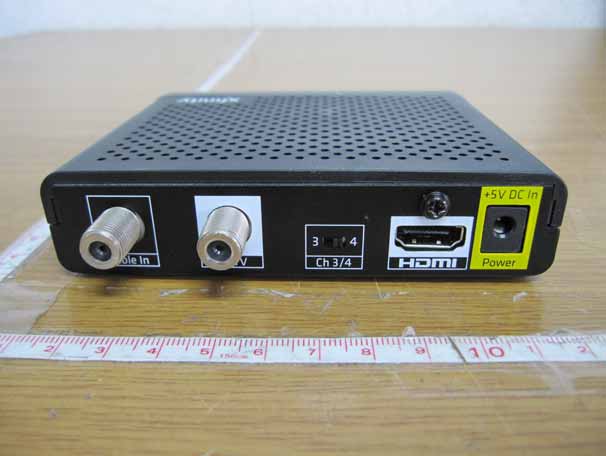

FCC ID: PFNDC10HD Copyright c 2012, LTA Co., Ltd. Page 1 of 4 Model Name: DC10HD Upper FCC ID: PFNDC10HD Copyright c 2012, LTA Co., Ltd. Page 2 of 4 Front FCC ID: PFNDC10HD Copyright c 2012, LTA Co., Ltd. Page 3 of 4 Side FCC ID: PFNDC10HD Copyright c 2012, LTA Co., Ltd. Page 4 of 4

ID Label/Location Info

Internal Photos

FCC ID: PFNDC10HD Copyright c 2012, LTA Co., Ltd. Page 1 of 1 MainBoard - Front MainBoard - Rear

Test Report

Ref. No.: LR500111203G Copyright c 2012, LTA Co., Ltd. Page 1 of 28 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: March 09 ~ 22, 2012 Test Report S/N: LR500111203G Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT Equipment Class : Digital Transmission System (DTS) Manufacturing Description : Digital Cable Settop-Box Manufacturer : Digital Multimedia Technology Co.,Ltd. Model name : DC10HD Variant Model name : DMS2004UHD Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C ; ANSI C-63.4-2003 Frequency Range : 2425MHz ~ 2475MHz Max. Output Power : Max 0.52dBm – Conducted Data of issue : March 22, 2012 This test report is issued under the authority of: The test was supervised by: Kyu-Hyun Lee, Manager Ki-Hun Cho, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. PFNDC10HD Digital Multimedia Technology Co., Ltd. Ref. No.: LR500111203G Copyright c 2012, LTA Co., Ltd. Page 2 of 28 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 6dB BANDWIDTH ------------------------------------------------------------------------------ 3.2.2 PEAK OUTPUT POWER ----------------------------------------------------------------------- 3.2.3 POWER SPECTRAL DENSITY --------------------------------------------------------------- 3.2.4 BAND – EDGE & SPURIOUS ----------------------------------------------------------------- 3.2.5 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.6 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 9 12 15 21 25 27 Ref. No.: LR500111203G Copyright c 2012, LTA Co., Ltd. Page 3 of 28 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2012-09-30 ECT accredited Lab. RRL KOREA KR0049 2013-04-24 EMC accredited Lab. FCC U.S.A 610755 2014-04-27 FCC filing FCC U.S.A 649054 2013-04-13 FCC CAB VCCI JAPAN R2133(10m), C2307 2014-06-21 VCCI registration VCCI JAPAN T-2009 2013-12-23 VCCI registration IC CANADA IC5799 2012-05-14 IC filing Ref. No.: LR500111203G Copyright c 2012, LTA Co., Ltd. Page 4 of 28 2. Information’s about test item 2-1 Client & Manufacturer Company name : Digital Multimedia Technology Co.,Ltd. Address : 2nd Fl., 926, Gwanyang-dong, Dongan-gu, Anyang-si, Gyeonggi-do, Korea Tel / Fax : TEL : +82-31-420-7501 / FAX : +82-31-420-7502 2-2 Equipment Under Test (EUT) Trade name : Digital Cable Settop-Box FCC ID : PFNDC10HD Model name : DC10HD Variant Model name : DMS2004UHD Serial number : Identical prototype Date of receipt : March 05, 2011 EUT condition : Pre-production, not damaged Antenna type : PCB Pattern antenna (M/N: GP_P405_RDD_01709) Max Gain 3.244 dBi Frequency Range : 2425MHz ~ 2475MHz (DSSS) RF output power : Max 0.52dBm - Conducted Number of channels : 11 Type of Modulation : O-QPSK Channel spacing : 5MHz Power Source : 5Vdc (by AC/DC Adaptor: M/N : EDF0500150A1BA) Firmware version : V1.0.0 2-3 Tested frequency LOW MID HIGH Frequency (MHz) 2425 2450 2475 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Industrial PC MHG-10 11MH-G006 MFLO TV monitor LT-26H6TVH DO8090SR100075 N/A IR Sensor N/A N/AN/A Ref. No.: LR500111203G Copyright c 2012, LTA Co., Ltd. Page 5 of 28 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.247(a) 6 dB Bandwidth > 500kHz C 15.247(b) Transmitter Peak Output Power < 1Watt C 15.247(d) Transmitter Power Spectral Density < 8dBm @ 3kHz C 15.247(d) Band Edge & Spurious > 20 dBc Conducted C 15.209 Field Strength of Harmonics Emission Radiated C 15.207 AC Conducted Emissions Emissions Conducted C 15.203 Antenna requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards.  Antenna Requirement The Digital Multimedia Technology Co., Ltd. FCC ID: PFNDC10HD unit complies with the requirement of §15.203. The antenna is PCB Pattern Antenna. The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 Ref. No.: LR500111203G Copyright c 2012, LTA Co., Ltd. Page 6 of 28 3.2 Technical Characteristics Test 3.2.1 6 dB Bandwidth Procedure: The bandwidth at 6dB below the highest in-band spectral density was measured with a spectrum analyzer connected to the antenna terminal, while EUT is operating in transmission mode at the appropriate frequencies. After the trace being stable, Use the marker-to-peak function to set the marker to the peak of the em…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: PFNDC10HD Copyright c 2012, LTA Co., Ltd. Page 1 of 3 Radiated Emission (30MHz – 1GHz) FCC ID: PFNDC10HD Copyright c 2012, LTA Co., Ltd. Page 2 of 3 Radiated Emission (Below 1GHz) FCC ID: PFNDC10HD Copyright c 2012, LTA Co., Ltd. Page 3 of 3 Conducted Emission

Contact Information

Applicant

Jung Hwan Lee(Senior Research Engineer)

[email protected]+82-2-3400-4688Fax: +82-2-3445-8784

Test Firm

LTA Co.,Ltd.Michael AHN

[email protected]82-31-323-6008Fax: 82-31-323-6010

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.42 GHz - 2.48 GHz	1.00 mW

Confidentiality

Long Term

Grant Notes

Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
