PFNIPH3004HDMSet top box

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 December 02, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Digital Multimedia Technology Co., Ltd. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Set top box / IPH3004HDM FCC ID: PFNIPH3004HDM Sincerely, Jung Hwan Lee / Senior Research Engineer Digital Multimedia Technology Co., Ltd. 2nd Fl., 926 Gwanyang-Dong, Dongan-Gu, Anyang-Si, Gyeonggi-Do, 431-060 Korea

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 December 02, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: PFNIPH3004HDM We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Circuit Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jung Hwan Lee / Senior Research Engineer Digital Multimedia Technology Co., Ltd. 2nd Fl., 926 Gwanyang-Dong, Dongan-Gu, Anyang-Si, Gyeonggi-Do, 431-060 Korea

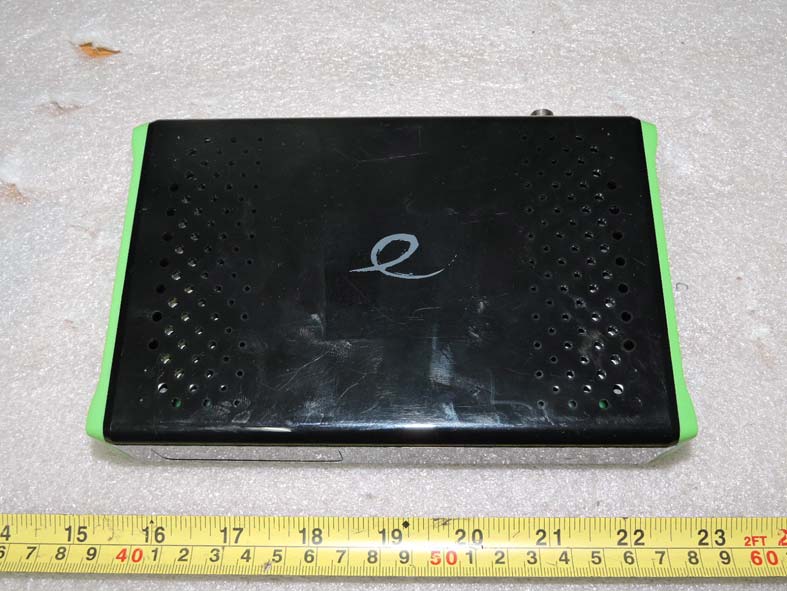

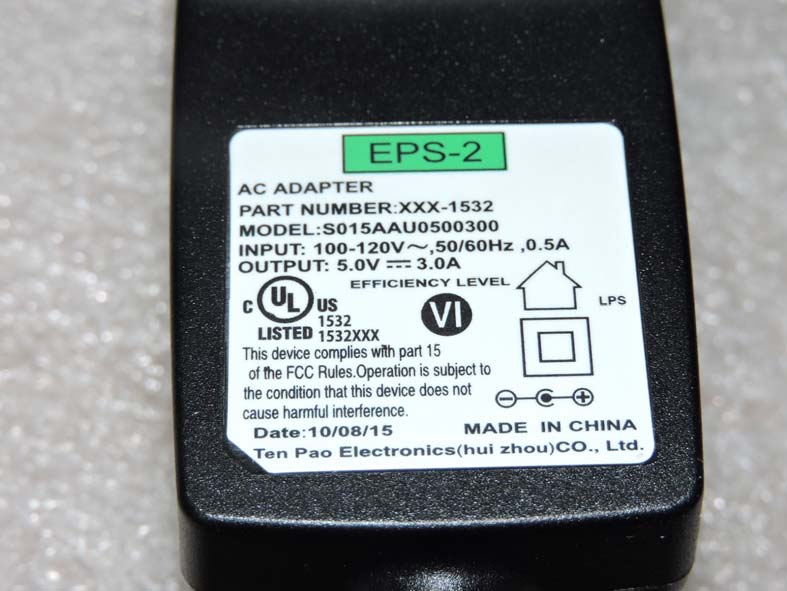

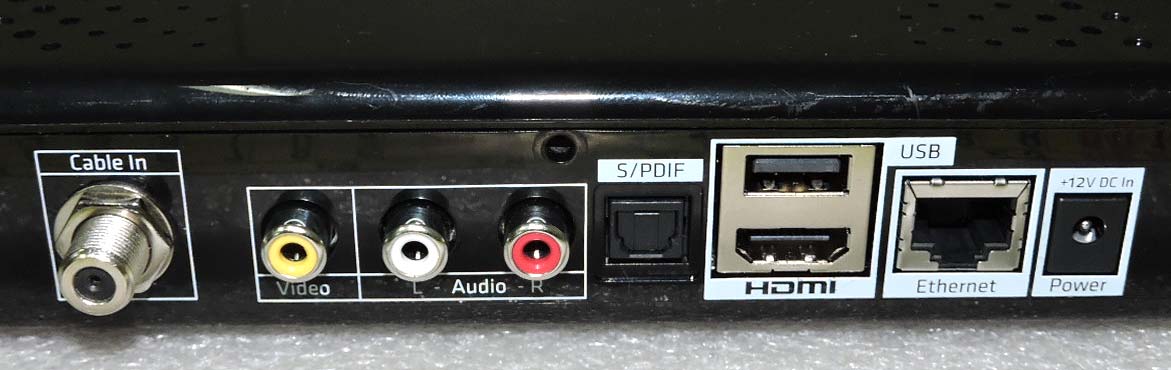

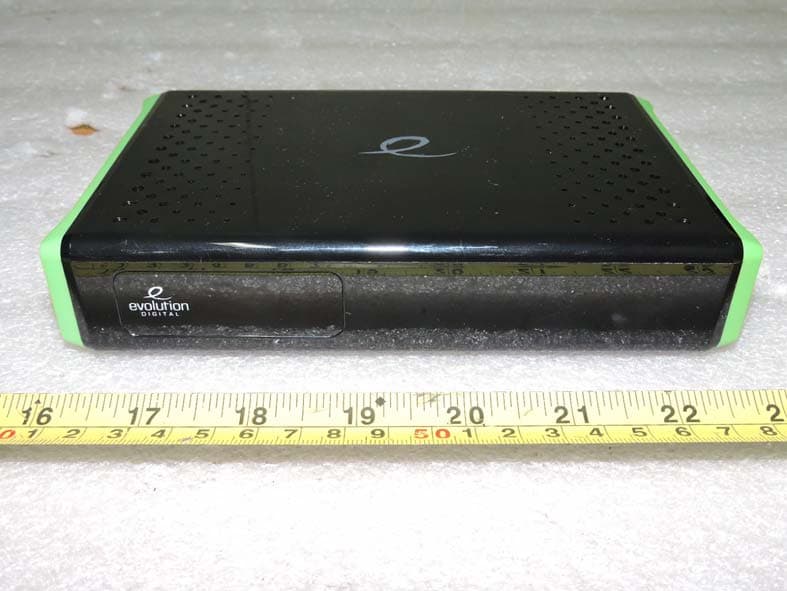

Appendix C. External Photographs Report no. ETLE151109.0089, Page C1 of C8 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM View of total construct Appendix C. External Photographs Report no. ETLE151109.0089, Page C2 of C8 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLE151109.0089, Page C3 of C8 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Top view of EUT Bottom view of EUT Appendix C. External Photographs Report no. ETLE151109.0089, Page C4 of C8 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Side view of EUT Appendix C. External Photographs Report no. ETLE151109.0089, Page C5 of C8 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM View of rear port Appendix C. External Photographs Report no. ETLE151109.0089, Page C6 of C8 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM View of Adapter Appendix C. External Photographs Report no. ETLE151109.0089, Page C7 of C8 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM View of Adapter label Appendix C. External Photographs Report no. ETLE151109.0089, Page C8 of C8 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM View of RCU

Appendix A. FCC ID Label and Location Report no. ETLT151109.0089, Page A1 of A4 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here Appendix A. FCC ID Label and Location Report no. ETLT151109.0089, Page A2 of A4 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here Appendix A. FCC ID Label and Location Report no. ETLT151109.0089, Page A3 of A4 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here Appendix A. FCC ID Label and Location Report no. ETLT151109.0089, Page A4 of A4 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLT151109.0089, Page D1 of D6 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Inside view of EUT Appendix D. Internal Photographs Report no. ETLT151109.0089, Page D2 of D6 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Inside view of EUT Appendix D. Internal Photographs Report no. ETLT151109.0089, Page D3 of D6 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Top side view of main board Appendix D. Internal Photographs Report no. ETLT151109.0089, Page D4 of D6 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Top side view of main board Appendix D. Internal Photographs Report no. ETLT151109.0089, Page D5 of D6 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Bottom side view of main board Appendix D. Internal Photographs Report no. ETLT151109.0089, Page D6 of D6 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Inside view of cable tuner

Appendix J. Radio Frequency Exposure Report no. ETLT151109.0089, Page J1 of J1 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Limit Limits for general population/Uncontrolled exposure Frequency Range [MHz] Electric Field Strength (E) [V/m] Magnetic Field Strength (H) [A/m] Power Density (S) [mW/cm 2 ] Averaging Time |E| 2 , |H| 2 or S [minutes] 0.3 - 1.34 1.34 - 30 30 - 300 300 - 1 500 1 500 - 100 000 614 824/f 27.5 -- -- 1.63 2.19/f 0.073 -- -- (100) (180/f 2 ) 0.2 f/1 500 1.0 30 30 30 30 30 f = frequency in MHz *Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance. Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Max tune up power : -3.28 dBm (0.469 mW) Prediction distance : 20 cm Predication frequency : 2 425 MHz Antenna gain(Max) : 3.25 dBi (2.113 numeric) Power density at predication frequency at 20 cm : 0.000 197 57 mW/cm 2 MPE Limit for : 1 mW/cm 2 Test Result The power density level at 20 cm is 0.000 197 57 mW/cm 2 which is below the uncontrolled exposure limit of 1 mW/cm 2 at 2 425 MHz to 2 475 MHz.

Report no. ETLT151109.0089, Page 2 of 39 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: PFNIPH3004HDM Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 6 dB Bandwidth 5.3 Maximum Peak Output Power 5.4 Bandwidth of Frequency Band Edges 5.5 Power Spectral Density 5.6 Spurious Emissions 5.7 Conducted Emissions Test 5.8 Radio Frequency Exposure 6. Sample Calculation 7. List of test Equipment used for Measurement Report no. ETLT151109.0089, Page 3 of 39 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: PFNIPH3004HDM FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : Set top box  Model Number : IPH3004HDM  S/N : NONE  Modulation Technique : DSSS  Frequency Channel : Zigbee: 2 425 MHz, 2 450 MHz, 2475 MHz (3 Ch)  Antenna Type : Internal Antenna (Integral)  Antenna Gain : 3.25 dBi max  RF Power : 0.469 mW  Environmental of Tests : Temperature: (17.6 ± 6.7) °C Humidity: (55 ± 18) % R.H. Atmospheric Pressure: (102.1 ± 0.3) kPa  FCC Rule Part(s) : FCC Part 15 Subpart C  Test Procedure : ANSI C63.10-2013  FCC Classification : DTS (Part 15 Digital Transmission System)  Place of Tests : ETL Inc. Testing Lab. (FCC Designation Number : KR0022) Radiated Emission test 1; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Radiated Emission test 2 and Conducted Emission test; #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea  Test Report No. : ETLT151109.0089 Applicant Name : Digital Multimedia Technology Co., Ltd. Address : 2nd Fl., 926 Gwanyang-Dong, Dongan-Gu, Anyang-Si, Gyeonggi-Do, 431-060 Korea Attention : Jung Hwan Lee / Senior Research Engineer Report no. ETLT151109.0089, Page 4 of 39 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: PFNIPH3004HDM 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.10-2013 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.10-2013 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.10-2013) was used in determining radiated and conducted emissions from the Digital Multimedia Technology Co., Ltd. Model: IPH3004HDM Report no. ETLT151109.0089, Page 5 of 39 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: PFNIPH3004HDM 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Set top box (model: IPH3004HDM). The model IPH3004HDM is basic model that was tested. The multi models IPH3004HDH, DMS3004HDH and DMT-1434 are identical to basic model, except for model designation. 2.2 General Specification Electrical Specifications External Adaptor Wall Mount Input Voltage 90-135 Vac Input Frequency 57 Hz ~ 63 Hz Output Voltage +5 V (EPS 2) Min +4.85 V/Max +5.15 V Output Current Max 3.0 A Short Circuit Protection Auto Recovery Over Current Protection Auto recovery Cable length 1.8 m Digital Output Connector HDMI, version1.4a CEC Supported Component Built-in Inside 7437 Package 19 pin Type A Graphics Resolution Max Resolution 1 920 x 1 080 @ 60 Hz Simultaneous HD and SD User Interface Supported Picture in Guide Supported Copy Protection Digital HDCP version1.4 Conditional Access Content Protection Motorola/Cisco - CAL, DRM, CGMSA Mechanical Specifications High Internal Frequency: CPU Clock  514 MHz Report no. ETLT151109.0089, Page 6 of 39 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: PFNIPH3004HDM 3. DESCRIPTION OF TESTS The tests documented in this report were performed in accordance with ANSI C63.10-2009 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 Radiated Emission Measurement Radiated emission measurements were made in accordance with § 13 in ANSI C63.10-2013 "Measurement of Intentional radiators” The measurements were performed over the frequency range of 30 MHz to 40 GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak, Quasi-peak, Average" within a bandwidth of 120 kHz and above 1 GHz is 1 MHz. Preliminary measurements were made at 3 m using broadband antennas, and spectrum analyzer to determine the frequency producing the maximum emission in shielded room. Appropriate precaution was taken to ensure that all emissi…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLT151109.0089, Page B1 of B4 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Radiated Emission Test Setup (Below 30 MHz) Appendix B. Test Setup Photographs Report no. ETLT151109.0089, Page B2 of B4 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Radiated Emission Test Setup (Below 1 GHz) Appendix B. Test Setup Photographs Report no. ETLT151109.0089, Page B3 of B4 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Radiated Emission Test Setup (Above 1 GHz) Appendix B. Test Setup Photographs Report no. ETLT151109.0089, Page B4 of B4 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: PFNIPH3004HDM Conducted Emission Test Setup
