PFZSWC-2001WDual-Mode Cellular Phone (AMPS/CDMA)

1 2 [1] Turing the Phone On and Off1. TURNING THE PHONE ON Press and hold End/Power Key.Then phone is locked if “a lock” icon is showed. 2. TURNING THE PHONE OFF Press and hold End/Power Key. [2] How to use the Menu1. In the standby screen, press Soft Right Key.2. In the menu, use scroll keys(Right, Left, Up, Down Key) to view the menu selections.If you press an hold the scroll keys, the menu scrolls automatically. 3. To go back to previous screen, prss Soft Left Key. SWC2001W USER MANUAL 1. Calls 1: Incoming 2: Outgoing3: Air Time 1: Last Call 2: Home Calls3: Roam Calls4: All Calls5: Reset AirTime 2. Phone book 1: Fast Search 2: Recall by name3: Recall by mem4: Recall by num5: Grouping6: Add Entry7: Emergency #8: Memory Status9: Int Call#. My Phone #3. Schedule 1: Appointed Time 2: Alarm3: Anniversary4 Schedule5: To do List6: D-Day7: Time Signal8: Calendar9: Set Time10: Alarm Sound 4. Sound 1: Ring Tone 2: Ring Type3: Ring Volume4: Key Volume5: Tone Length6: Voice Volume7: Con. Fade Volume MENU SUMMARY 8: Mike Volume9: Alert 5. Pocket Book 1: Calculator 2: World Time3: Converr Unit4: Personal Note5: STOP Watch 6. Security 1:Lock 2: Restrict3: Protect Data4: Lock Code5: Clear Memory6: Reset Phone 7. Voice Service 1: VDial List 2: Voice Memo3: Setup Vdial4: Clear Vdial5: Auto Answer6: Rec User Cmd 8. Up Browser0. Setup 1: Auto Retry 2: Prefix Dial3: Backlight4: Idle Display5: Auto Hypen6: Auto Answer7: Data Service8: Lang./idoima9: Contrast#: Select System *. Games 1: Game Start 2: Game Level3: How to Play 3 4 1. MAKING A CALL Enter the Phone number.To Erase the last number entered: Press Clear key.To Make a Call : Press [SEND] Key. Press [End/Power] Key to end the call 2. DIAL PAUSE FUNCTION This function is to dial in the eletcronic system for using the Audio ResponseSystem(ARS) provided by bank or Beep Beep Call. The pausing character(P or T) isinserted in the back of the appropriated phone numberr enabling trasmission after onesecond for the numebr following the pausing character or by pressing the [SEND]button only2-1 Enter phone number, then press Up, Down, Right, Left Key. You can select P, H, N, T i.e. P ( Pause), T ( Time Pause), H (Hypen) , N (My Phone Number), 2-2 Press Right Key. You can select P. for the use of P(Pause) Pause : For the number following H, transmissionn is possible by pressing the [SEND] Key The pause character of “P” is displayed on the screen. 2-3 For the use of the Timepause(T), press Left Key. You can select the T(Timepause)Timepause : Transmission after 3 seconds passes for the number following “T” 2-4 Press Down Key and Right Key. You can select H(Hypen: -)2-5 Press Down Key and Down Key. You can select N(My Phone Number)My Phone Number is displayed on the screen. 3. RECEIVING A CALL When phone rings or LED blinks, press any key except END/POWER KEY.If the flip was closed, You have to open the flip. Then you can answer the call.If the flip was opened, You press the send key. Then you will answer the call. 4.MISSED CALL DISPLAY The number and the time of missed calls was displayed.The Message will be clear. BASIC FUNCTION 5. CALL OPTION 5-1 Shortened Dial Function This function enable you to make a call directly with the telephone number saved in the memory without pressing SEND Key. 5-2 Last dialed numbers In standby mode pressing the Send Key will display the last called number. 5-3 Sending Tel# By pressing Soft Right Key+1 during conversation over the phone, a DTMF tone is transmitted. 5-4 Number memo By pressing Soft Right Key+2 during conversation over the phone, numbers can bememorized during the conversation. 5-5 Mute/Unmute Selecting Soft Right Key+4 during conversation over the phone will initially make it “mute“ so that the opposing party cannot hear a dial tone. Selecting the same again will make it “unmute“ so that a dial tone can be heard. 5-6 Phone Book By selecting Soft Right Key +5 during conversation over the phone, telephone numbers can be found during the conversation. 5-7 Conversation with the third party If anyone makes a phone call to the third party after making a phone call to one party and being through, the person who was called first will be “waiting“ state and enables conversation with the third party. 5 6 1. Receiving a message By pressing Down Key +1 or +2, message can be confirmed(+1 for voice message and +2for text message).If Down +5+2 is in content, by pressing only Down Key immediately when message isdelivered, message can be confirmed. 2. Incoming Alert It can be set up from Down +5+1. once, every2min, Lamp 3. How to Send When sending message, any types of “normal, urgent, emergency” are questioned. 4. Memory Full If new message come when memory capacity is short with full of message,there are two methods. One method is to clear the existing message andreceive new message(Clr received). Another method is to leave the existingmessage as it is and clear new message at the time of receipt(Rej Received). 5. Sending Message Press the Down Key +3Down Key + 3 + 1 is sending new messageDown Key +3 +2 old messageDown Key +3 +3 Receive messageDown Key +3 +4 Sending PageDown Key +3 +5 Sending PhonebookDown Key +3 +6 Sending Memo 6. Clearing Message Press the Down Key +4Down + 4 + 1 Clearing Text MessageDown + 4 + 2 Clearing Send MessageDown + 4 + 3 Clearing Mail Box VOICE MAIL AND TEXT MESSAGE(SMS) 7 8 1. Sending your number By pressing Soft Right Key+1 during conversation over the phone, a DTMF tone istransmitted. 2. Number memo By pressing Soft Right Key+2 during conversation over the phone, numbers can bememorized during the conversation. 3. Voice volume By pressing Press Soft Right Key and then +3 key during conversation over the phone,voice volume is adjusted. 4. Mute/Unmute Selecting Soft Right Key+4 during conversation over the phone will initially make it“mute” so that the opposing party cannot hear a dial tone. Selecting the same again willmake it “unmute” so that a dial tone can be heard. 5. Phone Book By selecting Soft …

Text truncated - open the document above for the full version.

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C Canada V1Y 9L3 Tel. 250-860-3130 •• Fax. 250-860-3110 •• email: [email protected] www.celltechlabs.com June 22, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SEWON TELECOM FCC ID: PFZSWC-2001W Part 22 Certification Gentlemen: On behalf of SEWON TELECOM we hereby submit an application for Part 22 Certification of the Sewon Telecom Dual-Mode AMPS/CDMA Cellular Phone as follows: FCC ID: PFZSWC-2001W Model(s): SWC-2001W Equipment Class: Licensed Non-Broadcast Transmitter Held to Ear (TNE) Equipment Type: Dual-Mode AMPS/CDMA Cellular Phone Tx Freq. Range: 824.04 - 848.97 MHz (AMPS) 824.70 - 848.31 MHz (CDMA) Rx Freq. Range: 869.04 - 893.97 MHz (AMPS) 869.70 - 893.31 MHz (CDMA) Max. RF Output Power: 0.171 Watts ERP (AMPS) 0.146 Watts ERP (CDMA) Emission Designator(s): 40K0F8W, 40K0F1D, 1M25F9W Attached is the Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 Attestation, Part 22 measurement report data and test plots, RF exposure measurement report data & photographs, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), circuit diagrams (confidential), circuit description (confidential), operational description (confidential), parts list (confidential), tune-up procedure (confidential), and the user's manual with RF exposure warning statement. If you have any questions or comments concerning the above, please do not hesitate to contact me. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Sewon Telecom

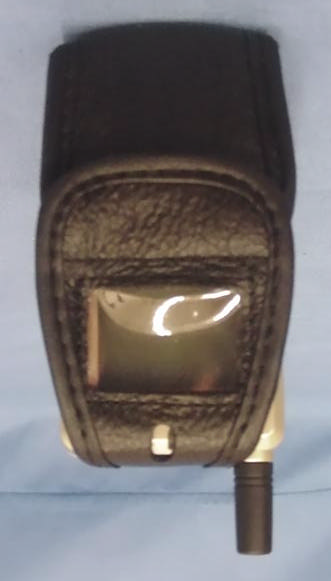

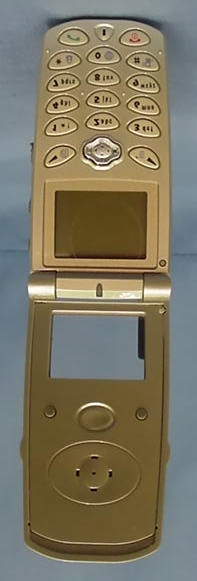

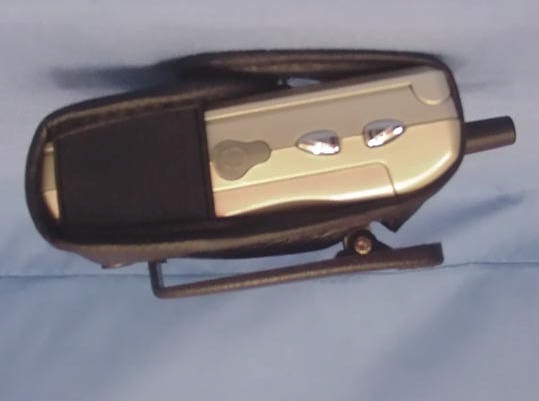

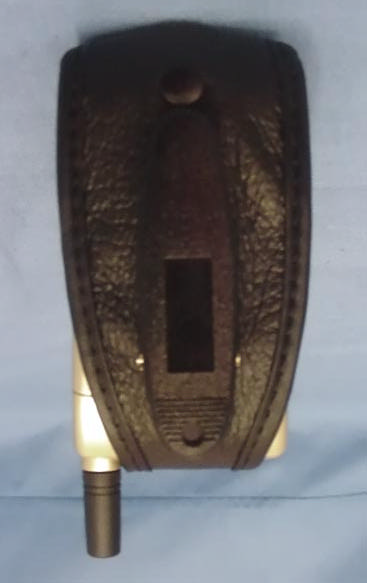

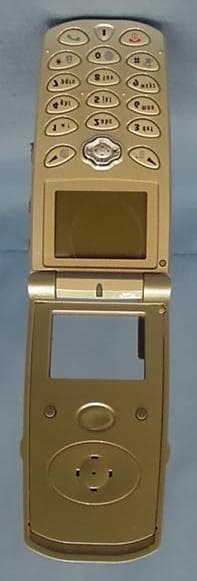

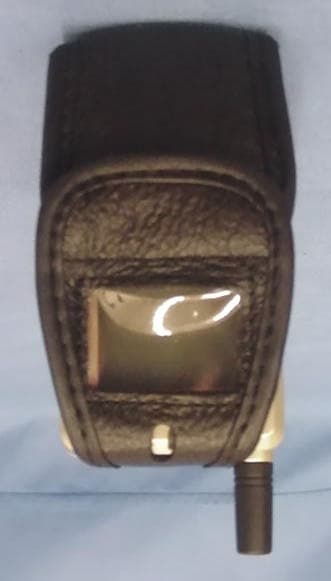

CELLTECH RESEARCH INC. Test Report S/N: 021201-62PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 021201-62PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 021201-62PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 021201-62PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 021201-62PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) EXTERNAL EUT PHOTOGRAPHS

CELLTECH RESEARCH INC. Test Report S/N: 021201-62/67PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W Dual Mode AMPS/CDMA Cellular Phone (824-849MHz) FCC ID LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.

CELLTECH RESEARCH INC. Test Report S/N: 021201-62PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 021201-62PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 021201-62PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 021201-62PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 021201-62PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 021201-62PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) INTERNAL EUT PHOTOGRAPHS

CELLTECH RESEARCH INC. Test Report S/N: 021201-67PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION This wireless mobile and/or portable device has been shown to be compliant for localized Specific Absorption Rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1999. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information: SEWON TELECOM 15Fl., Sewon Venture Town Bldg., 705-18, Yeuksam-dong, Kangnam-gu Seoul 135-080, Korea FCC ID: PFZSWC-2001W Model(s): SWC-2001W Equipment Type: Dual Mode AMPS/CDMA Cellular Phone FCC Classification: Licensed Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): 2.1093; ET Docket 96.326 Tx Frequency Range: 824.04 - 848.97 MHz (AMPS) 824.70 - 848.31 MHz (CDMA) Rx Frequency Range: 869.04 - 893.97 MHz (AMPS) 869.70 - 893.31 MHz (CDMA) Max. RF Output Power: 0.171 Watts ERP (AMPS) 0.146 Watts ERP (CDMA) CELLTECH RESEARCH INC. Test Report S/N: 021201-67PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. TABLE OF CONTENTS 1.0 INTRODUCTION.................................................................. 1 2.0 DESCRIPTION OF EUT.......................................................... 1 3.0 SAR MEASUREMENT SYSTEM ............................................. 2 4.0 SAR MEASUREMENT SUMMARY........................................... 3-5 5.0 SAR LIMITS........................................................................ 6 6.0 DETAILS OF SAR EVALUATION............................................ 6 7.0 EVALUATION PROCEDURES................................................. 7 8.0 SYSTEM VALIDATION.......................................................... 7 9.0 SIMULATED EQUIVALENT TISSUES...................................... 8 10.0 TISSUE PARAMETERS......................................................... 8 11.0 SYSTEM SPECIFICATIONS.................................................... 9 12.0 TEST EQUIPMENT LIST........................................................ 10 13.0 MEASUREMENT UNCERTAINTIES........................................ 11 14.0 REFERENCES...................................................................... 12 APPENDIX A - SAR MEASUREMENT DATA....................................... 13 APPENDIX B - DIPOLE VALIDATION................................................ 14 APPENDIX C - PROBE CALIBRATION............................................... 15 APPENDIX D - SAR TEST SETUP PHOTOGRAPHS.............................. 16 CELLTECH RESEARCH INC. Test Report S/N: 021201-67PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W 1 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) 1.0 INTRODUCTION This measurement report shows that the SEWON TELECOM Model: SWC-2001W Dual-Mode AMPS/CDMA Cellular Phone FCC ID: PFZSWC-2001W complies with FCC Part 2.1093, ET Docket 96-326 Rules for mobile and portable devices. The test procedures, as described in American National Standards Institute C95.1-1992 (1), FCC OET Bulletin 65-1997 were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) EUT Type Dual-Mode Cellular Phone FCC ID PFZSWC-2001W FCC Equipment Class Licensed Non-Broadcast Transmitter Held to Ear (TNE) Model No.(s) SWC-2001W FCC Rule Part(s) § 2.1093, Docket 96-326 Application Type Part 22 Certification Tx Frequency Range (MHz) 824.04 - 848.97 (AMPS) 824.70 - 848.31 (CDMA) S/N No. Pre-production Rx Frequency Range (MHz) 869.04 - 893.97 (AMPS) 869.70 - 893.31 (CDMA) Max. RF Output Power 0.171 W ERP (AMPS) 0.146 W ERP (CDMA) Modulation(s) AMPS / CDMA Battery Type(s) 3.6V Standard Antenna Type Stubby Antenna Length 26 mm CELLTECH RESEARCH INC. Test Report S/N: 021201-67PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W 2 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) 3.0 SAR MEASUREMENT SYSTEM Celltech Research SAR measurement facility utilizes the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the generic twin phantom contai…

Text truncated - open the document above for the full version.

Sewon Telecom FCC ID: PFZSWC-2001W Generic Twin Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.679 mW/g, SAR (10g): 0.460 mW/g Body SAR with 1.0cm Belt-Holster Sewon Telecom Model SWC-2001W Unmodulated carrier Channel 383 [836.49MHz] Conducted Power 27.5dBm Date Tested: Feb 20, 2001 SAR Tot [mW/g] 4.99E-2 1.99E-1 3.49E-1 4.99E-1 6.48E-1 Celltech Research Inc. Celltech Research Inc. Sewon Telecom FCC ID: PFZSWC-2001W Generic Twin Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.644 mW/g, SAR (10g): 0.437 mW/g Body SAR with 1.0cm Belt-Holster Sewon Telecom Model SWC-2001W Unmodulated carrier Channel 799 [848.97MHz] Conducted Power 27.5dBm Date Tested: Feb 20, 2001 SAR Tot [mW/g] 4.79E-2 1.92E-1 3.36E-1 4.79E-1 6.23E-1 Celltech Research Inc. Celltech Research Inc. Sewon Telecom FCC ID: PFZSWC-2001W Generic Twin Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.526 mW/g, SAR (10g): 0.357 mW/g Body SAR with 1.0cm Belt-Holster Sewon Telecom Model SWC-2001W CDMA Mode Channel 1013 [824.70MHz] Conducted Power 26.0dBm Date Tested: Feb 20, 2001 SAR Tot [mW/g] 3.81E-2 1.53E-1 2.67E-1 3.81E-1 4.96E-1 Celltech Research Inc. Celltech Research Inc. Sewon Telecom FCC ID: PFZSWC-2001W Generic Twin Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.482 mW/g, SAR (10g): 0.323 mW/g Body SAR with 1.0cm Belt-Holster Sewon Telecom Model SWC-2001W CDMA Mode Channel 363 [835.89MHz] Conducted Power 26.0dBm Date Tested: Feb 20, 2001 SAR Tot [mW/g] 3.44E-2 1.37E-1 2.40E-1 3.44E-1 4.47E-1 Celltech Research Inc. Celltech Research Inc. Sewon Telecom FCC ID: PFZSWC-2001W Generic Twin Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.420 mW/g, SAR (10g): 0.285 mW/g Body SAR with 1.0cm Belt-Holster Sewon Telecom Model SWC-2001W CDMA Mode Channel 777 [848.31MHz] Conducted Power 26.0dBm Date Tested: Feb 20, 2001 SAR Tot [mW/g] 3.06E-2 1.22E-1 2.14E-1 3.06E-1 3.97E-1 Celltech Research Inc. Celltech Research Inc. Sewon Telecom FCC ID: PFZSWC-2001W Generic Twin Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (10g): 1.08 mW/g Hand SAR Sewon Telecom Model SWC-2001W Unmodulated Carrier Channel 991 [824.04MHz] Conducted Power 27.0dBm Date Tested: Feb 20, 2001 SAR Tot [mW/g] 1.30E-1 5.18E-1 9.07E-1 1.30E+0 1.68E+0 Celltech Research Inc. Celltech Research Inc. Sewon Telecom FCC ID: PFZSWC-2001W Generic Twin Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (10g): 0.894 mW/g Hand SAR Sewon Telecom Model SWC-2001W CDMA Mode Channel 1013 [824.70MHz] Conducted Power 26.0dBm Date Tested: Feb 20, 2001 SAR Tot [mW/g] 1.02E-1 4.07E-1 7.13E-1 1.02E+0 1.32E+0 Celltech Research Inc. Celltech Research Inc. CELLTECH RESEARCH INC. Test Report S/N: 021201-67PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W 14 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) APPENDIX B - DIPOLE VALIDATION Dipole 835 MHz Generic Twin Phantom; Flat Section; Position: (90°,90°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; Brain 835 MHz: σ = 0.80 mho/m ε r = 44.2 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 2.02 mW/g, SAR (10g): 1.33 mW/g Validation Date: February 20, 2001 SAR Tot [mW/g] 2.14E-1 6.46E-1 1.06E+0 1.49E+0 1.92E+0 Celltech Research Inc. Celltech Research Inc. Validation Dipole D835V2 SN:411, d = 15mm Frequency: 835 MHz; Antenna Input Power: 250 [mW] Generic Twin Phantom; Flat Section; Grid Spacing: Dx = 20.0, Dy = 20.0, Dz = 10.0 Probe: ET3DV5 - SN1342/DAE3; ConvF(5.75,5.75,5.75); Brain 835 MHz: σ = 0.80 mho/m ε r = 44.2 ρ = 1.00 g/cm 3 Cubes (2): Peak: 3.07 mW/g ± 0.05 dB, SAR (1g): 2.06 mW/g ± 0.05 dB, SAR (10g): 1.38 mW/g ± 0.05 dB, (Worst-case extrapolation) Penetration depth: 13.6 (12.7, 14.8) [mm] Powerdrift: -0.00 dB SAR Tot [mW/g] 2.50E-1 5.00E-1 7.50E-1 1.00E+0 1.25E+0 1.50E+0 1.75E+0 2.00E+0 2.25E+0 2.50E+0 Validation SN411, 08/26/99 Schmid & Partner Engineering AG, Zurich Switzerland CELLTECH RESEARCH INC. Test Report S/N: 021201-67PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W 15 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) APPENDIX C - PROBE CALIBRATION

Probe ET3DV6 SN:1387 Manufactured:September 21, 1999 Last calibration:September 22, 1999 Calibrated for System DASY3 Page 1 of 7 ET3DV6 SN:1387 DASY3 - Parameters of Probe: ET3DV6 SN:1387 Sensitivity in Free SpaceDiode Compression NormX1.55 μV/(V/m) 2 DCP X98mV NormY1.65 μV/(V/m) 2 DCP Y98mV NormZ1.64 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Brain450MHz ε r =48 ± 5% σ = 0.50 ± 10% mho/m ConvF X6.76 extrapolatedBoundary effect: ConvF Y6.76 extrapolatedAlpha0.30 ConvF Z6.76 extrapolatedDepth2.52 Brain900MHz ε r =42.5 ± 5% σ = 0.86 ± 10% mho/m ConvF X6.34 ± 7% (k=2)Boundary effect: ConvF Y6.34 ± 7% (k=2)Alpha0.47 ConvF Z6.34 ± 7% (k=2)Depth2.25 Brain1500MHz ε r =41 ± 5% σ = 1.32 ± 10% mho/m ConvF X5.78 interpolatedBoundary effect: ConvF Y5.78 interpolatedAlpha0.69 ConvF Z5.78 interpolatedDepth1.88 Brain1800MHz ε r =41 ± 5% σ = 1.69 ± 10% mho/m ConvF X5.50 ± 7% (k=2)Boundary effect: ConvF Y5.50 ± 7% (k=2)Alpha0.81 ConvF Z5.50 ± 7% (k=2)Depth1.70 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection1.6 ± 0.2mm Page 2 of 7 ET3DV6 SN:1387 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 7 ET3DV6 SN:1387 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 7 ET3DV6 SN:1387 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22, R26 ) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22R26 Page 5 of 7 ET3DV6 SN:1387 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -2.00 -1.00 0.00 1.00 0.00010.00100.01000.10001.000010.0000100.0000 mW/cm 3 errror[dB] Page 6 of 7 ET3DV6 SN:1387 Conversion Factor Assessment Receiving Pattern (φ) ( in brain tissue, z = 5 mm ) -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 900 MHz1800 MHz f = 900 MHz, WG R9 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 7 of 7 CELLTECH RESEARCH INC. Test Report S/N: 021201-67PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W 16 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) APPENDIX D - SAR TEST SETUP PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 021201-67PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) HEAD SAR TEST SETUP PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 021201-67PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) HAND SAR TEST SETUP PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 021201-67PFZ 1955 Moss Court, Kelowna Dates of Tests: February 14-21, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements © 2001 Celltech Research Inc. SEWON TELECOM FCC ID: PFZSWC-2001W Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) BODY SAR TEST SETUP PHOTOGRAPHS with 1.0cm Belt-Holster

FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations using the Sewon SWC-2001W belt-holster. To comply with FCC RF exposure requirements, use only Sewon approved accessories. When carrying the phone with the power on, use only the specific Sewon belt- holster that has been tested for compliance. The use of non-Sewon approved accessories may not comply with FCC RF exposure requirements and should be avoided. Read this information before using your handset

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-860-3130 •• Fax. 250-860-3110 •• e-maiI: [email protected] www.celltechlabs.com July 13, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Andy Leimer SUBJECT: SEWON TELECOM FCC ID: PFZSWC-2001W 731 Confirmation No.: EA101465 Correspondence Ref. No.: 19938 Dear Andy: On behalf of Sewon Telecom is our amendment response to your e-mail dated July 13, 2001 requesting additional information for the subject application. 1. The Unmodulated Carrier reference listed in the SAR test data tables is intended to show that the SAR measurements were performed in AMPS mode with unmodulated carrier. For future SAR reports we will list the mode as AMPS in the data table instead of Unmodulated Carrier. We trust…
