PFZSWT-1000Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)

© 2001 PCTEST Lab ATTACHMENT M – USER’S MANUAL

© 2001 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S) Jan/09/2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 2 1046 SUBJECT: SEWON Telecom FCC ID: PFZSWT-1000 Users Manual RF Exposure Warning Statement Gentlemen: SEWON Telecom, hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652. Sincerely, Steve Yongmin Lee Assistant Manager / Tel : 82-2-2008-l 178 Overseas Sales Team Sewon Telecom

© 2001 PCTEST Lab ATTACHMENT A – COVER LETTER(S) January 16, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SEWON TELECOM FCC ID: PFZSWT-1000 Part 22/24 Certification Gentlemen: Attached herewith, on behalf of SEWON TELECOM is an application for Part 22/24 Certification of the following Tri-Mode Cellular Phone (AMPS/CDMA/PCS): FCC ID: PFZSWT-1000 TRADE / MODEL(s): SEWON / SWT-1000 EUT TYPE: Non-Broadcast Transmitter Held to Ear (TNE) Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Freq. Range: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75MHz (PCS CDMA) Max. Output Power: 0.43 W ERP AMPS (26.33 dBm) 0.23 W ERP CDMA (23.68 dBm) 0.29 W ERP PCS/CDMA (24.69 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SEWON TELECOM

February 2, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Andy Leimer SUBJECT: SEWON Telecom FCC ID: PFZSWT-1000 731 Confirmation No.: EA99793 Correspondence Reference No.: 17891 Request for Tech. Info.: 01/29/01 Dear Andy: Transmitted herewith, on behalf of SEWON Telecom, is an amendment provided in response to the request for technical information dated January 29, 2001. 1. Please find attached the correct version of body-worn statement. 2. Please find attached the revised test data sheet indicating a ERP test was done for the 800MHz mode (extended battery). 3. The original EIRP data sheet contained a typographical error for the EIRP level with the extended battery, please find attached the revised EIRP Test Data. Please note that the SAR Test Data was taken with a standard battery. We trust this information is sufficient to re-issue the grant ASAP. If you have any further questions, please do not hesitate to contact us. cc: SEWON Telecom

© 2001 PCTEST Lab ATTACHMENT G – EXTERNAL PHOTOGRAPHS © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone

© 2001 PCTEST Lab ATTACHMENT E – FCC ID LABEL / LOCATION © 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SEWON TELECOM MODEL NO: SWT-1000 FCC ID: PFZSWT-1000 MADE IN KOREA SEWON TELECOM

© 2001 PCTEST Lab ATTACHMENT H – INTERNAL PHOTOGRAPHS © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone

© 2001 PCTEST Lab ATTACHMENT N – SAR MEASUREMENT REPORT © 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SEWON TELECOM Dates of Tests: Jan.4-5, & 16, 2001 13FI, SEWON Venture Town Bldg. Test Report S/N: SAR.210104017.PFZ 705-18, Yeuksam-dong, Kangnam-gu, Seoul, KOREA Test Site: PCTEST Lab, Columbia, MD USA Attn: Sung Ha Kim, Assistant Manager FCC ID PFZSWT-1000 APPLICANT SEWON TELECOM EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.43 W ERP AMPS (26.33 dBm) / 0.23 W ERP CDMA (23.68 dBm) 0.29 W EIRP PCS CDMA (24.69 dBm) Trade Name/Model(s): SEWON SWT-1000 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.4901 W/kg AMPS Brain SAR; 1.0613 W/kg AMPS Body SAR 0.9896 W/kg CDMA Brain SAR; 0.7017 W/kg CDMA Body SAR 1.3410 W/kg PCS Brain SAR; 0.8686 W/kg PCS Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210104017.PFZ Test Report S/N: SAR.210104017.PFZ SAR Measurement Report Test Dates: Jan.4-5, & 16, 2001 FCC Part 22/24 Certification Table of Contents 1.1 SCOPE....................................................................................................1 2.1 INTRODUCTION......................................................................................2 2.2 SAR Definition.......................................................................................................2 3.1 SAR MEASUREMENT SET-UP................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM.....................................................4 5.1 E-field PROBE CALIBRATION PROCESS................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES.................................................7 7.1 SYSTEM SPECIFICATIONS.....................................................................8 8.1 MEASUREMENT PROCESS.....................................................................9 9.1 TEST POSITION OF THE PHONE..........................................................10 10.1 BODY-WORN TEST SETUP.................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS..................................12 12.1 MEASUREMENT UNCERTAINTIES.......................................................13 13.1 SAR TEST DATA SUMMARY................................................................14 14.1 SAR TEST EQUIPMENT.......................................................................18 15.1 CONCLUSION.....................................................................................19 Test Report S/N: SAR.210104017.PFZ SAR Measurement Report Test Dates: Jan.4-5, & 16, 2001 FCC Part 24/22 Certification FCC ID: PFZSWT-1000 (Model(s): SWT-1000) © 2001 PCTEST Lab SEWON Tri-Mode Dual-Band Analog/PCS Phone 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC) and Industry Canada (IC). 2 Applicant Name: SEWON TELECOM Address: 13FI, SEWON Venture Town Bldg. 705-18, Yeuksam-dong, Kangnam-gu, Seoul, KOREA Attention: Sung Ha Kim, Assistant Manager • EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) • Trade Name: SEWON • Model(s): SWT-1000 • FCC IDENTIFIER: PFZSWT-1000 • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.32 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): AMPS/CDMA • Max RF. Output Power: 0.430 W ERP AMPS (26.33 dBm) 0.233 W ERP CDMA (23.68 dBm) 0.295 W EIRP PCS CDMA (24.69 dBm) • Date(s) of Tests: Jan.4-5, & 16, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210104017.PFZ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210104017.PFZ SAR Measurement Report Test Dates: Jan.4-5, & 16, 2001 FCC Part 24/22 Certification FCC ID: PFZSWT-1000 (Model(s): SWT-1000) © 2001 PCTEST Lab SEWON Tri-Mode Dual-Band Analog/PCS Phone 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Au…

Text truncated - open the document above for the full version.

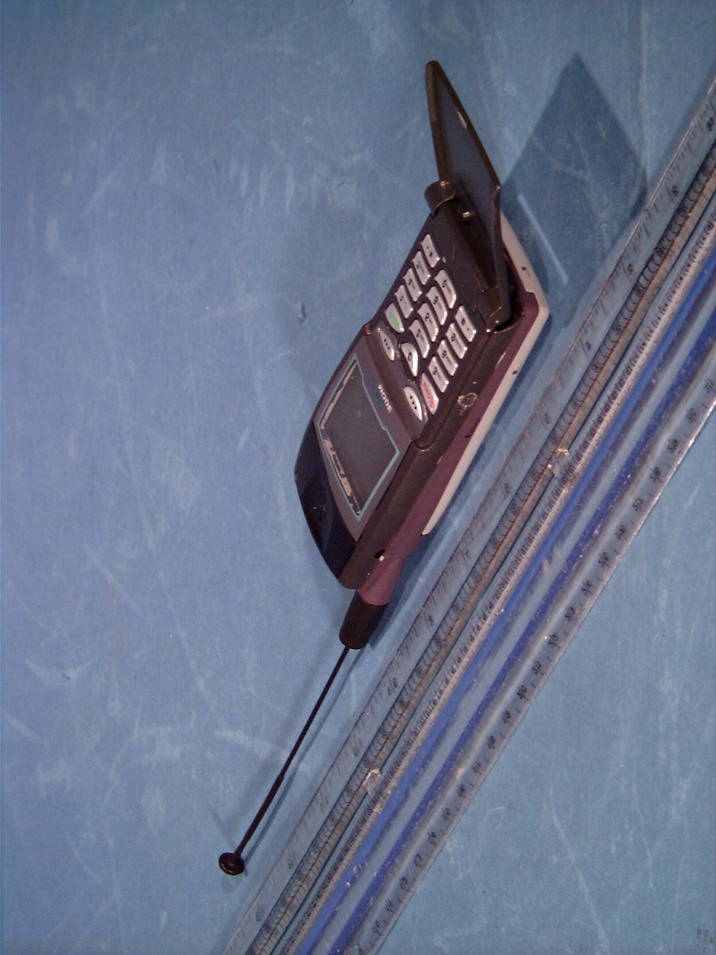

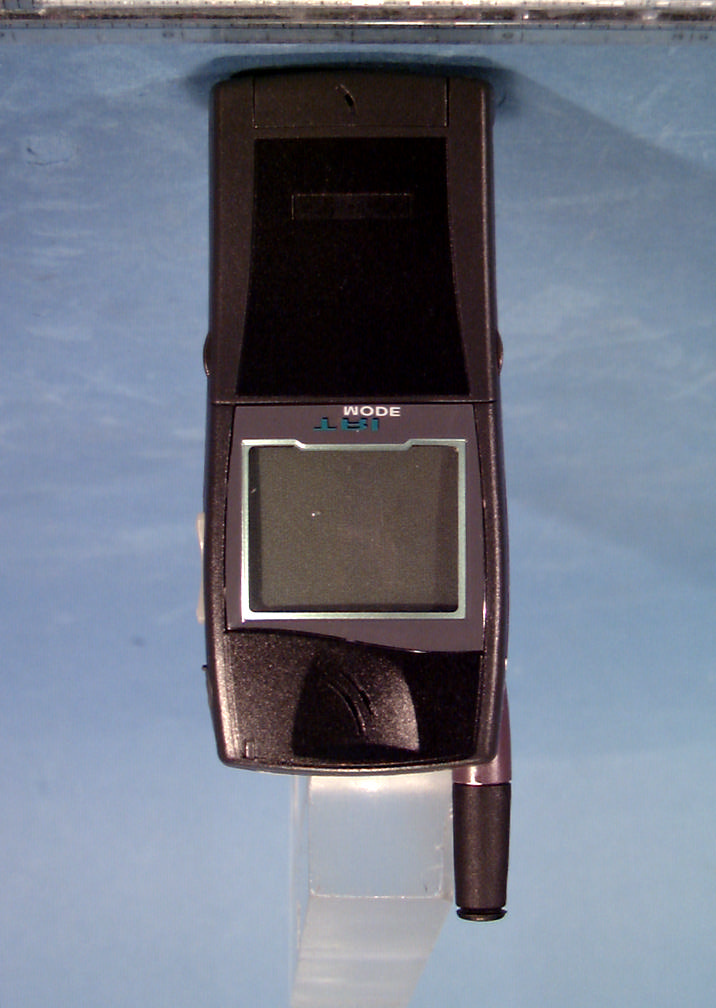

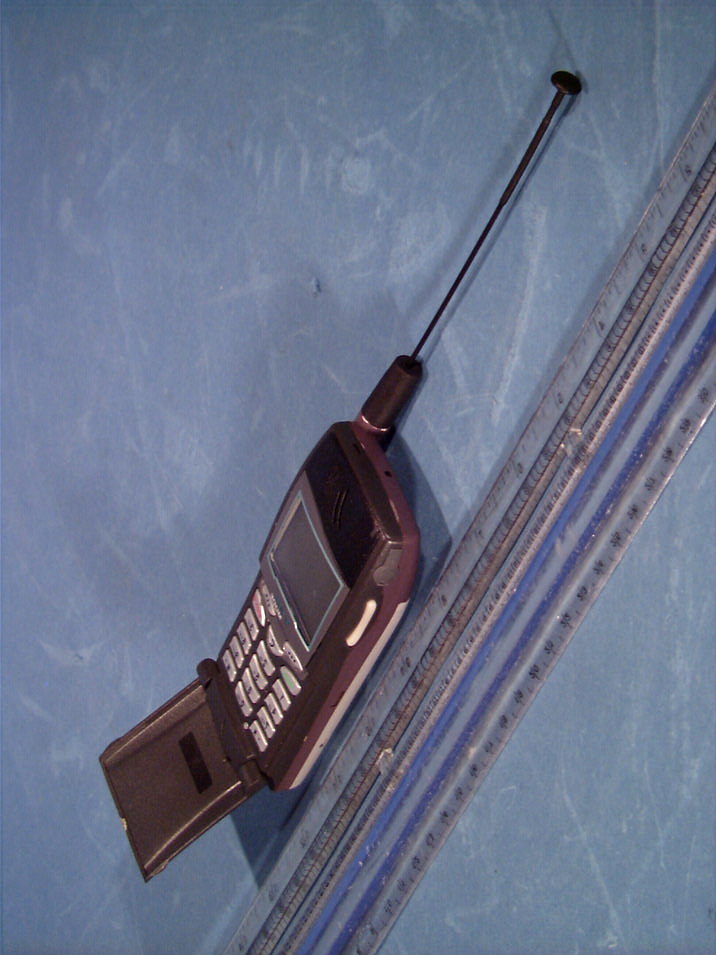

© 2001 PCTEST Lab ATTACHMENT P – SAR TEST SETUP PHOTOGRAPHS © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone

For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 2.0cm. from the body. To maintain with FCC RF exposure compliance requirements, use only belt-clips, holsters or similar accessories that maintain a 2.0cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips and other non-tested accessories may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone

Test Report S/N: 24/22.210104005.PFZ FCC Parts 24 & 22 Dates of Tests: January 4-5, & 16, 2001 Certification © 2001 PCTEST Lab FCC ID:PFZSWT-1000 (Model(s): SWT-1000 9 SEWON Tri-Mode Dual-Band Analog/PCS Phone 5.1 Test Data 5.2 Effective Radiated Power Output A. POWER: Low (Analog Mode) Freq. TunedLEVELPOLERPERP (MHz)(dBm)(H/V)(W)(dBm) 824.04-35.200H0.004066.07 836.49-35.100H0.004306.33 848.97-35.300H0.004266.28 A. POWER: High (Analog Mode) Freq. TunedLEVELPOLERPERPBATTERY (MHz)(dBm)(H/V)(W)(dBm) 824.04-15.200H0.4048826.07Standard 836.49-15.100H0.4294326.33Standard 848.97-15.300H0.4251026.28Standard 836.49-15.125H0.4269626.30Extended NOTES: ERP Measurements by Substitution Method: The EUT was placed on a wooden turn table 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This ERP level is recorded. For readings above 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Test Report S/N: 24/22.210104005.PFZ FCC Parts 24 & 22 Dates of Tests: January 4-5, & 16, 2001 Certification © 2001 PCTEST Lab FCC ID:PFZSWT-1000 (Model(s): SWT-1000 11 SEWON Tri-Mode Dual-Band Analog/PCS Phone 6.1 Test Data 6.2 Equivalent Isotropic Radiated Power (E.I.R.P.) Radiated measurements at 3 meters Supply Voltage:3.6VDC Modulation: FREQ.LEVELPOLAzimuthEIRPEIRPBattery (MHz)(dBm)(H/V)(o angle)(dBm)(W) 1851.25-22.45H60.024.630.291Extended 1880.00-22.56H60.024.690.295Extended 1908.75-22.78H60.024.640.291Extended 1880.00-22.58H60.024.670.293Standard NOTES: PCS CDMA ERP Measurements by Substitution Method: The EUT was placed on a wooden turn table 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This ERP level is recorded. For readings above 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration.

© 2001 PCTEST Lab ATTACHMENT C – TEST REPORT © 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification SEWON TELECOM Dates of Tests: January 4-5, & 16, 2001 13FI, SEWON Venture Town Bldg. Test Report S/N: 24/22.210104005.PFZ 705-18, Yeuksam-dong, Kangnam-gu, Seoul, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Sung Ha Kim, Assistant Manager FCC ID PFZSWT-1000 APPLICANT SEWON TELECOM Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H), §22.901(d); §2 EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Trade Name/Model: SEWON SWT-1000 Tx Frequency Range: 824.04MHz – 848.97MHz (AMPS) / 824.70 – 848.31MHz (CDMA) 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.04MHz – 893.97MHz (AMPS) / 869.70 – 893.31MHz (CDMA) 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.43 W ERP AMPS (26.33 dBm) / 0.23 W ERP CDMA (23.68 dBm) 0.29 W EIRP PCS CDMA (24.69 dBm) Emission Designator(s): 40K0F8W, 40K0F1D, 1M25F9W This equipment has been shown to be compliant with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947 with the following remarks (Note Codes): * (BC) The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). 210104005.PFZ Test Report S/N: 24/22.210104005.PFZ FCC Parts 24 & 22 Dates of Tests: January 4-5, & 16, 2001 Certification © 2001 PCTEST Lab FCC ID:PFZSWT-1000 (Model(s): SWT-1000 1 SEWON Tri-Mode Dual-Band Analog/PCS Phone TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 INSERTS PER §2.1033(d) 3 4.1 DESCRIPTION OF TESTS 4-7 5.1 EFFECTIVE RADIATED POWER OUTPUT 8-9 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 10 7.1 RADIATED MEASUREMENTS 11-19 8.1 FREQUENCY STABILITY 20-23 9.1 PLOTS OF EMISSIONS 24 10.1 LIST OF TEST EQUIPMENT 25 11.1 SAMPLE CALCULATIONS 26 12.1 CONCLUSION 27 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 24/22.210104005.PFZ FCC Parts 24 & 22 Dates of Tests: January 4-5, & 16, 2001 Certification © 2001 PCTEST Lab FCC ID:PFZSWT-1000 (Model(s): SWT-1000 2 SEWON Tri-Mode Dual-Band Analog/PCS Phone MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: SEWON TELECOM Address: 13FI, SEWON Venture town Bldg. 705-18, Yeuksam-dong, Kangnam-gu, Seoul, KOREA Attention: Sung Ha Kim, Assistant Manager • FCC ID: PFZSWT1000 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W, 40K0F8W, 40K0F1D • Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.430 W ERP AMPS (26.33 dBm) / 0.233 W ERP CDMA (23.68 dBm) 0.295 W EIRP PCS CDMA (24.69 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Tri-Mode Dual-Band Analog/PCS Phone • Modulation(s): AMPS / CDMA / PCS • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H), §22.901(d); §2 • Dates of Tests: January 4-5 , & 16, 2001 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 24/22.210104005.PFZ Test Report S/N: 24/22.210104005.PFZ FCC Parts 24 & 22 Dates of Tests: January 4-5, & 16, 2001 Certification © 2001 PCTEST Lab FCC ID:PFZSWT-1000 (Model(s): SWT-1000 3 SEWON Tri-Mode Dual-Band Analog/PCS Phone 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable, 3-meters from the receive antenna. The receive antenna heig…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT D – TEST PLOTS SUBJECT:Modulation CharacteristicsTest Report No.:22/24.210104005.PFZ FCC Part 22/24Test Date:01.04.2001 EUT:SEWON Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Model:SWT-1000 FCC ID:PFZSWT-1000 REFERENCE:1 kHz = 0 dB Modulation Limiting 0 2000 4000 6000 8000 10000 12000 14000 -35-30-25-20-15-10-50 Audio Input Level (dBV) Deviation (Hz) SUBJECT:Modulation CharacteristicsTest Report No.:22.24.210104005.PFZ FCC Part 22/24Test Date:01.04.2001 EUT:SEWON Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Model:SWT-1000 FCC ID:PFZSWT-1000 REFERENCE:1 kHz = 0 dB Frequency Response of Audio Low Pass Filter -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0.0 10.0 FREQUENCY (Hz) LEVEL (dB) Relative to 1kHz 10k1k 100k SUBJECT:Modulation CharacteristicsTest Report No.:22.24.210104005.PFZ FCC Part 22/24Test Date:01.04.2001 EUT:SEWON Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Model:SWT-1000 FCC ID:PFZSWT-1000 REFERENCE:1 kHz = 0 dB Transmitter Audio Frequency Response -60.00 -50.00 -40.00 -30.00 -20.00 -10.00 0.00 10.00 20.00 FREQUENCY (Hz) LEVEL (dB) Relative to 1kHz 100 1k 10k 100k

© 2001 PCTEST Lab ATTACHMENT P – SAR TEST SETUP PHOTOGRAPHS © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: PFZSWT-1000 (Model(s): SWT-1000) NVLAP Lab Code: 100431-0 SEWON Tri-Mode Dual-Band Analog/PCS Phone
