BROADCAST RADIO USER’S MANUAL FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Table of Contents Broadcast Radio—Top View pg 1 A. Overview of Modes pg 1 1. Set-up Mode 2. Volume Mode 3. Lock-out Mode B.Record a Message pg 2 1. Using a microphone 2. Using a computer pg 3 C.Select a Broadcast Station pg 3 D.Lock-out the Broadcast Radio pg 4 E.Broadcast a Live Message pg 4 F.Warranty pg 4 Down Button Play Button Mode Button Up Button Record Button Stop Button Display Window A. OVERVIEW OF MODES The following user modes are selected by pushing the button labeled “MODE”: 1.Set-Up Mode - Allows User to play/record/stop a message and to select a broadcast frequency. This mode is indicated by a frequency (88.1- 107.9) being displayed in the Display Window. 2.Volume Mode - Used to adjust the volume level (1-12) of the speaker output. This mode is indi- cated by a number (1-12) being displayed in the Display Window. 2.Lock-out mode - Indicated by “LOC” text in dis- play window. Activating the Lock-out mode by pressing the up button locks out all the buttons to prevent accidentally recordin g over a message. Press the up and down buttons simultaneously to unlock the Broadcast Radio. Broadcast Radio-Top View 1 B. RECORD A MESSAGE (Note that you can re- cord a message up to 4 minutes duration. The Broad- cast Radio will automatically repeat shorter messages so there is no dead space). 1. Using the microphone to record a message A. Plug the microphone jack and speaker jack of the headset provided into the microphone jack and speaker jack of the broadcast radio. B. Press the record button ( ) then begin speaking your message into the microphone. When you’ve fin- ished speaking your message, press the stop but- ton ( ). Note that background music can be mixed into your message via the line input jack. C. Press the play button to revi ew your message. Adjust the headset volume by pressing the up and down buttons while in the volume mode. MicrophoneMicrophone Input JackInput Jack Line Input JackLine Input Jack Power JackPower Jack SpeakerSpeaker Output JackOutput Jack Broadcast Radio-Back View 2 2. Using a computer to record a message A. Record a compelling message using a com- puter. (Note: Waio recommends using Internet Mix software from Acoustica Inc. (www. acoustica.com) to creatively mix music and sound effects into your message.) B. Plug the stereo cord provided into the jack labeled “Line Input” on the Broadcast Radio and the other end into the speaker output jack of your computer. C. Press the record button ( ) on the Broadcast Radio then press the play button on the com- puter. When the message is done playing, press the stop button ( ) on the Broadcast Radio. D. Plug the speaker jack of the headset pro- vided into the speaker output jack of the Broad- cast Radio. Press the play button on the Broad- cast Radio to review your message. Adjust the headset volume by pressing the up and down buttons while in the volume mode. C. SELECT A BROADCAST STATION 1. Tune your car radio to 88.1 FM then advance to 88.3, 88.5, 88.7 etc until you hear a station that is static only. This empty frequency is available for you to broadcast your message. 2. Press the up or down button on th e Broadcast Radio until the available frequency is displayed. 3. Use the adhesive numbers provided to display the frequency on a sign advising people to tune in. 4. Press the play button on the Broadcast Radio to begin broadcasting your message. 3 E. BROADCAST A LIVE MESSAGE 1.Plug the live source (microphone, TV, com- puter, CD player etc.) into the “Line Input” jack of the Broadcast Radio. 2.Adjust the volume level of the output source to a medium range or until the audio broadcast from the Broadcast Radio sounds best. 3.Select an FM station as described in Step C above. D. LOCK-OUT THE BROADCAST RADIO Prevent accidentally recording over your message or adjusting the broadcast station by locking out the Broadcast Radio. 1. Press the mode button on the Broadcast Radio until “LOC” appears in the window display. 2.Press the up button to activate the lock-out fea- ture. The bottom left corner and bottom right corner light segments will illuminate to indicate that the unit is locked out. 3.To unlock the Broadcast Radio, simultaneously press the up and down buttons. Once unlocked, the unit will be in set-up mode. F. WARRANTY Waio provides a 2 year warranty on parts and labor. In addition, there's a 30 day money back guarantee that allows a customer to re- turn their product for any reason. 4 5 USER NOTES Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CONTACT US 888.950.WAIO (9246) [email protected] Waio, Inc. PO Box 100398 Denver, CO 80250 303.525.8723 www.waio.com

Report No. 0414-08 (FCC ID: MKRU519) Page 1 Rev.No 1.0 ATTESTATION STATEMENT All tests according to FCC Part 15, Paragraphs 207 and 239 were n - Performed o - Not Performed The Equipment Under Test n - Fulfills the requirements of FCC Part 15, Paragraphs 207 and 239 . o - Does not fulfill the FCC Part __, Paragraphs ____________________. - TÜV PRODUCT SERVICE, INC. - Responsible Engineer: Carlos Marrero Chief Engineer

Phone: 303.525.8723 PO Box 100398 Fax: 303.765.0467 Denver, CO 80250 Date: April 2, 2001 AUTHORIZATION AGREEMENT FCC Part 15 Submission I, Timothy J. DePumpo, hereby authorize TUV Product Service, Inc. (5541 Central Avenue, Boulder CO 80301, Tel 303 786 7999) to act as the authorized representative in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. I certify that the information provided to TUV Product Service, Inc., properly describes the device or system for which equipment authorization is requested. APPLICANT ANTI-DRUG ABUSE CERTIFICATION The applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853 (a), or, in the case of a non-individual applicant (e.g. corporation, partnership, or other unincorporated association) no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a “party” for these purposes see 47 CFR 1.2002(b). This Authorization, dated this 2 nd day of April, 2001, expires on the 2 nd day of April, 2002. By Timothy J. DePumpo Signature Printed Name Title President, Waio, Inc. Applicant Waio, Inc. (Must agree with section I on FCC Form 731 - Applicant’s Full Business Name) PO Box 100398 Address Denver, CO 80250 City, State, Zip

Phone: 303.525.8723 PO Box 100398 Fax: 303.765.0467 Denver, CO 80250 Request for Confidentiality FCC ID : PG2-IBR2002 Federal Communications Commission April 2, 2001 Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Waio, Inc. requests that the theory of operation, block diagram, parts list, and schematic diagram submitted within this application for Certification be withheld from public inspection pursuant to the provisions of Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules. The information contained within this application is confidential to Waio, Inc. and took considerable time, effort, and expertise to develop. If the information were available to other potential competing companies, they could forgo most of the development time and expense, providing them with a potentially damaging and unfair competitive advantage. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Thank you, Timothy J. DePumpo President Waio, Inc.

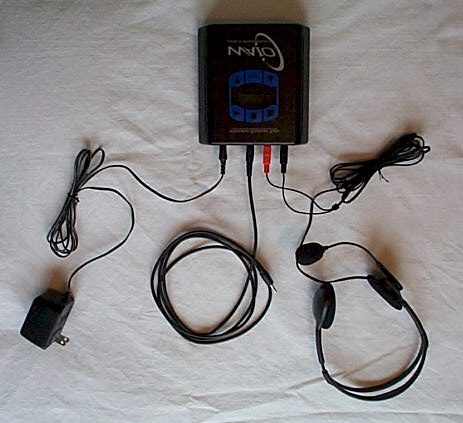

Waio –Broadcast Radio unit and Accessories Waio –Broadcast Radio unit and Accessories – Back View Waio –Broadcast Radio unit and Accessories – Front View Waio –Broadcast Radio unit and Accessories – Bottom View

Waio –Broadcast Radio unit and Accessories – Bottom View

Waio – “Broadcast Radio” – Printed Circuit Board Top View

RF EXPOSURE STATEMENT: The EUT is categorically excluded from routine evaluation because it is a low power device.

TÜV PRODUCT SERVICE 5541 Central Ave. Boulder, Co 80301 Phone (303) 786-7999 FAX (303) 449-3004 Report No. B031901 Page 1 of 8 Rev.No 1.0 EMC EMISSION - TEST REPORT UNITED STATES STANDARD 47 CFR PART 15, SUBPART C Test Report File No.: B031901 Date of Issue:January 23, 2001 Model / Serial No.:BR0928001 / 09280001 Product Type:Broadcast Radio Applicant:Waio, Inc. Manufacturer:Waio, Inc. License holder:Waio, Inc. Address:1357 Downing Street :Denver, CO 80218 Test Result : nn Positiveoo Negative Test Project Number BC1G031901 Reference(s) : Total pages - Test Report : 40 NOTE: All test equipment used during testing is calibrated and traceable to NIST. TÜV Product Service reports apply only to the specific sample tested under stated test conditions. It is the manufacturer’s responsibility to assure the continued compliance of production units of this model. TÜV Product Service, Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service, Inc. issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service, Inc. and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI TÜV PRODUCT SERVICE 5541 Central Ave. Boulder, Co 80301 Phone (303) 786-7999 FAX (303) 449-3004 Report No. B031901 Page 2 of 8 Rev.No 1.0 DIRECTORY - EMISSIONS Test Report Pages Test Report1 - 9 Directory2 Test Regulations3 General Remarks and Summary9 Equipment5 - 6 Test Results8 Technical Documentation Test Data Sheets and Occupied Bandwidth Plots TD1 – TD19 Appendices Appendix AA1 – A2 Test Setups (Photographs) Appendix BB1 – B8 EMC Test Plan and Constructional Data Form Appendix CC1 Change History Appendix DD1 Supplemental Information TÜV PRODUCT SERVICE 5541 Central Ave. Boulder, Co 80301 Phone (303) 786-7999 FAX (303) 449-3004 Report No. B031901 Page 3 of 8 Rev.No 1.0 EMISSIONS TEST REGULATIONS : The emissions tests were performed according to the following regulations: o - EN 50081-1 / 1991 o - EN 55011 / 1998o - Group 1o - Group 2 o - Class Ao - Class B o - EN 55014 / 1993o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55022 / 1987o - Class Ao - Class B o - EN 55022 / 1998o - Class Ao - Class B o - VCCIo - Class A ITEo - Class B ITE n - 47 CFR Part 15, Subpart C o 15.231 o - 107(b) o - 107(a) o - 107(e) o - Class A o - Class B n - 15.207 n - 15.209 o - 109(b) o - 109(a) o - 109(g) o - Class A o - Class B n - 239 o - AS/NZS 3548: 1995o - Class Ao - Class B o - CISPR 11 (1997) o - Group 1o - Group 2 o - Class Ao - Class B n - CISPR 22 (1997)o - Class An - Class B TÜV PRODUCT SERVICE 5541 Central Ave. Boulder, Co 80301 Phone (303) 786-7999 FAX (303) 449-3004 Report No. B031901 Page 4 of 8 Rev.No 1.0 Environmental Conditions In The Laboratory: Actual Temperature:: 20.5 °C Relative Humidity:: <24 % Atmospheric Pressure:: 79 kPa Power Supply Utilized: Power supply system: 12 VDC Symbol Definitions: n -Applicable o -Not Applicable TÜV PRODUCT SERVICE 5541 Central Ave. Boulder, Co 80301 Phone (303) 786-7999 FAX (303) 449-3004 Report No. B031901 Page 5 of 8 Rev.No 1.0 Emissions Test Conditions: RADIATED EMISSIONS (Electric Field) The RADIATED EMISSIONS (ELECTRIC FIELD) measurements, in the frequency range of 30 MHz-1000 MHz, were tested in a horizontal and vertical polarization at the following test location : oo - Test not applicable n - Pinewood Site #1 (10- and 30-Meter Open Area Test Site) Testing was performed at a test distance of : n - 3 meters Equipment ReportEquipment Report 31-Jan-2001 Project Number:Project Number:B0319Project Date:08-Nov-2000 Company Name:Company Name:Waio Equip ModelSerialCalibrationCal IDManufacturerNumberNumberDescriptionDateIntervalDueCode Test PerformedCConducted Emissions 8038HEWLETT PACKARD11947A3107A01975Transient Limiter14-Jun-20001214-Jun-2001G 8184RHODE & SCHWARZESH2-Z5830364/002LISN 50 ohm/50uH 3 22-Mar-2000 12 22-Mar-2001 B line (1kHz - 30 MHz) 8189HEWLETT PACKARD11947A2820A00277Transient Limiter14-Dec-20001214-Dec-2001G 8191RHODE & SCHWARTZESHS 30842806/001EMI Test Receiver03-Dec-19991301-Jan-2001G Test PerformedRRadiated Emissions 7514A.H.SYSTEMSSAS-200/512104Log Periodic Antenna12-Sep-20001212-Sep-2001G (200-1500 MHz) 8005HEWLETT PACKARD8447F3113A04923Option H64 Dual 08-Mar-2000 12 08-Mar-2001B Preamp 8179EMCO31082149Biconical Dipole 06-Jul-20001206-Jul-2001G Antenna (30-300 MHz) 8213HEWLETT PACKARD8566B2410A00154Spectrum Analyzer 12-May-20001212-May-2001G (dc-22 GHz) 8214HEWLETT PACKARD85662A2403A08749Display Section12-May-20001212-May-2001G 8345HEWLETT-PACKARD85650A2811A01300Q.P Adapter23-Nov-19991322-Dec-2000G Cal Code Legend: G=Out Source, Y=No Cal required, R=Out of Service, B=In-House Verification Required Remarks: One year calibration cycle for all test equipment. TÜV PRODUCT SERVICE 5541 Central Ave. Boulder, Co 80301 Phone (303) 786-7999 FAX (303) 449-3004 Report No. B031901 Page 6 of 8 Rev.No 1.0 Equipment Under Test (EUT) Test Operation Mode - Emissions Tests : The equipment under test was operated under the following conditions during emissions testing: o - Standby o - Test Program (H - Pattern) o - Test Program (Color Bar) o - Test Program (Customer Specified) o - Practice Operation n - Normal Operating Mode o - Configuration of the equipment under test: o - See Constructional Data Form in Appendix B - Page B2 n - See Product Information Form(s) in Appendix B - Page B2 The following peripheral devices and interface cables were connected during the testing: o -Type : o -Type : o -Type : o -Type : o -Type : o -Type : o -Type : o -Type : o - unshielded power cable o…

Text truncated - open the document above for the full version.

Photograph of Test Setup: Radiated Emissions 30 MHz - 1000 MHz Test-setup photo(s): Conducted Emissions
