PGE-BH4Energy Saving Lamp

Energy Saving Lamp Introduction ·Conserves natural resources by saving 80% less electricity than incandescent bulbs. ·About 10 times lamp life than a standard incandescent bulb. Notice For Use ·Never use with the following fixtures: dimming circuit emergency lighting fixtures electronic timer fixtures direct current fixtures ·Use only at the rated voltage and frequency circuit. The power voltage fluctuation must be within a±10% voltage rang. ·Use indoor only. Never install in a position where water may drop on the lamp or where the atmosphere is humid. ·Not recommended for use at high or low ambient temperature above 40 or below 0 ·Do not use in fixture that would enclose lamp. If lamp enclosed, the lamp’s life would be shorten. ·Always turn off the switch when replacing or cleaning the lamp. Remove and install by grasping only the plastic portion of the lamp. ·Added weight may cause instability of free-standing portable lamps in which the distance from the bottom of the base to top of the lamp hold dose not exceed 3 times minimum vase width. Use only with portable lamps which are provided with lamp shade. ● This product could produce interference when used near 0.7V, radio, wireless remote control or maritime safety communication equipment, or other critical navigation of communication equipment operating between 0.45---30 MHZ. If interference would occur, move the lamp away from the appliance a distance of three feet or more, Or plug the lamp or the appliance into a different outlet. ·This product complies with Part 18 of the FCC Rules but may cause interference to radios, television , wireless telephones, and remote controls. If interference occurs, move product away from the device or plug either into a different outlet, or move the lamp out of the sight with the remote control receiver.

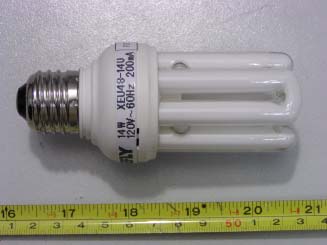

External Photos EUT View BH4-14W BH4-20W XEU48-20U XEU48-14U XEU48-11U

ID Label Label BH4-14W BH4-20W XEU48-20U XEU48-14U XEU48-11U FCC IDPGEBH4

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow. BH4-14W BH4-20W XEU48-20U XEU48-14U XEU48-11U

Internal Photos BH4-14W BH4-20W XEU48-20U XEU48-14U XEU48-11U

TUBE R1 R2 R3 C3 R5 C2 C4 R6 C5 D5 R4 DB3 L1 T2T1 Tr3 Tr1 Tr2 FU C11C12 D2D4 D1D3 S1S2 C1 L0 DL42-41 C6 IN4007 IN4007 IN4007 IN4007 15
F 15
F 4mH 680K  680K  20  20  1.5  1.5  22n 2.7n 47n 2.7n DB3 8:2:2 3.0-5.0mH BH4-14W IN4007 13002 13002 20N 220n

TUBE R1 R2 R3 C3 R5 C2 C4 R6 C5 D5 R4 DB3 L1 T2T1 Tr3 Tr1 Tr2 FU C11C12 D2D4 D1D3 S1S2 C1 L0 DL42-41 C6 IN4007 IN4007 IN4007 IN4007 15
F 15
F 4mH 680K  680K  10  10  2.2  //FR107 2.2  //FR107 22n 3.3n 47n 2.7n DB3 10:2:2 2.5-5.3mH BH4-20W IN4007 1688 1688 20N 2.2
F 0.5n

TUBE R1 R2 R3 C3 R5 C2 C4 R6 C5 D5 R4 DB3 L1 T2T1 Tr3 Tr1 Tr2 FU C11C12 D2D4 D1D3 S1S2 C1 L0 DL42-41 C6 IN4007 IN4007 IN4007 IN4007 15
F 15
F 4mH 680K  680K  10  10  2.2  //FR107 2.2  //FR107 22n 3.3n 47n 2.7n DB3 10:2:2 2.5-5.3mH XEU48-20U IN4007 1688 1688 20N 2.2
F 0.5n

TUBE R1 R2 R3 C3 R5 C2 C4 R6 C5 D5 R4 DB3 L1 T2T1 Tr3 Tr1 Tr2 FU C11C12 D2D4 D1D3 S1S2 C1 L0 DL42-41 C6 IN4007 IN4007 IN4007 IN4007 6.8
F 6.8
F 4mH 680K  680K  20  20  2.2  2.2  220n 22n 3.3n 47n 2.7n DB3 12:2:2 2.8-3.5mH XEU48-11U IN4007 6823 6823 20N

TUBE R1 R2 R3 C3 R5 C2 C4 R6 C5 D5 R4 DB3 L1 T2T1 Tr3 Tr1 Tr2 FU C11C12 D2D4 D1D3 S1S2 C1 L0 DL42-41 C6 IN4007 IN4007 IN4007 IN4007 15
F 15
F 4mH 680K  680K  20  20  1.5  1.5  220n 22n 2.7n 47n 2.7n DB3 8:2:2 3.0-3.7mH XEU48-14U IN4007 13002 13002 20N

TUBE R1 R2 R3 C3 R5 C2 C4 R6 C5 D5 R4 DB3 L1 T2T1 Tr3 Tr1 Tr2 FU C11C12 D2D4 D1D3 S1S2 C1 L0 DL42-41 C6 IN4007 IN4007 IN4007 IN4007 15
F 15
F 4mH 680K  680K  10  10  2.2  //FR107 2.2  //FR107 22n 3.3n 47n 2.7n DB3 10:2:2 2.8-5.5mH XEU48-18U IN4007 1688 1688 20N 2.2
F 0.5n

Note: This test report is specially limited to the use of the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 18 MEASUREMENT AND TEST REPORT For Firefly Lighting Co., Ltd. Firefly Building, Jinzhongyuan Industrial Area, Zhongzhai, Xiamen, Fujian, China. FCC ID:PGEBH4 November 18,2003 This Report Concerns: Original Report Equipment Type: Energy Saving Lamp Test Engineer: Jandy Su Report Number RSZ03102815 Test Date: November 18,2003 Reviewed By: Prepared By: Bay Area Compliance Lab Corp. ShenZhen Suite C, 41-D Electronics Science & Technology Building, No. 2070 Shennanzhong Rd ShenZhen, Guandong 518031, P.R. China Tel: (755) 83296449 Fax: (755) 83273756 Firefly Lighting Co., Ltd. FCC ID:PGEBH4 Report # RSZ03102815 Page 2 of 15 FCC Part 18 ID Report TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................3 1.2 OBJECTIVE.............................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................3 1.6 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................4 1.7 EXTERNAL I/O CABLING........................................................................................................................................4 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................5 2.1 JUSTIFICATION.......................................................................................................................................................5 2.2 EQUIPMENT MODIFICATIONS.................................................................................................................................5 2.3 CONFIGURATION OF TEST SYSTEM.........................................................................................................................5 2.4 TEST SETUP BLOCK DIAGRAM...............................................................................................................................5 3 - CONDUCTED EMISSIONS TEST DATA............................................................................................................6 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................6 3.2 EUT SETUP............................................................................................................................................................6 3.3 S PECTRUM A NALYZER S ETUP ................................................................................................................................6 3.4 T EST P ROCEDURE ..................................................................................................................................................7 3.5 C ONDUCTED E MISSIONS T EST D ATA .....................................................................................................................7 3.6 T EST R ESULT .........................................................................................................................................................9 3.7 PLOT(S) OF CONDUCTED EMISSIONS TEST DATA...................................................................................................9 Firefly Lighting Co., Ltd. FCC ID:PGEBH4 Report # RSZ03102815 Page 3 of 15 FCC Part 18 ID Report 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The Firefly Lighting Co., Ltd..’s model BH4-14W;BH4-18W;BH4-20W;XEU48-20U;XEU48-14U;XEU48- 11U or the “EUT” as referred to in this report is a Energy Saving Lamp which measures approximately in the table, rated input voltage: AC 120 V/60Hz. Table: EUT Length (cm) Wide (cm) Height (cm) BH4-14W 11.5 5.0 5.0 BH4-18W 4.6 4.6 12.0 BH4-20W 12 5.5 5.5 XEU48-20U 13 4.5 4.5 XEU48-14U 11 5.0 5.0 XEU48-11U 10 4.5 4.5 The test data was only good for the test sample. It may have deviation for other test sample. 1.2 Objective The following test report is prepared on behalf of Firefly Lighting Co., Ltd. in accordance with Part 2, Subpart J, and Part 18, Subparts A, B, and C of the Federal Communication Commissions rules and regulations. The objective of the manufacturer is to demonstrate compliance with FCC Part 18 limit requirements for Industrial, Scientific, and Medical Equipment. 1.3 Related Submittal(s)/Grant(s) No Related Submittals. 1.4 Test Methodology All measurements contained in this report were conducted with MP-5, FCC Methods of Measurements of Radio Noise Emissions from ISM Equipment, February 1986. All radiated and conducted emissions measurement was performed at Bay Area Compliance Laboratory Corp. The radiated testing was performed at an antenna-to-EUT distance of 3 Meters. 1.5 Test Facility The Open Area Test site used by Bay Area Compliance Laboratory Corporation to collect radiated and conducted emission measurement data is located in the back parking lot of th…

Text truncated - open the document above for the full version.

Test Setup Photos BH4-14W Conducted Emission– Front View Conducted Emission– Side View BH4-20W Conducted Emission– Front View Conducted Emission– Side View XEU48-20U Conducted Emission– Front View Conducted Emission– Side View XEU48-14U Conducted Emission– Front View Conducted Emission– Side View XEU48-11U Conducted Emission– Front View Conducted Emission– Side View
