Firefly Lighting Co., Ltd. ADD: Firefly Building, 1000# Qishan Bei’er Road, Huli District, Xiamen 361009, China Tel: 86-592-3190074 Fax: 86-592-3202589 Product Introduction Not suitable to dimmer. Not suitable to sealed location. Do not hold the glass-tube when you are installing. Suitable to the ambient temperatures : -5°C to 40°C. Indoor dry location used only. Please contrast the weight of the changed lamp with the original one. In case there is a difference, that may cause an unstable mechanical function. This device is not intended for use with emergency exit fixtures or emergency exit lights. Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45–30 MHz. Variations of this language are permitted provided all the points of the statement are addressed and may be presented in any legible font or text style. Parameters Model Parameter Cap GLS-9T E26 120V, 60Hz, 9W, 140mA E26

Circuit Block Diagram 120V 60Hz Input EMI Filter Circuit Rectification Circuit Filter Circuit Oscillating Circuit Fuse L N L A M P (40kHz-60kHz)

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Label here Specifications : Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT.

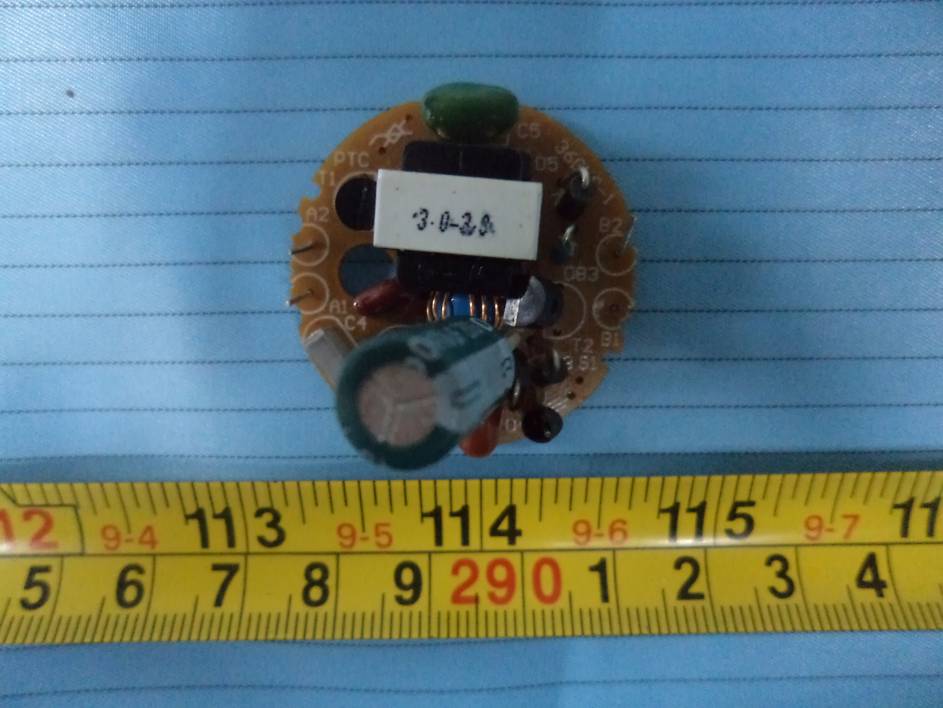

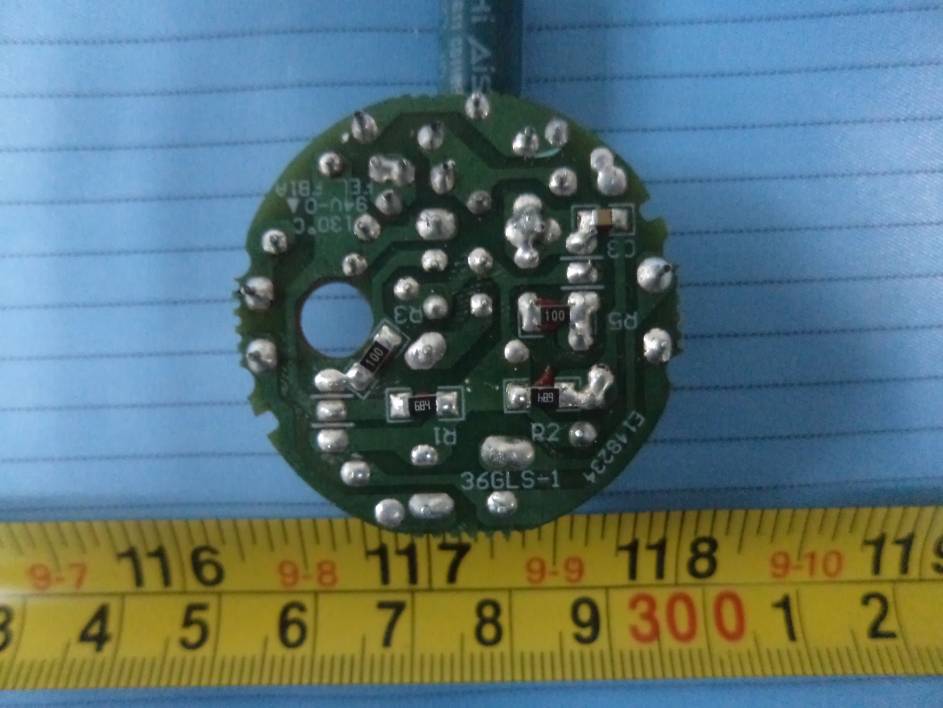

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Components View EUT – Main Board Circuit View

1 2 3 4 D1- -D4 C2 C3 C4 C5 D5 FU C1 R2 R5 R3 T2 T1 L0 Tr2 Tr1 L1 DB3 Tr S1 S2 A1 A2 B2 B1 TUBE C01 R1

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 18 TEST REPORT For Firefly Lighting Co., Ltd. 4th/Fl, No. 8 Industrial Building, Huli Industrial Area, Xiamen, Fujian, China FCC ID: PGE-GLS-9T Report Type: Original Report Product Type: CFL Test Engineer: Lebron Wang Report Number: RSZ111114550-00 Report Date: 2012-03-22 Reviewed By: Lisa Zhu EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong,China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ111114550-00 FCC Part 18 Page 2 of 13 TABLE OF CONTENTS GENERAL INFORMATION ...................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................ 3 TEST METHODOLOGY.................................................................................................................................................. 3 TEST FACILITY............................................................................................................................................................ 3 SYSTEM TEST CONFIGURATION ......................................................................................................................... 5 JUSTIFICATION............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE.......................................................................................................................................... 5 SPECIAL ACCESSORIES................................................................................................................................................ 5 EQUIPMENT MODIFICATIONS....................................................................................................................................... 5 EXTERNAL I/O CABLE................................................................................................................................................. 5 CONFIGURATION OF TEST SETUP................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 FCC §18.307 - AC LINE CONDUCTED EMISSIONS ............................................................................................. 7 MEASUREMENT UNCERTAINTY................................................................................................................................... 7 EUT SETUP................................................................................................................................................................. 7 EMI TEST RECEIVER SETUP........................................................................................................................................ 8 TEST EQUIPMENT LIST AND DETAILS.......................................................................................................................... 8 TEST PROCEDURE........................................................................................................................................................ 8 TEST RESULTS SUMMARY........................................................................................................................................... 8 TEST DATA.................................................................................................................................................................. 8 FCC §18.305 – FIELD STRENGTH ......................................................................................................................... 11 MEASUREMENT UNCERTAINTY................................................................................................................................. 11 EUT SETUP............................................................................................................................................................... 11 EMI TEST RECEIVER SETUP...................................................................................................................................... 12 TEST EQUIPMENT LIST AND DETAILS........................................................................................................................ 12 TEST PROCEDURE...................................................................................................................................................... 12 CORRECTED AMPLITUDE CALCULATION................................................................................................................... 12 TEST DATA............................................................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS AC Line Conduction Emissions – Front View AC Line Conduction Emissions – Side View Radiated Emissions View
