PGE-BU4Luminaries, ceiling lamp

Energy Saving Lamp Introduction Conserves natural resources by saving 80% less electricity than incandescent bulbs. About 10 times lamp life than a standard incandescent bulb. Notice For Use Never use with the following fixtures: dimming circuit emergency lighting fixtures electronic timer fixtures direct current fixtures Use only at the rated voltage and frequency circuit. The power voltage fluctuation must be within a10% voltage rang. Use indoor only. Never install in a position where water may drop on the lamp or where the atmosphere is humid. Not recommended for use at high or low ambient temperature above 40 or below 0 Do not use in fixture that would enclose lamp. If lamp enclosed, the lamp’s life would be shorten. Always turn off the switch when replacing or cleaning the lamp. Remove and install by grasping only the plastic portion of the lamp. Added weight may cause instability of free-standing portable lamps in which the distance from the bottom of the base to top of the lamp hold dose not exceed 3 times minimum vase width. Use only with portable lamps which are provided with lamp shade. This product could produce interference when used near 0.7V, radio, wireless remote control or maritime safety communication equipment, or other critical navigation of communication equipment operating between 0.45---30 MHZ. If interference would occur, move the lamp away from the appliance a distance of three feet or more, Or plug the lamp or the appliance into a different outlet. This product complies with Part 18 of the FCC Rules but may cause interference to radios, television , wireless telephones, and remote controls. If interference occurs, move product away from the device or plug either into a different outlet, or move the lamp out of the sight with the remote control receiver.

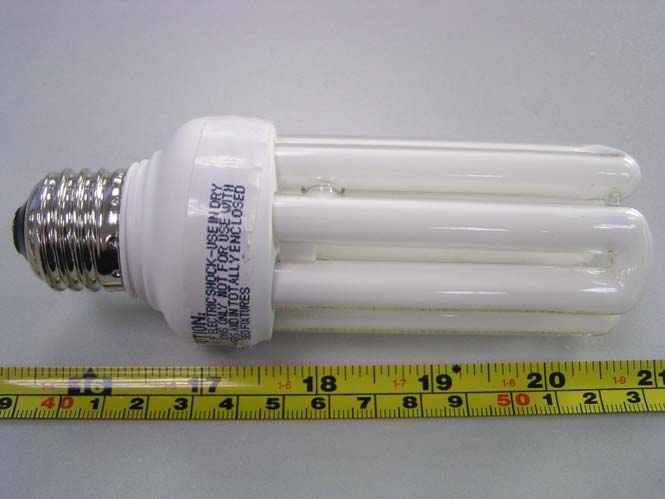

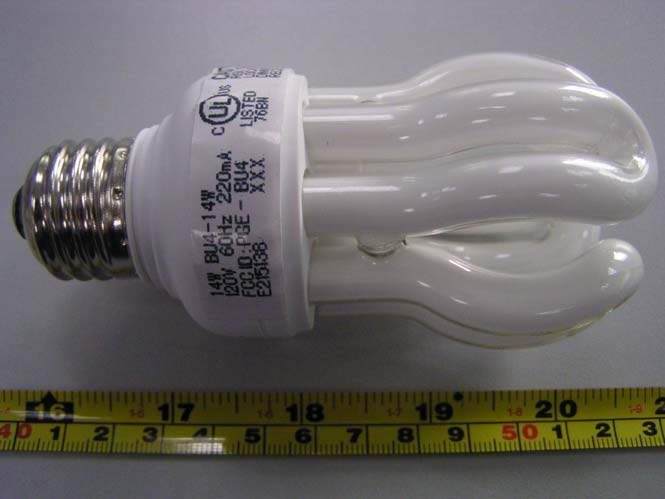

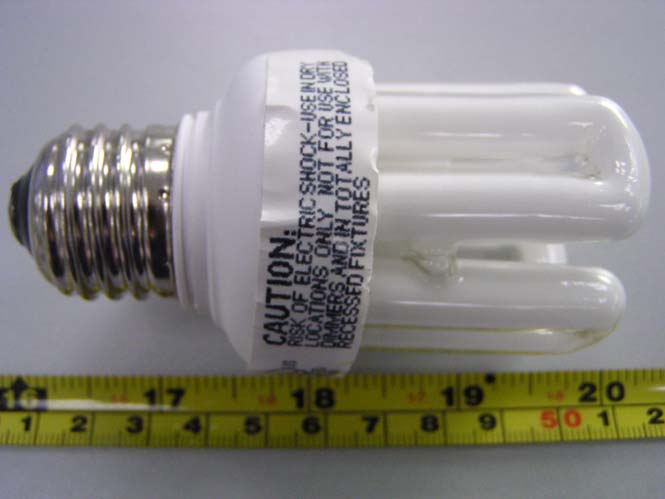

External Photos BU4-14W: BU4-20W: XBU48-11U: XBU48-14U: XBU48-18U:

ID Label Label FCC ID: PGE-BU4

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow. BU4-14W BU4-20W XBU48-11U XBU48-14U XBU48-18U

Internal Photos BU4-14W: BU4-20W: XBU48-11U: XBU48-14U: XBU48-18U:

BU4-14W COMPONENT LIST Serial No. Item No. Component Type Manufacturer Quantity Approval 1 Fuse Fuse 20N 250V 2A Xiamen Hollyland Co.,Ltd. 1 E156471 2 D1-D5 Diode 1N4007 1A,1KV Changda Electronic Component Factory 5 No 3 D6-D7 Diode FR107 1A,1KV Changda Electronic Component Factory 2 No 4 T1-T2 Transistor D4126PL Jilin Huawei Electronics Co., Ltd. Shenzhen Shen’ai Electronics Co., Ltd 2 No 5 R3,R5 Resistor RT14 10-15Ω 1/4W Xiamen Gaoming Electronics Co., Ltd. 2 No 6 R4,R6 Resistor RT14 2.2-3.9 Ω 1/4W Xiamen Gaoming Electronics Co., Ltd. 2 No 7 R1,R2 Resistor RT14 680k Ω 1/4W Xiamen Gaoming Electronics Co., Ltd. 2 No 8 C1 Capacitor CD11G 105°C 15μF DC250V NWB 105 °C 15μF DC250V Yiyang Zijiang Electronic Component Co., Ltd. Yiyang Sanhe Capacitor Factory 1 No 9 C01 Capacitor CL 125°C 33nF DC400V Xiamen Faratronic Co., Ltd. Epcos 1 No 10 C0 Capacitor CL 125°C 100nF DC250V Zhuji Wufeng Capacitor Factory Zhejiang Changxing Huaqiang Electron Co., Ltd. 1 No 11 C2 Capacitor CBB 125 °C 1.5-2.2nF DC1000V Zhuji Wufeng Capacitor Factory Zhejiang Changxing Huaqiang Electron Co., Ltd. 1 No 12 C3 Capacitor CL 125°C 22nF DC160V Zhuji Wufeng Capacitor Factory Zhejiang Changxing Huaqiang Electron Co., Ltd. 1 No 13 C4 Capacitor CL 125°C 47nF DC250V Xiamen Faratronic Co., Ltd. Epcos 1 No 14 C5 Capacitor CBB 125°C 2.7-3.3nF DC1000V Zhuji Wufeng Capacitor Factory Zhejiang Changxing Huaqiang Electron Co., Ltd. 1 No 15 C6 Capacitor CBB 125°C 3.3-4nF DC1000V Zhuji Wufeng Capacitor Factory Zhejiang Changxing Huaqiang Electron Co., Ltd. 0 No 17 DB3 Trigatron DB3 Vz=32V Jinan Jifu Semiconductor Co., Ltd. 1 No 18 L0 Inductor LGA0410 100-1000 μ H Xiamen Coils Electronics Co., Ltd. Xiamen NangHua Electronics Co., Ltd 1 No L1 Inductor EE16 1.3-2.5mH Xiamen Coils Electronics Co., Ltd. 1 No 18 Bobbin T375J,94V-0 150°C Chang Chun Plastics Co., Ltd. 1 E59481(S) Magnet Wire UEW-180°C Wuxi Jufeng Compound Line Co., Ltd. E206882 Insulating tape WF 130°C JingJiang Pressure Sensitive Glue Fty E165111 19 Tr Coupling Winding 12:3:3 Ф9x5x4 Xiamen Donglin Electronics Co., Ltd. 1 No 20 Plastic Cover and Base 420SEO,94V-0 130 °C GE Plastics Americas 1 E45587 21 Lamp Cap E26 Guangdong Jushi Caps Factory 1 No 22 Wire 105°C 600v LTK Electric Wire (Huizhou) Ltd. Xiamen HuiLong Cable Co.,Ltd 1 E148000 E225375 23 Printed Wiring Board 16HO,130 °C ,94V-0 Xiamen Overseas Chinese Electronic Co.,Ltd 1 E105953 24 Lamp Tube BU4u14w Zhejiang Xinshiji Group 1 No 25 Extruded Tubing SALIPT S-901, 125°C,600V Dongguan Liaobu Sanlian Plastic Co., Ltd. E209436 26 Sleeving Guangdong Shunde Beijiao Hongqiao Insulation Material Factory E154902(N) BU4-20W COMPONENT LIST Serial No. Item No. Component Type Manufacturer Quantity Approval 1 Fuse Fuse 20N 250V 2A Xiamen Hollyland Co.,Ltd. 1 E156471 2 D1-D5 Diode 1N4007 1A,1KV Changda Electronic Component Factory 5 No 3 D6-D7 Diode FR107 1A,1KV Changda Electronic Component Factory 2 No 4 T1-T2 Transistor D4128L Jilin Huawei Electronics Co., Ltd. Shenzhen Shen’ai Electronics Co., Ltd 2 No 5 R3,R5 Resistor RT14 10-15Ω 1/4W Xiamen Gaoming Electronics Co., Ltd. 2 No 6 R4,R6 Resistor RT14 2.2-3.9 Ω 1/4W Xiamen Gaoming Electronics Co., Ltd. 2 No 7 R1,R2 Resistor RT14 680k Ω 1/4W Xiamen Gaoming Electronics Co., Ltd. 2 No 8 C1 Capacitor CD11G 105°C 22μF DC250V NWB 105 °C 22μF DC250V Yiyang Zijiang Electronic Component Co., Ltd. Yiyang Sanhe Capacitor Factory 1 No 9 C01 Capacitor CL 125°C 33nF DC400V Xiamen Faratronic Co., Ltd. Epcos 1 No 10 C0 Capacitor CL 125°C 100nF DC250V Zhuji Wufeng Capacitor Factory Zhejiang Changxing Huaqiang Electron Co., Ltd. 1 No 11 C2 Capacitor CBB 125 °C 1.8-2.2nF DC1000V Zhuji Wufeng Capacitor Factory Zhejiang Changxing Huaqiang Electron Co., Ltd. 1 No 12 C3 Capacitor CL 125°C 22nF DC160V Zhuji Wufeng Capacitor Factory Zhejiang Changxing Huaqiang Electron Co., Ltd. 1 No 13 C4 Capacitor CL 125°C 47nF DC250V Xiamen Faratronic Co., Ltd. Epcos 1 No 14 C5 Capacitor CBB 125°C 3.3-4nF DC1000V Zhuji Wufeng Capacitor Factory Zhejiang Changxing Huaqiang Electron Co., Ltd. 1 No 15 C6 Capacitor CBB 125°C 4-4.7nF DC1000V Zhuji Wufeng Capacitor Factory Zhejiang Changxing Huaqiang Electron Co., Ltd. 0 No 16 DB3 Trigatron DB3 Vz=32V Jinan Jifu Semiconductor Co., Ltd. 1 No 17 L0 Inductor LGA0410 100-1000 μ H Xiamen Coils Electronics Co., Ltd. Xiamen NangHua Electronics Co., Ltd 1 No L1 Inductor EE16 1.3-2.5mH Xiamen Coils Electronics Co., Ltd. 1 No 18 Bobbin T375J,94V-0 150°C Chang Chun Plastics Co., Ltd. 1 E59481(S) Magnet Wire UEW-180°C Wuxi Jufeng Compound Line Co., Ltd. E206882 Insulating tape WF 130°C JingJiang Pressure Sensitive Glue Fty E165111 19 Tr Coupling Winding 10:3:3 Ф9x5x4 Xiamen Donglin Electronics Co., Ltd. 1 No 20 Plastic Cover and Base 420SEO,94V-0 130 °C GE Plastics Americas 1 E45587 21 Lamp Cap E26 Guangdong Jushi Caps Factory 1 No 22 Wire 105°C 600v LTK Electric Wire (Huizhou) Ltd. Xiamen Huilong Cableco Co.,ltd 1 E148000 E225375 23 Printed Wiring Board 16HO,130 °C ,94V-0 Xiamen Overseas Chinese Electronic Co.,Ltd 1 E105953 24 Lamp Tube BU4u20w Zhejiang Xinshiji Group 1 No 25 Extruded Tubing SALIPT S-901, 125°C,600V Dongguan Liaobu Sanlian Plastic Co., Ltd. E209436 26 Sleeving Guangdong Shunde Beijiao Hongqiao Insulation Material Factory E154902(N) XBU48-11U COMPONENT LIST Serial No. Item No. Component Type Manufacturer Quantity Approval 1 Fuse Fuse 20N 250V 2A Xiamen Hollyland Co.,Ltd. 1 E156471 2 D1-D5 Diode 1N4007 1A, 1KV Changda Electronic Component Factory 5 No 3 D6-D7 Diode FR107 1A, 1KV Changda Electronic Component Factory 2 No 4 T1-T2 Transistor D4124PL Jilin Huawei Electronics Co., Ltd. Shenzhen Shen’ai Electronics Co., Ltd 2 No 5 R3,R5 Resistor RT14 10-15Ω 1/4W Xiamen Gaoming Electronics Co., Ltd. 2 No 6 R4,R6 Resistor RT14 5.1-10 Ω 1/4W Xiamen Gaoming Electronics Co., Ltd. 2 No 7 R1,R2 Resistor RT14 680k Ω 1/4W Xiamen Gaoming Electronics Co., Ltd. 2 No 8 C1 Capacitor CD11G 105°C 10μF DC250V NWB 105 °C 10μF DC250V Yiyang Zijiang Electronic Component Co., Ltd. Yiyang Sanhe Capac…

Text truncated - open the document above for the full version.

Fu TUBE R1 R2 R5 C0 C3 R3 C2 C4 R4 C5 D5 R6 DB3 C1 L0 D7 D6 L1 T2 T1 D1-D4 Tr Tr Tr S1 S2 C6 C01 XBU48-11U/ XBU48-14U/ XBU48-18U /BU4-14W/ BU4-20w

Note: The test report is specially limited to the above company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 18 MEASUREMENT AND TEST REPORT For Firefly Lighting Co., Ltd. Firefly Building, Jinzhongyuan Industrial Area, Zhongzhai, Xiamen, Fujian, China. FCC ID: PGE-BU4 November 1, 2004 This Report Concerns: Original Report Equipment Type: Luminary, Compact Fluorescent Lamp with integral Ballast Test Engineer: Sam Lin Report Number RSZ04101881 Test Date: October 28, 2004 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. ShenZhen 6/F, the 3nd Phase of WanLi Industrial Building, FengHuang Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R. China Tel: 86- 755- 33320018 Fax: 86- 755- 33320008 Firefly Lighting Co., Ltd. FCC ID: PGE-BU4 Report # RSZ04101881 Page 2 of 14 FCC Part 18 ID Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SYSTEM..............................................................................................................................4 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................4 CONDUCTED EMISSION...........................................................................................................................................5 MEASUREMENT UNCERTAINTY....................................................................................................................................5 EUT SETUP..................................................................................................................................................................5 EMI TEST RECEIVER SETUP........................................................................................................................................6 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................6 T EST P ROCEDURE ........................................................................................................................................................6 T EST D ATA ..................................................................................................................................................................7 P LOT ( S ) OF T EST D ATA ..............................................................................................................................................10 Firefly Lighting Co., Ltd. FCC ID: PGE-BU4 Report # RSZ04101881 Page 3 of 14 FCC Part 18 ID Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The Firefly Lighting Co., Ltd.’s model BU4-14W, BU4-20W, XBU48-11U, XBU48-14U, XBU48-18U or the “EUT” as referred to in this report is a Luminary, Compact Fluorescent Lamp with integral Ballast which measures approximately BU4-14W: 4.5cm L x 4.5cm W x 11.0cm H, BU4-20W: 4.5cm L x 4.5cm W x 12.0cm H, XBU48-11U: 4.5cm L x 4.5cm W x 9.0cm H, XBU48-14U: 4.5cm L x 4.5cm W x 12.0cm H, XBU48-18U: 4.5cm L x 4.5cm W x 13.0cm H, rated input voltage: AC 120 V/60Hz. * The test data gathered are from production sample, serial number: BU4-14W:00000123000 , BU4-20W:00000311000, XBU48-11U:00000456000 , XBU48-14U:00000321000, XBU48-18U:00000522 000 provided by the manufacturer. Objective The following test report is prepared on behalf of Firefly Lighting Co., Ltd. in accordance with Part 2, Subpart J, and Part 18, Subparts A, B, and C of the Federal Communication Commissions rules and regulations. The objective is to determine compliance with FCC rules. Related Submittal(s)/Grant(s) No Related Submittals. Test Methodology All measurements contained in this report were conducted with MP-5, FCC Methods of Measurements of Radio Noise Emissions from ISM Equipment, February 1986. All radiated and conducted emissions measurement was performed at Bay Area Compliance Laboratory Corp. The radiated testing was performed at an antenna-to-EUT distance of 3 Meters. Test Facility Test site at Bay Area Compliance Laboratory Corporation has been fully described in reports submitted to the Federal Communication Commission (FCC) and Voluntary Control Council for Interference (VCCI). The details of these reports has been found to be in compliance with the requirements of…

Text truncated - open the document above for the full version.

Test Setup Photos BU4-14W: BU4-20W: XBU48-11U: XBU48-14U: XBU48-18U:
