PGE-FB52Compact Fluorescent Lamp

Firefly Lighting Co., Ltd Compact Fluorescent LampFCC ID : PGE-FB52 Page 20 CAUTIONS AND INSTRUCTION FOR Model BU5-25W BU4-20/14W BH4-11X FB52-14 1. Never drop or strike the lamp. 2. The lamp should not be disassembled or modified. 3. Never hold the glass tube by hand when installing. 4. Use only on 120Vac,60Hz. Never use with a direct current, Otherwise the lamp will stop working. 5. Use indoors at a room temperature ranging from 41°F(5°C) to 95°F(35°C). 6. Never use where water may drop on the lamp . 7. Never use in front of or over a room heater ,make sure that the lamp is firmly screwed into the socket. Otherwise, the lamp may drop or result in an electric disconnection. 8. When the lamp is switched on ,dark spots may be observed around the tube-end. This is normal . To prevent risk of a burn, never touch the lamp with bare hands or face while in operation. 9. Contains traces of mercury, Avoid throwing out spent bulbs in the household trash. To reduce the risk of bulb breakage and contamination, wrap the bulb in a sealed plastic bag. Never incinerate bulbs. Check for local disposal or recycling programs that accept spent bulbs. A short circuit fuse is built into this lamp. If it is damaged do not attempt to disassemble or repair the lamp. Added weight may cause instability of free-standing portable lamps. Use only with portable lamps in which the distance from the bottom of the base to the top of the lamp holder does not exceed three (3) times minimum base width. This device is not intended for use with emergency exit fixtures or emergency lights. 10. Added weight of the device may cause instability of a free-standing portable lamp. Use only with portable table lamps in which the distance from the bottom of the base to the top of the lampholder does not exceed three(3) times minimum base width. Use only with portable table lamps which are provided with lamp shades. 11. Use Only in dry location. 12. Not for use where exposed to the weather(Ne pas faire fonctionner dans un eplacement expose aux intemperies). 13. Not for use in luminaries controlled by a dimmer(Ne pas relier a un luminaire commande par aux grandateur). 14.Not for use in totally enclosed recessed luminaries(Ne pas installer dans des luminaries encastre non ventile). Firefly Lighting Co., Ltd Compact Fluorescent LampFCC ID : PGE-FB52 Page 21 Label: CAUTION: RISK OF ELECTRIC SHOCK—Use only in dry location. Not for use in luminaries controlled by a dimmer (Ne pas relier a un luminaire commande par aux grandateur). Not for use in totally enclosed recessed luminaries Firefly Lighting Co., Ltd Compact Fluorescent LampFCC ID : PGE-FB52 Page 22 This Product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.15-30 MHz. This device complies with Part 18 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT

Firufly, a naturat tJght brrce ... Date: Februuy 2,2007 We, the undemigned , hereby ruthorize Audix Technology(ShenZhcn)Cq,,Ltd (AIJDDQ to os"t,on our behslf, ss our rgcrit, in tllo fotlowirg mattffs rtleted to thc FCC appmval of or.rr productc: ?cport subminal rclerod corrcryond the si$dng of all documcnts relating ts thcsc msttcre , and any othcn ttwful acti"itv neccfssry to obtain such certification. Any act c$nied out by AIIDD( within Ecope of this suthorization shlll have the sflmo affects fl$ our owt, This uuthoriation shnll cxpire 6 months from origirul dato. If you have ony qucstions rcgffding the urthorizrtio4 pleasc don't heEtate to contact us. Thanlcyou, F in{ty Li ghring co.,Ltd. Flrtfly Buildif,g, Jinrbonnnun td:rsniEl AIFfl. Zhmgz.bai, Xiarrm, Chi$e

l;iretly, a rntural Light fuurce ."" fireny Qhrin6 C.€",Lrd B'irc0y Euilding, Jirwlrmglruas kduutrrst tuEt Zloagd*i, Xitrrnqr. Chinl

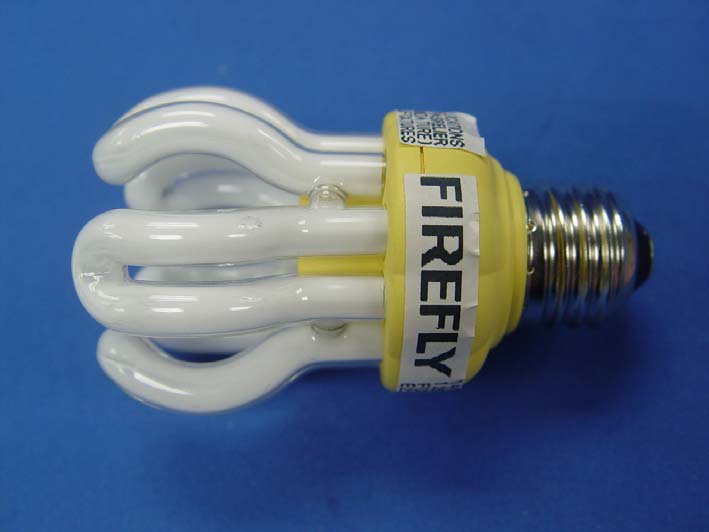

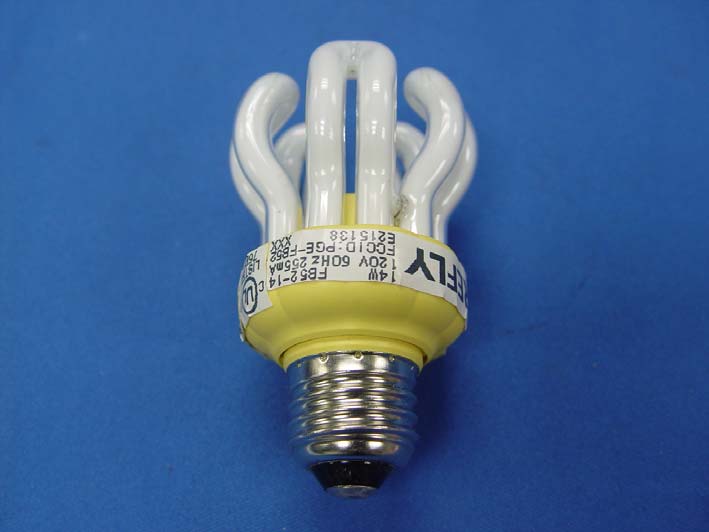

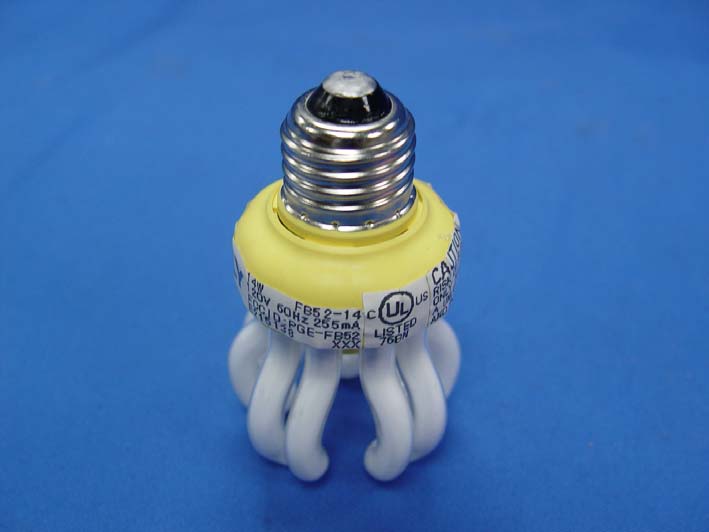

Firefly Lighting Co., Ltd Compact Fluorescent LampFCC ID : PGE-FB52 Page 6 Photographs Figure 1 General Appearance Figure 2 General Appearance Label Location Firefly Lighting Co., Ltd Compact Fluorescent LampFCC ID : PGE-FB52 Page 7 Figure 3 General Appearance Figure 4 General Appearance Firefly Lighting Co., Ltd Compact Fluorescent LampFCC ID : PGE-FB52 Page 8 Figure 5 General Appearance Figure 6 General Appearance

Firefly Lighting Co., Ltd Compact Fluorescent LampFCC ID : PGE-FB52 Page 4 Label Drawing Please refer Exhibit 2 Figure2 for Label Placement Location 115mm 14mm Firefly Lighting Co., Ltd Compact Fluorescent LampFCC ID : PGE-FB52 Page 6 Photographs Figure 1 General Appearance Figure 2 General Appearance Label Location

Firefly Lighting Co., Ltd Compact Fluorescent LampFCC ID : PGE-FB52 Page 9 Figure 7 Inside of the EUT Figure 8 Inside of the EUT Firefly Lighting Co., Ltd Compact Fluorescent LampFCC ID : PGE-FB52 Page 10 Figure 9 Main Board, Component Side Figure 10 Main Board, Component Side

FCC ID: PGE-FB52 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS- F07039 Firefly Lighting Co., Ltd Compact Fluorescent Lamp Model Number: FB52-14 Prepared for : Firefly Lighting Co., Ltd. Firefly Building, Jinzhong yuan Industrial Area Zhongzhai, Xiamen, China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6 Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F07039 Date of Test ： Jan.31~Feb.02, 2007 Date of Report ： Feb.06, 2007 FCC ID: PGE-FB52 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS- F07039 TABLE OF CONTENTS Description Page Test Report Certification 1. SUMMARY OF STANDARDS AND RESULTS ..................................................................... 1-1 1.1. Description of Standards and Results................................................................................................1-1 2. GENERAL INFORMATION ..................................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................................2-1 2.2. Test Facility.......................................................................................................................................2-4 2.3. Measurement Uncertainty .................................................................................................................2-4 3. POWER LINE CONDUCTED EMISSION TEST................................................................... 3-1 3.1. Test Equipment .................................................................................................................................3-1 3.2. Block Diagram of Test Setup ............................................................................................................3-1 3.3. Power Line Conducted Emission Test Limit ....................................................................................3-2 3.4. Configuration of EUT on Test ..........................................................................................................3-2 3.5. Operating Condition of EUT.............................................................................................................3-2 3.6. Test Procedure...................................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results..................................................................................3-2 4. MAGNETIC FIELD EMISSION TEST.................................................................................... 4-1 4.1. Test Equipment .................................................................................................................................4-1 4.2. Block Diagram of Test Setup ............................................................................................................4-1 4.3. Magnetic Field Emission Limit.........................................................................................................4-2 4.4. EUT Configuration on Test...............................................................................................................4-2 4.5. Operating Condition of EUT.............................................................................................................4-2 4.6. Test Procedure...................................................................................................................................4-2 4.7. Magnetic Field Emission Test Results ..............................................................................................4-2 5. DEVIATION TO TEST SPECIFICATIONS ........................................................................... 5-1 6. PHOTOGRAPH .......................................................................................................................... 6-1 6.1. Photos of Power Line Conducted Emission Test ..............................................................................6-1 6.2. Photo of Magnetic Field Emission test .............................................................................................6-2 FCC ID: PGE-FB52 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS- F07039 1-1 1. SUMMARY OF STANDARDS AND RESULTS 1.1. Description of Standards and Results The EUT have been tested according to the applicable standards as referenced below. EMISSION Description of Test Item Standard Results Conducted Emission Test FCC Part 18C ANSI C63.4: 2003 PASS Magnetic Field Emission Test FCC Part 18C PASS FCC ID: PGE-FB52 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS- F07039 2-1 2. GENERAL INFORMATION 2.1. Description of Device (EUT) Description : Compact Fluorescent Lamp Model Number : FB52-14 Applicant : Firefly Lighting Co., Ltd Firefly Building, Jinzhong yuan Industrial Area Zhongzhai, Xiamen, China Manufacturer : Firefly Lighting Co., Ltd Firefly Building, Jinzhong yuan Industrial Area Zhongzhai, Xiamen, China Date of Test : Jan.31~Feb.02, 2007 FCC ID: PGE-FB52 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS- F07039 2-2 Remark: FCC ID: PGE-FB52 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS- F07039 2-3 FCC ID: PGE-FB52 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS- F07039 2-4 2.2. Test Facility Site Description 3m Anechoic Chamber : Jun.13, 2006 File on Federal Communication Commission Registration Number: 90454 3m & 10m Anechoic Chamber : Mar.15,2004 File on Federal Communication Commission Registration Number: 794232 EMC Lab. : Accredited by DATech, German Registration Number: DAT-P-091/99-01 Feb. 02, 2004 Accredited by NVLAP, USA NVLAP Code: 200372-0 Apr.01, 2006 2.3. Measurement Uncertainty No. Item Uncertainty Remark 1. Uncertainty for Conducted Emission Test 1.22dB 2. Uncertainty for Radiated Emission Test 3.14dB 3m Chamber 3. Uncer…

Text truncated - open the document above for the full version.

FCC ID: PGE-FB52 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS- F07039 6-1 6. PHOTOGRAPH 6.1. Photos of Power Line Conducted Emission Test FCC ID: PGE-FB52 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS- F07039 6-2 6.2. Photo of Magnetic Field Emission test
