PGN93974TX27145SW Hailfire Droid RC Vehicle

HASBRO INC.
SW Hailfire Droid RC Vehicle - FCC ID PGN93974TX27145 - HASBRO INC.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Feb 08, 2010
Application Purpose
Original Equipment
Date of Application
Feb 08, 2010
Equipment Note
SW Hailfire Droid RC Vehicle
Frequency Range
27.14500000 - 27.14500000
Company
HASBRO INC.
Country
United States

Documents & Files

Select a file to view

Users Manual

โ†—

Block Diagram

โ†—

Cover Letter(s)

โ†—

External Photos

โ†—

ID Label/Location Info

โ†—

Internal Photos

โ†—

Operational Description

โ†—

Schematics

โ†—

Test Report

โ†—
โ†—
โ†—

Test Setup Photos

โ†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

x6 BATTERIES ALKALINE REQUIRED 1. 5V A A or LR6 size Phillips/cross head screwdriver (not included) needed to insert batteries. NOT INCLUDED x3 BATTERIES REQUIRED 1.5V AAA or R03 size Alkaline batteries recommended. Phillips/cross head screwdriver (not included) needed to insert batteries. NOT INCLUDED K 294 Customer Code: 5008/ 939740000_SW_hailfire.indd 2009-10-0347(1)/Kk/2009-11-13/EP1_CT-Coated 294C K 294 Customer Code: 5008/ 939740000_SW_hailfire.indd 2009-10-0347(1)/Kk/2009-11-13/EP1_CT-Coated 294C

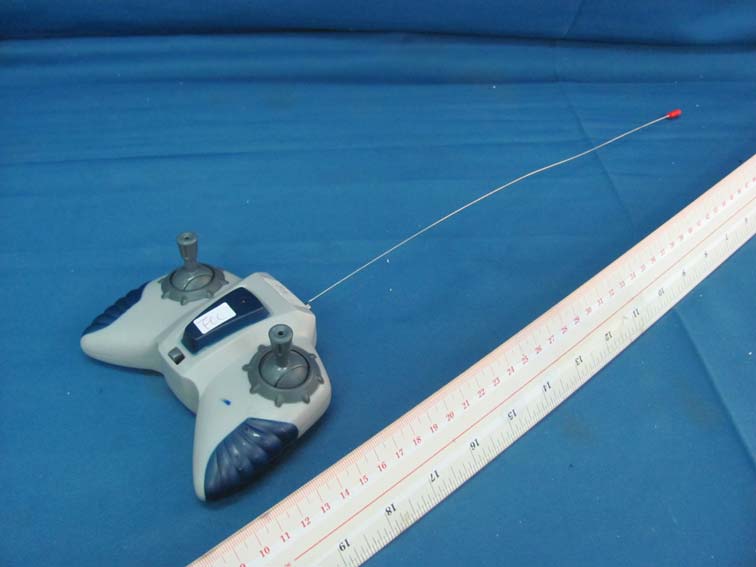

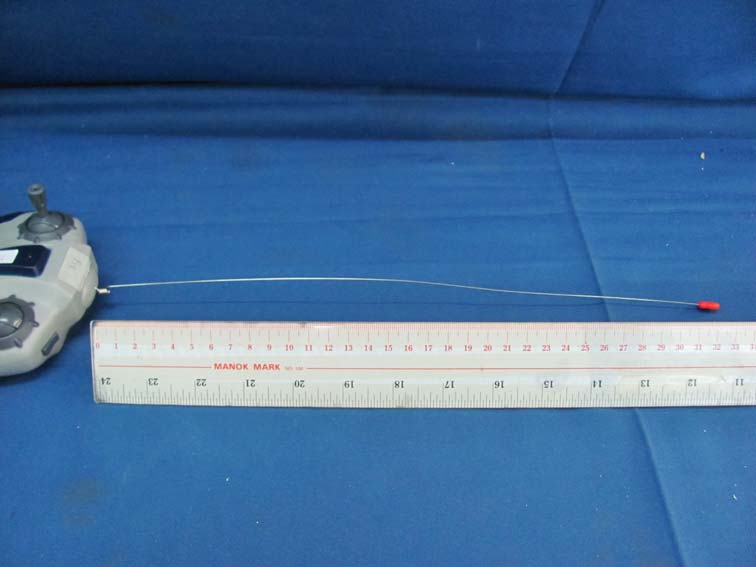

External Photos

FCC ID: PGN93974TX27145 Ophoto1 Ophoto2 FCC ID: PGN93974TX27145 Ophoto3 Ophoto4

Internal Photos

FCC ID: PGN93974TX27145 Iphoto1 Iphoto2 FCC ID: PGN93974TX27145 Iphoto3 Iphoto4

Operational Description

FCC ID: PGN93974TX27145 Technical Description : The brief circuit description is listed as follows : - Y1, U1 (W55RFS27T1B) and associated circuit act as 27.145 MHz Encoder, Oscillator and RF Amplifier. - L1, L2, C1, C2, C3 and associated circuit act as RF Filter. - SF, RB, LF, LB and associated circuit act as Control Sticks. - SW and associated circuit act as Control Key. Antenna Used : An integral antenna (non-extendable) has been used.

Schematics

ๅคง่ฝฎ่ฝฆTX V16.sch-1 - Mon Apr 19 11:47:10 2010

Test Report

INTERTEK TESTING SERVICES Report No.:HK10010869-1 Sample No.:1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Pursuant to FCC Part 15 Section 15. 227 Requirement INTERTEK TESTING SERVICES Report No.:HK10010869-1 Sample No.:1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Pursuant to FCC Part 15 Section 15. 227 Requirement

Test Report

INTERTEK TESTING SERVICES Report No.:HK10010869-1 Sample No.:1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Bandedge Plot โ€“ Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass)

Test Report

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK10010869-1 Hasbro Inc. Application For Certification (Original Grant) (FCC ID: PGN93974TX27145) Transmitter Factory Code: E, Vendor Code: Kin Yat (ZC-086) Prepared and Checked by: Approved by: Leung Siu Lung, Michael Engineer Chan Chi Hung, Terry Senior Lead Engineer Date: February 3, 2010 INTERTEK TESTING SERVICES Report No.: HK10010869-1 FCC ID: PGN93974TX27145 i GENERAL INFORMATION Hasbro Inc. MODEL: 93974 FCC ID: PGN93974TX27145 Grantee: Hasbro Inc. Grantee Address: 1027 Newport Avenue, PO Box 1059, Pawtucket, Rhode Island, 02862-1059, U. S. A. Contact Person: Steven Krol Tel: 1-413-526-2690 Fax: 413-526-4131 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: 93974 Type of EUT: Transmitter Description of EUT: SW Hailfire Droid RC Vehicle Serial Number: N/A FCC ID: PGN93974TX27145 Date of Sample Submitted: January 22, 2010 Date of Test: January 27, 2010 Report No.: HK10010869-1 Report Date: February 3, 2010 Environmental Conidtions: Temperature: +10 to 40ยฐC Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK10010869-1 FCC ID: PGN93974TX27145 ii SUMMARY OF TEST RESULT Hasbro Inc. MODEL: 93974 FCC ID: PGN93974TX27145 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK10010869-1 FCC ID: PGN93974TX27145 iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment List and Description ........................................................... 3 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation..............โ€ฆ

Text truncated - open the document above for the full version.

Test Setup Photos

INTERTEK TESTING SERVICES Front View Back View

Contact Information

Applicant

Steven Krol(Director Electronic Engineering)
[email protected]413-526-2690Fax: 413-526-4131

Technical Contact

Intertek Testing Services Hong Kong LtdBen Ho
[email protected]852-21738505

2/F Garment Centre ยท Kowloon ยท Hong Kong

Non-Technical Contact

Intertek Testing Services Hong Kong LtdBen Ho
[email protected]852-21738505

Test Firm

Intertek Testing Services Hong Kong Ltd.Billy Chow
[email protected]85221738528Fax: 85227410521

Technical Specifications

#Rule PartsFrequency RangePower Output
115C27.145 MHz - 27.145 MHz-
