PGWTURTLESHELLBluetooth Speaker

BLUETOOTH BOOM BOX Brand Name: OUTDOOR TECH Model Name: ODT BIG TURTLE SHELL FCC ID: PGWTURTLESHELL 1: ANATOMY Volume / Track Control Raise Volume by Pressing >> Lower Volume by pressing << Skip forward by holding >> for 1 – 2 seconds Skip backward by holding << for 1 – 2 seconds Multi-Function Button: Music/Calls Press once to Play/Pause OR Answer/Hang up 2: POWER For best audio experience, please fully charge your ODT Big Turtle Shell before use. Charge ODT Big Turtle Shell via adopter included in the package. Low Battery – Led indicator flash red or the speaker will say “ Charging me” Charging – Plug the ODT Big Turtle Shell into your wall charger via adopter included in the package Red indicator will light Fully Charged – Red indicator off Battery prompt—Press Power button twice Power out: ODT Big Turtel Shell suport POWER OUT(5V 1A) function and can used as powerbank. Use your cable and charge your device via power out port. Note: It’s takes about 3 hours to fully charge the ODT Big Turtel Shell. 3.CONNECT 3.1:Pair the first devie Power on ODT Big Turtle Shell then it will in the pairing mode Prepare your phone or device—Turn on Bluetooth iPhone,iPod, or iPad: Settings > General > Enable Bluetooth Andriod: Settings > Wireless& Networks > Bluetooth Settings Blackberry: Settings/Options > Bluetooth >Enable Bluetooth Other Cell Phones: Review the instruction manual that came with your phone or Google it. 3.2Pair the second device Press both << and >> buttons for 3s, then will hear “ pairing”. After successfully paired with second device, reconnect the first device by hand then the two device will be successfully paired at the same time. 3.3 Pairing by NFC 3.3.1. Turning on the ODT Big Turtel Shell and then enter into the paring mode. 3.3.2. Prepare your NFC supported device and swipe the NFC area in the ODT Big Turtle Shell to detect the device and then it will complete the paring automatically. 4. LISTEN The ODT Big Turtle Shell is built to go anywhere, but for optimal sound quality follow the steps below: >Make sure ODT Big Turtle Shell is resting on its base and facing upwards >When connected wirelessly via Bluetooth, it’s best to turn the volume on your phone/device fully up and when use the volume control (<< / >>) on the ODT Big Turtle Shell >When connected via 3.5mm stereo input, your phone/device may distort the audio signal if turned up too loud, Turn down the volume on your phone/devide before adjusting the volume on ODT Big Turtle Shell. Note: 3.5mm Audio in and Audio out to another ODT Big Turtle Shell is supported 5.TALK: The built in microphone means that the ODT Big Turtle Shell can be used as a wireless speakerphone. Just speak in direction of the top grill *NOTE : The built-in microphone only works when connected via Bluetooth >Answer or end a call: Press the multifunction button to answer or end a call. >Decline a call: Press and hold the multifunction button for 2 seconds >Make a call: Use your phone to dial as usual. Listen and talk through the ODT Big Turtle Shell Redial Last Number: Press << button and multifunction button at the same time Mute: Hold the >> and << Buttons for 2 seconds. Or until you hear mute on 6 SPECIFICATION Battery life : Music playing for 5 hours, standby time about 700 hours. *Battery life varies subject to different playing circumstance such as music type or volume  Bluetooth Compliance : v4.0&v3.0  Speaker : 4Ω,rated power 3W/max power 5W x2  Weight : about 1020g  Bluetooth Range: Up to 30 feet from device Hearing Distortion A. Lower the volume on your ODT Big Turtle Shell and /or phone /device B. Make sure it’s charged up. Check for low battery, then charge if necessary. Not Loud Enough A. Turn up the volume on your phone/device or your Turtle Shell. B. Make sure it’s charged up C. Plug the ODT Big Turtle Shell in to your phone/device via 3.5mm stereo cable Unable to Pair A. Confirm your phone /device is Bluetooth compatible B. Re-Pair :Follow pairing instructions in this Guide Signal Loss or Dropouts via Bluetooth A. Move ODT Big Turtle Shell closer to your phone/device B. Make sure it’s charged up C. Turn off your ODT Big Turtle Shell and Phone/Device, then power up and reconnect. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Jun. 20, 2014 Federal Communication Commission Authorization and Evaluation Division FCC ID: PGWTURTLESHELL Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, OUTDOOR TECHNOLOGY Contact person: Caro Krissman Title: Manager

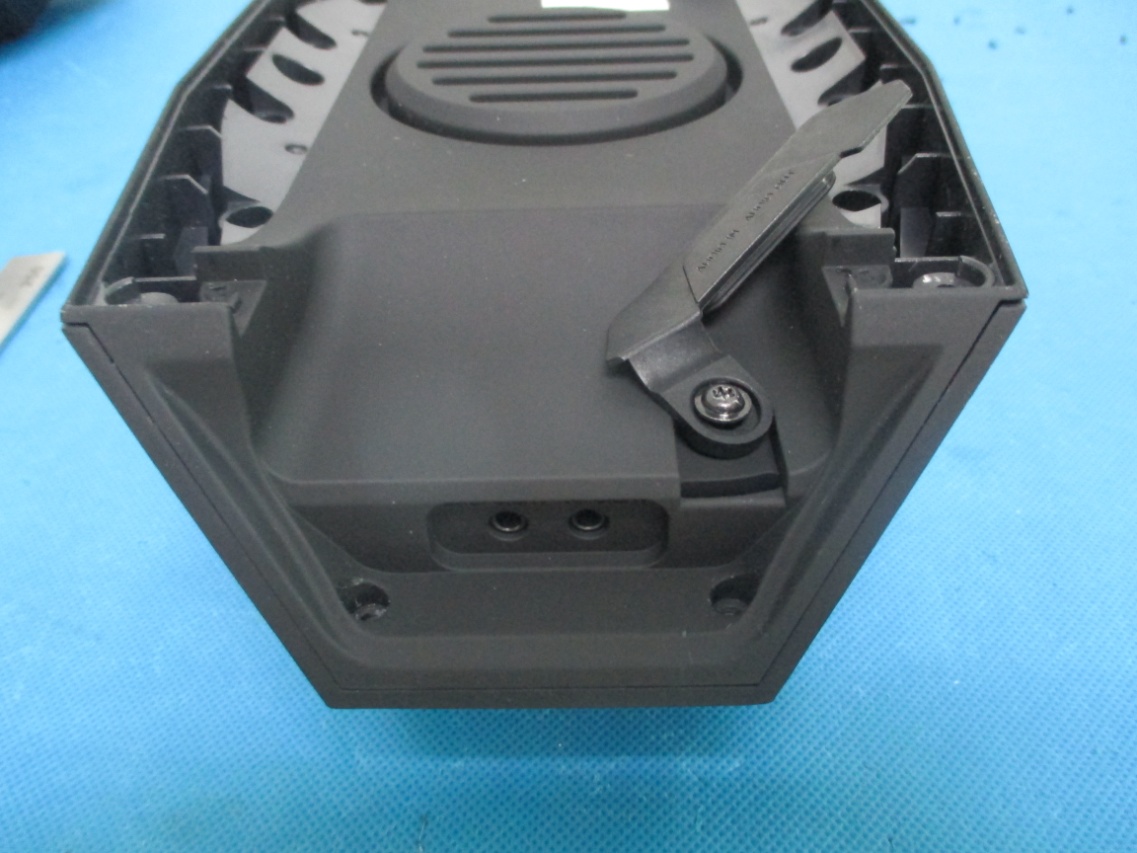

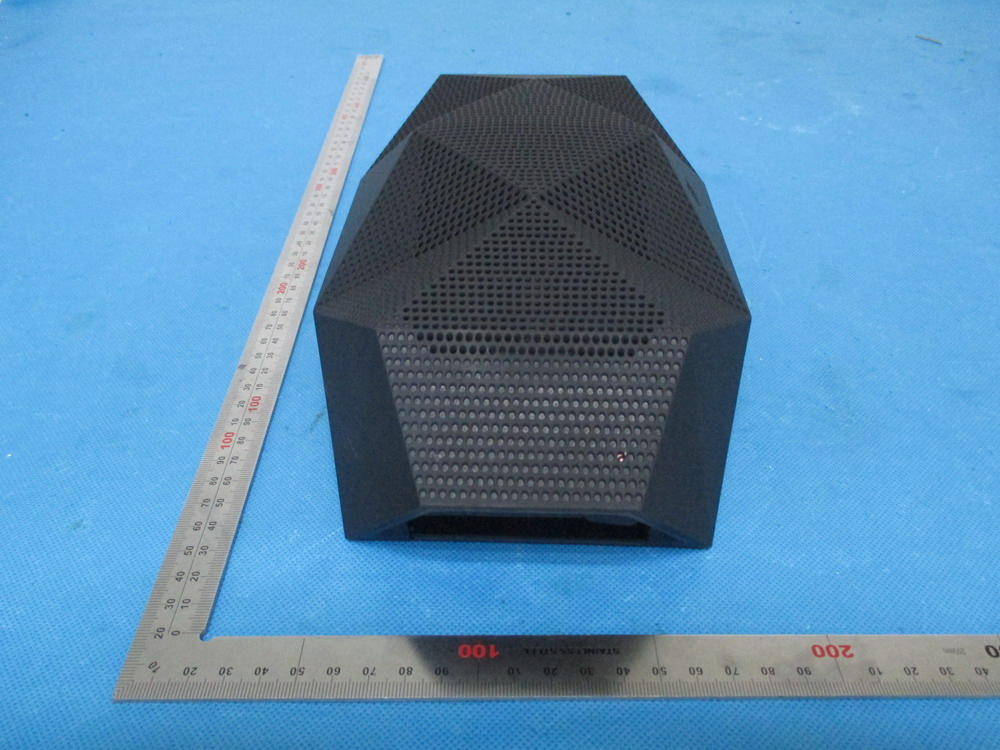

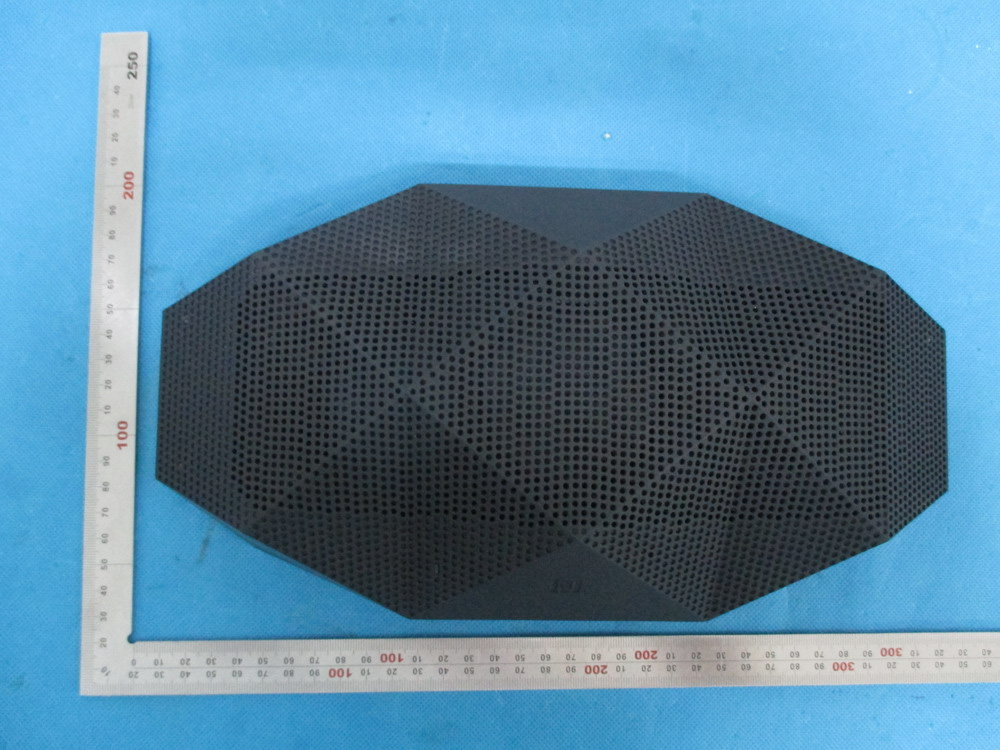

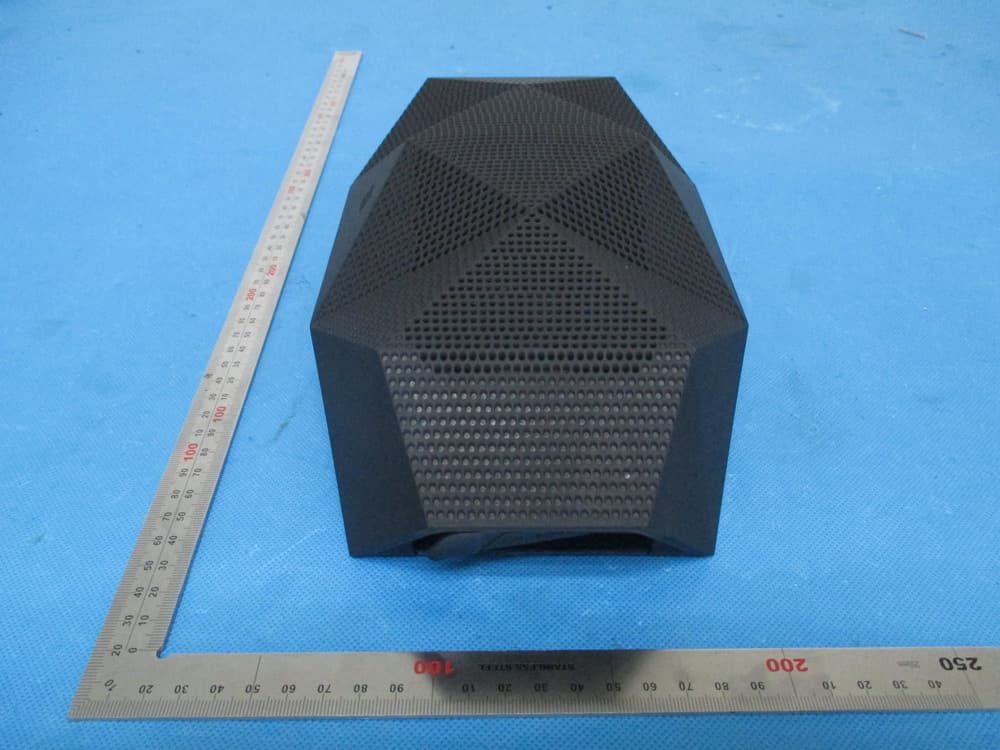

External Photos All VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location BLUETOOTH BOOM BOX Model: ODT BIG TURTLE SHELL Trade Name: OUTDOOR TECH FCC ID: PGWTURTLESHELL

Internal Photos OPEN VIEW OF EUT-1 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7

Report No.: AGC00519140601FE03 Page 1 of 68 FCC Test Report Report No.: AGC00519140601FE03 FCC ID : PGWTURTLESHELL APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : BLUETOOTH BOOM BOX BRAND NAME : OUTDOOR TECH MODEL NAME : ODT BIG TURTLE SHELL CLIENT : OUTDOOR TECHNOLOGY DATE OF ISSUE : Jun.19, 2014 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00519140601FE03 Page 2 of 68 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun.19, 2014 Valid Original Report Report No.: AGC00519140601FE03 Page 3 of 68 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ........................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ............................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................... 8 2.7. TEST METHODOLOGY................................................................................................................ 8 2.8. SPECIAL ACCESSORIES ............................................................................................................ 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................... 8 3. MEASUREMENT UNCERTAINTY........................................................................................ 9 4. DESCRIPTION OF TEST MODES ........................................................................................ 9 5. SYSTEM TEST CONFIGURATION .................................................................................... 10 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 10 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 10 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 10 6. TEST FACILITY .................................................................................................................. 11 7. PEAK OUTPUT POWER .................................................................................................... 12 7.1. MEASUREMENT PROCEDURE ................................................................................................ 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................... 13 8. 20DB BANDWIDTH ............................................................................................................ 19 8.1. MEASUREMENT PROCEDURE ................................................................................................ 19 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 19 8.3. LIMITS AND MEASUREMENT RESULTS .................................................................................. 19 9. CONDUCTED SPURIOUS EMISSION ............................................................................... 26 9.1. MEASUREMENT PROCEDURE ................................................................................................ 26 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 26 9.3. MEASUREMENT EQUIPMENT USED ....................................................................................... 26 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................... 26 10. RADIATED EMISSION ..................................................................................................... 30 10.1. MEASUREMENT PROCEDURE .............................................................................................. 30 10.2. TEST SETUP ............................................................................................................................ 32 10.3. TEST RESULT (Worst Modulation: GFSK) ............................................................................... 33 Report No.: AGC00519140601FE03 Page 4 of 68 11. BAND EDGE EMISSION .................................................................................................. 45 11.1. MEASUREMENT PROCEDURE .............................................................................................. 45 11.2. TEST SET-UP ........................................................................................................................... 45 11.3. TEST RESULT .......................................................................................................................... 46 12. NUMBER OF HOPPING FREQUENCY ............................................................................ 50 12.1. MEASUREMENT PROCEDURE .............................................................................................. 50 12.2. TEST SETUP (BLOCK DIAGRAM OF CONF…

Text truncated - open the document above for the full version.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP
