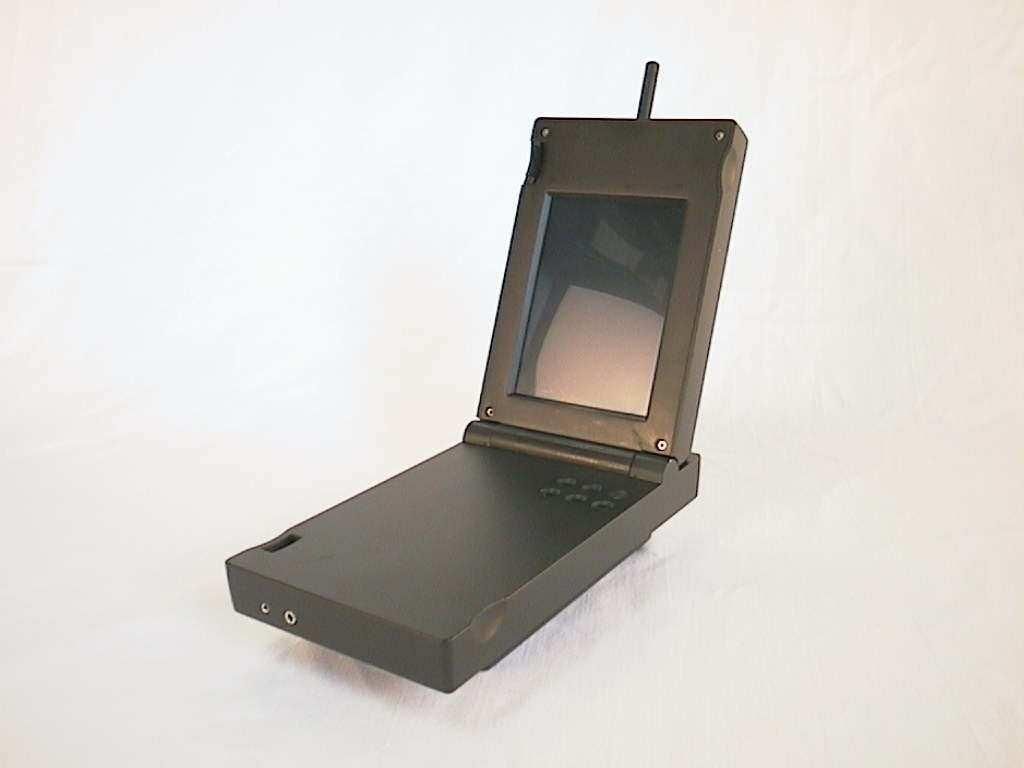

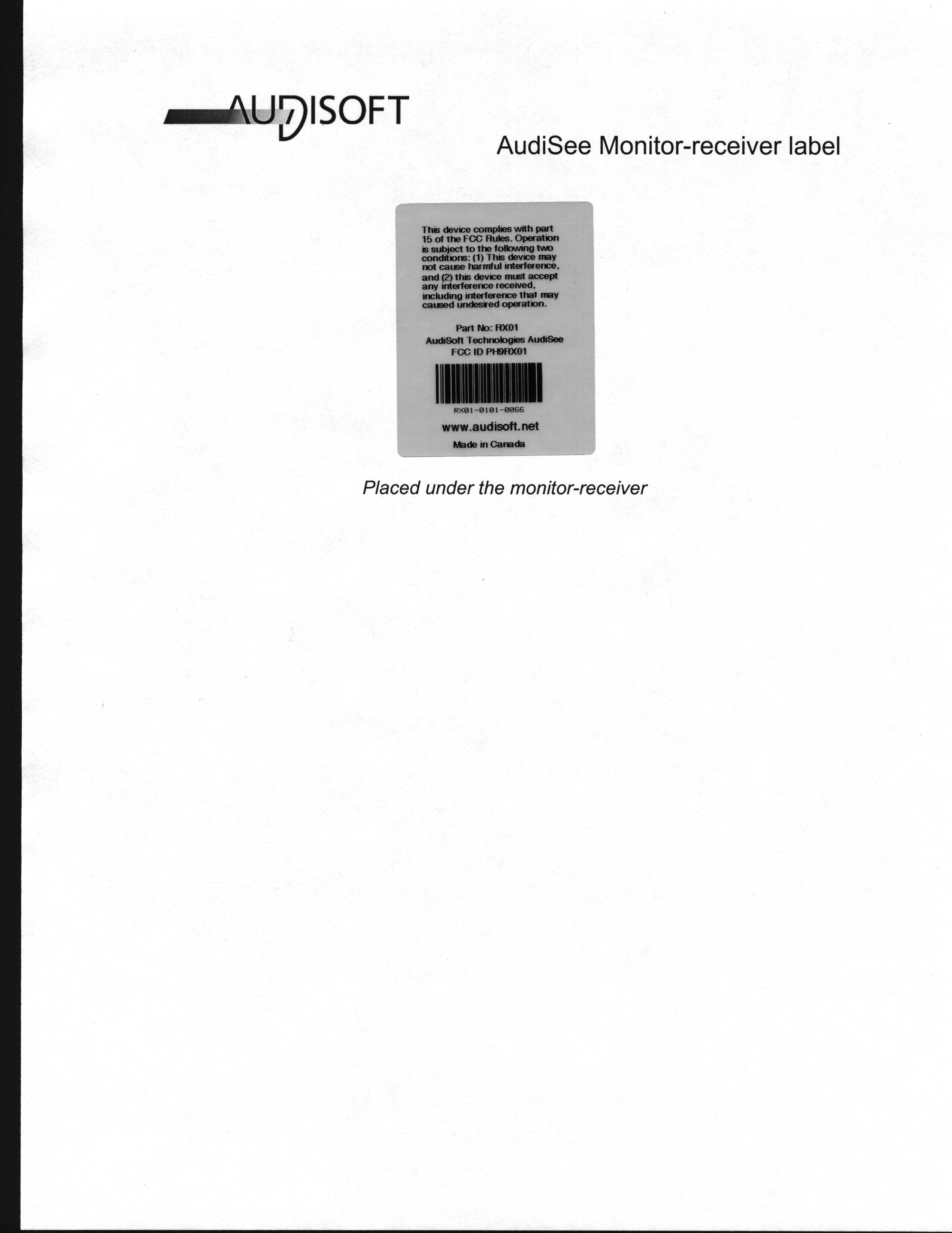

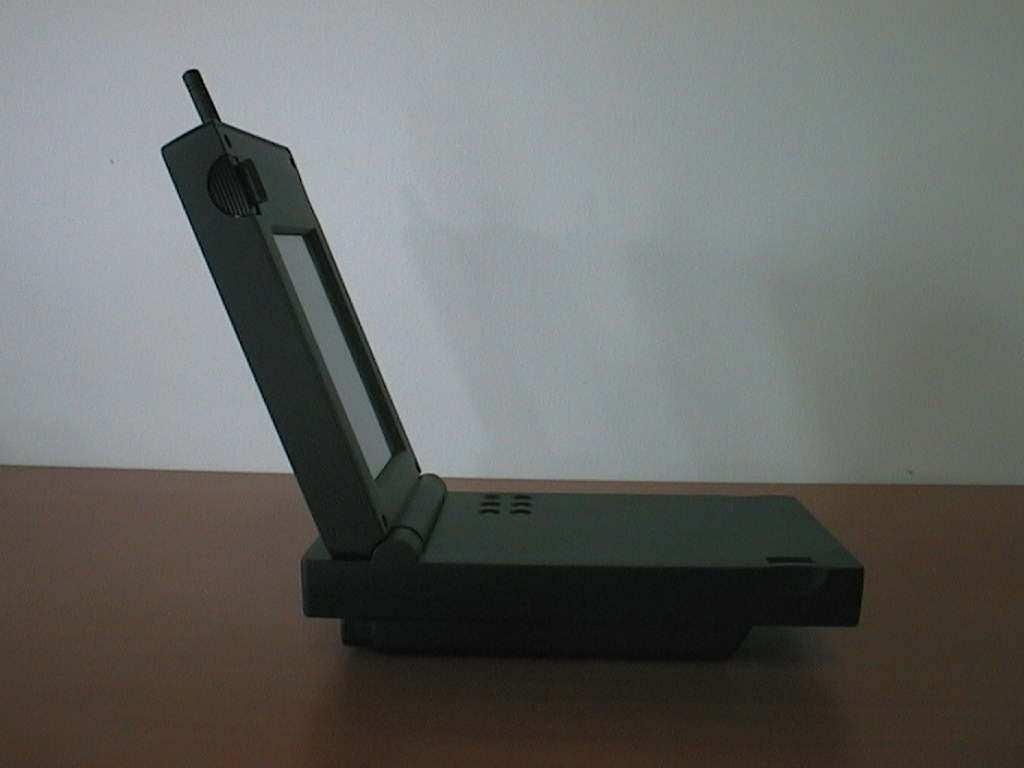

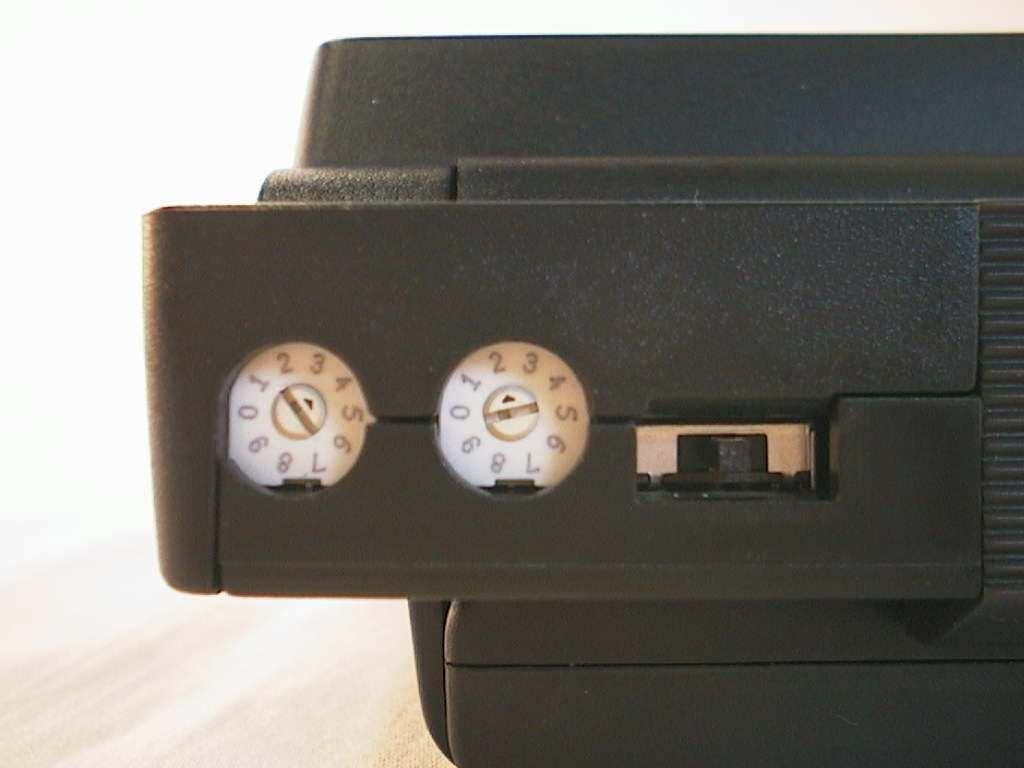

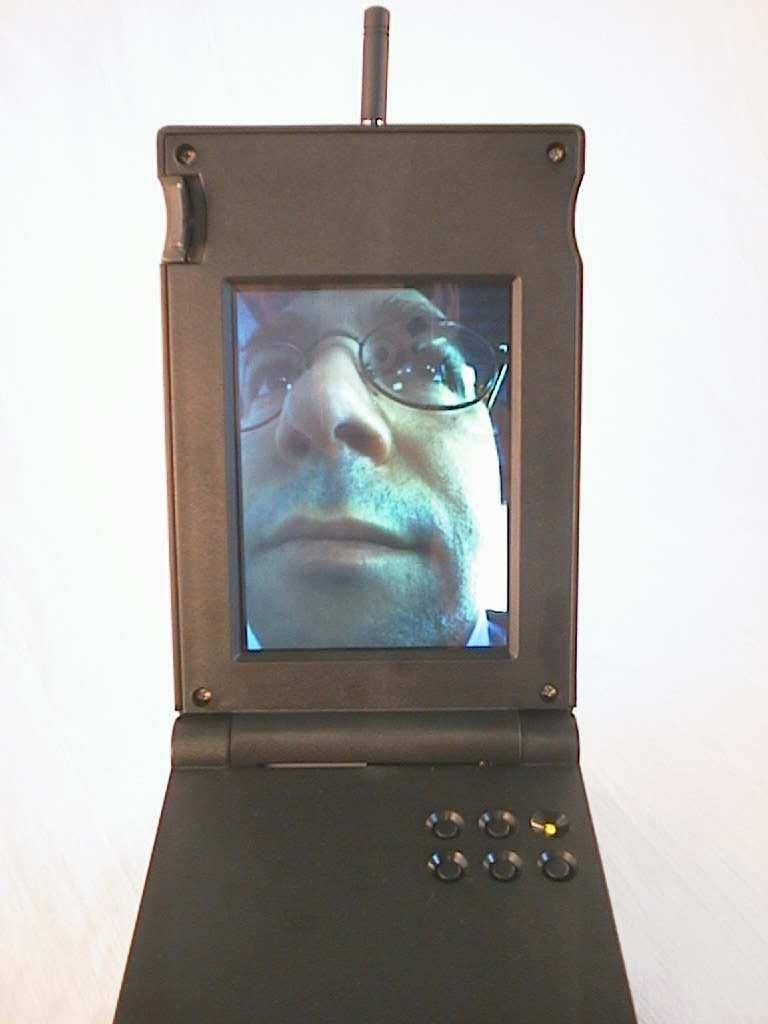

PH9RX01Audio video monitor-receiver for hearing impaired
Audisoft Technologie
Click to zoom
Application Details
- Equipment Class
- CYY - Communications Receiver used w/Pt 15 Transmitter
- Date of Grant
- Mar 22, 2001
- Application Purpose
- Original Equipment
- Date of Application
- Mar 13, 2001
- Equipment Note
- Audio video monitor-receiver for hearing impaired
- Frequency Range
- 911.00000000 - 919.00000000
- Company
- Audisoft Technologie
- Country
- Canada
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Test Report
Master: ktlPT15BR Date: April 6, 2000 KTL Test Report:0R02313 Applicant:Audisoft Technologie 788 Rue Louis Normandin Boucherville, Quebec J4B 3X3 Equipment Under Test:Receiver (E.U.T.) In Accordance With:FCC Part 15, Subpart B Radio Receivers Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: G. Westwell, Technologist Date:October 24, 2000 Total Number of Pages:10 Authorized Copy:Soft Copy KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 2 of 10 Table Of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. Radiated Emissions...............................................................................................6 Section 4. Block Diagrams.....................................................................................................9 Section 5. Test Equipment List...........................................................................................10 KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 3 of 10 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart B. Measurement procedure ANSI C63.4-1992 was used for all tests. Radiated Emissions were measured on an open area test site. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit CYY Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: DATE: October 24, 2000 Russell Grant, Wireless Group Manager KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 4 of 10 Summary Of Test Data Name Of TestPara. No.Results Antenna Conducted Emissions15.111N/A Radiated Emissions15.109Complies Powerline Conducted Emissions15.107N/A Footnotes For N/A’s:Battery Powered KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 5 of 10 Section 2.General Equipment Specification Manufacturer: Audisoft Technologies Model No.: Receiver Date Received In Laboratory: October 19, 2000 KTL Identification No.: Item # 40 Frequency Range: Audio:72.0-73.0 MHz, 74.6-78.0 MHz, 75.2-76.0 MHz Video:906.0 MHz, 914.9 MHz Fixed Primary Power Requirement: Batteries KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 6 of 10 Section 3.Radiated Emissions Para. No.: 15.109(a) Test Performed By: Russell GrantDate of Test: October 19, 2000 Minimum Standard: Frequency(MHz)Field Strength (dBμμV/m @ 3m) 30 - 8840.0 88 - 21643.5 216 - 96046.0 Above 96054.0 Test Results:Complies. The worst-case emission level is 41.2 dBμV/m @ 3m at 614.296 MHz. This is 4.8dB below the specification limit. Measurement Data:See attached table. For super-regenerative receivers the receiver is cohered using a signal generator and dipole antenna. Handheld equipment and equipment not designed to be mounted in any fixed orientation, the E.U.T. is tested in three orthogonal axis to obtain worst case results. KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 7 of 10 Test Data - Radiated Emissions Test Distance (meters) : 3 Range: A Tower Receiver: ESVP RBW(kHz): 120/1000 Detector: Q-Peak Freq. (MHz) Ant. * Pol. (V/H) RCVD Signal (dBμμV/m) Ant. Factor (dB)** Amp. Gain (dB)*** Dist. Corr. (dB) Field Strength (dBμμV/m) Limit (dBμμV/m) Margin (dB) 519.785L/P1V13.322.635.946.010.1 519.785L/P1H11.022.633.646.012.4 614.296L/P1V17.024.241.246.04.8* 614.296L/P1H15.224.239.446.06.6 980.0E/D4V-1.033.032.054.022.0 980.0E/D4H-1.533.031.554.022.5 1960.0Hrn2V55.834.2-48.341.754.012.3 1960.0Hrn2H60.034.2-48.345.954.08.1 2940.0Hrn2V53.738.7-59.632.854.021.2 2940.0Hrn2H63.738.7-59.642.854.011.2 3920.0Hrn2V39.842.6-57.824.654.029.4 3920.0Hrn2H43.042.6-57.827.854.026.2 4900.0Hrn2V32.745.0-55.322.454.031.6 4900.0Hrn2H34.745.0-55.324.454.029.6 Notes: B/C =Biconical, B/L = Biconilog, L/P = Log-Periodic, H = Horn, D/P = Dipole *Re-Measured Using Dipole Antenna. ( ) Denotes Failing Emission Level. (1) 120 kHz, Q-Peak, (2) 10 kHz, Peak, (3) 100 kHz RGW, 300 kHz VBW, Peak, (4) 300 kHz RBW, 1 MHz VBW, Peak, (5) 1 MHz RBW, 3 MHz VBW, Peak, (6) 1 MHz RBW, 10 Hz VBW, Peak N.D. =Not Detected Receiver turned to 72. 124, 75.676, 906, 914.9 MHz KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 8 of 10 Radiated Photographs Front View KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 9 of 10 Section 4.Block Diagrams Radiated Prescan SPECTRUM ANALYZER AND PLOTTER OR TEST RECEIVER COMPUTER ANTENNA E.U.T. SHIELDED ROOM Outdoor Test Site For Radiated Emissions The spectrum was searched up to the 10th harmonic of the fundamental frequency of operation. 3 METERS E.U.T. NON-CONDUCTING TURN-TABLE 0.8 METER VARIABLE SEARCH HEIGHT (1 TO 4 m) TO TEST RECEIVER/SPECTRUM ANALYZER SEARCH ANTENNA KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 10 of 1…
Text truncated - open the document above for the full version.
Test Setup Photos
Master: ktlPT15BR Date: April 6, 2000 KTL Test Report:0R02313 Applicant:Audisoft Technologie 788 Rue Louis Normandin Boucherville, Quebec J4B 3X3 Equipment Under Test:Receiver (E.U.T.) In Accordance With:FCC Part 15, Subpart B Radio Receivers Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: G. Westwell, Technologist Date:October 24, 2000 Total Number of Pages:10 Authorized Copy:Soft Copy KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 2 of 10 Table Of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. Radiated Emissions...............................................................................................6 Section 4. Block Diagrams.....................................................................................................9 Section 5. Test Equipment List...........................................................................................10 KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 3 of 10 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart B. Measurement procedure ANSI C63.4-1992 was used for all tests. Radiated Emissions were measured on an open area test site. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit CYY Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: DATE: October 24, 2000 Russell Grant, Wireless Group Manager KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 4 of 10 Summary Of Test Data Name Of TestPara. No.Results Antenna Conducted Emissions15.111N/A Radiated Emissions15.109Complies Powerline Conducted Emissions15.107N/A Footnotes For N/A’s:Battery Powered KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 5 of 10 Section 2.General Equipment Specification Manufacturer: Audisoft Technologies Model No.: Receiver Date Received In Laboratory: October 19, 2000 KTL Identification No.: Item # 40 Frequency Range: Audio:72.0-73.0 MHz, 74.6-78.0 MHz, 75.2-76.0 MHz Video:906.0 MHz, 914.9 MHz Fixed Primary Power Requirement: Batteries KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 6 of 10 Section 3.Radiated Emissions Para. No.: 15.109(a) Test Performed By: Russell GrantDate of Test: October 19, 2000 Minimum Standard: Frequency(MHz)Field Strength (dBμμV/m @ 3m) 30 - 8840.0 88 - 21643.5 216 - 96046.0 Above 96054.0 Test Results:Complies. The worst-case emission level is 41.2 dBμV/m @ 3m at 614.296 MHz. This is 4.8dB below the specification limit. Measurement Data:See attached table. For super-regenerative receivers the receiver is cohered using a signal generator and dipole antenna. Handheld equipment and equipment not designed to be mounted in any fixed orientation, the E.U.T. is tested in three orthogonal axis to obtain worst case results. KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 7 of 10 Test Data - Radiated Emissions Test Distance (meters) : 3 Range: A Tower Receiver: ESVP RBW(kHz): 120/1000 Detector: Q-Peak Freq. (MHz) Ant. * Pol. (V/H) RCVD Signal (dBμμV/m) Ant. Factor (dB)** Amp. Gain (dB)*** Dist. Corr. (dB) Field Strength (dBμμV/m) Limit (dBμμV/m) Margin (dB) 519.785L/P1V13.322.635.946.010.1 519.785L/P1H11.022.633.646.012.4 614.296L/P1V17.024.241.246.04.8* 614.296L/P1H15.224.239.446.06.6 980.0E/D4V-1.033.032.054.022.0 980.0E/D4H-1.533.031.554.022.5 1960.0Hrn2V55.834.2-48.341.754.012.3 1960.0Hrn2H60.034.2-48.345.954.08.1 2940.0Hrn2V53.738.7-59.632.854.021.2 2940.0Hrn2H63.738.7-59.642.854.011.2 3920.0Hrn2V39.842.6-57.824.654.029.4 3920.0Hrn2H43.042.6-57.827.854.026.2 4900.0Hrn2V32.745.0-55.322.454.031.6 4900.0Hrn2H34.745.0-55.324.454.029.6 Notes: B/C =Biconical, B/L = Biconilog, L/P = Log-Periodic, H = Horn, D/P = Dipole *Re-Measured Using Dipole Antenna. ( ) Denotes Failing Emission Level. (1) 120 kHz, Q-Peak, (2) 10 kHz, Peak, (3) 100 kHz RGW, 300 kHz VBW, Peak, (4) 300 kHz RBW, 1 MHz VBW, Peak, (5) 1 MHz RBW, 3 MHz VBW, Peak, (6) 1 MHz RBW, 10 Hz VBW, Peak N.D. =Not Detected Receiver turned to 72. 124, 75.676, 906, 914.9 MHz KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 8 of 10 Radiated Photographs Front View KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 9 of 10 Section 4.Block Diagrams Radiated Prescan SPECTRUM ANALYZER AND PLOTTER OR TEST RECEIVER COMPUTER ANTENNA E.U.T. SHIELDED ROOM Outdoor Test Site For Radiated Emissions The spectrum was searched up to the 10th harmonic of the fundamental frequency of operation. 3 METERS E.U.T. NON-CONDUCTING TURN-TABLE 0.8 METER VARIABLE SEARCH HEIGHT (1 TO 4 m) TO TEST RECEIVER/SPECTRUM ANALYZER SEARCH ANTENNA KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02313 EQUIPMENT: Receiver Page 10 of 1…
Text truncated - open the document above for the full version.
Contact Information
Applicant
Luc Ducas(Vice-president)
Technical Contact
Non-Technical Contact
Luc DucasLuc Ducas
[email protected](450)641-8436
Test Firm
Nemko Canada Inc.Stuart Beck
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 5 | 15B | 911 MHz - 919 MHz | - |
