PI3-GE-11GEAR-LOCK

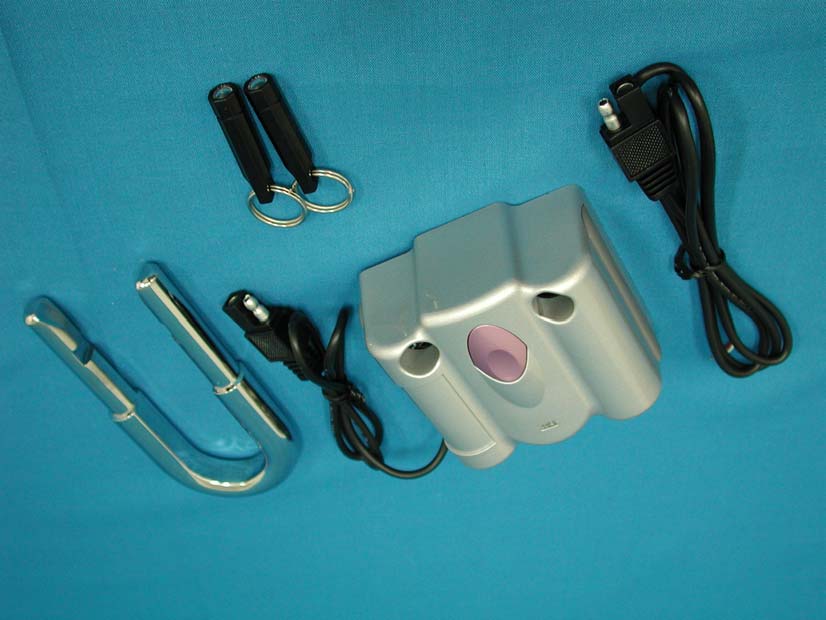

1. Lock Set 1 Set 2. U modeled iron 1 Piece 3. Keys 2 Pieces 4. Screw 2 Pieces 5. Power cord 1 Pieces Specification 1.If you haven’t set any key on this gear lock, you will hear continued beeps & LED flash when you press the start button. 2.Setting Keys : 2 -1. After press the start button, you will hear continued beeps. Let the device read the key and then press the start button twice. Then you will hear a long beep ton to indicate the first key, the master key, has been set (max. is 5 keys). 2-2. After the first key has been set, you will hear continued beeps tell you to set the second key. Let the device read the second key and then press the start button twice to set the second key. Using the same procedure to set the third, fourth and fifth key. 2 -3. If you don’t want to continue setting the following key, please wait until the continued beep stop. This gear lock will shut down and complete the memory procedure. 3.Erase keys Press the start button and let the device read the master key. You will hear a short beep. Press the start button five times to erase all keys. If the procedure complete, you will hear two long and a short beeps. Only master key can erase other keys. Standard power voltage : +12V(Car Battery) Red cable: +12V White cable: GND Start Button Indicated Light FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.

Report No.: 023H057FI Page: 1 of 7 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

SUMMIT AUTOMATION CO., LTD. 2F, NO. 68, CHUNGKUANG 1 ST RD., TAICHUNG CITY, TAIWAN, R.O.C. TEL: 886-4-2350-9197 FAX: 886-4-2358-6825 FCC ID.: PI3-GE-11 LabelLoc The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. GEAR-LOCK Model No.: GE-11 F F C C C C I I D D : : P P I I 3 3 - - G G E E - - 1 1 1 1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 023H057FI Page: 2 of 7 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 023H057FI Page: 3 of 7 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 023H057FI Page: 4 of 7 Version:1.0 (7) EUT Photo Report No.: 023H057FI Page: 5 of 7 Version:1.0 (8) EUT Photo Report No.: 023H057FI Page: 6 of 7 Version:1.0 (9) EUT Photo Report No.: 023H057FI Page: 7 of 7 Version:1.0 (10) EUT Photo (11) EUT Photo

Report No. 023H057FI Page : 1 of 1 Version:1.0 1.1. EUT Description The EUT is a DC operated lock with 134.2kHz transmitter and its associated key with passive tag reflector for code confirmation. The IC TMS3705A from TI was used as the transponder device by 4MHz clock. A 2cm *1cm multi-turn inductive loop was connected to the device as the transmitter antenna. The passive tag will reflect the matched energy to the EUT.

Report No. 023H057FI Page : 1 of 19 Version:1.0 Test Report Product Name : GEAR-LOCK Model No. : GE-11 FCC ID.: PI3-GE-11 Applicant : SUMMIT AUTOMATION CO., LTD. Address : 2F., No. 68, Chungkung 1 st. Rd., Taichung City, Taiwan 407, R.O.C. Date of Receipt : Mar. 19, 2002 Date of Test : Sep. 18, 2002 Report No. : 023H057FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 023H057FI Page : 2 of 19 Version:1.0 Test Report Certification Test Date : Sep. 18, 2002 Report No. : 023H057FI Product Name : GEAR-LOCK Applicant : SUMMIT AUTOMATION CO., LTD. Address : 2F., No. 68, Chungkung 1 st. Rd., Taichung City, Taiwan 407, R.O.C. Manufacturer : SUMMIT AUTOMATION CO., LTD. Model No. : GE-11 FCC ID. : PI3-GE-11 Rated Voltage : DC 12V(Power by Battery) Trade Name : e-力, Summit Measurement Standard : FCC Part 15 Subpart C Paragraph 15.209 Measurement Procedure : ANSI C63.4:1992 Test Result : Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Zoe Lee ) Tested By : ( Vincent Lin ) Approved By : ( Kevin Wang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200347-0 Report No. 023H057FI Page : 3 of 19 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................4 1.1. EUT Description ..........................................................................................................................................4 1.2. Operation Description ..................................................................................................................................4 1.3. Tested System Details..................................................................................................................................5 1.4. Configuration of tested System ....................................................................................................................5 1.5. EUT Exercise Software................................................................................................................................5 1.6. Test Facility..................................................................................................................................................6 2. Conducted Emission....................................................................................................................7 2.1. Test Equipment ............................................................................................................................................7 2.2. Test Setup .....................................................................................................................................................7 2.3. Limits ...........................................................................................................................................................7 2.4. Test Procedure..............................................................................................................................................8 2.5. Test Data of Conducted Emission ................................................................................................................9 3. Radiated Emission .....................................................................................................................10 3.1. Test Equipment ..........................................................................................................................................10 3.2. Test Setup ...................................................................................................................................................10 3.3. Limits .........................................................................................................................................................11 3.4. Test Procedure............................................................................................................................................12 3.5. Test Data of Radiated Emission .................................................................................................................13 4. EMI Reduction Method During Compliance Testing ............................................................16 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Reference : Laboratory of License Report No. 023H057FI Page : 4 of 19 Version:1.0 1. GENERAL INFORMATION 1.1. EUT Description Product Name : GEAR-LOCK Trade Name : e-力, Summit FCC ID. : PI3-GE-11 Model No. : GE-11 Channel Number : 1 Operating Frequency : 134.2kHz Type of Modulation : FSK, AM Antenna Type : Loop Power Line : Non-shielded, 0.75m Power Line (Extend) : Non-shielded, 0.75m Key : 2 sets Note: 1. This EUT is a GEAR-LOCK. 2. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15 Subpart C Paragraph 15.209. 3. This device is a composite device in accordance with Part 15 regulations. The function for the receiver was, measured and made a test report that the report number is 023H057F, certified under verification. 4. QuieTek has verified all construction and function in typical operation. All the test modes were carried out with the EUT in normal operation, which was shown in this test report and defined as: EMI Mode: Mode 1: Normal Operation 1.2. Operation Description The EUT is a DC operated lock with 134.2kHz transmitter and its associated key with passive tag reflector for code confirmation. The IC TMS3705A from TI was used as the transponde…

Text truncated - open the document above for the full version.

Report No.: 023H057FI Page: 1 of 2 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Radiated Test-Loop Back View of Radiated Test- Loop Report No.: 023H057FI Page: 2 of 2 Version:1.0 Front View of Radiated Test Back View of Radiated Test
