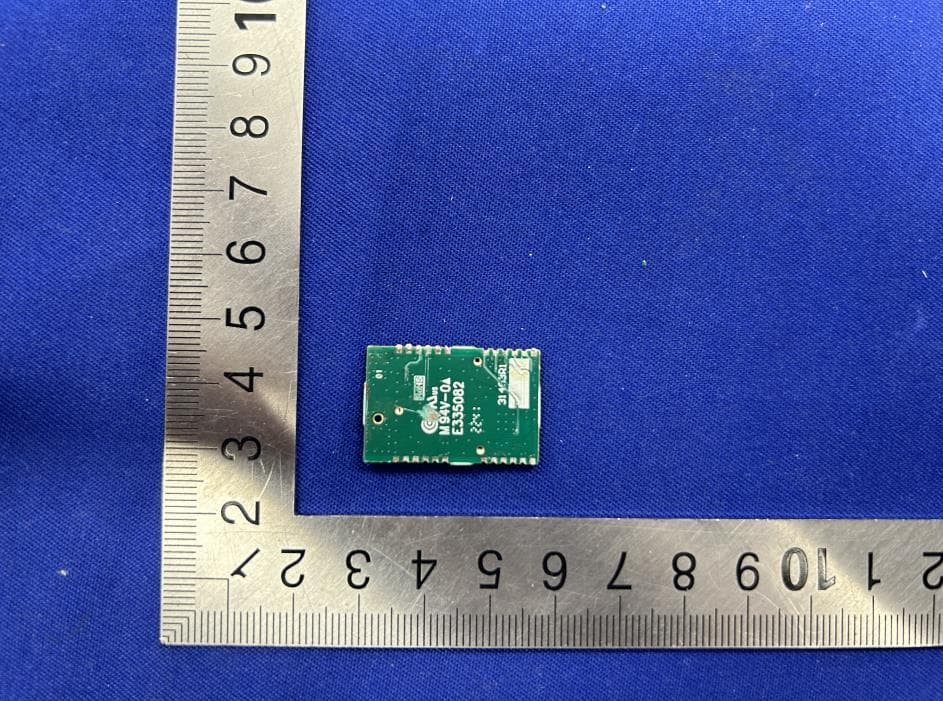

PII-31405RF Module with 902-928 MHz ISM frequency band

Vantage Controls Inc. 2240 Campbell Creek Blvd Ste #110, Richardson, Texas, United States 75082 ETII RF V2 Installation Manual Version 2.1 August 2023 Vantage Controls Inc. 2240 Campbell Creek Blvd Ste #110, Richardson, Texas, United States 75082 CONTENTS 1 OVERVIEW 2 ETII RF V2 MODULE 2.1 SPECIFICATIONS 2.2 PIN SIGNALS 2.3 OPERATING CHANNELS 3 MODES OF OPERATION 4 INSTALLATION 4.1 DESIGN GUIDELINES 4.2 END USER GUIDELINES 5 OEM LABELING REQUIREMENTS 6 INTEGRATION INSTRUCTIONS 6.1 General 6.2 List of applicable FCC rules 6.3 Summarize the specific operational use conditions 6.4 Limited module procedures 6.5 Trace antenna designs 6.6 RF exposure considerations 6.7 Antennas 6.8 Label and compliance information 6.9 Information on test modes and additional testing requirements 6.10 Additional testing, Part 15 Subpart B disclaimer 6.11 Note EMI Considerations 6.12 How to make changes 7 AGENCY CERTIFICATIONS Vantage Controls Inc. 2240 Campbell Creek Blvd Ste #110, Richardson, Texas, United States 75082 1 OVERVIEW The ETII RF V2 is an RF Control Board Module that contains a RF transceiver chip. It is designed to be incorporated into control devices developed by Vantage Controls Inc. The module operates under FCC approval in the 902- 928 MHz ISM frequency band. 2 ETII RF V2 MODULE 2.1 SPECIFICATIONS Specification ETII RF V2 Performance Frequency Range 907.3-916.9 MHz Transmit Power 32.6mW (15.136dBm) Current required while transmitting 150mA Current required while receiving 70mA RF Communications Technology Frequency Hopping Spread Spectrum Number of Hop Channels 25 RF Data Rate 19200 bps Interface Data Rates 9600-54600 bps Antenna Gain 0- 1.58dBi Power Requirements VCC 1.8 - 3.6Vdc General Dimensions 3 x 18 x 27 mm (H x W x D) Operating Temperature -40° C to + 70° C Humidity 5-95% RH (max), non-condensing Vantage Controls Inc. 2240 Campbell Creek Blvd Ste #110, Richardson, Texas, United States 75082 2.2 PIN SIGNAL 2.3 Operating Channels ETII RF V2 provides a wide range of channels. PIN NAME DESCRIPTION 1 GND Ground 2 VCC Supply voltage 3 RF_SW2 RF switch control 4 RF_SW1 RF switch control 5 RF_DI1_INT Digital I/O, software configured 6 RF_DI0_INT Digital I/O, software configured 7 SPI_MOSI SPI Data input 8 RF_RST Reset trigger input 9 SPI_MISO SPI Data output 10 SPI_CLK SPI Clock input 11 SPI_NSS SPI Chip select input 12 GND Ground 13 GND Ground 14 NC Not Connected 15 NC Not Connected 16 NC Not Connected 17 NC Not Connected 18 NC Not Connected 19 NC Not Connected 20 NC Not Connected 21 NC Not Connected 22 NC Not Connected 23 NC Not Connected 24 GND Ground Vantage Controls Inc. 2240 Campbell Creek Blvd Ste #110, Richardson, Texas, United States 75082 Operating Channels Operating Frequency (MHz) 1 907.3 2 907.7 3 908.1 4 908.5 5 908.9 6 909.3 7 909.7 8 910.1 9 910.5 10 910.9 11 911.3 12 911.7 13 912.1 14 912.5 15 912.9 16 913.3 17 913.7 18 914.1 19 914.5 20 914.9 21 915.3 22 915.7 23 916.1 24 916.5 25 916.9 Vantage Controls Inc. 2240 Campbell Creek Blvd Ste #110, Richardson, Texas, United States 75082 3 Modes of Operation The ETII RF V2 is an RF transceiver module operating in the 902 – 928 MHz frequency band for use in Vantage devices. Power and communication with the host device is via a 24 pins header. Switches on the front may be programmed to operate various functions of the host device. The antenna gain is limited to between 0 and 2.0dBi. The transceiver operates on 25 frequencies, spaced 400 kHz apart, from 907.3MHz to 916.9MHz. The module operates from an input 1.8-3.6VDC source. All circuitry critical to determining RF frequency or RF output power levels operate from an internally regulated 3.3V DC power source. 4 INSTALLATION ETII RF V2 will come pre-programmed from the manufacturer, and in many cases pre-installed in a device. If you have elected to install ETII RF V2 in house, it is important to understand how to handle, install, and use properly. 4.1 DESIGN GUIDELINES ● The ETII RF V2 Module is designed to be surface mounted. ● Standard electrostatic discharge precautions should be taken when handling the module. ● The radiating structures (antenna) are away from other sensitive electronics ● No antenna modifications can be made (see section 7.0) ● FCC labeling guidelines must be maintained (see section 7.0) ● All stated electrical maximum and minimum values must be met (see section 2.1) Vantage Controls Inc. 2240 Campbell Creek Blvd Ste #110, Richardson, Texas, United States 75082 4.2 END USER GUIDELINES The module is designed to be used in fixed locations. If the end user experiences communication problems it is recommended to move the transceivers closer to one another. Objects including, but not limited to, steel reinforced walls, metal electrical boxes, water, and snow may degrade the working distance between transceivers, and should be avoided. FCC requires specific text to be placed within user’s manual or operator instruction guide for the final commercial product. Specific details on this text can be found in section 7.0. Vantage Controls Inc. 2240 Campbell Creek Blvd Ste #110, Richardson, Texas, United States 75082 5 OEM LABELING REQUIREMENTS WARNING! The Original Equipment Manufacturer (OEM) must ensure that FCC/IC labeling requirements are met. This includes a clearly visible label on the outside of the final product enclosure that displays the contents shown below. Contains FCC ID: PII-31405 IC: 3505A-31405 6 INTEGRATION INSTRUCTIONS 6.1 General The module is only approved for use by the Vantage Controls Inc in its own products and not intended for sale to third parties. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed. The Host devices also need to be evaluated via C2PC.This is internal confidential manufacturing documents. 6.2 List of applicable FCC rules This device complies with Part 15, Subpart C, Section 15.247 of the FCC Rules. 6.3 Summarize the specific operational use conditions The module is limit…

Text truncated - open the document above for the full version.

Rev 2/6/2023 Vantage Controls Inc. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06-12-2023 FCC ID: PII-31405 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing Vantage Controls Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing Vantage Controls Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Cover List Link: (https://www.fcc.gov/supplychain/coveredlist) Applicant: Vantage Controls Inc. Address: 2240 Campbell Creek Blvd, Ste #110, Richardson, TX, United States 75082 Contact Person: Sarah Turner Tel.: 1-760-804-2814 Email: [email protected] Sincerely,

Rev 2 Vantage Controls Inc. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA FCC ID: PII-31405 Date of Filing to TCB: 06-10-2023 Ref: Attestation Statements Part 2.911(d)(7) Filing Vantage Controls Inc. (“the applicant”) certifies that, as of the date of the filing of the application, Vantage is our designated U.S. agent for service of process for the above referenced FCC ID. Vantage Controls Inc. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment and will notify the TCB/FCC in a timely manner if the US Processing Agent changes. Vantage accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Vantage FRN: 0006022321 Address: 2240 Campbell Creek Blvd ste #110 Richardson, TX 75082 United States Contact Person: Mrs Sarah Turner Tel.: (760) 804-2814 Email: [email protected] Sincerely, (Applicant printed name) Sarah Turner (Applicant signature) (US Local Agent printed name) Sarah Turner (US Local Agent signature)

SCS-F019: Confidentiality Request Letter Page 1 of 2 Rev 7.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] W ebsite: https://www.cps.bureauveritas.com/ Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (obsolete) 4.0 5.0 Nov-19-2015 Updated company logo (current) 5.0 6.0 Jun-26-2019 Updated References and Contact Info 6.0 7.0 Aug-30-2020 SCS-F019: Confidentiality Request Letter Page 2 of 2 Rev 7.0 Vantage Controls Inc. 6/6/2023 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046-1609 Cc: Bureau Veritas Consumer Products Services Inc. 775 Montague Expressway Milpitas, CA 95035 Subject: Confidentiality Request for FCC ID: PII-31405 Pursuant to CFR 47 sections 0.457 and 0.459, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application be held confidential: Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagram Short Term External Photos Short Term Permanent i Internal Photos Short Term Permanent Operational Description/ Theory of Operation Short Term Permanent Parts List Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent i User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: To avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days; or for a specified date of not to exceed 180 days from the Grant Date The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Sarah Turner / Manager (760) 804-2814 [email protected] 2240 Campbell Creek Blvd Ste #110, Richardson, TX, United States,75082 i Permanent confidentiality may be requested in accordance with FCC KDB 726920

SCS-F026 Modular Approval Letter Page 1 of 2 Rev 13.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] W ebsite: https://www.cps.bureauveritas.com/ Modular Approval Declaration Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (Obsolete) 1.0 1.0 Dec-04-2006 Added IC Modular Letter (Obsolete) 1.0 2.0 Feb 16 2009 Add LMA and MA option (Obsolete) 2.0 3.0 April 14 2010 Revised per RSS Gen issue 3.0 (Obsolete) 3.0 4.0 Jan 12 2011 Removed Foot(2) (obsolete) 4.0 5.0 July 19 2011 Adding New note per KDB996369 D01 V01R03 (obsolete) 5.0 6.0 August 29 2011 Updated company template & Added text box (obsolete) 6.0 7.0 Jan-31-2012 Updated modular requirement (obsolete) 7.0 8.0 Sept 05 2014 Updated template to meet RSP 100 issue 10 (obsolete) 8.0 9.0 Nov 20 2014 Updated template to meet RSP 100 issue 11 (obsolete)) 9.0 10.0 March 19 2015 Revised the Modular Requirement statements (obsolete) 10.0 11.0 July 28, 2016 Updated template with BV logo (current) 11.0 12.0 June 26, 2019 Updated contact info and references 12.0 13.0 Aug-30-2020 SCS-F026 Modular Approval Letter Page 2 of 2 Rev 13.0 Vantage Controls Inc. 6/6/2023 RF Module with 902-928 MHz ISM frequency band FCC ID: PII-31405 , is seeking FCC Authorization as a Single Modular Transmitter / Single Limited Modular Transmitter (Please check one) The EUT meets the requirements for Single Modular Approval / Single Limited Modular Approval (Please check one) as detailed in KDB 996369. Compliance to each of the requirements is described below: Item Modular requirement Yes No Please provide a detailed explanation if the answer is “No.” 1 Have its own RF shielding X 2 Have buffered modulation/data inputs (if such inputs are provided) X 3 The modular transmitter must have its own power supply regulation. X 4 Meet the antenna requirements of section 15.203 X 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing. X The module just a highly integrated RF transceiver. It doesn't have integrated MCU or CPU. So didn't have ability to process data .It must be used in conjunction with MCU or controller accomplish sending and receiving functions. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. X 7 The modular transmitter is manufactured so that the user can not influence the operation of the transmitter that will operate outside of the scope of the regulations. X 8 Address compliance with the Commission`s RF exposure limits in Sections 1.1310 and 2.1093. X Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Sarah Turner / Manager (760) 804-2814 [email protected] 2240 Campbell Creek Blvd Ste #110, Richardson, TX, United States,75082

Vantage Controls Inc. 2240 Campbell Creek Blvd Ste #110, Richardson, Texas, United States 75082 Declaration of Module Limiting Conditions 8/10/2023 We Name: Vantage Controls Inc. Address: 2240 Campbell Creek Blvd Ste #110, Richardson, Texas, United States 75082 declare that the following product, FCC ID：PII-31405 Only be used on the host devices developed by Vantage Controls Inc. All the host devices are in conformity with FCC rules: FCC Part 15 Subpart C (15.247) The following instruction, allow the object of the declaration described above to operate as intended and in conformity with FCC rules. The ETII RF V2 Module is a RF module with antenna, it does not include the transmitter control element. Host device controls the RF module by SPI. All the host devices use the same configuration settings for the ETII RF V2 Module controlling. Sarah Turner / Manager (760) 804-2814 [email protected]

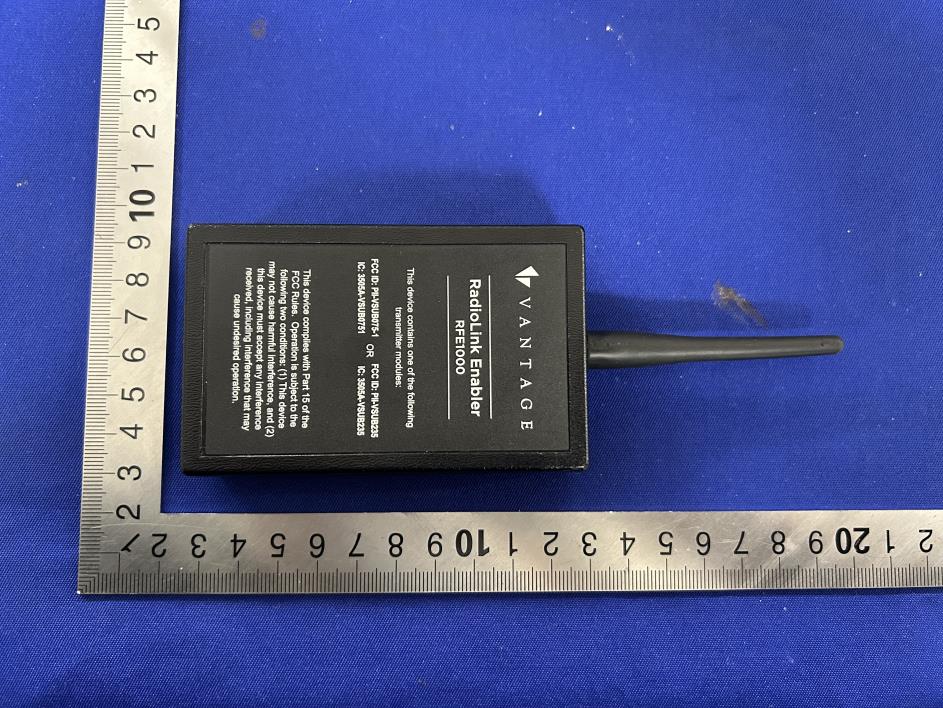

Module: Integrated sample（Because the module just a highly integrated RF transceiver. It doesn't have integrated MCU or CPU. So didn't have ability to process data .It must be used in conjunction with MCU or controller accomplish sending and receiving functions.）

Module: Integrated sample (Because the module just a highly integrated RF transceiver. It doesn't have integrated MCU or CPU. So didn't have ability to process data .It must be used in conjunction with MCU or controller accomplish sending and receiving functions.)
