PII-VSUB233VSUB233 RadioLink InterPoint RTS

VSUB233 User’s Manual 900/433 MHz RadioLink InterPoint RTS Vantage Controls 1061 South 800 East Orem, UT 84097 (801) 229-2800 May 12, 2006FCC Compliance Information FCC ID: PII-VSUB233 IC: 3505A-VSUB233 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC Compliance Warning: Changes or modifications to this product not expressly approved by Vantage Controls could void the user’s authority to operate this product. **All information on this page “FCC Compliance Information” shall be supplied to the end user of the VSUB233. Introduction The VSUB233 is an RF transceiver module. It interfaces with other equipment using standard serial asynchronous communications protocol at a rate between 600 and 57600 baud. The transmitter has a peak output power of 31.6mW. The device operates under FCC approval in the 902-928 MHz ISM frequency band as well as the 433.075 – 434.775 MHz LPD frequency band. Installing the VSUB233 The VSUB233 may be plugged into any properly located 120VAC outlet inside a weather proof environment. Proper operation is indicated by an LED indicator on the front of the device. Wording for External Label FCC ID: PII-VSUB233 IC: 3505A-VSUB233 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CONFIDENTIALITY REQUEST LETTER Vantage Controls 1061 South 800 East Orem, UT 84097 Phone: (801) 229-2800 FAX: (801) 224-0355 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: PII-VSUB233 To Whom It May Concern: In accordance with §0.459 of CFR 47, Vantage Controls requests confidentiality for the following items: 1.Block Diagram 2.Schematic Diagrams 3.Theory of Operation These items contain detailed system and equipment description and related information about the product which Vantage Controls considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Vantage Controls also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Best regards, James J Beagley Design Engineer

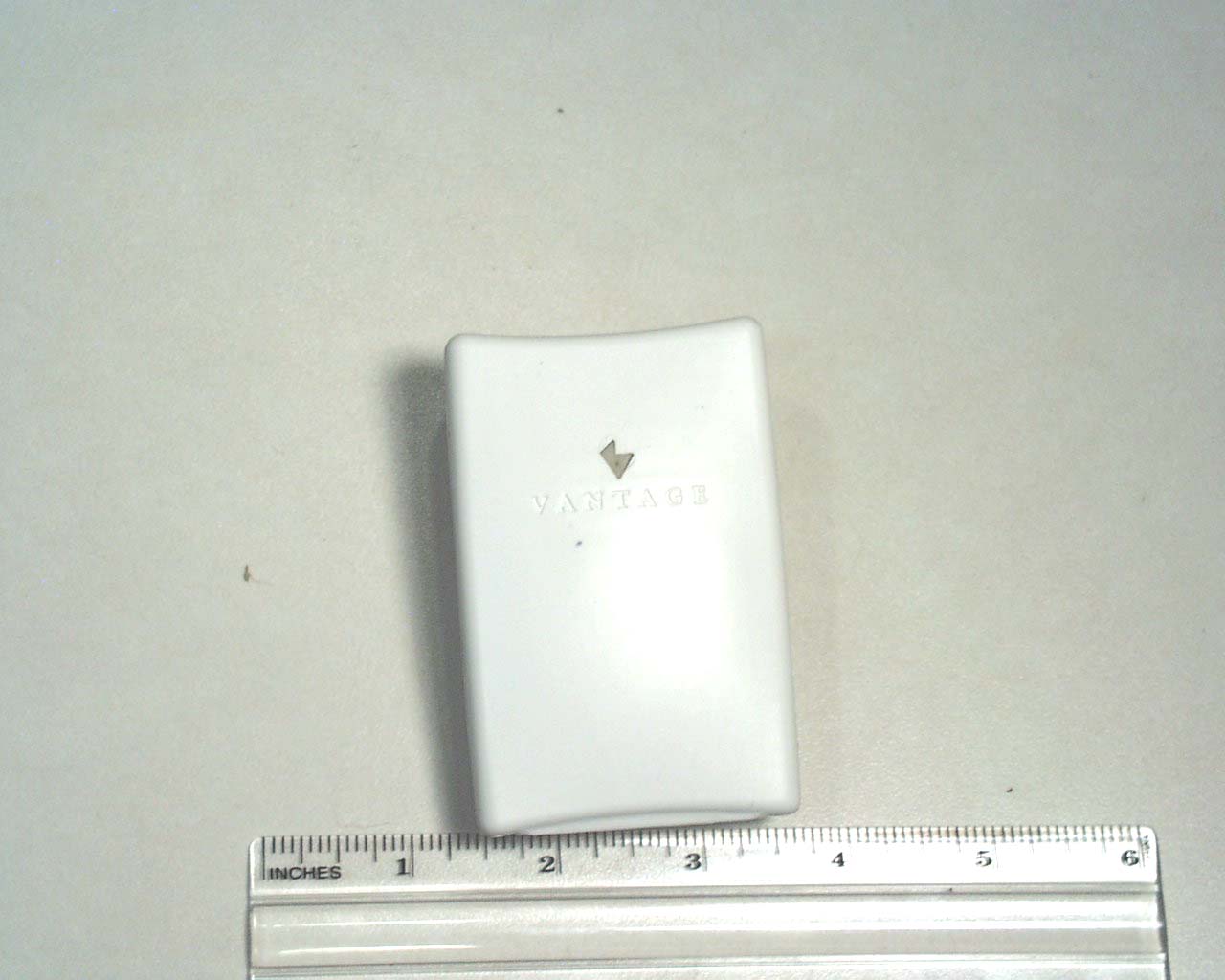

Front View of the EUT Back View of the EUT

Label Placement The label is placed on the back of the case. All InterPoint RTS units will be labeled with a label containing the following wording: FCC ID: PII-VSUB233 IC: 3505A-VSUB233 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The instruction manual for all products that incorporate this module will include the following information: FCC ID: PII-VSUB233 IC: 3505A-VSUB233 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Component Side of the PCB with Shield in Place Component Side of the PCB with Shield Removed Trace Side of the PCB

COMMUNICATION CERTIFICATION LABORATORY 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Certification TEST OF: RTSS FCC ID: PII-VSUB233 To FCC PART 15, Subpart C Test Report Serial No: 73-8305 Applicant: Vantage Controls 1061 South 800 East Orem, UT 84097 Dates of Test: April 26 & May 1, 2006 Issue Date: May 24, 2006 Equipment Receipt Date: April 26, 2006 Accredited Testing Laboratory By: NVLAP Lab Code 100272-0 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8305 FCC ID: PII-VSUB233 Page 2 of 55 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C. This report may be reproduced in full. Partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Vantage Controls - Manufacturer: Vantage Controls - Brand Name: Vantage Controls - Model Number: RTSS - FCC ID Number: PII-VSUB233 On this 24 th day of May 2006, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Communication Certification Laboratory EMC testing facilities are in good standing, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. COMMUNICATION CERTIFICATION LABORATORY Tested by: Norman P. Hansen EMC Technician COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8305 FCC ID: PII-VSUB233 Page 3 of 55 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) ..........................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES ...........7 SECTION 4.0 OPERATION OF EUT DURING TESTING ...................18 SECTION 5.0 SUMMARY OF TEST RESULTS ...........................20 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS .....22 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT ..................44 APPENDIX 2 PHOTOGRAPHS .........................................49 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8305 FCC ID: PII-VSUB233 Page 4 of 55 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Vantage Controls 1061 South 800 East Orem, UT 84097 Contact Name: Jim Beagley Title: Engineer 1.2 Manufacturer: Company Name: Vantage Controls 1061 South 800 East Orem, UT 84097 Contact Name: Jim Beagley Title: Engineer COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8305 FCC ID: PII-VSUB233 Page 5 of 55 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Vantage Controls Model Number: RTSS Serial Number: None Options Fitted: N/A Country of Manufacture: U.S.A. 2.2 Description of EUT: The RTSS transceiver is a product designed to enable wireless control of motorized shade and blind controllers and other systems. The RTSS incorporates 2 separate RF circuits. The RTS transmitter operates at 433.4 MHz. The RadioLink transceiver is frequency hopping, spread spectrum and operates in the 902 – 928 MHz band. The transmitters are controlled so that they can never transmit at the same moment. This report covers the transmitters that are required to meet the requirements of FCC Part 15, Subpart C. The receiver and digital circuitry is covered in separate testing and report. 2.3 EUT and Support Equipment: The FCC ID numbers for all the EUT and support equipment used during the test are listed below: Brand Name Model Number Serial No. FCC ID Number Description Name of Interface Ports / Interface Cables BN: Vantage Controls MN: RTSS (Note 1) PII-VSUB233 Transceiver Unit See Section 2.4 Note: (1) EUT COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8305 FCC ID: PII-VSUB233 Page 6 of 55 2.4 Interface Ports on EUT: Name of Port No. of Ports Fitted to EUT Cable Descriptions/Length Power 1 Direct connection to the AC mains 2.5 Modification Incorporated/Special Accessories on EUT: There were no modifications or special accessories required to comply with the specification. Signature: Typed Name: Jim Beagley Title: Engineer COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8305 FCC ID: PII-VSUB233 Page 7 of 55 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES 3.1 Test Specification: Title: FCC PART 15, Subpart C (47 CFR 15) Purpose of Test: The tests were performed to demonstrate initial compliance for modular certification. 3.2 Requirements: 3.2.1 §15.203 Antenna Requirement An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this Section. The manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. This requirement does not apply to carrier current devices or to devices operated under the provisions of Sections 15.211, 15.213, 15.217, 15.219, or 15.221. Further, this requirement does not apply to intentional radiators that must be professionally installed, such as perimeter protection systems and some field disturbance sensors, or to other intentional radiators which, in accordance with Section 15.31(d), must be measured at the installation site. However, the installer shall be responsible for ensuring that the proper antenna is employed so that the limits in this Part are not exceeded. 3.2.2 §15.207 Conducted Limits (a) Except as shown in paragraphs (b) and (c) of this section, for an intentional radiator that is designed to be …

Text truncated - open the document above for the full version.

Radiated Disturbance Worst Case Configuration Conducted Disturbance Worst Case Configuration
