PJDSV-01-CAM2.4GHz Wireless RF Transmitter

SV-01-CAM 2.4G Wireless Camera Important Safety Precautions THIS DEVICE COMPLES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS, (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION, NOTE : THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Index 1. Introduction 2. Description of Box Contents 3. Connection and Setup 4. Operation 5. Specification STRATEGIC VISTA (BVI) LTD. FCC ID : PJDSV-01-CAM JOB # : 86AZH1 EXHIBIT # : 10A-10E 1. Introduction SV-01-CAM is an wireless camera using the most world-wide popular 2.4Ghz ISM band and design with high flexibility make SV-01-CAM a very versatile device. It can transmit a wide band composite video and audio signals up to 100 meters. Features : 2. Description of Box Contents - SV-01-CAM Wireless camera main unit X 1 pc - AC adapter X 1 pc 120VAC to 12VDC 500mA - Camera stand X 1 pc - Mounting screw X 3 pc - Anchor X 3 pc - Warning decals X 2 pcs - Battery Box for camera X 1 pcs 3. Connection and Setup Connectors and switch Wireless camera Switch/Selector : 1. Power on/off switch 2. Channel selector (CH1 – CH4) Input Jack/Terminal 1. DC input Jack for AC/DC adapter 2. Three contact terminal for battery box. How to wall mount the camera - Attach the stand base to the wall or ceiling where you want to install the camera. Locate a wall stud or ceiling joist and secure bracket using the three supplied screws. - Attach the camera to the stand and firmly tighten the swivel. - Attach the camera with the stand to the stand base and firmly tighten the joint knob the stand base. - Connect the supplied 12V 500mA AC adapter to the DC IN jack at the rear of the camera and plug it into 120V AC outlet. 4 Operation Camera You can receive the picture signal from the camera on several Receiver in remote location. 1. Be sure to set the power switches on the transmitter and receiver to the OFF position before proceeding with the following steps. 2. Connect all video/Audio cable to the receiver. 3. Connect all power source to the transmitter and receiver. 4. Select a channel 1 – 4 on the transmitter 5. Switch on the transmitter and receiver 6. Search the channel 1 – 4 on the receiver using the channel selector switch. ( All receiver and transmitter must have the same channel), you should see the Picture on the receiver. 7. Select another channel on transmitter and receiver if necessary for better picture quality. 8. Adjust the antenna as necessary Battery box A battery box for camera is supplied with the system to allow you to use battery instead of AC power. The battery box feature require 8 pcs AA size batteries. You can use alkaline battery or rechargeable (NiCD or NiMh) battery. There is a battery type selector in the battery box, be sure to select the correct battery type before you insert the battery into the battery box. 5. Specification / Features Power Supply : AC adapter 12V 500mA Battery input 9.6V (8 pcs Recharger NiCd/NiMH battery) 12V (8 pcs alkaline battery) Current consumption : B/W CMOS 230mA typ. (with IR LED) Color CMOS 300mA typ. Battery life : Color CMOS 3 - hrs (assume 1300mAH B/W CMOS 4-5 hrs battery) Channel Frequency : 2411 - 2473 Mhz Channel Selection : PLL synthesizer, 4 Channel Modulation System : FM modulation Transmission channel : Video X 1 Audio X 1 Antenna type : Dipole Dimensions : 73 X 47 X 110 mm Weight : 118 g

Antenna 2.4GHz RF TRANSMITTER MODULE U1 PLL frequency synthesizer controller Vcc Q5, Q6, Q8 RF Mixer, amp CMOS sensor CAM MODULE Q1, Q2Q3, Q4U2 MCU controller Audio outVideo outVIDEO path6 Mhz Audio sub-6.5 Mhz Audio sub- carriercarrier VA1A2 CH1 CH2 CH3 CH4 Channel selector CONTROL BOARD AC/DC INU1, U2 REGULATOR * Optional 2.4GHz SV-01-CAM Wireless Camera

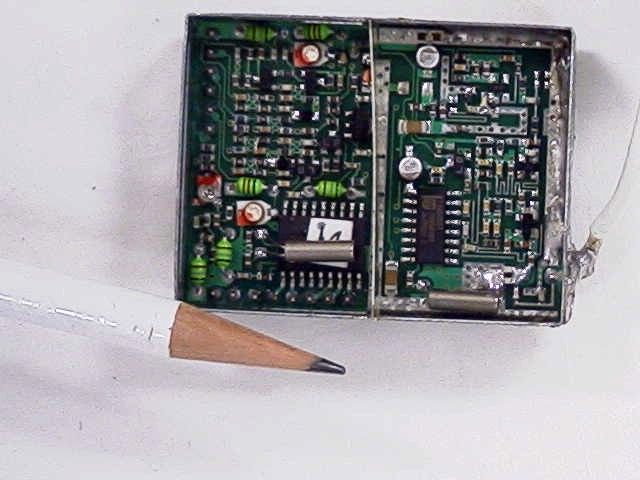

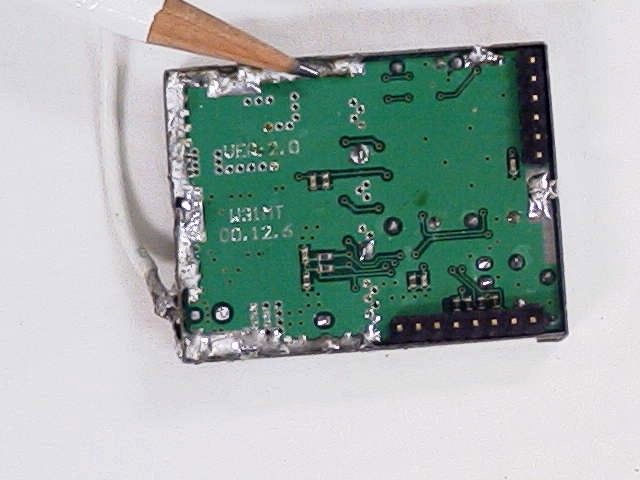

Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Strategic Vista (BVI) Ltd. FCC ID: PJDSV-01-CAM Confirmation #: TC100564 Reference #: 1868 October 25, 2001 Dear Ms. Hawkins: Below please find all of the answers to you’re your e-mail reference number 1868. 1. The requested occupied bandwidth at the lower band edge has been uploaded onto the FCC website. This plot is in compliance because it is > 50dB. 2. Yes, the EUT was tested in three orthogonal planes. Sorry about the omission of this statement in our report. 3. The photographs of the PCB with the metal shield removed have been uploaded onto the FCC website. 4. The measurements on page 3 of the test report are peak. Again, sorry about the omission of this statement in our report. If you have any questions, please feel free to contact me. Best regards, Summer M. Hester

FCC ID label for SV-01-CAM FCC ID : PJDSV-01-CAM MADE IN CHINA THIS DEVICE COMPLES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS, (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. STRATEGIC VISTA (BVI) Ltd. JOB#: 86AZH1 FCCID: PJDSV-01-CAM EXHIBIT: 1

FCC Label Location for SV-01-CAM STRATEGIC VISTA (BVI) LTD. FCC ID : PJDSV-01-CAM EXHIBIT # : 2

Circuit Description for SV-01-CAM 2.4G Wireless Transmitter The SV-01-TX is separate into three parts: 1. B/W CMOS image sensor mdoule 2 Transmitter control Portion 3. 2.4G RF transmitter module 1. B/W CMOS image sensor module The B/W CMOS image sensor is a single chip module. Through the U1 image IC, optical image will transfer to a standard analogue video signal. Which will pass the transmitter control portion. Microphone come with the camera board will convert the voice signal to a audio signal and this audio signal is also pass to the transmitter control portion. 2. Transmitter control portion This portion is mainly for power supply circuitry and signal path. The video and audio signal from the camera module are pass through the control PCB to the 2.4G transmitter module. The power on/off switches on the control PCB control the power supply for the product. The 4 selection slide switch on the control PCB allows user to select the right channel frequency and pass the channel selects information to the RF transmitter module. 3. 2.4G RF transmitter module The core of the RF transmitter module is the U1. U1 is a single chip PLL frequency synthesizer. Control data from MCU U2 is entered via the I2C bus, select the oscillator frequency. The output of U1 is feed to control the Q5,Q6 and Q8 which form a RF mixer circuitry. STRATEGIC VISTA (BVI) LTD. FCC ID : PJDSV-01-CAM JOB # : 86AZH1 EXHIBIT # : 9A Video signal from control board is passed to the RF mixed. Audio signal A1 is pass to a modulate circuit Q1 and Q2, which modulate the A1 audio signal to a 6Mhz carrier. An optional audio channel A2is pass to a modulate circuitry Q3 and Q4 which modulate the A2 audio signal to a 6.5Mhz carrier. The video signal, together with A1 and A2 signal are entered the RF mixer and through the RF circuitry sent the signal to the dipole antenna to broadcast the signal. STRATEGIC VISTA FCC ID : PJDSV-01-CAM EXHIBIT # : 9B

SV-01-CAM 2.4G Wireless Camera Model : SV-01-CAM Product Name : 2.4GHz wireless camera Description : SV-01-CAM is an wireless camera using the most world-wide popular 2.4Ghz ISM band and design with high flexibility make SV-01-CAM a very versatile device. It can transmit a wide band composite video and audio signals up to 100 metres. Specification / Features : Power Supply : AC adapter 12V 500mA Battery input 9.6V (8 pcs Recharger NiCd/NiMH battery) (optional battery box) 12V (8 pcs alkaline battery) Camera board selection : B/W CMOS Current consumption : B/W CMOS 300mA typ. (with IR LED) Battery life : (assume 1300mAH B/W CMOS 5-6 hrs battery) Channel Frequency : CH 1 2431 Mhz CH2 2451 Mhz CH3 2471 Mhz CH4 2411 Mhz Channel Selection : PLL synthesizer, 4 Channel Modulation System : FM modulation Audio su-carrier : R ch 6.0 Mhz L ch 6.5 Mhz Tranmission power : 10mWmax Transmission channel : Video X 1 Audio X 1 STRATEGIC VISTA (BVI) LTD. FCC ID : PJDSV-01-CAM JOB # : 86AZH1 EXHIBIT # : 13A Antenna type : Dipole Output power : 10mW ( RF distance ~ 100m ) Switch/Selector : 1. Power on/off switch 2. Channel selector (CH1 – CH4) Input Jack/Terminal 1. DC input Jack for AC/DC adapter 2. Three contact terminal for battery box. Optional Accessories : 1. Battery box for 8 pcs of AA type battery (Not included) Construction 1. Size : approximate 100 X 58 X 48 mm 2. Mounting : up or bottom mounting like existing LOREX product 3. Accessories : AC adapter mounting bracket mounting screw and anchors STRATEGIC VISTA (BVI) LTD. FCC ID : PJDSV-01-CAM JOB # : 86AZH1 EXHIBIT # : 13B

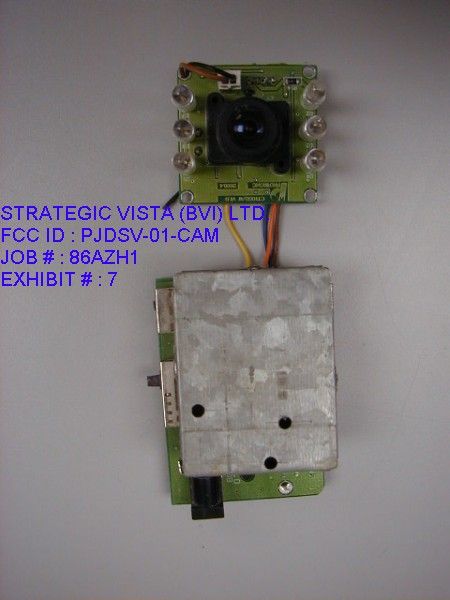

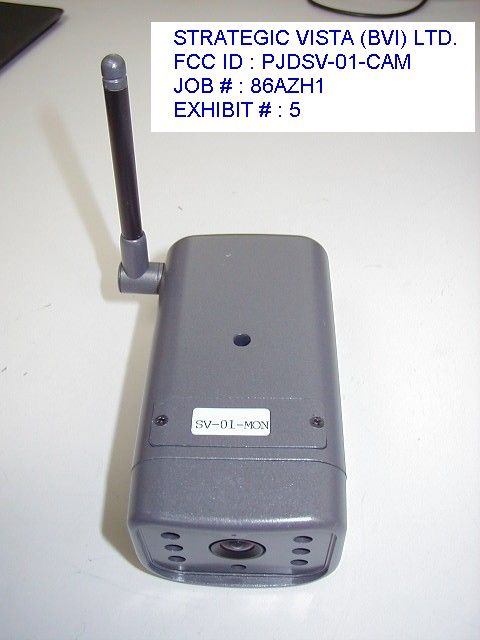

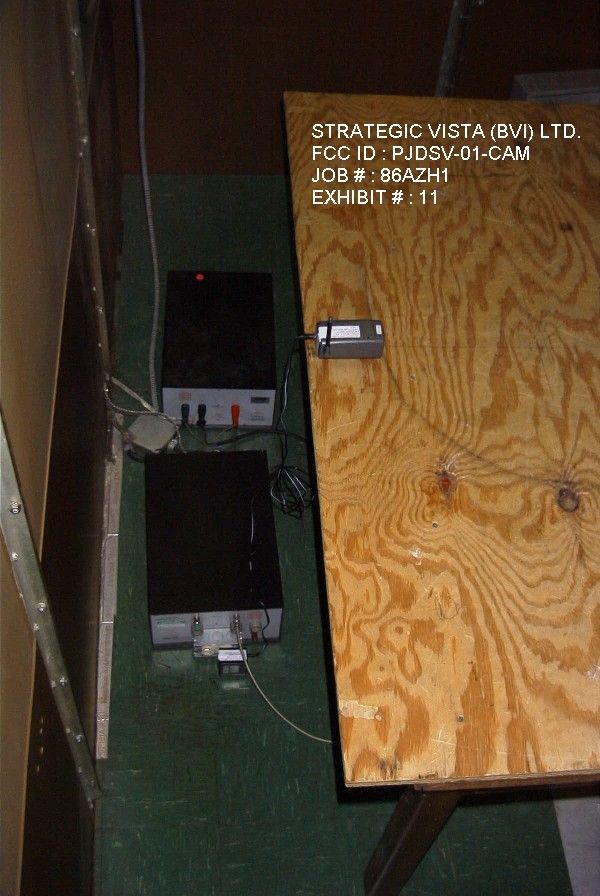

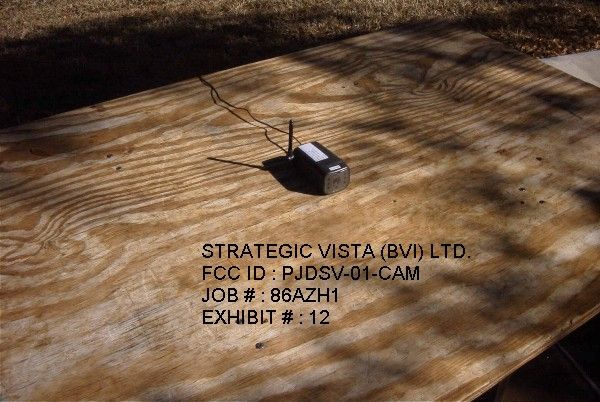

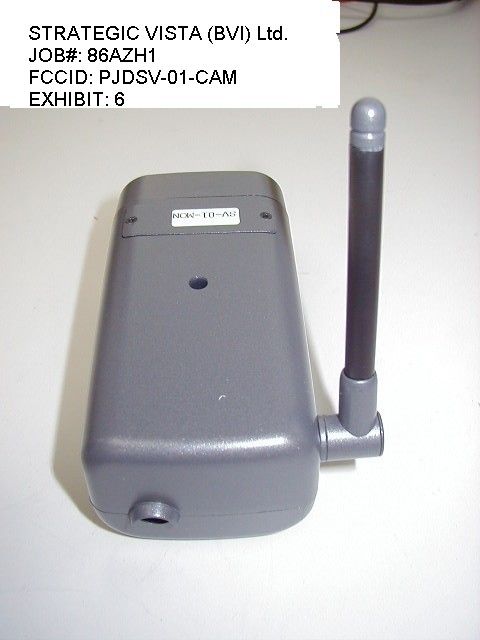

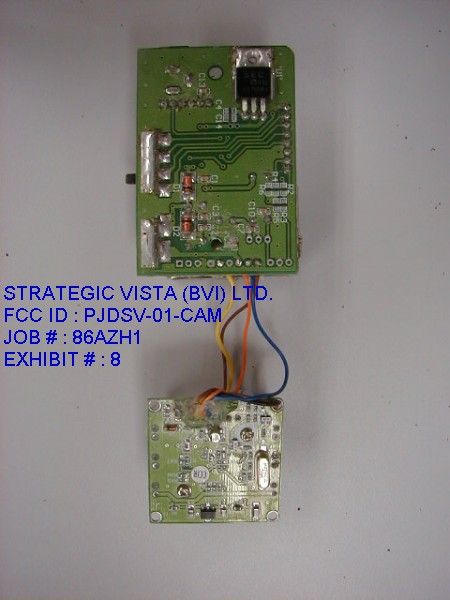

TABLE OF CONTENTS APPLICANT: STRATEGIC VISTA (BVI) LTD. FCC ID: PJDSV-O1-CAM TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST & TEST PROCEDURE PAGE 2.............TEST PROCEDURE CONTINUED PAGE 3.............RADIATION INTERFERENCE TEST DATA PAGE 4.............OCCUPIED BANDWIDTH PAGE 5.............OCCUPIED BANDWIDTH PLOT PAGE 6.............POWERLINE CONDUCTED PAGE 7.............POWERLINE PLOT LINE 1 PAGE 8.............POWERLINE PLOT LINE 2 PAGE 9.............RADIATED EMISSIONS TEST DATA PAGE 10............BANDEDGE PLOT EXHIBIT ATTACHMENTS: EXHIBIT 1...........FCC ID LABEL SAMPLE EXHIBIT 2...........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 3...........BLOCK DIAGRAM EXHIBIT 4A-4C.......SCHEMATICS EXHIBIT 5...........FRONT VIEW EXTERNAL PHOTO EXHIBIT 6...........REAR VIEW EXTERNAL PHOTO EXHIBIT 7...........COMPONENT SIDE INTERNAL PHOTOS EXHIBIT 8...........COPPER SIDE INTERNAL PHOTOS EXHIBIT 9A-9B.......CIRCUIT DESCRIPTION EXHIBIT 10A-10E.....USER'S MANUAL EXHIBIT 11..........TEST SET UP PHOTO - POWERLINE CONDUCTED EXHIBIT 12..........TEST SET UP PHOTO - RADIATED EMISSIONS EXHIBIT 13 .. . . ..SPECIFICATION SHEET APPLICANT: STRATEGIC VISTA (BVI) LTD. FCC ID: PJDSV-O1-CAM REPORT #: T:\CUS\S\STRATE\86AZH1\86AZH1.RPT PAGE: TABLE OF CONTENTS LIST APPLICANT: STRATEGIC VISTA (BVI) LTD. FCC ID: PJDSV-O1-CAM TEST EQUIPMENT LIST 1._X_Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 10/17/99 2._X_Biconnical Antenna: Eaton Model 94455-1, S/N 1057 3.___Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 4._X_Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 5.___Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 6._X_Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 7.___18-26.3GHz Systron Donner Standard Gain Horn #DBE-520-20 8.___Horn 40-60GHz: ATM Part #19-443-6R 9.___Line Impedance Stabilization Network: Electro-Metrics Model ANS-25/2, S/N 2604 Cal. 2/9/00 10.___Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 11.___Frequency Counter: HP Model 5385A, S/N 3242A07460 Cal 10/6/99 12.___Peak Power Meter: HP Model 8900C, S/N 2131A00545 13._X_Open Area Test Site #1-3meters Cal. 12/22/99 14.___Signal Generator: HP 8640B, S/N 2308A21464 Cal. 9/23/99 15.___Signal Generator: HP 8614A, S/N 2015A07428 16.___Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Cal. 6/10/00 17.___Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 Cal. 11/24/99 18.___AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 9/21/99 19.___Digital Multimeter: Fluke Model 8012A, S/N 4810047 Cal 9/21/99 20.___Digital Multimeter: Fluke Model 77, S/N 43850817 Cal 9/21/99 21.___Oscilloscope: Tektronix Model 2230, S/N 300572 Cal 9/23/99 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. The UUT was transmit- ting a test signal during the testing. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz up to 1.0GHz and 1.0MHz with a video BW of 3.0MHz above 1.0GHz. The ambient temperature of the UUT was 71oF with a humidity of 19%. APPLICANT : STRATEGIC VISTA (BVI) LTD. FCC ID : PJDSV-O1-CAM REPORT #: T:\CUS\S\STRATE\86AZH1\86AZH1.RPT PAGE #: 1 APPLICANT : &APPLICANT FCC ID : PJDSV-O1-CAM TEST PROCEDURE CONTINUED FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STAN- DARD C63.4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10kHz with an appro- priate sweep speed. The ambient temperature of the UUT was 77oF with a humidity of 52%. ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1M by 1.5M. The UUT was placed in the center of the table (1.5M side). The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1M to 4M. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. APPLICANT : STRATEGIC VISTA (BVI) LTD. FCCID : PJDSV-O1-CAM REPORT #: T:\CUS\S\STRATE\86AZH1\86AZH1.RPT PAGE #: 2 APPLICANT: STRATEGIC VISTA (BVI) LTD. FCC ID: PJDSV-O1-CAM NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.249, 15.209 REQUIREMENTS: FIELD STRENGTH FIELD STRENGTH S15.209 of Fundamental: of Harmonics 30 - 88 MHz 40 dBuV/m @3M 902-928 MHZ 88 -216 MHz 43.5 2.4-2.4835 GHz 216 -960 MHz 46 94 dBuV/m @3m 54 dBuV/m @3m ABOVE 960 MHz 54dBuV/m EMISSIONS RADIATED OUTSIDE OF THE SPECIFIED FREQUENCY BANDS, EXCEPT FOR HARMONICS, SHALL BE ATTENUATED BY AT LEAST 50 dB BELOW THE LEVEL OF THE FUNDAMENTAL OR TO THE GENERAL RADIATED EMISSION LIMITS IN 15.209, WHICHEVER IS THE LESSER ATTENUATION. TEST RESULTS: This unit DOES meet the FCC requirements. TEST DATA: EMISSION METER READING COAX ANTENNA FIELD FREQUENCY AT 3 METERS LOSS CORRECTION STRENGTH MARGIN ANT. MHz dBuV d…
