PJRGDM-110Dual-Mode Cellular Phone (AMPS/CDMA)

© 2001 PCTEST Lab ATTACHMENT M – USER’S MANUAL For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 2.3 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 2.3 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone

© 2001 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S) August 12, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: GIGA TELECOM FCC ID: PJRGDM-110 Users Manual RF Exposure Warning Statement Gentlemen: GIGA TELECOM hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact PCTEST Lab or me at (410) 290-6652. Sincerely,

© 2001 PCTEST Lab ATTACHMENT A – COVER LETTER(S) July 6, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:GIGA TELECOM FCC ID: PJRGDM-110 Part 22 Certification Gentlemen: Attached herewith, on behalf of GIGA TELECOM, is an application for Part 22 Certification of the following Dual-Mode Cellular Phone (AMPS/CDMA): FCC ID:PJRGDM-110 TRADE / MODEL(s):GIGA / GDM-110 EUT TYPE:Non-Broadcast transmitter Held to Ear (TNE) Tx Freq. Range:824.04 – 848.97 MHz 824.70 – 848.31 MHz Rx Freq. Range:869.04 – 893.31 MHz 869.70 – 893.31 MHz Max. RF Output Power:0.419 W ERP AMPS (26.633 dBm) 0.319W ERP CDMA (25.033 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:GIGA TELECOM

November 7, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Joe Dichoso SUBJECT: Giga Telecom, Inc. FCC ID: PJRGDM-110 731 Confirmation No.: EA102093 Correspondence Reference No.: 20880 Request for Tech. Info.: 10/11/01 Dear Joe: Transmitted herewith, on behalf of Giga Telecom, Inc., is an amendment provided in response to the request for technical information dated October 11, 2001. 1. Please find attached the SAR test setup. 2. Please find attached the corrected operational description. 3. Please find the attached SAR data obtained from a retest of the highest SAR Configuration in the original filing. 4. Please find the attached SAR data obtained from a complete retest of the body SAR. 5. We would like to confirm that the tissue parameters in the report are measured parameters. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Giga Telecom, Inc.

November 16, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Joe Dichoso SUBJECT: Giga Telecom, Inc. FCC ID: PJRGDM-110 731 Confirmation No.: EA102093 Correspondence Reference No.: 21259 Request for Tech. Info.: 11/15/01 Dear Joe: Transmitted herewith, on behalf of Giga Telecom, Inc., is an amendment provided in response to the request for technical information dated November 15, 2001. 1. Please find attached the revised RF safety user information statement and SAR Test Setup photos for the 1.5 cm separation distance configuration. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Giga Telecom, Inc.

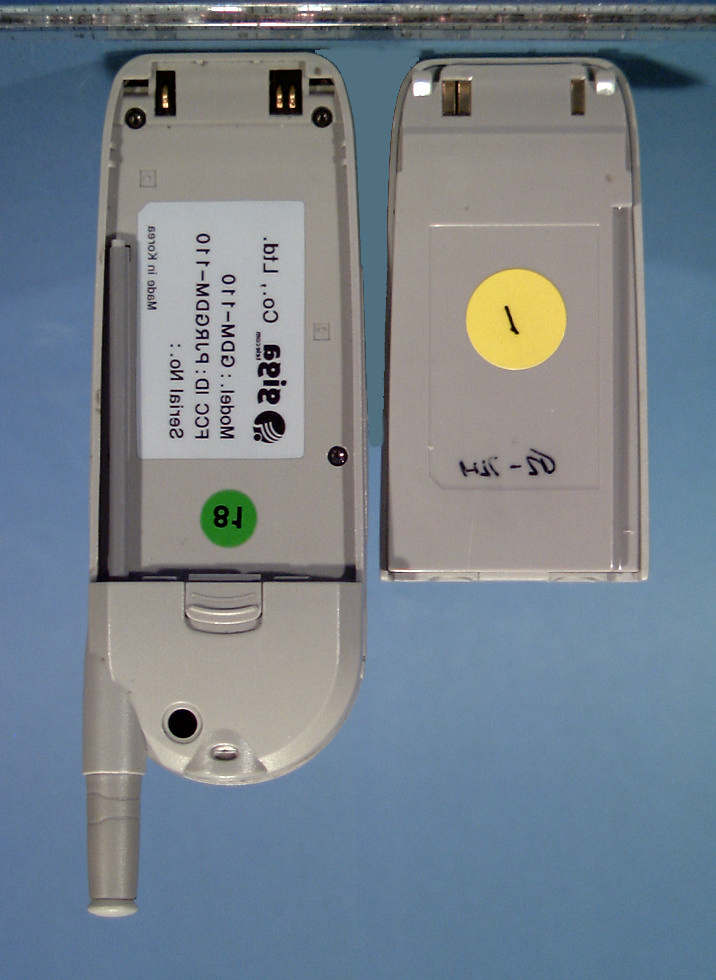

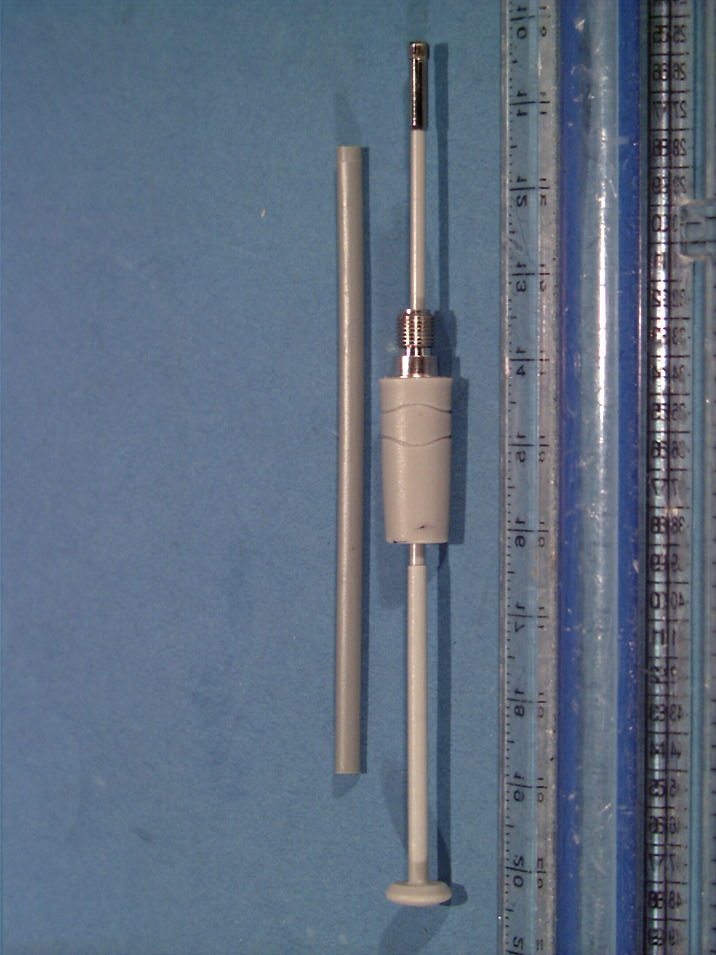

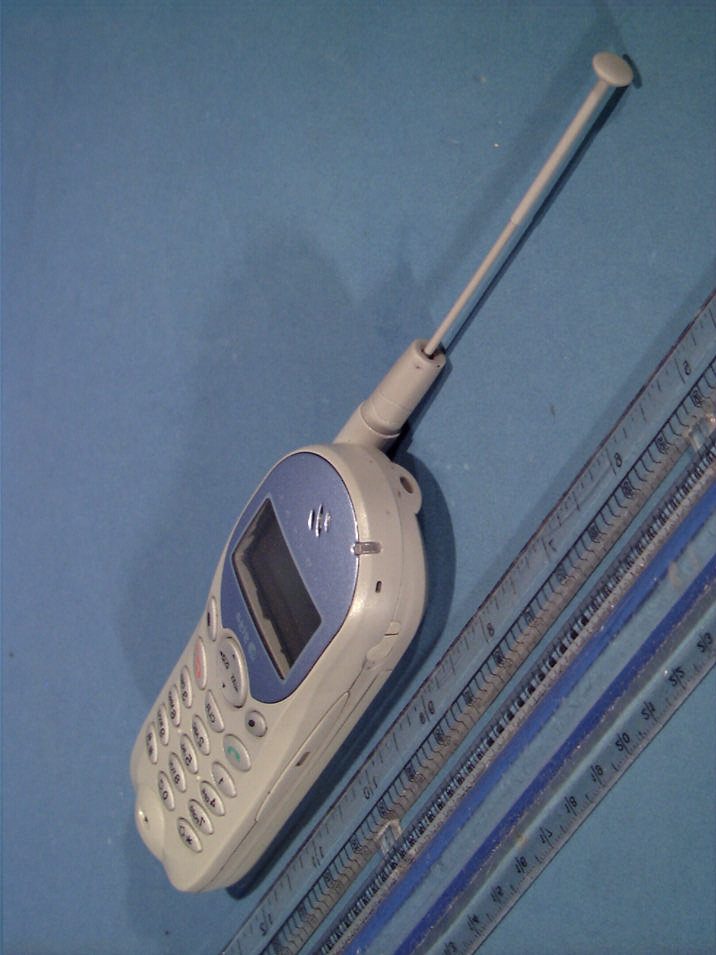

© 2001 PCTEST Lab ATTACHMENT G – EXTERNAL PHOTOGRAPHS © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA)

© 2001 PCTEST Lab ATTACHMENT E – FCC ID LABEL / LOCATION © 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

© 2001 PCTEST Lab ATTACHMENT H – INTERNAL PHOTOGRAPHS © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA)

© 2001 PCTEST Lab ATTACHMENT P – SAR TEST SETUP PHOTOGRAPHS © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA)

© 2001 PCTEST Lab ATTACHMENT O – SAR TEST DATA Peak SAR Location © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01081321_ZOOM.VLT Start : 13-Aug-101 05:44:44 pm End : 13-Aug-101 05:54:24 pm Radio Type : GIGA Model Number : GDM-110 Serial Number : 81 Frequency : 824.04 MHz Peak Trans. Pwr : 0.530 W Start Trans. Pwr: 0.530 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : GIGA DUAL-MODE PHONE - AMPS MODE CH 0991 Conducted 27.2 dBm GIGA DUAL-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.500, Y = -4.750, Z = 0.000 (cm) Value = 13.955 Measured Values (volts) = 1.373E-002 9.970E-003 7.948E-003 6.356E-003 5.219E-003 4.239E-003 3.468E-003 2.772E-003 2.274E-003 1.972E-003 1.737E-003 1.589E-003 1.462E-003 1.373E-003 1.204E-003 1.037E-003 8.267E-004 5.801E-004 4.046E-004 2.599E-004 2.614E-004 Calc. Voltage @ Surface (Vs) = 0.0181 Voltage @ 1.00 cm (Vt) = 0.0064 Ave. Voltage (Vs+Vt)/2 = 0.0122 Ave. SAR over 1 g (mW/g) = 0.8906 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 mW/g -1012345 Z centimeters SAR Scan File : 01081321_ZOOM Start : 13-Aug-101 05:44:44 pm End : 13-Aug-101 05:54:24 pm GIGA/GDM-110/81;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01081321_ZOOM Start : 13-Aug-101 05:44:44 pm End : 13-Aug-101 05:54:24 pm GIGA/GDM-110/81;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.018 0.949 0.880 0.811 0.741 0.672 0.603 0.534 0.464 0.395 File : 01081321_ZOOM Start : 13-Aug-101 05:44:44 pm End : 13-Aug-101 05:54:24 pm GIGA/GDM-110/81;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.018 0.949 0.880 0.811 0.741 0.672 0.603 0.534 0.464 0.395 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01081508_ZOOM.VLT Start : 15-Aug-101 10:39:52 am End : 15-Aug-101 10:49:25 am Radio Type : GIGA Model Number : GDM-110 Serial Number : 81 Frequency : 824.04 MHz Peak Trans. Pwr : 0.530 W Start Trans. Pwr: 0.530 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : GIGA DUAL-MODE PHONE - AMPS MODE CH 0991 Conducted 27.2 dBm GIGA DUAL-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 1.250, Y = -3.500, Z = 0.000 (cm) Value = 9.881 Measured Values (volts) = 9.273E-003 7.257E-003 5.791E-003 4.727E-003 3.964E-003 3.423E-003 3.126E-003 2.948E-003 2.835E-003 2.721E-003 2.496E-003 2.181E-003 1.870E-003 1.477E-003 1.057E-003 7.371E-004 5.411E-004 5.013E-004 5.668E-004 7.044E-004 9.134E-004 Calc. Voltage @ Surface (Vs) = 0.0117 Voltage @ 1.00 cm (Vt) = 0.0047 Ave. Voltage (Vs+Vt)/2 = 0.0082 Ave. SAR over 1 g (mW/g) = 0.6005 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 mW/g -1012345 Z centimeters SAR Scan File : 01081508_ZOOM Start : 15-Aug-101 10:39:52 am End : 15-Aug-101 10:49:25 am GIGA/GDM-110/81;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01081508_ZOOM Start : 15-Aug-101 10:39:52 am End : 15-Aug-101 10:49:25 am GIGA/GDM-110/81;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 0.721 0.681 0.641 0.600 0.560 0.520 0.480 0.440 0.399 0.359 File : 01081508_ZOOM Start : 15-Aug-101 10:39:52 am End : 15-Aug-101 10:49:25 am GIGA/GDM-110/81;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 0.721 0.681 0.641 0.600 0.560 0.520 0.480 0.440 0.399 0.359 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01081425_ZOOM.VLT Start : 14-Aug-101 04:33:46 pm End : 14-Aug-101 04:43:24 pm Radio Type : GIGA Model Number : GDM-110 Serial Number : 81 Frequency : 836.49 MHz Peak Trans. Pwr : 0.560 W Start Trans. Pwr: 0.560 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : GIGA DUAL-MODE PHONE - AMPS MODE CH 0383 Conducted 27.5 dBm GIGA DUAL-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.000, Y = -4.250, Z = 0.000 (cm) Value = 21.038 Measured Values (volts) = 2.033E-002 1.602E-002 1.269E-002 1.057E-002 8.722E-003 7.354E-003 5.908E-003 4.897E-003 3.926E-003 3.327E-003 2.917E-003 2.677E-003 2.494E-003 2.338E-003 2.147E-003 1.910E-003 1.509E-003 1.124E-003 8.397E-004 5.163E-004 3.628E-004 Calc. Voltage @ Surface (Vs) = 0.0257 Voltage @ 1.00 cm (Vt) = 0.0106 Ave. Voltage (Vs+Vt)/2 = 0.0182 Ave. SAR over 1 g (mW/g) = 1.3245 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 01081425_ZOOM Start : 14-Aug-101 04:33:46 pm End : 14-Aug-101 04:43:24 pm GIGA/GDM-110/81;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01081425_ZOOM Start : 14-Aug-101 04:33:46 pm End : 14-Aug-101 04:43:24 pm GIGA/GDM-110/81;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.54 1.43 1.33 1.23 1.13 1.03 0.93 0.83 0.73 0.62 File : 01081425_ZOOM Start : 14-Aug-101 04:33:46 pm End : 14-Aug-101 04:43:24 pm GIGA/GDM-110/81;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 D…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT N – SAR MEASUREMENT REPORT © 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) GIGA TELECOM, Inc. Dates of Tests: Aug. 13-15, 2001 (135-091)#156-3, Sewha Bldg. 4F, Samsung-Dong Test Report S/N: SAR.210813483.PJR Kangnam-Gu, Seoul, KOREA Test Site: PCTEST Lab, Columbia, MD USA Attn: M. J. Woo President FCC ID PJRGDM-110 APPLICANT GIGA Telecom, Inc. EUT Type: Dual-Mode Cellular Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) Max. RF Output Power: 0.419W ERP AMPS (26.223 dBm) 0.319W ERP CDMA (25.033 dBm) Trade Name/Model(s): GIGA GDM-110 FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.3245 W/kg AMPS Brain SAR; 1.3199 W/kg AMPS Body SAR 1.1498 W/kg CDMA Brain SAR; 1.1347 W/kg CDMA Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210813483.PJR Test Report S/N: SAR.210813483.PJR SAR Measurement Report Test Dates: AUG. 13-15, 2001 FCC Part 22 Certification Table of Contents 1.1 SCOPE....................................................................................................1 2.1 INTRODUCTION.......................................................................................2 3.1 SAR MEASUREMENT SET-UP.................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM.....................................................4 5.1 E-field PROBE CALIBRATION PROCESS.................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES..................................................7 7.1 SYSTEM SPECIFICATIONS......................................................................8 8.1 MEASUREMENT PROCESS.....................................................................9 9.1 TEST POSITION OF THE PHONE..........................................................10 10.1 BODY-WORN TEST SETUP.................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS....................................12 12.1 MEASUREMENT UNCERTAINTIES.......................................................13 13.1 SAR TEST DATA SUMMARY................................................................14 14.1 SAR TEST EQUIPMENT.......................................................................16 15.1 CONCLUSION......................................................................................17 Test Report S/N: SAR.210813483.PJR SAR Measurement Report Test Dates: Aug. 13-15, 2001 FCC Part 22 Certification FCC ID: PJRGDM-110 (Model: GDM-110) © 2001 PCTEST Lab GIGA Dual-Mode Cellular Phone (AMPS/CDMA) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: GIGA TELECOM, Inc. Address: (135-091)#156-3, Sewha Bldg. 4F, Samsung-Dong Kangnam-Gu, Seoul, KOREA Attention: M. J. Woo President • EUT Type: Dual-Mode Cellular Phone (AMPS/CDMA) • Trade Name: GIGA • Model(s): GDM-110 • FCC IDENTIFIER: PJRGDM-110 • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) • Application Type: Certification • FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): AMPS/CDMA • Max RF. Output Power: 0.419W ERP AMPS (26.223 dBm) 0.319W ERP CDMA (25.033 dBm) • Date(s) of Tests: Aug. 13-15, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210813483.PJR 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210813483.PJR SAR Measurement Report Test Dates: Aug. 13-15, 2001 FCC Part 22 Certification FCC ID: PJRGDM-110 (Model: GDM-110) © 2001 PCTEST Lab GIGA Dual-Mode Cellular Phone (AMPS/CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. © 1992 …

Text truncated - open the document above for the full version.

GIGA FCC ID: PJRGDM-1100 (Model: GDM-110) Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST SAR TEST DATA SUMMARY Ambient TEMPERATURE (°C) 22.1 Relative HUMIDITY (%) 53.0 Atmospheric PRESSURE (kPa) 100.9 Measured Values: Mixture Type: Brain Dielectric Constant: 41.6 Conductivity: 0.90 Liquid Depth: 15.6 cm Closest Distance (between E-Probe & Phone): 1.7 cm Measurement Results (AMPS Head SAR) FREQUENCY Modulation POWER Phantom Antenna SAR MHz Ch. (dBm) Position Position (W/kg) 836.49 383 AMPS 27.2 Left Ear IN 1.2899 ANSI / IEEE C95.1 1992 - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population Brain 1.6 W/kg (mW/g) averaged over 1 gram NOTES: 1. The test data reported are the worst-case SAR value with the antenna-head position set in a typical configuration. 2. All modes of operation were investigated and the worst-case are reported. 3. Power Measured x Conducted o EIRP o ERP 4. SAR Measurement System o SPEAG x IDX 5. SAR Configuration x Head o Body o Hand Fig. A Head SAR Test Setup File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01110209_ZOOM.VLT Start : 2-Nov-101 02:53:49 pm End : 2-Nov-101 03:09:23 pm Radio Type : GIGA Model Number : GDM-110 Serial Number : 81 Frequency : 836.49 MHz Peak Trans. Pwr : 0.530 W Start Trans. Pwr: 0.530 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : GIGA DUAL-MODE PHONE - AMPS MODE CH 0383 Conducted 27.2 dBm GIGA DUAL-MODE PHONE Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.325 PCTEST Amplifier Channel Settings : 0.239 0.278 0.294 Max Location : X = 0.500, Y = -3.500, Z = 0.000 (cm) Value = 52.465 Measured Values (volts) = 4.932E-002 4.110E-002 3.466E-002 2.977E-002 2.559E-002 2.207E-002 1.882E-002 1.650E-002 1.417E-002 1.238E-002 1.060E-002 9.584E-003 8.656E-003 7.927E-003 7.664E-003 7.348E-003 7.230E-003 6.813E-003 6.917E-003 6.713E-003 6.483E-003 Calc. Voltage @ Surface (Vs) = 0.0568 Voltage @ 1.00 cm (Vt) = 0.0289 Ave. Voltage (Vs+Vt)/2 = 0.0429 Ave. SAR over 1 g (mW/g) = 1.2899 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 01110209_ZOOM Start : 2-Nov-101 02:53:49 pm End : 2-Nov-101 03:09:23 pm GIGA/GDM-110/81;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01110209_ZOOM Start : 2-Nov-101 02:53:49 pm End : 2-Nov-101 03:09:23 pm GIGA/GDM-110/81;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.58 1.43 1.28 1.13 0.99 0.84 0.69 0.54 0.39 0.25 File : 01110209_ZOOM Start : 2-Nov-101 02:53:49 pm End : 2-Nov-101 03:09:23 pm GIGA/GDM-110/81;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.58 1.43 1.28 1.13 0.99 0.84 0.69 0.54 0.39 0.25 GIGA FCC ID: PJRGDM-1100 (Model: GDM-110) Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST SAR TEST DATA SUMMARY Ambient TEMPERATURE (°C) 22.1 Relative HUMIDITY (%) 53.0 Atmospheric PRESSURE (kPa) 100.9 Measured Values: Mixture Type: Muscle Dielectric Constant: 56.1 Conductivity: 0.96 Liquid Depth: 15.0 cm Measurement Results (AMPS Body SAR) FREQUENCY Modulation POWER * Separation Antenna SAR MHz Ch. (dBm) Distance (cm)** Position (W/kg) 824.04 991 AMPS 27.2 1.5 IN 0.6314 824.04 991 AMPS 27.2 1.5 OUT 0.6049 836.49 383 AMPS 27.2 1.5 IN 1.0255 836.49 383 AMPS 27.2 1.5 OUT 0.9842 848.97 799 AMPS 27.2 1.5 IN 0.6536 848.97 799 AMPS 27.2 1.5 OUT 0.7087 ANSI / IEEE C95.1 1992 – SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population Body 1.6 W/kg (mW/g) Averaged over 1 gram NOTES: 1. All modes of operation were investigated and the worst-case are reported. 2. Battery condition is fully charged for all readings. 3. * Power Measured x Conducted o EIRP o ERP 4. SAR Measurement System o SPEAG x IDX 5. SAR Configuration o Head x Body o Hand 6. ** Test Configuration o Body Holster x Without Body Holster Fig. B Body SAR Test Setup GIGA FCC ID: PJRGDM-1100 (Model: GDM-110) Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST SAR TEST DATA SUMMARY Ambient TEMPERATURE (°C) 22.1 Relative HUMIDITY (%) 53.0 Atmospheric PRESSURE (kPa) 100.9 Measured Values: Mixture Type: Muscle Dielectric Constant: 56.1 Conductivity: 0.96 Liquid Depth: 15.0 cm Measurement Results (CDMA Body SAR) FREQUENCY Modulation POWER * Separation Antenna SAR MHz Ch. (dBm) Distance (cm)** Position (W/kg) 824.70 1013 CDMA 26.0 1.5 IN 0.5013 824.70 1013 CDMA 26.0 1.5 OUT 0.4984 835.89 363 CDMA 26.0 1.5 IN 0.9582 835.89 363 CDMA 26.0 1.5 OUT 1.0265 848.31 777 CDMA 26.0 1.5 IN 0.5366 848.31 777 CDMA 26.0 1.5 OUT 0.5523 ANSI / IEEE C95.1 1992 – SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population Body 1.6 W/kg (mW/g) Averaged over 1 gram NOTES: 1. All modes of operation were investigated and the worst-case are reported. 2. Battery condition is fully charged for all readings. 3. * Power Measured x Conducted o EIRP o ERP 4. SAR Measurement System o SPEAG x IDX 5. SAR Configuration o Head x Body o Hand 6. ** Test Configuration o Body Holster x Without Body Holster Fig. C Body SAR Test Setup File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01110535_ZOOM.VLT Start : 5-Nov-101 05:18:35 pm End : 5-Nov-101 05:19:28 pm Radio Type : GIGA Model Number : GDM-110 Serial Number : 81 Frequency : 824.04 MHz Peak Trans. Pwr : 0.530 W Start Trans. Pwr: 0.530 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 56.100 Mixture Conductivity = 0.950 Comment : GIGA DUAL-MODE PHONE - AMPS MODE CH 0991 Conducted 27.2 dBm GIGA DUAL-MODE PHONE Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.423 PCTEST Amplifier Channel Settings : 0.239 0.278 0.294 Max Locatio…

Text truncated - open the document above for the full version.

For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone

© 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 1004310 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 1004310 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab GIGA FCC ID: PJRGDM-110 (Model: GDM-110) NVLAP Lab Code: 1004310 Dual-Mode Cellular Phone (AMPS/CDMA)

© 2001 PCTEST Lab ATTACHMENT C – TEST REPORT © 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 www.pctestlab.comwww.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification GIGA TELECOM, Inc.Dates of Tests: August 13-15, 2001 (135-091)#156-3, Sewha Bldg. 4F, Samsung-DongTest Report S/N: 22.210813484.PJR Kangnam-Gu, Seoul, KOREATest Site: PCTEST Lab, Columbia, MD USA Attn:M. J. Woo, President FCC ID PJRGDM-110 APPLICANT GIGA Telecom, Inc. Classification:Non-Broadcast Transmitter held to ear (TNE) FCC Rule Part(s):§22(H), §22.901(d), §2 EUT Type:Dual-Mode Cellular Phone (AMPS/CDMA) Trade Name/Model(s):GIGA GDM-110 Tx Frequency Range: 824.04 ~ 848.97MHz (AMPS) / 824.70 ~ 848.31 MHz (CDMA) Rx Frequency Range:869.04 ~ 893.31MHz (AMPS) / 869.70 ~ 893.31 MHz (CDMA) Max. RF Output Power:0.419W ERP AMPS (26.223 dBm) / 0.319W ERP CDMA (25.033 dBm) Max. SAR Measurement:1.3245 mW/g AMPS Head SAR; 1.1498 mW/g CDMA Head SAR; 1.3199 mW/g AMPS Body SAR; 1.1347 mW/g CDMA Body SAR Frequency Tolerance:0.00025% (2.5 ppm) Emission Designators:40K0F8W, 40K0F1D, 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210813484.PJR FCC Part 22Certification © 2001PCTEST Engineering Laboratory, Inc.FCC Part 22 TABLE OF CONTENTS ATTACHMENT A: COVER…
