PKG10082RC27Remote Controller for Toy

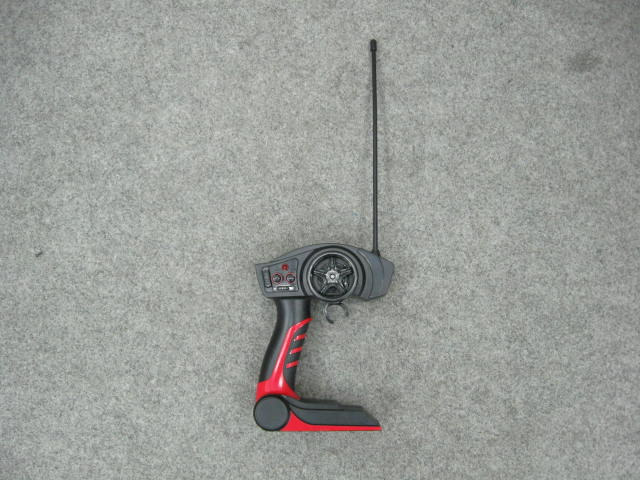

External photo Front View of the product Rear View of the product Battery compartment Battery Cover

FCC ID:PKG10082RC27 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

Internal photo Inner Circuit Top View Inner Circuit Bottom View Internal View of the product Antenna
