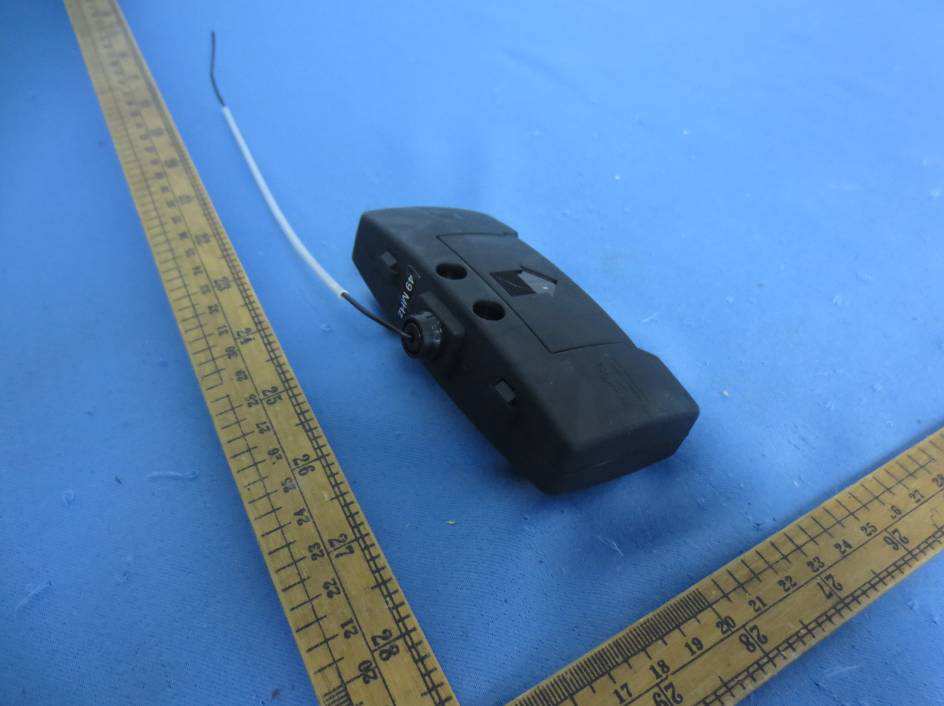

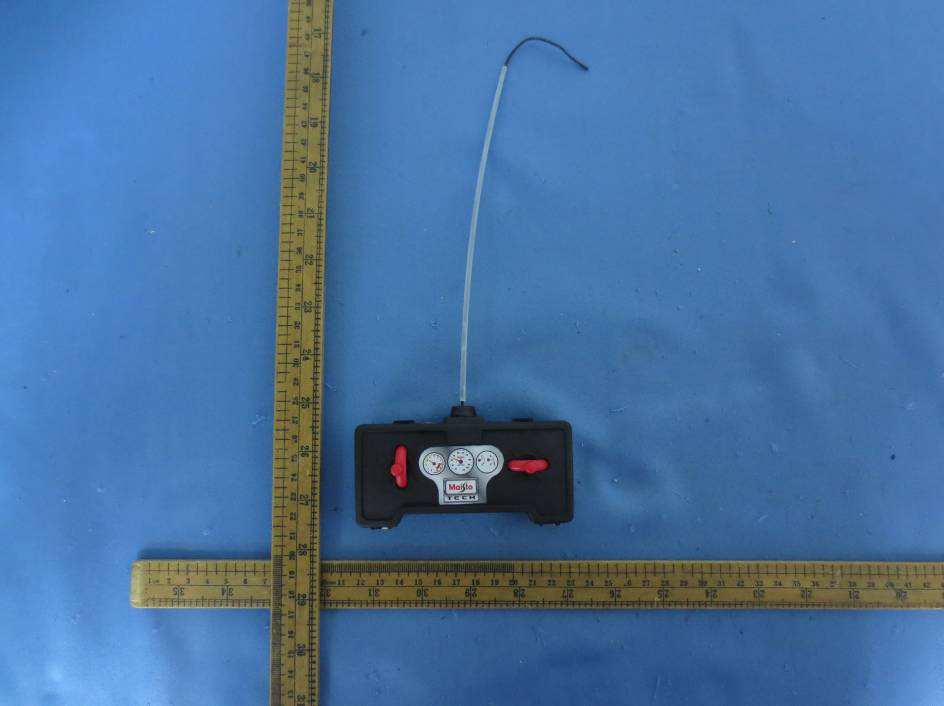

External Photos

Label Artwork and Location Label Size: 25mm(W) x 12.5mm(H)

Internal Photos

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a 1:24 Licensed R/C Vehicles operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by two 1.5V AA size batteries.For more detail information pls. refer to the user manual. Antenna Type: Integral Antenna Antenna Gain: 0dBi The nominal conducted output power specified: -18.83dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -20.98dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: The worst-case peak radiated emission for the EUT is 76.4dBμV/m at 3m in the frequency 49.860MHz The EIRP = [(FS*D) ^2 / 30] mW = -18.83dBm The ERP = EIRP – 2.15 = -20.98 dBm which is within the production variation. The maximum conducted output power specified is -15.83dBm = 0.026mW The source- based time-averaging conducted output power = 0.026* Duty Cycle mW= 0.016 mW The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 =308.6mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. The duration of one cycle = 17.04ms Effective period of the cycle = 1.44ms x 4 + 480μs x 10 = 10.56ms DC = 10.56ms / 17.04ms = 0.6197 or 61.97% FCC ID: PKG12099RC49

Ref 30 dBmAtt 40 dB * MAXH A Center 49.8608 MHz10 ms/ 3DB RBW 3 MHz SWT 100 ms * VBW 3 MHz SGL 1 PK -70 -60 -50 -40 -30 -20 -10 0 10 20 30 Ref 30 dBmAtt 40 dB * MAXH A 3DB RBW 3 MHz * VBW 3 MHz SGL Center 49.8608 MHz6 ms/ SWT 60 ms 1 PK -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -12.19 dBm 21.600000 ms 1 Delta 1 [T1 ] 0.01 dB 17.040000 ms Ref 30 dBmAtt 40 dB * MAXH A 3DB RBW 3 MHz * VBW 3 MHz SGL Center 49.8608 MHz6 ms/ SWT 60 ms 1 PK -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -12.19 dB m 21.600000 ms 1 Delta 1 [T1 ] -0.62 dB 1.440000 ms Ref 30 dBmAtt 40 dB * MAXH A 3DB RBW 3 MHz * VBW 3 MHz SGL Center 49.8608 MHz6 ms/ SWT 60 ms 1 PK -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -12.22 dBm 29.160000 ms 1 Delta 1 [T1 ] -0.27 dB 480.000000 μs

A * * 3DB RBW 1 kHz VBW 3 kHz SWT 100 msAtt 40 dB * Ref 30 dBm Start 49.81 MHzStop 49.91 MHz10 kHz/ 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -12.46 dB m 49.860800000 MHz 2 Delta 2 [T1 ] -43.91 dB -50.800000000 kHz 3 Delta 3 [T1 ] -41.87 dB 49.200000000 kHz
