Date: August 04, 2015 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: PKG14172RC49 Request is hereby submitted by May Cheong Toy products FTY. Ltd, to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and May Cheong Toy products FTY. Ltd, reserves the right to discern which parties can obtain access to these information: Schematics Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of May Cheong Toy products FTY. Ltd, and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Signature: Name: Anson Wang Title: Quality Manager

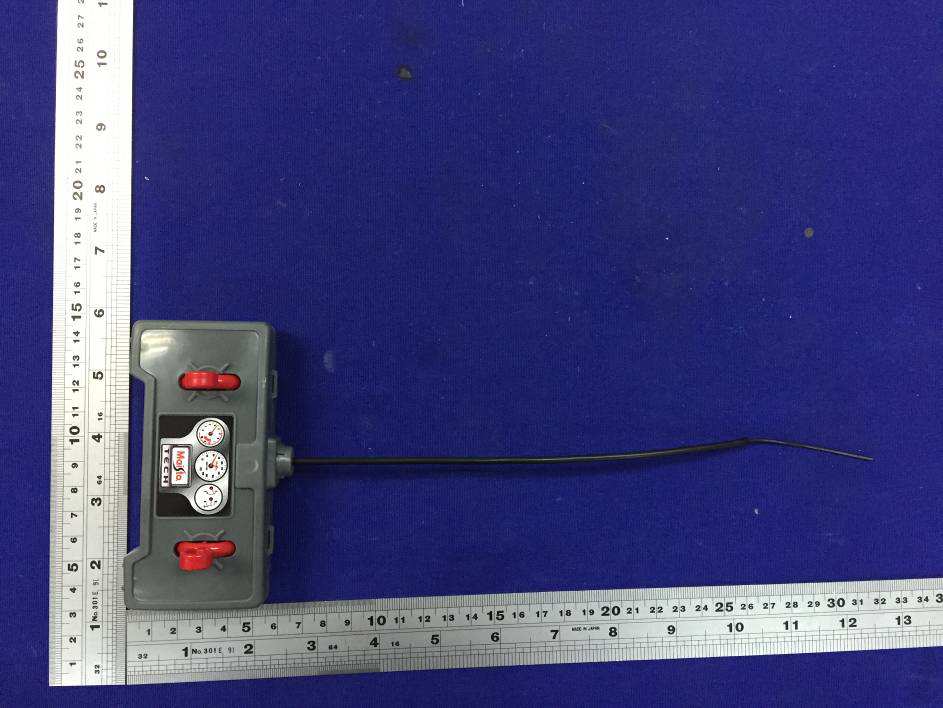

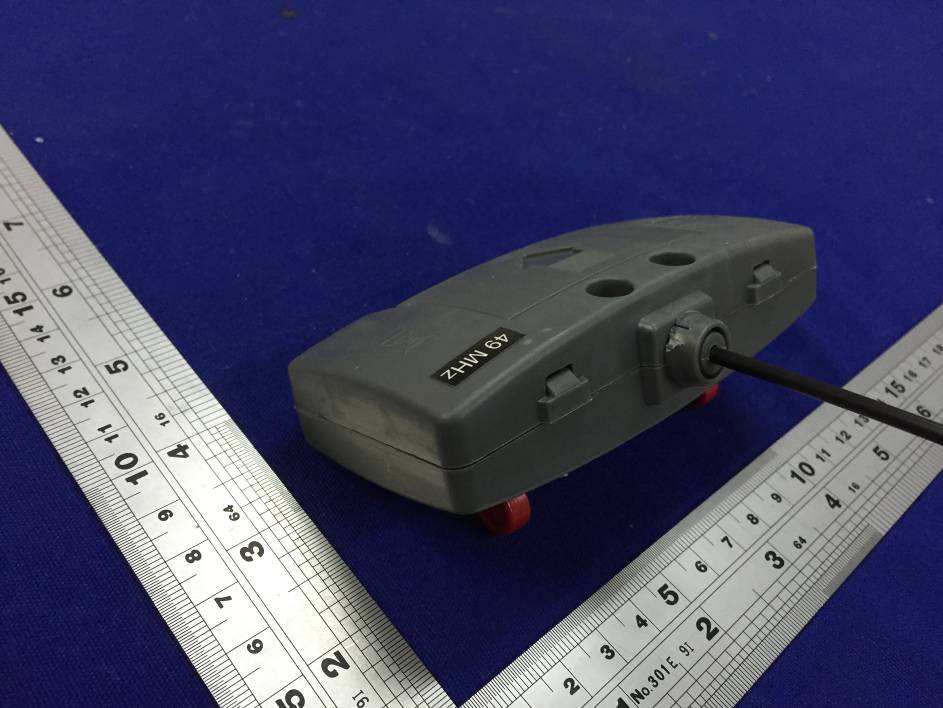

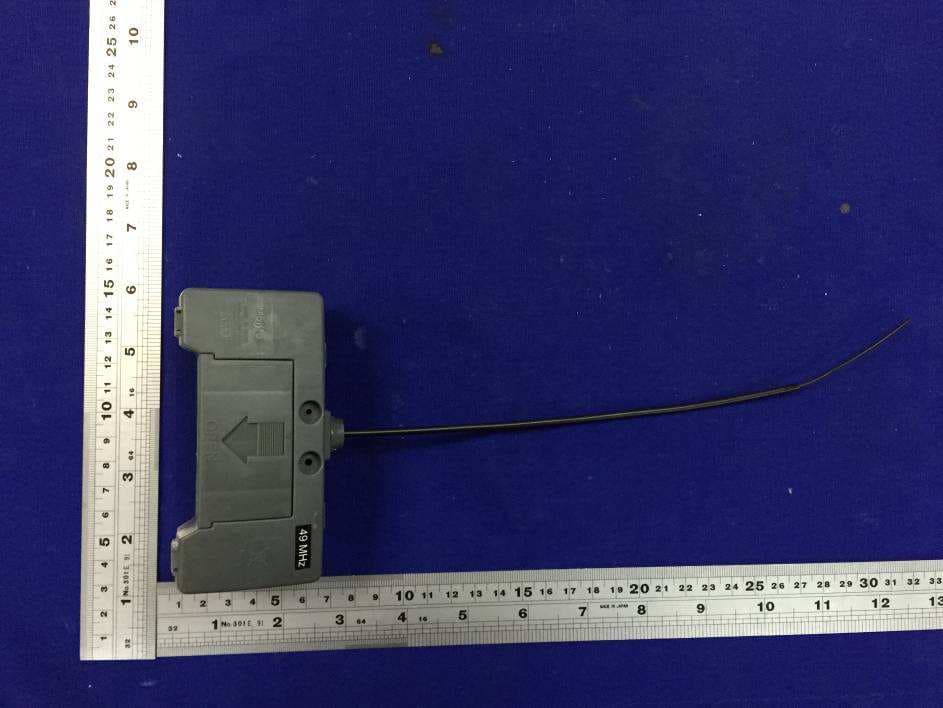

External Photos

Label Artwork and Location Size: 25mm(W) x 12.5mm(H)

Internal Photos

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a RC SPEED BOAT operating at 49.86MHz. The EUT is powered by two 1.5V AA size batteries. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal conducted output power specified: -16.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -18.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: T he worst-case peak radiated emission for the EUT is 79.0dBμV/m at 3m in the frequency 49.86MHz The EIRP = [(FS*D) ^2 / 30] mW= -16.23dBm The ERP = EIRP – 2.15 = -18.38 dBm which is within the production variation. The maximun conducted output power specified is -13.0d Bm =0.05mW The source- based time-averaging conducted output power = 0.05* Duty Cycle mW< 0.05mW (Duty Cycle<100%) The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 308.6 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 17.6087ms Effective period of the cycle = 521.7μs x 10 + 1.4783ms x 4 = 11.1302ms DC = 11.1302ms / 17.6087ms = 0.6321 or 63.21% FCC ID: PKG14172RC49
