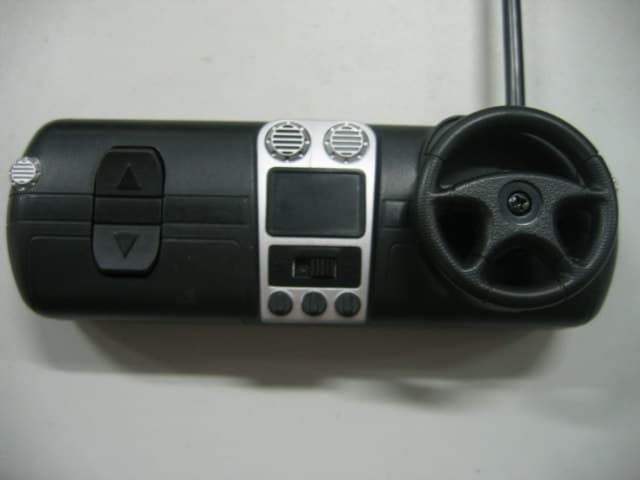

PKG81060RC2727MHz Radio Transmitter

Maisto Radio Control Vehicles The packaging and instruction manual contain important information. Please keep them for future reference. Contents: RC vehicle x 1 RC transmitter x 1 Instruction manual x 1 Battery Requirement : Vehicle : 3 x 1.5V "AA" / LR6 alkaline batteries (not included). Transmitter : 1 x 9V (6F22) battery (not included). INSTALLING OR REPLACING THE BATTERIES : For Transmitter: 1.Switch the power OFF. 2.Open the battery cover. 3. 4.Close the battery cover. For Vehicle: 1.Switch the power OFF. 2.Open the battery cover using a screwdriver (not included). 3. 4.Fasten the battery cover. HOW TO PLAY : 1.Switch ON the transmitter. 2.Switch ON the vehicle. 3.Drive the vehicle forwards and backwards by pressing the FORWARD and BACKWARD buttons respectively. 4.Turn the transmitter steering wheel to move the vehicle left or right. 5.If the vehicle does not run in a straight line, adjust the wheel alignment lever on the vehicle chassis. 6.Remember to switch OFF the transmitter and vehicle power after playing. Performance Tips: 1.Do not drive on grass, dirt, sand, carpet or go through water. Install a new 9V Battery with correct polarity (+/-) as shown inside the battery compartment. Install three new AA 1.5V batteries with correct polarity (+/-) as shown inside the battery compartment. 2.Do not drive in windy or rainy weather. 3.Avoid direct impact with obstacles. 4.Switch off the vehicle and transmitter when not in use. 5.Keep fingers, hair and loose clothing away from the wheels. 6.The operating range can be affected by a variety of factors: a) weak transmitter's or vehicle's batteries. 7.Outdoor usage is recommended in order to get optimal control range. BATTERY USE 1.Alkaline batteries are recommended to use. 2.Only batteries of the same or equivalent type as recommended are to be used. 3.Do not mix alkaline, standard or rechargeable batteries. 4.Do not mix old and new batteries or different type of batteries. 5.Non-rechargeable batteries are not to be charged. 6.If rechargeable batteries are used, they are only to be charged under adult supervision. 7.Rechargeable batteries are to be removed from the product before they are charged. 8.Be sure to insert batteries with the correct polarities and always follow the battery manufacturer's instructions. 9.Remove all batteries from the vehicle and transmitter when not in use. 10.Exhausted batteries are to be removed from the product. 11.The supply terminals are not to be short-circuited. 12. CAUTIONS 1.Do not attempt to disassemble the products. 2. 3.Make sure the batteries are Installed with correct polarity (+/-) as shown inside the battery compartment. FCC Label Compliance Statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions : 1.This device may not cause harmful interference, and 2. TROUBLE SHOOTING ProblemCauseCorrection No FunctionLow battery levelReplace with new batteries Battery polarities are reversed The wheels are obstructed by foreign objectsRemove foreign objects on the vehicle / wheels b) Interference from other items that emit radio frequency signals such as another R/C item on the same frequency, CB radios, cordless phones, high voltage transformers, etc. Dispose of batteries properly. Do not dispose the batteries in fire — it may cause them to explode or leak causing injury or damage. Do not operate the vehicle with same frequency with other players in same location that will interfere and make the vehicle out of control. This device must accept any interference received, including interference that may cause undesired operation. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. - Consult the dealer or an experienced radio/TV technician for help. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the User's Authority to operate the equipment. Insert the batteries with correct polarities as shown on the battery compartment Drive Slow / Low battery levelReplace with new batteries Poor Turning SignalThe wheels are obstructed by foreign objectsRemove foreign objects on the vehicle / wheels Poor distance controlLow battery levelReplace with new batteries Strong interference of surroundingsMove to a better location for playing WARRANTY FAQ (Frequently Asked Questions) Make sure the transmitter and the vehicle are turned on. Check to make sure the batteries are not drained. Make sure the batteries are installed per polarity indicators. Make sure all 4 wheels are not obstructed by any foreign objects. Check to make sure the batteries are not drained. Check to make sure all 4 wheels are not obstructed by any foreign objects. Check the FAQ and make sure all attempts have been made to make the unit work. email: phone:(909) 357-7988 8:30 a.m. - 5:00 p.m. Monday-Friday Pacific Time All Maisto R/C vehicles have a 30 day limited warranty in function and performance. You may receive a new replacement vehicle if the defective veh…

Text truncated - open the document above for the full version.

FCC ID Location FCC ID: PKG81060RC27 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

1.Product Description This product include transmitter (TX) receiver (RX) ,by radio control ,can drive vehicle to run forward,backward ,turn right and left,the TX freqnency is 27.145MHz.Switch on the transmitter, switch on the vehicle,drive the vehicle forward and backward by pressing the Forword and Backward buttons respectively,turn the transmitter steering wheel to move the vehicle left or right, If the vehicle does not run in straight line,adjust the wheel lignment level on the vehicle chassis. 2.Technical Description The brief circuit description is listed as follows: -X1,Q1 and associatde circuit act as 27.145 Mhz Oscillator. -Q2 and associated circuit act as Modulator and RF Amplifier. -IC1 and associated circuit act as Encoder. -Z1 and associated circuit act as Voltage Regulator. -F,B,R and L act as Control Key. 3 .Application instruction This is battery operate RC Car ,can run on floor -- Battery Requirement: Vehicle:3x1.5V"AA"/LR6 alkaline batteries(not included). Transmitter :1x9V(6F22)battery(not included). --HOW TO PLAY: 1>.Switch ON the transmitter. 2>.Switch ON the vehicle. 3>.Drive the vehicle forwards and backwards by pressing the FORWARD and BACKWARD buttons respectively. 4>.Turn the transmitter steering wheel to move the vehicle left or right. 5>.If the vehicle does not run in a straight line, adjust the wheel alignment lever on the vehicle chassis. 6>.Remember to switch OFF the transmitter and vehicle power after playing.

Report No.: SZEMO051201671RFF Page: 1 of 9 FCC ID: PKG81060RC27 Authorized Signature: Robinson Lo Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663 Telephone: +86 (0) 20 8215 5555 Fax: +86 (0) 20 8207 5059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 TEST REPORT Application No. : SZEMO051201671RF(SGS SZ NO.: SZTYR051201531/EL) Applicant: Supplier: May Cheong Toy Products Fty. Ltd. Maisto International Inc. FCC ID: PKG81060RC27 Fundamental Frequency : 27.145MHz Equipment Under Test (EUT): Name: 1:24 Radio Control 1967 Ford Mustang GT Model No.: Labelled Age Grading: Country of Origin: 81061 8 Years+ China Standards: FCC PART 15, SUBPART C : 2004 Section 15.227 Date of Receipt: 29 December 2005 Date of Test: 30 December 2005 to 06 January 2006 Date of Issue: 11 January 2006 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID: PKG81060RC27 Report No.: SZEMO051201671RFF Page: 2 of 9 SGS-CSTC Standards Technical Services Ltd. 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission (30MHz to 1000MHz) FCC PART 15 :2004 Section 15.227 and PASS Occupied Bandwidth FCC PART 15 :2004 Section 15.215 and PASS Tx: In this whole report Tx (or tx) means Transmitter. Rx: In this whole report Rx (or rx) means Receiver. RF: In this whole report RF means Radiated Frequency. FCC ID: PKG81060RC27 Report No.: SZEMO051201671RFF Page: 3 of 9 SGS-CSTC Standards Technical Services Ltd. 3 Contents Page 1 COVER PAGE...........................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION....................................................................................................................................4 4.1 CLIENT INFORMATION.......................................................................................................................................4 4.2 DETAILS OF E.U.T............................................................................................................................................4 4.3 DESCRIPTION OF SUPPORT UNITS...................................................................................................................4 4.4 TEST LOCATION................................................................................................................................................4 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER..................................................................................4 4.6 TEST FACILITY..................................................................................................................................................5 5 TEST RESULTS......................................................................................................................................................6 5.1 TEST INSTRUMENTS..........................................................................................................................................6 5.2 E.U.T. OPERATION...........................................................................................................................................6 5.3 TEST PROCEDURE & MEASUREMENT DATA....................................................................................................6 5.3.1 Radiated Emissions...................................................................................................................................6 5.3.2 Occupied Bandwidth..................................................................................................................................8 5.3.3 Photographs - Radiated Emission Test Setup in Chamber.................................................................9 6 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS..................................................................................9 FCC ID: PKG81060RC27 Report No.: SZEMO051201671RFF Page: 4 of 9 SGS-CSTC Standards Technical Services Ltd. 4 General Information 4.1 Client Information Applicant Name: May Cheong Toy Products Fty. Ltd. Applicant Address: 12/F, Empire Centre, 68 Mody Road, Tsimshatsui East, Kowloon. 4.2 Details of E.U.T. EUT Name: 1:24 Radio Control 1967 Ford Mustang GT Item No.: 81061 Power Supply: 4.5V DC (3*1.5V ‘A…
