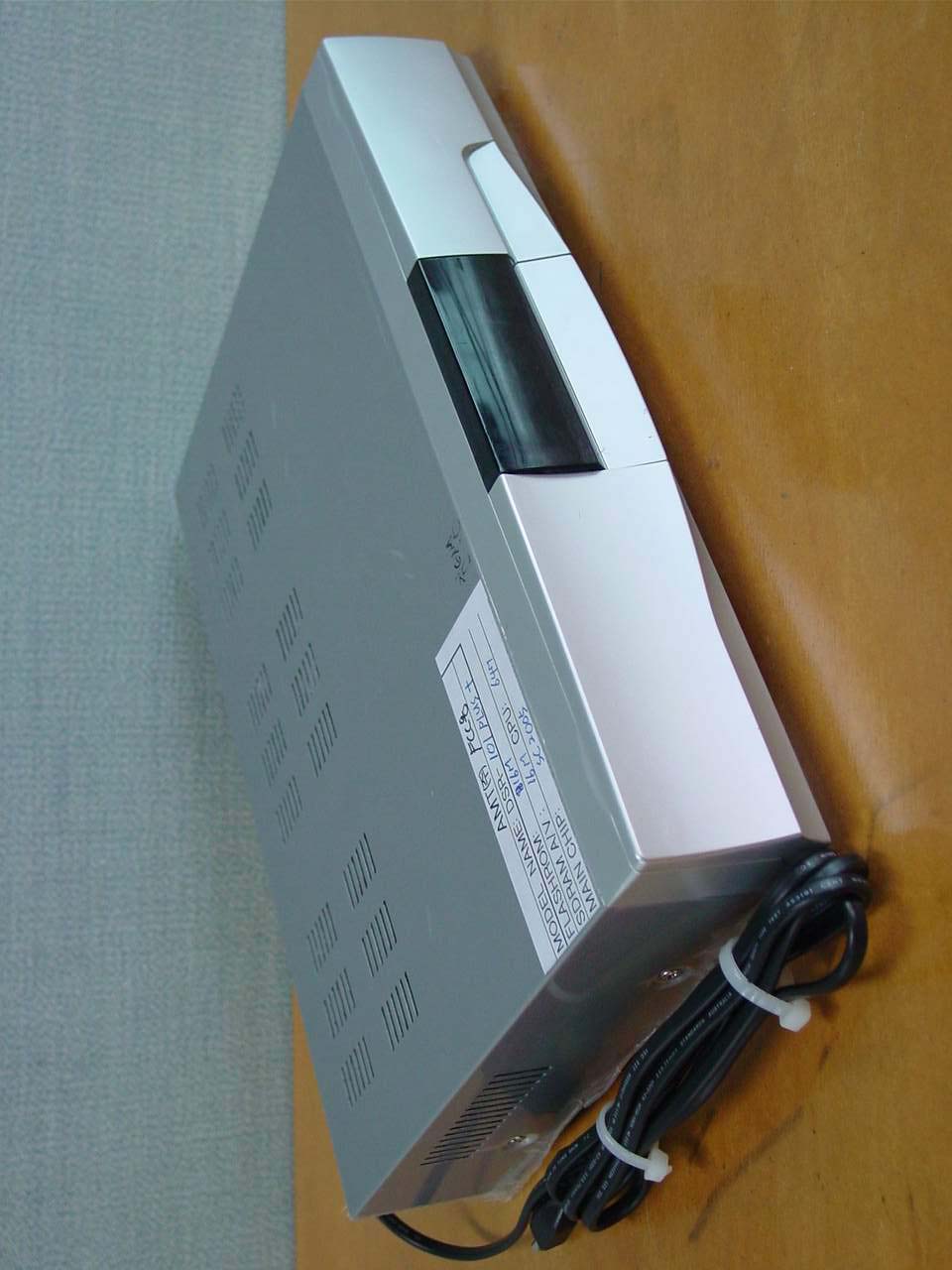

PKJDSR-101PLUSDigital Satellite Receiver

Users Guide DIGITAL SATELLITE RECEIVER DSR-101 PLUS + Information contained in this manual is subject to change without notice. No part of this publication may be copied, reproduced, or translated to another language for any purpose. FOR YOUR SAFETY Be sure to read the user manual before starting the operation of the receiver. Do not open the housing. The receiver contains high-voltage components and parts. Even after switching off the receiver still contains high-voltage for a while. Do not expose to rain or moisture. Do not make objects or fluid enter the housing through the ventilation slot. If any spilt liquid went into to the housing, unplug the power cord and call your local service provider. Do not place close to any heat source. Do not press with hard or heavy object. To protect possible malfunction by lighting, we recommend you to use power surge unit. Call your local dealer for advise. FOR YOUR SAFETY II INFORMATION TO THE USER This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures: -. Reorient or relocate the receiving antenna. -. Increase the separation between the equipment and receiver. -. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -. Consult the dealer or an experienced radio/TV technician for help. WARNING Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. For Your Safety 1. Before Getting Started1 1.1 Main Features1 1.2 Accessories2 2. Controls and Functions3 2.1 Front Pannel3 2.2 Rear Pannel4 2.3 Remote Control Unit5 3. Connections7 3.1 Connecting to the TV, VCR and Satellite Antenna7 3.2 Connecting DiSEqC switch7 3.3 Connecting to the TV, HiFi system 8 4. Settings and Operations9 4.1 Basic Settings9 4.2 Viewing TV(or Radio)14 4.3 Other functions18 4.4 System Settings20 5. Appendix23 5.1 Troubleshooting23 5.2 Specification23 5.3 Glossary24 III CONTENTS 1.1 Main Features Easy Menu Function TV Guide Function RF Output Function Electronic Program Guide(EPG) for On Screen Channel Information Software Upgrading Function Through RS-232C Cable by PC Perfect DiSEqC 1.2 and 0/12V Support for Various Antenna System or 2-LNB on 1 Antenna System Supports of Ku/C band, SCPC and MCPC Additional Audio Output Function for Connection to Hi-Fi Audio System Other Functions of Remote Controller, Receiving Level Selection, Channel Editing, Menu Language Selection and Audio Selection Digital free-to-air Satellite Receiver NTSC & PAL Output Function Regardless of the TV type, NTSC and PAL channels can be viewed by selection When PAL channel is viewed on NTSC TV, small deletion on up & down sides of the screen may occur and it is normal, as its conversion is managed by software. And darker color on the bottom side of the screen may occur, when NTSC channel is viewed on PAL TV. 500 Transponders and 2000 Channel Memory Function Teletext Supported Multi Language Function(Menu, Audio) BEFORE GETTING STARTED 1 Note 1.2 Accessories RCA cable User’s Guide Battery Remote Control Unit RF Cable User Guide Remote Control Unit Batteries (AA) 2 Accessories 2.1 Front pannel STANDBY ON Turn the power on/off. Volume Control volume, change item on menu or input frequency value. Channel Change channel, move menu, or input frequency value. OK Select menu or value on menu item. MENU Shows the menu application. CONTROLS AND FUNCTIONS 2.2 Rear pannel DIGITAL It receives signals from the LNB in the range of 950 ~ 2150MHz. Connect a satellite dish to DIGITAL. OUT It sends signal to the another receiver. AUDIO It provides stereo audio output. Connect the audio on TV to AUDIO with RCA cable. VIDEO It provides composite video output. Connect the Video on TV to VIDEO with RCA cable. TV ANT IN The signal supplied to this connector from a TV antenna will be sent to TV antenna output. Connect a TV antenna to TV ANT IN. TV output It provides a modulated audio and video from the receiver. Connect the TV/VCR on TV to TV/VCR with the RF cable. RS-232C It receives data by connecting to PC for software upgrading. Connect with RS-232C cable a PC and receiver. S-VIdeo It provides high definition screen. ON/OFF The switch is to turn on or off the main power of the receiver mechanically. Rear pannel 2.3 Remote Control Unit CONTROLS AND FUNCTIONS Open the controller cover on the back and insert two batteries (AA - 1.5V). POWER Turn the power on/off. TV/SAT Select between TV Channels and Satellite channels for RF output. FAV Add TV or Radio channel to the favorite list on Edit TV(Radio) Channels, or watch favorite channel from your favorite list. SIZE Select between standard 4:3 and wide 16:9 screen sizes. F. BK It is to move to previous channel. TV Change to TV mode from radio channel. TEXT Change to Teletext mode. LANG Select the audio language from 2 or more audio language channels available. RADIO It is for fast change to radio mode from TV channel. Shows the current Radio program list. MUTE Deactivate current sound. AUDIO Select Stereo, Main or Sub from multi language channels available. MENU Shows the menu application. Page UP/DOWN Move to previous/next page on TV(Radio), Favorite Channels or Edit TV(Radio) Channels. EXIT Exit from the menu. Volume Control volume, change item on m…
