PKRISGFW20105G High Performance Sub6 & mmWave Outdoor CPE

Inseego Wavemaker TM 5G Outdoor Modem FW2010 Installation Guide Preparing to Install Tools and materials • Installation handle (optional) • Ladder • Installation PoE* cable (RJ45 fittings attached) • Smartphone/tablet for Inseego Mobile App • 4FF nano SIM card (may come pre-installed) • Phillips-head screwdriver • M6 4mm hex driver • Drill • 14mm socket wrench/driver • Needle nose pliers or tweezers • Permanent round Cat6A PoE cable • Ground wire • Two RJ45 connector fittings for PoE cable • Crimp tool to attach RJ45 fittings • Cat6A Ethernet cable • Sealing/weatherproofing material Your 5G FW2010 comes in two packages: • Device, PoE injector, and SIM tool • Mounting bracket and hardware *Power over Ethernet About the FW2010 Description The 5G Outdoor Modem FW2010 delivers multi-gigabit data rates over 5G millimeter wave networks using high power phased array antenna modules. The FW2010 provides extended range and coverage for millimeter wave cellular networks and delivers data connectivity to existing in-building networks. Durability The FW2010 has an environmental rating of IP67 for water and dust ingress and can operate within a temperature range of -30°C to 70°C (-22 to 158°F). Pre-Installation 1. If there is not a pre-installed SIM, unscrew the protective shield over the SIM slots using a Phillips-head screwdriver. NOTE: This device supports only Nano SIM cards. 2. Use the included SIM tool to insert a Nano 4FF SIM card into the SIM 1 slot. CAUTION! Do not insert SIM card into the SIM 2 slot - it will not work. 3. Reattach the protective shield cover to a torque of 1.2 Nm (0.885 ft/lb). 4.For ease of carrying during the location survey, attach the optional installation handle to the back of the device with a hex driver. 5. Unscrew the PoE gland cap and insert one end of the installation PoE cable. NOTE: This is for location survey purposes only. You will install the permanent PoE cable later. Set aside the bushing and cap. 6. Insert the other end of the cable into the PoE injector PoE port. Plug the PoE injector into an earthed AC outlet. Location Survey 1. Scan the QR code to download the latest Inseego Mobile App from App Store or Google Play, or visit the link below to download the App: https://inseego.com/inseego-connect- get-app 2.Follow instructions within the Inseego Mobile App to connect to the FW2010 and perform a 5G site survey to identify the ideal location to install. Rubber pin and gland bushing Gland cap assembly Installing the FW2010 Installing the PoE cable 1. Remove the installation PoE cable used for the location survey from the device using needle nose pliers or tweezers. 2. Remove the rubber pin from the PoE gland bushing and assemble the gland cap, putting the bushing inside the spacer and into the cap. 3. Thread the permanent PoE cable through the hole in the assembled PoE gland cap and attach a RJ45 connector to the cable. 4. Insert the connector into the FW2010 and screw on the gland cap. The cap will keep the PoE connection secure and watertight. M6 21mm bracket mount bolt and washer M5 10mm ground screw / washer 4. Mount the device to the device elevation bracket using a hex driver to tighten the bolts to 2.0 Nm. 3. Place the M6 external locking washers on the M6 21mm bracket mount bolts. Attaching the device to the device elevation bracket 1. Remove the installation handle from the device. 2. Attach a ground wire to the back of the device with the ground screw. Roof mount lag screw 1. Pre-drill holes in the surveyed location. 2. Attach the mount using a hex driver to tighten the lag screws. NOTE: Concrete anchors are provided if mounting to concrete or brick. Installing the mount The mount is adjustable and can be mounted on vertical, horizontal, and slanted exterior surfaces. The mount is attached using the four roof mount lag screw in the corners of the base. Securing the device elevation bracket to the mount 1. Attach the device elevation bracket to the mount and tighten the square neck bolts along the back to 2.0 Nm using a ratcheting socket wrench. 2. Ground the ground wire to an appropriate earth ground. Orienting the device 1. Run the PoE cable to the desired location of the PoE injector. 2. Attach a RJ45 connector fitting and insert the cable into the PoE port on the PoE power injector. 3. Take a racheting socket wrench and device/ smartphone with the Inseego Mobile App to the FW2010 location. 4. Use the Inseego Mobile App and the positioning bolts on the device elevation bracket and bottom of the mount to fine tune the horizontal and vertical angle of the FW2010 for the best signal. 5. Tighten the positioning bolts to 15.0 Nm. 6. Use sealing/ weatherproofing material to seal any holes drilled in the structure to run the PoE cable indoors. LED ColorOperationMeaning BlueSolid Blinking Strong 5G connection (3 – 5 bars) Weak 5G connection (1 – 2 bars) GreenSolid Blinking Strong 4G connection (3 – 5 bars) Weak 4G connection (1 – 2 bars) Yellow SolidSoftware update is in progress RedSolid Blinking Router is booting up No service, SIM error, or locked SIM card Testing the connection Checking the LED on the device The LED is located in the SIM compartment and is visible through the protective shield. Connecting a device You can connect any router or device with Ethernet capability and an Internet browser to the FW2010. Connect an Ethernet cable from the D ATA port on the PoE power injector to the connecting device. Connecting to the Web UI 1. On a connected device, open any browser and enter: http://192.168.1.1. 2. Sign in using the default password: Fast5G! IMPORTANT: For security purposes, please ensure the user resets the Admin password in the Web UI prior to finishing installation. Multifunction LED LED ColorOperationMeaning BlueSolid Blinking Strong 5G connection (3 – 5 bars) Weak 5G connection (1 – 2 bars) GreenSolid Blinking Strong 4G connection (3 – 5 bars) Weak 4G connection (1 – 2 bars) Yellow SolidSoftware update is in progress RedSolid Blinkin…

Text truncated - open the document above for the full version.

Inseego Wavemaker TM 5G Outdoor Modem FW2010 USER GUIDE 5G OUTDOOR MODEM FW2010 USER GUIDE 2 INSEEGO COPYRIGHT STATEMENT © 2021 Inseego Corp. All rights reserved. Complying with all copyright laws is the responsibility of the user. Without limiting the rights under copyright, no part of this document may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), or for any purpose without the expressed written permission of Inseego Corp. SOFTWARE LICENSE Proprietary Rights Provisions: Any software drivers provided with this product are copyrighted by Inseego Corp. and/or Inseego Corp.’s suppliers. Although copyrighted, the software drivers are unpublished and embody valuable trade secrets proprietary to Inseego Corp. and/or Inseego Corp. suppliers. The disassembly, decompilation, and/or Reverse Engineering of the software drivers for any purpose is strictly prohibited by international law. The copying of the software drivers, except for a reasonable number of back-up copies is strictly prohibited by international law. It is forbidden by international law to provide access to the software drivers to any person for any purpose other than processing the internal data for the intended use of the software drivers. U.S. Government Restricted Rights Clause: The software drivers are classified as “Commercial Computing device Software” and the U.S. Government is acquiring only “Restricted Rights” in the software drivers and their Documentation. U.S. Government Export Administration Act Compliance Clause: It is forbidden by US law to export, license or otherwise transfer the software drivers or Derivative Works to any country where such transfer is prohibited by the United States Export Administration Act, or any successor legislation, or in violation of the laws of any other country. TRADEMARKS AND SERVICE MARKS Inseego Corp. is a trademark of Inseego Corp., and the other trademarks, logos, and service marks (collectively the “Trademarks”) used in this user manual are the property of Inseego Corp. or their respective owners. Nothing contained in this user manual should be construed as granting by implication, estoppel, or otherwise, a license or right of use of Inseego Corp. or any other Trademark displayed in this user manual without the written permission of Inseego Corp. or its respective owners. ­ MiFi® and the MiFi logo are registered trademarks of Inseego Corp. ­ Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. ­ Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries. The names of actual companies and products mentioned in this user manual may be the trademarks of their respective owners. Document Number: 14965395 Rev H 5G OUTDOOR MODEM FW2010 USER GUIDE 3 Contents Introduction and Getting Started ........................................................................................................................................ 4 Overview .................................................................................................................................................................................. 5 Key Features ..................................................................................................................................................................... 5 System Requirements ................................................................................................................................................... 5 Getting Started ...................................................................................................................................................................... 6 Admin User Interface................................................................................................................................................................ 7 Overview .................................................................................................................................................................................. 8 Home Page........................................................................................................................................................................ 8 Side Menu ......................................................................................................................................................................... 8 Getting Help ..................................................................................................................................................................... 8 Admin Password ................................................................................................................................................................... 9 Changing the Admin Password ................................................................................................................................. 9 Managing Data Usage ...................................................................................................................................................... 10 Data Usage Page ........................................................................................................................................................... 11 Managing Settings ............................................................................................................................................................. 12 Preferences Tab ............................................................................................................................................................. 12 Software Update Tab .................................................................................................................................................. 13 Backup and Restore Tab ....…

Text truncated - open the document above for the full version.

Inseego Corp. 9710 Scranton Road Suite 200, San Diego CA 92121, USA Toll Free: 888.888.9231 Main 858.812.3400 www.inseego.com Letter of Authorization March 29, 2021 To whom it may concern, I hereby authorize Djed Mouada to sign all engineering attestations, cover letters and any other correspondence regarding the FCC submittal deliverables for the product bearing: FCC ID: PKRISGFW2010 Sincerely yours, Name: Hadid Jones Title: Regulatory Engineering Manager

Inseego Corp. 9710 Scranton Road,Suite 200 San Diego,California,United States,92121 Tel: 858-812-3400ext606 ; Fax: 858-812-3406 Date: March 26, 2021 Federal Communications C ommission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: PKRISGFW2010 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________ Contact: Djed Mouada Email: [email protected]

Inseego Corp. 9710 Scranton Road,Suite 200 San Diego,California,United States,92121 Tel: 858-812-3400ext606 ; Fax: 858-812-3406 Date: March 26, 2021 Power of Attorney To whom it may concern, Please be notified that I, Djed Mouada, have designated Jim Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jim Tsai in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C 862. This authorization is limited to the product of as following: FCC ID: PKRISGFW2010 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ____ Contact: Djed Mouada Email: [email protected]

Inseego Corp. 9710 Scranton Road,Suite 200 San Diego,California,United States,92121 Tel: 858-812-3400ext606 ; Fax: 858-812-3406 Statement We, Inseego Corp., states that our device: FCC ID: PKRISGFW2010. The hardware supports LTE band40/5G NR n40 but it will be disabled by software and are not available in US market. Contact: Djed Mouada Email: [email protected]

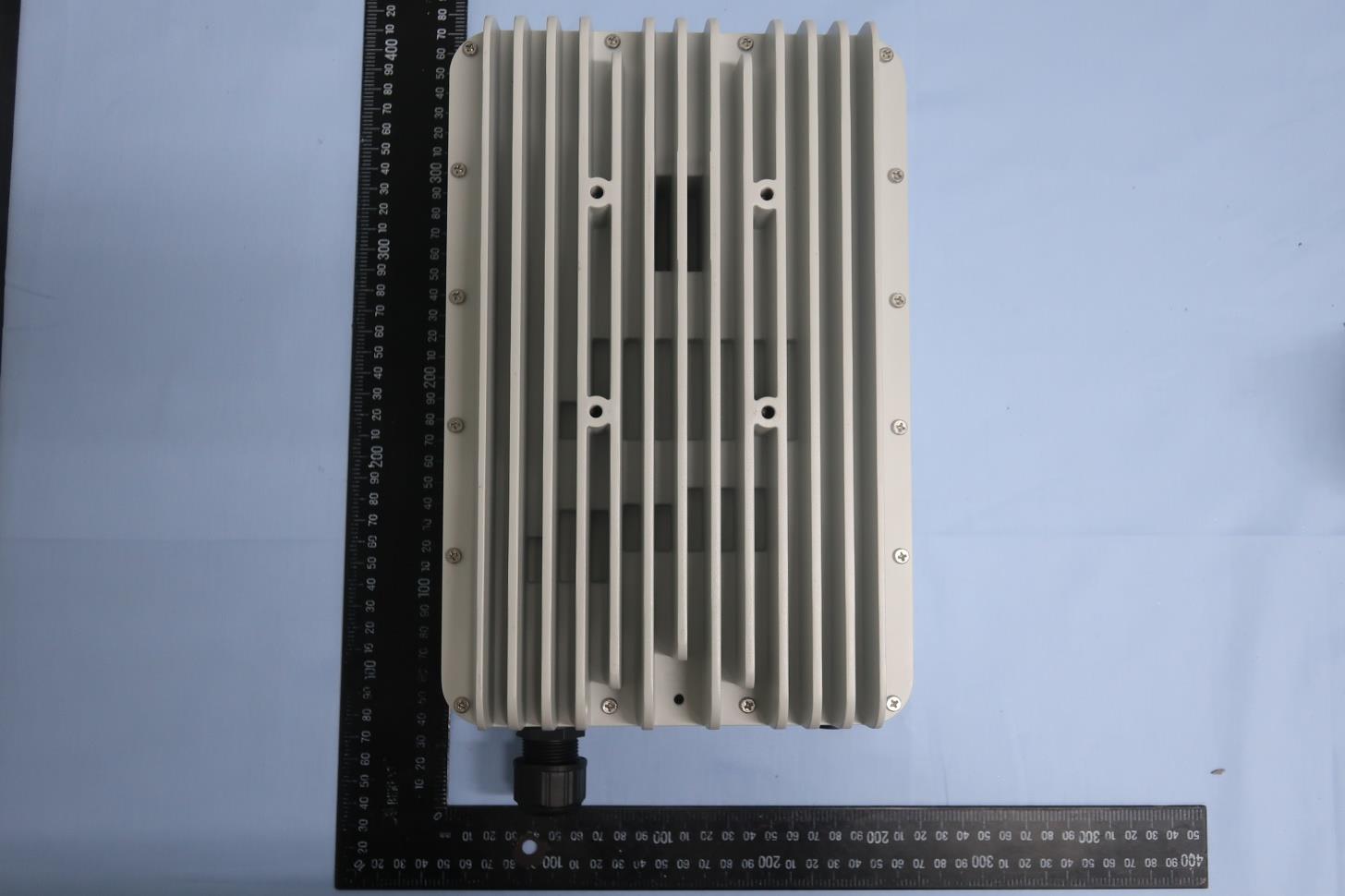

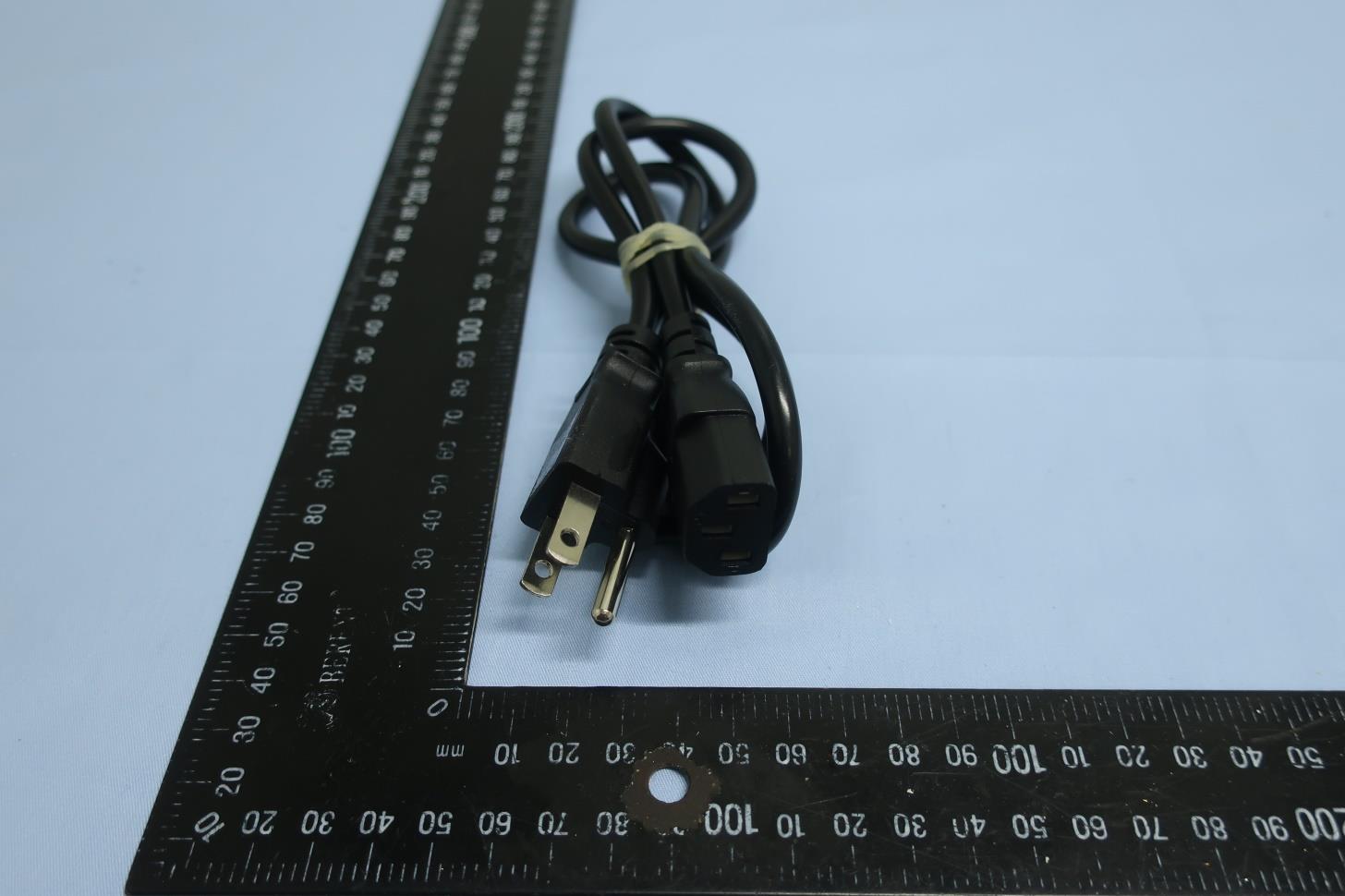

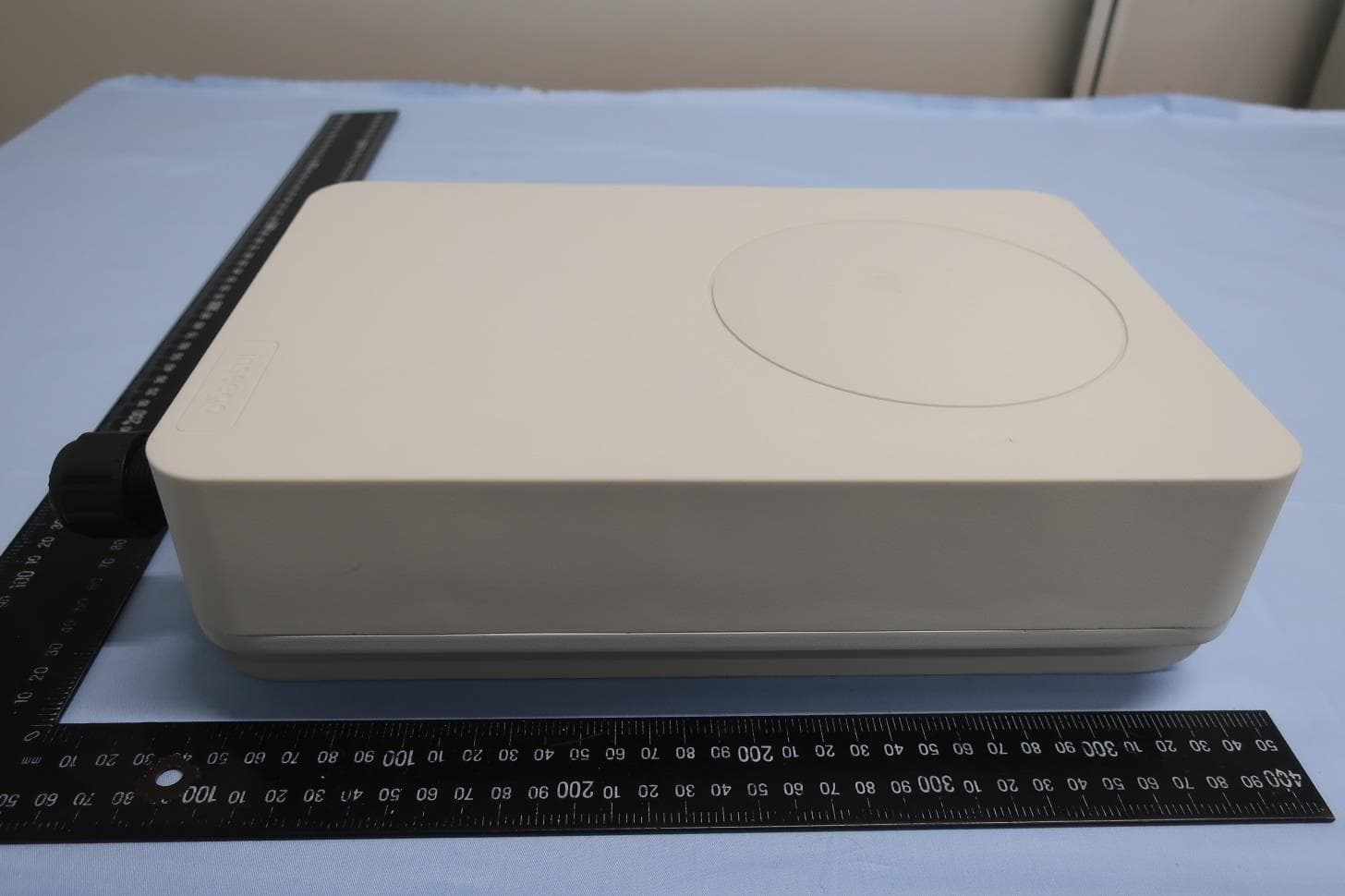

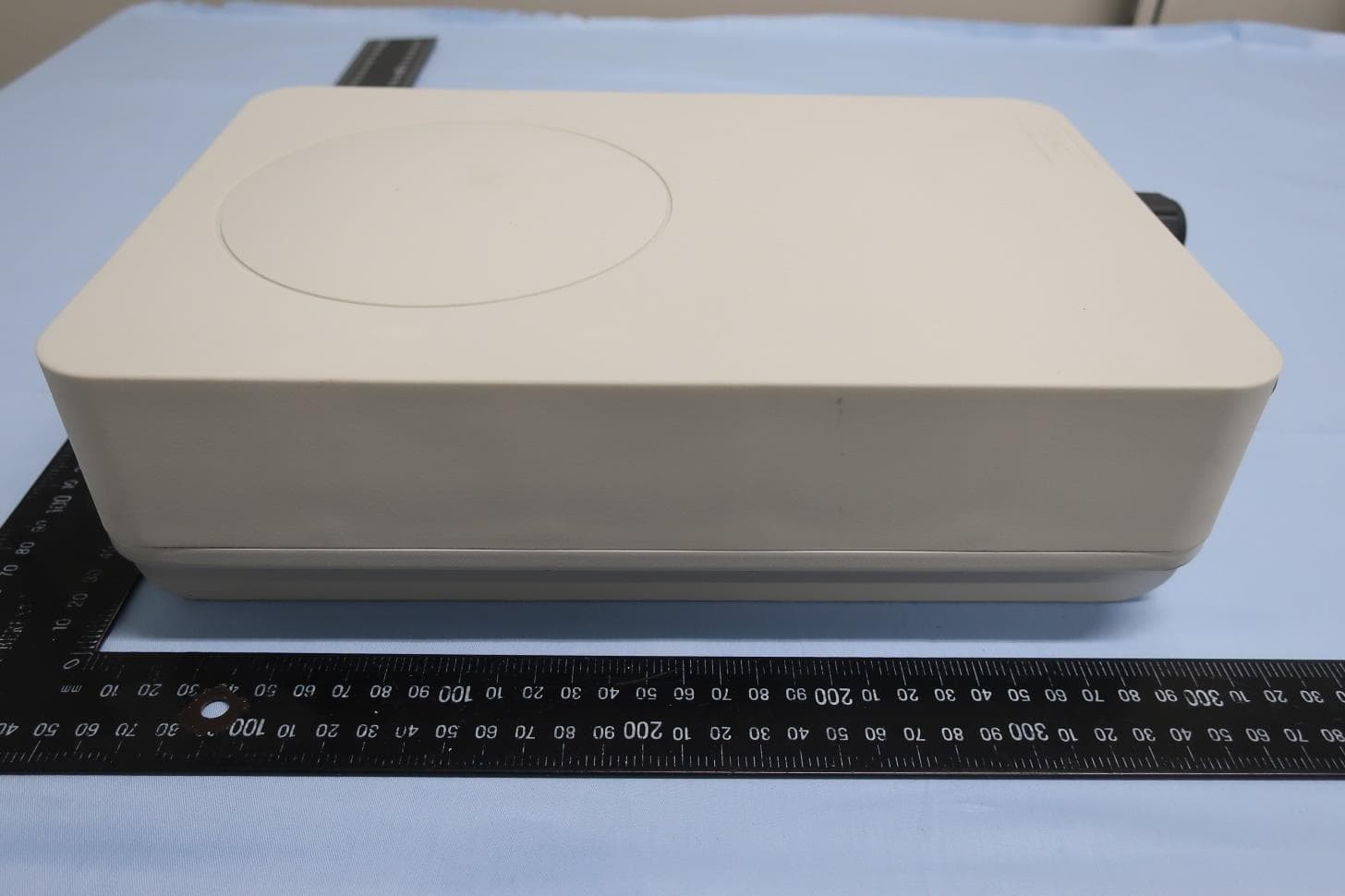

Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 1 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 2 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 3 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 4 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 5 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 6 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 7 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 List of Accessory: Specification of Accessory AC Adapter Brand Name TOPOW Model Name TPT90S56POE-MG Power Rating I/P: 100-240 Vac, 1.8A, O/P: 56Vdc, 1.61A AC Power Cord Type 1.05meter, non-shielded cable, without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 8 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 720510 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 9 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 AC Adapter Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 10 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 POE AC Cable

Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 11 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 3. Internal Photograph of EUT Ant 3 Ant 1 Ant 7 Ant 5 Ant 8 Ant 2 MMWAVE module Ant 4 Ant 0 Ant 6 Bluetooth Ant POE module BOLT module GNSS Ant Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 12 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 13 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 14 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 15 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 16 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 17 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 18 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 19 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 20 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 21 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 22 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 mmWave module Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 23 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 24 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 25 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 26 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 27 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 BOLT module Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 28 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 29 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 30 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 31 of 77 TEL : +86-512-5…

Text truncated - open the document above for the full version.

Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 46 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 47 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 48 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 49 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 50 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 51 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 52 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 53 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 54 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 55 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 56 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 57 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 58 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 59 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 60 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 61 of 77 TEL : +86-512-57900158 Report Issued Date : Mar. 31, 2021 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : PKRISGFW2010 Photographs of EUT Report No.: EP0D1611B Brand Name: Inseego / Model Name: FW2010-1, FW2010e-1 Sporton International (Kunshan) Inc. Page Number : 62 of 77 TEL : +86-512-57900158 Report Issued…

Text truncated - open the document above for the full version.
