PKRISGMD8800Wireless Cellular Module

The MD8800 module is not for sale to 3rd parties and the user manual integration instructions are internal confidential manufacturing documents. Grant for this module is “Limited” based on this these statements.

TÜV SÜD America Inc., 10040 Mesa Rim Road, San Diego, CA 92121 Tel: (858) 678-1400. Website:www.TUVamerica.com TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400FAX: 858 546 0364 March 28, 2018 TUV SUD BABT FCB Octagon House, Concorde Way Segensworth Rd N, Fareham PO15 5RL RE:IC: 3229A-MD8800 FCC ID: PKRISGMD8800 We hereby attest that the above product complies with the latest version of the RSS-130 Issue 2 February 2019 RSS-132 Issue 3 January 2013 RSS-133 Issue 6 Amendment 1 January 2018 RSS-139 Issue 3 July 2015 RSS-199 Issue 3 December 2016 RSS-140 Issue 1 April 2018 RSS-192 Issue 3 January 2008 RSS-197 Issue 1 February 2010 FCC Part 22 Subpart H October 2018 FCC Part 24 Subpart E October 2018 FCC Part 27 Subpart C October 2018 FCC Part 90 Subpart R and Z October 2018 FCC Part 96 Subpart D October 2018 TÜV SÜD America Inc., 10040 Mesa Rim Road, San Diego, CA 92121 Tel: (858) 678-1400. Website:www.TUVamerica.com TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400FAX: 858 546 0364 The cell module was previously tested in a host under Model Number MIFI8800L. All the conducted measurements for all the cell bands were from the host and covered under test report 72139211A, 72139211B, 72139211C, 72139211D, 72139211G reports issued by TUV SUD America Inc. on August 27, 2018. The test results are still valid and applicable with the current requirements. Sincerely, Xiaoying Zhang EMC/Wireless Test Engineer

Inseego Corp. 9605 Scranton Road Suite 300, San Diego CA 92121 Toll Free: 888.888.9231 Main 858.812.3400  Fax 858.812.3406 www.inseego.com Date: December 17, 2019 TUV SUD BABT FCB Octagon House, Concorde Way Segensworth Rd N, Fareham PO15 5RL RE: FCC ID: PKRISGMD8800 We hereby attest that the above product complies with the latest version of the FCC Part 96.47 End User Device Requirements (CBSD Protocol). The Cellular Radio Module Model MD8800 was previously tested for B48 & B42 under the Wireless Hot Spot host variant(s): • Model MIFI880L for B48 • Model MIFI8000 for B42 The conduced measurement(s) per Part 96.47 are from the host variants which are covered under T est Reports: • MIFI8800L_B48_FCC Part 96 SAS-Interop Test Report Rev0 • MIFI8000_B42_FCC Part 96 SAS-Interop Test Report_RevA MD8800 (Cellular Radio Module), MIFI8800L ( Wireless Hot Spot), & MIFI8000 (Wireless Host Spot) share the s ame PCB circuitry. The Test Results are valid and applicable with the current requirements. Should you have any questions or comments regarding this matter, please have my best att ention. Yours sincerely, Name: Roman Olmos Title: Regulatory Engineer

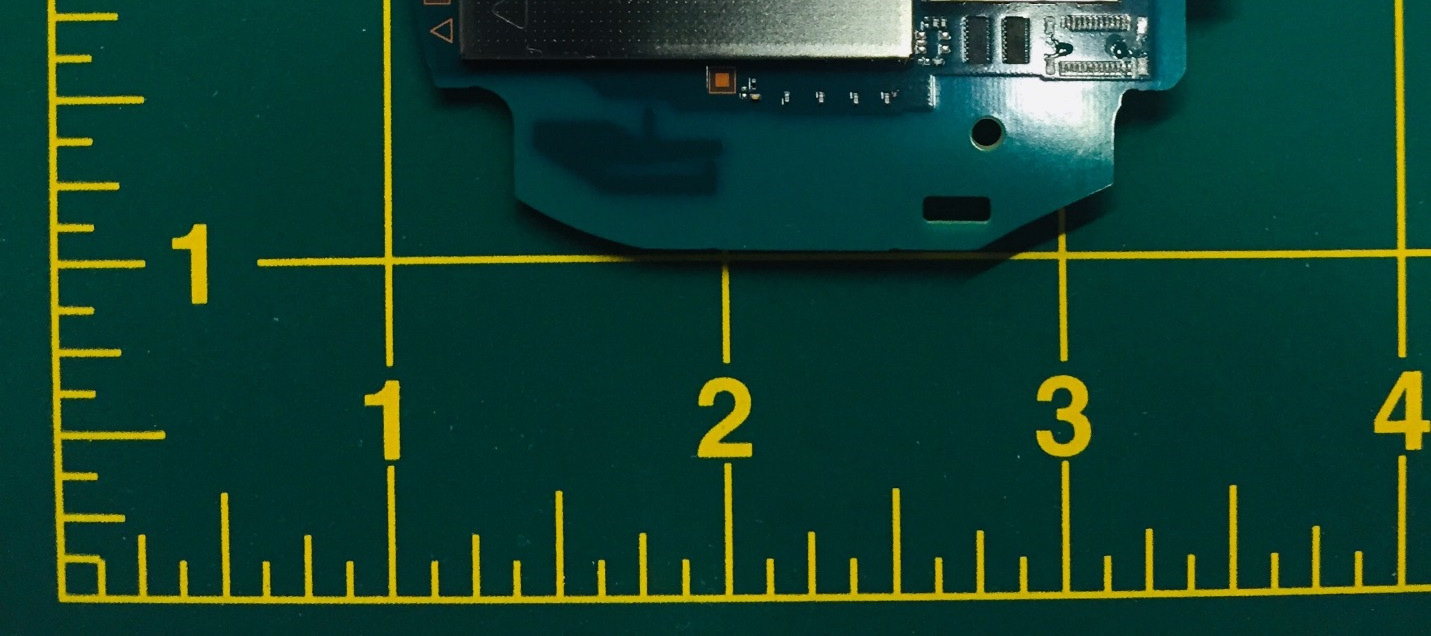

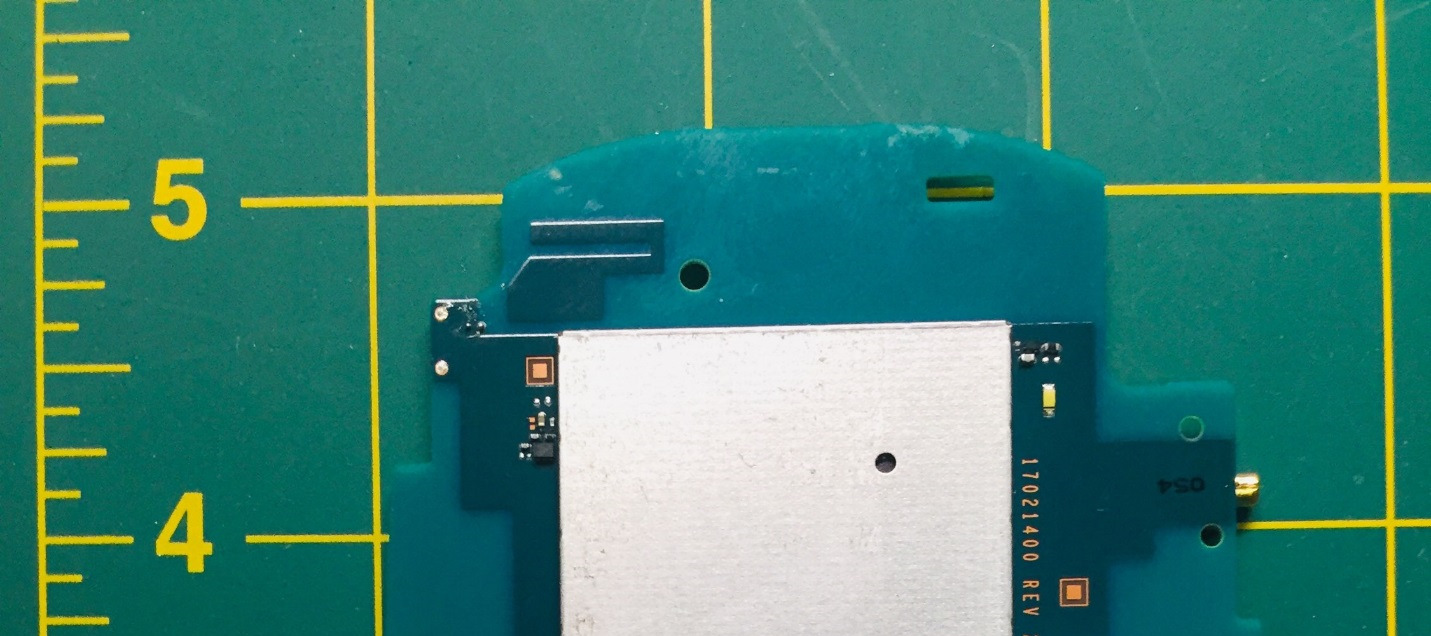

Inseego Corp. 9605 Scranton Road Suite 300, San Diego CA 92121 Toll Free: 888.888.9231 Main 858.812.3400  Fax 858.812.3406 www.inseego.com Date: March 17, 2019 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Limited Modular Approval Request Letter FCC ID: PKRISGMD8800 The following attestation addresses the requirements to support modular approval: Modular approval requirement Yes (provide brief statement) No * (a) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly Yes, module radio elements are shielded. Refer to External Photographs Exhibit (b) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal Yes, module chipset design incorporates integrated buffer circuitry (c) The module must contain power supply regulation on the module Yes, module chipset design incorporates voltage regulation to transceiver circuitry (d) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) Not Applicable to Licensed Modules (e) The module must demonstrate compliance in a stand-alone configuration Yes, EUT Conformance Testing of the module was performed in Stand-Alone configuration. (f) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements) Yes, Refer to Product Label Exhibit. Inseego Corp. 9605 Scranton Road Suite 300, San Diego CA 92121 Toll Free: 888.888.9231 Main 858.812.3400  Fax 858.812.3406 www.inseego.com (g) The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements Yes, MD8800 module is compliant with all applicable FCC rules. Compliance requirements are stated in the MD8800 Integration Guide Exhibit. The MD8800 module is not for sale to 3 rd parties and the user manual integration instructions are internal confidential manufacturing documents. Grant for this module is “Limited” based on this these statements. Modular approval requirement Yes (provide brief statement) No * (h) The module must comply with RF exposure requirements Yes, Compliance with RF Exposure requirements is addressed in the RF Exposure Report. Yours sincerely, Name: Roman Olmos Title: Regulatory Engineer

Inseego Corp. 9605 Scranton Road Suite 300, San Diego CA 92121 Toll Free: 888.888.9231 Main 858.812.3400  Fax 858.812.3406 www.inseego.com Date: November 12, 2019 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 FCC Confidentiality Request Letter FCC ID: PKRISGMD8800 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Inseego Corp. hereby requests permanent confidential treatment of information accompanying this application as outlined below: 1. BOM (Bill of Material) 2. Tuning Procedure 3. Schematics Diagrams 4. Theory of Operation 5. Block Diagram 6. Assembly Drawing Inseego Corp. also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: 1. External and Internal Photos 2. Test Photos 3. User Guide The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Name: Roman Olmos Title: Regulatory Engineer

Inseego Corp. 9605 Scranton Road Suite 300, San Diego CA 92121 Toll Free: 888.888.9231 Main 858.812.3400  Fax 858.812.3406 www.inseego.com Date: December 18, 2019 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL FCC Modification Request Letter FCC ID: PKRISGMD8800 Please be notified that we, the undersigned, Inseego Corp. is requesting FCC Authorization on Wireless Cellular Radio Module Model MD8800. This product was originally certified: • FCC PCS Grant Release on March 28, 2019 Details of change filed under this application are as follows: • Change consists of only S/W change to enable LTE Band 42 & B48. • No hardware changes or increase to original power ratings are being made to the MD8800 product that would go against FCC Permissive Change guidelines. Sincerely, Name: Roman Olmos Title: Regulatory Engineer

68.91 39.9 R2.3 R1.7 23.439.9 IMEI: xxxxxxxxxxxxxxx MAC: xx:xx:xx:xx:xx:xx 649496 02430 7 Qualcomm® 4G YYMMDD 8800 “MODEL: MD8800 ”FCC ID: PKRISGMIFI8800” “IC ”Designed by Inseego in California” “Made in China” Myriad Pro condensed – 8pt PROCESS BLACK (0/0/0/30) TITLE: ARTWORK LABEL REGULATORY MiFi 8800 VZ P/N: 25023213 Rev A_08.07.2018 - S.Kim - Initial Release Rev 1_03.20.2019 - J.Murphy - Added Widmer updates ECO: C05854 Inseego 9605 Scranton Road, Suite 300 San Diego, CA 92121 Phone: 858 812 3400 FONTS MYRIAD PRO CONDENSED MYRIAD PRO BOLD CONDENSED ARIAL BOLD VERDANA BOLD FILES AW.25023213 Rev 2 Master Label Regulatory MiFi 8800L VZ.AI (AI CS5) AW.25023213 Rev 2 Outline Label Regulatory MiFi 8800L VZ.AI (EPS) AW.25023213 Rev 2 View Label Regulatory MiFi 8800L VZ.PDF (DO NOT PRINT Reference PDF) MATERIAL/FINISH: MATERIAL IMFORMATION PROVIDED ON MECHANICAL DRAWING DM-25018972, Rev 1, Regulatory Label, Alpine MAGENTA DOES NOT PRINT CYAN TEXT AND BARCODE ARE DYNAMIC INFORMATION AND NEED TO BE REPLACED WITH ACTUAL IMEI INFORMATION AT PRINT WHITE LABEL ONE COLOR BACKGROUND IS 30% BLACK TEXT IS RICH BLACK NOTES Barcode 128-B “xxxxxxxxxxxxxxx” Text: “IMEI: xxxxxxxxyyyyyyz “ xxxxxxxxyyyyyyz is modem’s 14 digit IMEI plus checksum digit on end Arial – 7pt Bold Barcode 128-B “xxxxxxxxxxxx” Text: “MAC: xx:xx:xx:xx:xx:xx “ xxxxxxxxxxxx is modem’s MAC ID Arial – 7pt Bold Barcode 128-B “649496 02430 7” Text: “6649496 02430 7” “649496 02430 7” is the SKU number to use ON THIS LABEL ONLY for both the retail SKU and the FRU SKU Arial – 7pt Bold Text *YYMMDD” Date Code “YY” – Last 2 digits of year “MM” – Month “DD” - Day Verdana – 5pt BOLD “8800” Myriad Pro Bold condensed – 9pt MODEL: MD8800 FCC ID: PKRISGMD8800 Designed in California Made in China

Inseego Corp. 9605 Scranton Road Suite 300, San Diego CA 92121 Toll Free: 888.888.9231 Main 858.812.3400  Fax 858.812.3406 www.inseego.com MD8800 Label and Placement Location 1.0 Product Label: 2.0 Label Location/Placement:

TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 December 10, 2019 TUV SUD BABT Octagon House, Concorde Way Segensworth Rd N, Fareham PO15 5RL Attention: Director of Certification RE: Analysis of RF Exposure for Portable and Mobile use per KDB 447498 D01 Mobile Portable RF Exposure v06 and RSS-102 Issue 5 March 2015. FCC ID: PKRISGMD8800 IC Number: 3229A-MD8800 1.Limits Limits for General Population/Uncontrolled Exposure (Title 47 Subpart J §2.1091 and KDB 447498 D01 referring to limits under §1.1310) Frequency Range (MHz) Electric Field Strength (E) (V/m) Electric Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time (minutes) 0.3 –1.346141.63*(100)30 1.34 –30824/f2.19/f*(180/f 2 )30 30 –30027.50.0730.230 300 –1500--f/150030 1500 –100,000--1.030 f = frequency in MHz *Plane-wave equivalent power density TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 Limits for Devices Used by the General Public (Uncontrolled Environment (RSS-102 Issue 5 March 2015) Frequency Range (MHz) Electric Field Strength (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2 ) Reference Period (minutes) 0.003 –10 21 8390-Instantaneous 0.1 –10-0.73/f-6** 1.1 –1087/f 0.5 --6** 10 –2027.460.072826 20 –48-58.07/f 0.25 0.1540/f 0.25 8.944/f 0.5 6 48 –30022.060.058521.2916 300 –60003.142 f 0.3417 0.008335 f .0.3417 0.02619 f 0.6834 6 6000 –1500061.40.163106 15000 –15000061.40.16310616000/f 1.2 150000 –3000000.158f 0.5 4.21 x 10 .-4 f 0.5 6.67 x 10 .-5 f616000/f 1.2 f is frequency in MHz *Based on nerve stimulation (NS) ** Based on specific absorption rate (SAR) 2.Mobile MPE Calculation Summary using a 20cm separation distance: Mode Output Power (dBm/mW) FCC Power Density Limit (mW/cm 2 ) ISED Power Density Limit (W/m 2 ) FCC Maximum Allowed Antenna Gain (dBi) ISED Maximum Allowed Antenna Gain (dBi) WCDMA Band 224.0 / 251.191.04.480313.019.52 LTE Band 224.0 / 251.191.04.477513.019.52 LTE Band 424.0 / 251.191.04.24313.019.28 WCDMA Band 524.0 / 251.190.5512.580710.427.13 LTE Band 524.0 / 251.190.552.57710.417.12 LTE Band 724.0 / 251.191.05.502813.0110.41 LTE Band 1324.0 / 251.190.522.479710.166.95 LTE Band 1424.0 / 251.190.5272.503610.236.99 LTE Band 4224.0 / 251.191.07.021713.0111.47 LTE Band 4824.0 / 251.191.06.991513.0111.45 LTE Band 6624.0 / 251.191.04.24313.019.28 For WCDMA/LTE Band 2, WCDMA/LTE Band 5, LTE Band 4, 13, 14 and 66 which share the same antenna, FCC Maximum Allowed Antenna Gain is 10.16 dBi, and ISED Maximum Allowed Antenna Gain is 6.95 dBi. For LTE Band 7, FCC Maximum Allowed Antenna Gain is 13.01 dBi, and ISED Maximum Allowed Antenna Gain is 10.41 dBi. For LTE Band 42 and 48 which share the same antenna, FCC Maximum Allowed Antenna Gain is 13.01 dBi, and ISED Maximum Allowed Antenna Gain is 11.45 dBi. TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 3.Mobile MPE Calculation using a 20cm separation distance (WCDMA Band 2): Maximum peak output power at antenna input terminal: 24.0 (dBm) Maximum peak output power at antenna input terminal: 251.19 (mW) Prediction distance: 20 (cm) Source Based Time Average Duty Cycle: 100 (%) Prediction frequency: 1852.4 (MHz) FCC MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) ISED MPE limit for uncontrolled exposure at prediction frequency: 4.4803 (W/m 2 ) FCC Maximum Antenna gain: 13.01 (dBi) ISED Maximum Antenna gain: 9.52 (dBi) 4.Mobile MPE Calculation using a 20cm separation distance (LTE Band 2): Maximum peak output power at antenna input terminal: 24.0 (dBm) Maximum peak output power at antenna input terminal: 251.19 (mW) Prediction distance: 20 (cm) Source Based Time Average Duty Cycle: 100 (%) Prediction frequency: 1852.4 (MHz) FCC MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) ISED MPE limit for uncontrolled exposure at prediction frequency: 4.4775 (W/m 2 ) FCC Maximum Antenna gain: 13.01 (dBi) ISED Maximum Antenna gain: 9.52 (dBi) TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 5.Mobile MPE Calculation using a 20cm separation distance (LTE Band 4): Maximum peak output power at antenna input terminal: 24.0 (dBm) Maximum peak output power at antenna input terminal: 251.19 (mW) Prediction distance: 20 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 1710.7 (MHz) FCC MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) ISED MPE limit for uncontrolled exposure at prediction frequency: 4.243 (W/m 2 ) FCC Maximum Antenna gain: 13.01 (dBi) ISED Maximum Antenna gain: 9.28 (dBi) 6.Mobile MPE Calculation using a 20cm separation distance (WCDMA Band 5): Maximum peak output power at antenna input terminal: 24.0 (dBm) Maximum peak output power at antenna input terminal: 251.19 (mW) Prediction distance: 20 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 826.4 (MHz) FCC MPE limit for uncontrolled exposure at prediction frequency: 0.5509 (mW/cm 2 ) ISED MPE limit for uncontrolled exposure at prediction frequency: 2.5807 (W/m 2 ) FCC Maximum Antenna gain: 10.42 (dBi) ISED Maximum Antenna gain: 7.13 (dBi) TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 7.Mobile MPE Calculation using a 20cm separation distance (LTE Band 5): Maximum peak output power at antenna input terminal: 24.0 (dBm) Maximum peak output power at antenna input terminal: 251.19 (mW) Prediction distance: 20 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 824.7 (MHz) FCC MPE limit for uncontrolled exposure at prediction frequency: 0.5498 (mW/cm 2 ) ISED MPE limit for uncontrolled exposure at prediction frequency: 2.5771 (W/m 2 ) FCC Maximum Antenna gain: 10.41 (dBi) ISED Maximum Antenna gain: 7.12 (dBi) 8.Mobile MPE Calculation using a 20cm separation distance (LTE Band 7): Maximum…

Text truncated - open the document above for the full version.

Report No. 72140663D Rev 1.0March 2019 America Report On Application for Grant of Equipment Authorization of the Inseego Corp. MD8800 Wireless Module FCC CFR 47 Part 2 90 and 96: 2018 RSS-192 Issue 3 January 2008 RSS-197 Issue 1 February 2010 FCC ID PKRISGMD8800 IC: 3229A-MD8800 Report No. 72140663D Rev 1.0 Page2of114 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400FAX: 858 546 0364 REPORT ON TEST REPORT NUMBER PREPARED FOR Radio Testing of the Inseego Corp. MD8800 Wireless Module 72140663D Rev 1.0 Inseego Corp. 9605 Scranton Road, Suite 300 San Diego, CA 92121 USA CONTACT PERSONRoman Olmos Senior Regulatory Engineer (858) 812-0606 [email protected] PREPARED BYXiaoying Zhang Name Authorized Signatory Title: EMC/Wireless Test Engineer APPROVED BYFerdinand S. Custodio Name Authorized Signatory Title: Senior EMC Test Engineer/Wireless Team Lead DATEDMarch 28, 2019 FCC ID PKRISGMD8800 IC: 3229A-MD8800 Report No. 72140663D Rev 1.0 Page3of114 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400FAX: 858 546 0364 Revision History 72140663D Rev 1.0 Inseego Corp. MD8800 Wireless Module DATEOLD REVISIONNEW REVISIONREASON PAGES AFFECTED APPROVED BY 12/28/2018-Initial ReleaseFerdinand S. Custodio 03/28/2019Initial ReleaseRev 1.0Changed FCC IDAllFerdinand S. Custodio FCC ID PKRISGMD8800 IC: 3229A-MD8800 Report No. 72140663D Rev 1.0 Page4of114 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400FAX: 858 546 0364 CONTENTS SectionPage No 1REPORT SUMMARY............................................................................................................................... 5 1.1Introduction ................................................................................................................................................ 6 1.2Brief Summary of Results............................................................................................................................ 7 1.3Product Information ................................................................................................................................... 8 1.4EUT Test configuration.............................................................................................................................. 10 1.5Deviations from the Standard................................................................................................................... 12 1.6Modification Record ................................................................................................................................. 12 1.7Test Methodology..................................................................................................................................... 12 1.8Test Facility Location................................................................................................................................. 12 1.9Test Facility Registration ........................................................................................................................... 12 1.10Sample Calculations .................................................................................................................................. 14 2TEST DETAILS ...................................................................................................................................... 15 2.1Transmitter Conducted Power Measurements ........................................................................................ 16 2.2Effective Isotropic Radiated Power and Power Spectral Density.............................................................. 26 2.3Occupied Bandwidth................................................................................................................................. 33 2.4Band Edge ................................................................................................................................................. 37 2.5Conducted Spurious Emissions ................................................................................................................. 56 2.6Field Strength of Spurious Radiation ........................................................................................................ 87 2.7Frequency Stability ................................................................................................................................... 97 2.8Receiver Spurious Emissions ................................................................................................................... 102 3TEST EQUIPMENT USED .................................................................................................................... 104 3.1Test Equipment Used .............................................................................................................................. 105 3.2Measurement Uncertainty ..................................................................................................................... 106 4DIAGRAM OF TEST SETUP ................................................................................................................. 108 4.1Test Setup Diagram................................................................................................................................. 109 5ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................................. 113 5.1Accreditation, Disclaimers and Copyright............................................................................................... 114 FCC ID PKRISGMD8800 IC: 3229A-MD8800 Report No. 72140663D Rev 1.0 Page5of114 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400FAX: 858 546 0364 SECTION 1 REPORT SUMMARY Radio Testing of the Inseego Corp. MD8800 Wireless Module FCC ID PKRISGMD8800 IC: 3229A-MD8800 Report No. 72140663D Rev 1.0 Page6of114 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA…

Text truncated - open the document above for the full version.

FCC ID PKRISGMD8800 IC: 3229A-MD8800 Report No. 72140663D Rev 1.0 Page56of114 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400FAX: 858 546 0364 2.5CONDUCTED SPURIOUS EMISSIONS 2.5.1Specification Reference FCC 47 CFR Part 2, Clause 2.1051 FCC 47 CFR Part 96, Clause 96.41(e)(1)(2)(3) FCC 47 CFR Part 90, Clause 90.1323(a) RSS-192, Clause 5.5 RSS-197, Clause 5.7 2.5.2Standard Applicable FCC 47 CFR Part 96.41: (e) 3.5 GHz Emissions and Interference Limits - (1) General protection levels. Except as otherwise specified in paragraph (e)(2) of this section, for channel and frequency assignments made by the SAS to CBSDs, the conducted power of any emission outside the fundamental emission (whether in or outside of the authorized band) shall not exceed -13 dBm/MHz within 0-10 megahertz above the uper SAS- assigned channel edge and within 0-10 megahertz below the lower SAS-assigned channel edge. At all frequencies greater than 10 megahertz above the upper SAS assigned channel edge and less than 10 MHz below the lower SAS assigned channel edge, the conducted power of any emission shall not exceed -25 dBm/MHz. The upper and lower SAS assigned channel edges are the upper and lower limits of any channel assigned to a CBSD by an SAS, or in the case of multiple contiguous channels, the upper and lower limits of the combined contiguous channels. (2) Additional protection levels: Not withstanding paragraph (d)(1) of this section, the conducted power of any emissions below 3530 MHz or above 3720 MHz shall not exceed -40dBm/MHz. RSS-192, Clause 5.5: The unwanted emissions shall comply with the following limits: (i) In any 30 kHz bandwidth, the unwanted emission spectral density that is relative to the inband spectral density shall be attenuated at least to the limits shown in Table 1 according to the equipment modulation. The attenuation shall be linearly interpolated between the turning point attenuation limits. FCC ID PKRISGMD8800 IC: 3229A-MD8800 Report No. 72140663D Rev 1.0 Page57of114 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400FAX: 858 546 0364 The offset frequency from the block edge, F, at each turning point can be determined as follows: F = ChS * (Turning Point); where ChS is defined as the frequency spacing between the centre frequencies of two adjacent channels. EMO is the equivalent modulation order of the transmitter, defined as log2(number of discrete states which may be assigned to each symbol). For example, for quadrature amplitude modulation (QAM): 2 = 4 QAM 4 = 16 QAM 6 = 64 QAM (ii) In any 1.0 MHz band that is removed from the assigned centre frequency by more than ±250% of the necessary bandwidth, the power of any emission must be attenuated below P mean by at least 43 + 10 log10(P mean ) dB, or 70 dB, whichever is less stringent. Pmean is the mean output power of the transmitter in watts. FCC ID PKRISGMD8800 IC: 3229A-MD8800 Report No. 72140663D Rev 1.0 Page58of114 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400FAX: 858 546 0364 FCC 47 CFR Part 90.1323: (a) The power of any emission outside a licensee’s frequency band(s) of operation shall be attenuated below the transmitter power (P) within the licensed band(s) of operation, measured in watts, by at least 43 + 10 log (P) dB. Compliance with this provision is based on the use of measurement instrumentation employing a resolution bandwidth of 1 MHz or less, but at least one percent of the emission bandwidth of the fundamental emission of the transmitter, provided the measured energy is integrated over a 1 MHz bandwidth. RSS-197, Clause 5.7: The unwanted emissions shall be measured at the frequencies of the highest and lowest channel of all bandwidths and types of modulation that the equipment can operate with a resolution bandwidth of 1 MHz or less, but at least 1% of the occupied bandwidth of the transmitter, provided that the measured power is integrated over a 1 MHz bandwidth. The power of any emissions outside the frequency band 3650-3700 MHz shall be attenuated below the channel transmitter power P (dBW) by 43 + 10 Log (p), where p is measured in watts. 2.5.3Equipment Under Test and Modification State Serial No: AZ280418A00132 / Test Configuration A 2.5.4Date of Test/Initial of test personnel who performed the test July 01, 09 and 10, 2018 / ZXY 2.5.5Test Equipment Used The major items of test equipment used for the above tests are identified in Section 3.1. 2.5.6Environmental Conditions/ Test Location Test performed at TÜV SÜD America Inc. Rancho Bernardo facility Ambient Temperature 25.2-27.8°C Relative Humidity39.4 - 49.3 % ATM Pressure98.8 - 99.1 kPa 2.5.7Additional Observations •This is a conducted test. •The spectrum was searched from 30MHz to the 10 th harmonic. •Only noise floor measurements observed above 26.5 GHz. •Low, Middle and High channels on all channel bandwidth and modulation are verified. Only the worst case channel of each band presented. FCC ID PKRISGMD8800 IC: 3229A-MD8800 Report No. 72140663D Rev 1.0 Page59of114 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400FAX: 858 546 0364 2.5.8Test Results LTE Band 48 (3550 – 3650 MHz)_5 MHz BW / QPSK / Low Channel 3552.5 MHz 9 kHz - 3530 MHz LTE Band 48 (3550 – 3650 MHz)_5 MHz BW / QPSK / Low Channel 3552.5 MHz Full RB 3530 kHz - 3720 MHz according to FCC Part 96 FCC ID PKRISGMD8800 IC: 3229A-MD8800 Report No. 72140663D Rev 1.0 Page60of114 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400FAX: 858 546 0364 LTE Band 48 (3550 – 3650 MHz)_5 MHz BW / QPSK / Low Channel 3552.5 MHz Full RB unwanted emission spectral density Mask according to RSS-192 LTE Band 48 (3550 – 3650 MHz)_5 MHz BW / QPSK / Low Channel 3552.5 MHz 3720 MHz - 26.5 GHz FCC ID PKRISGMD8800 IC: 3229A-MD8800 Report No. 72140663D Rev 1.0 Page61of114 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400F…

Text truncated - open the document above for the full version.

Report No. 72154463 Rev.01 December 2019 America Report On Application for Grant of Equipment Authorization of the Inseego Corp. MD8800 Wireless Module FCC CFR 47 Part 2 and 96 FCC ID PKRISGMD8800 IC: 3229A-MD8800 Report No. 72154463 Rev.01 Page 2 of 86 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 REPORT ON TEST REPORT NUMBER PREPARED FOR Radio Testing of the Inseego Corp. MD8800Wireless Module 72154463 Rev.01 Inseego Corp. 9605 Scranton Road, Suite 300 San Diego, CA 92121 USA CONTACT PERSON Roman Olmos Senior Regulatory Engineer (858) 812-0606 [email protected] PREPARED BYAlex Chang Name Authorized Signatory Title: Senior EMC/RF Wireless Test Engineer APPROVED BYFerdinand S. Custodio Name Authorized Signatory Title: Senior EMC Test Engineer/Wireless Team Lead DATED December 17, 2019 FCC ID PKRISGMD8800 IC: 3229A-MD8800 Report No. 72154463 Rev.01 Page 3 of 86 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 Revision History 72154463 Rev.01 Inseego Corp. MD8800 Wireless Module DATE OLD REVISION NEW REVISION REASON PAGES AFFECTED APPROVED BY 12/10/2019 ― Initial Release Ferdinand Custodio 12/17/2019 Initial Release Rev.01 Addition to Transmit Frequency EIRP table Section 1.3.3 9 Ferdinand Custodio FCC ID PKRISGMD8800 IC: 3229A-MD8800 Report No. 72154463 Rev.01 Page 4 of 86 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 CONTENTS Section Page No 1 Report Summary ................................................................................................................................... 5 1.1Introduction ................................................................................................................................................ 6 1.2Brief Summary Of Results ........................................................................................................................... 7 1.3Product Information ................................................................................................................................... 8 1.4EUT Test Configuration ...........................................................................…
