PKRNVWCC760Cellular/ PCS CDMA PCI Express Mini Card

From: Jim Turner Sent: Thursday, March 19, 2009 7:08 PM To: PCTEST TCB/CB Subject: RE: Questions Regarding FCC ID: PKRNVWCC760 Hi Greg: I believe we have addressed all of your concerns. Please see comments below and enclosed documentation. Regards, Jim From: PCTEST TCB/CB Sent: Wednesday, March 18, 2009 10:34 AM To: Jim Turner Subject: Questions Regarding FCC ID: PKRNVWCC760 To: Mr. Jim Turner / Novatel Wireless From: Mr. Gregory Czumak/ PCTEST TCB RE: FCC ID: PKRNVWCC760 Applicant: Novatel Correspondence Reference Number: PKR90166 Confirmation Number: 902230166 Date of Original Email: March 18, 2009 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. Please confirm that the pc card adapter used during SAR testing is marketed with the EUT. Yes it is. If it is not, please justify its use during SAR testing, and describe how it affected measurements (it has been reported that similar adapters reduce throughput, also, near field levels can be affected by the “metal box” of the adapter as it surrounds the EUT). For SAR, the Express card configuration is the first half of the tables on page 21 and 22, and the PC card configuration is listed in the second half of the same tables. All of the testing was done for each configuration of the product offering. 2. Two E-Field probes in the SAR report are listed as being past cal due at the time of testing. Please address. (Response from Test Facility) The date on the E-field probe is the date of calibration as stated in the document in appendix d as being Nov. 3, 2008. The probe calibration is good for one year; therefore, the date the probe is due for calibration is Nov. 3, 2009. I see that the probe and date is incorrectly listed in the Test Equipment table on page 23. I have attached a revised report with the list updated (enclosed). I also included the description on page 3 about the 1.2 W/kg requirement. 3. The portable device RFx warning statement in the user’s manual references USB connectors- this is not applicable to the EUT. Please revise appropriately. Has (the remainder of) this language been approved by the FCC for similar devices in the past? Please see enclosed revised Users Guide (I referred to it as Quick Start Guide, my verbiage) 4. Please provide a photo/drawing indicating the location of the FCC ID label on the EUT. Please see enclosed photo of label location, thank you. 5. The confidentiality request lists “Frequency Stability”. All test data is required to remain in the public file. Please remove this reference from the confidentiality request and resubmit it. Please see enclosed (LTC_PKRNVWCC760_Rev1) and omit the original file sent from the list of exhibits. 6. Short Term Confidentiality is requested for the “Quick Start Guide”. Please confirm that this refers to the user’s manual (the words “Quick Start Guide” do not appear anywhere in the user’s manual). Yes, as above this is what I call it 7. FYI: OET 65 Supplement C requires that the tissue and ambient temperatures be within 2 degrees C of one another during SAR tests. This was not the case during the tests reported in this application. In the future, please be sure to comply with this requirement. 8. FYI: the Technical Specifications in the user’s manual lists the max output power as 23 dBm. Measured values exceed this. The items indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Senior Certification Engineer Quality Manager PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your

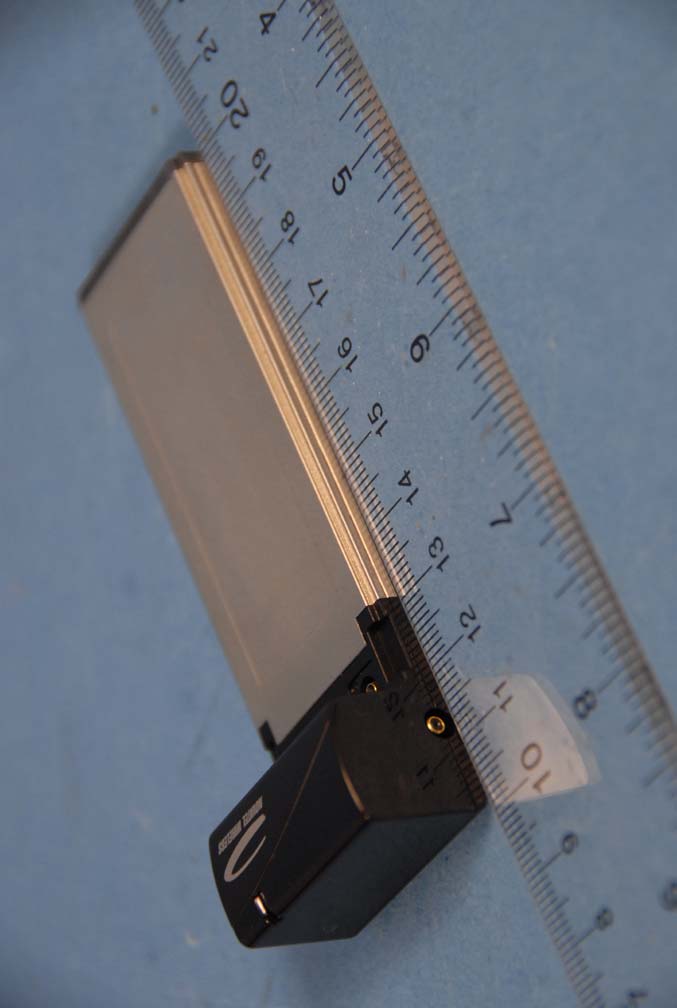

NOVATEL WIRELESS INC. FCC ID: PKRNVWCC760 Model: CC760 External Photos EUT Type: Cellular/PCS CDMA/EvDO Modem Page 1 of 4 © 2009 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS NOVATEL WIRELESS INC. FCC ID: PKRNVWCC760 Model: CC760 External Photos EUT Type: Cellular/PCS CDMA/EvDO Modem Page 2 of 4 © 2009 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: PKRNVWCC760 Model: CC760 External Photos EUT Type: Cellular/PCS CDMA/EvDO Modem Page 3 of 4 © 2009 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: PKRNVWCC760 Model: CC760 External Photos EUT Type: Cellular/PCS CDMA/EvDO Modem Page 4 of 4 © 2009 PCTEST Engineering Laboratory Inc.

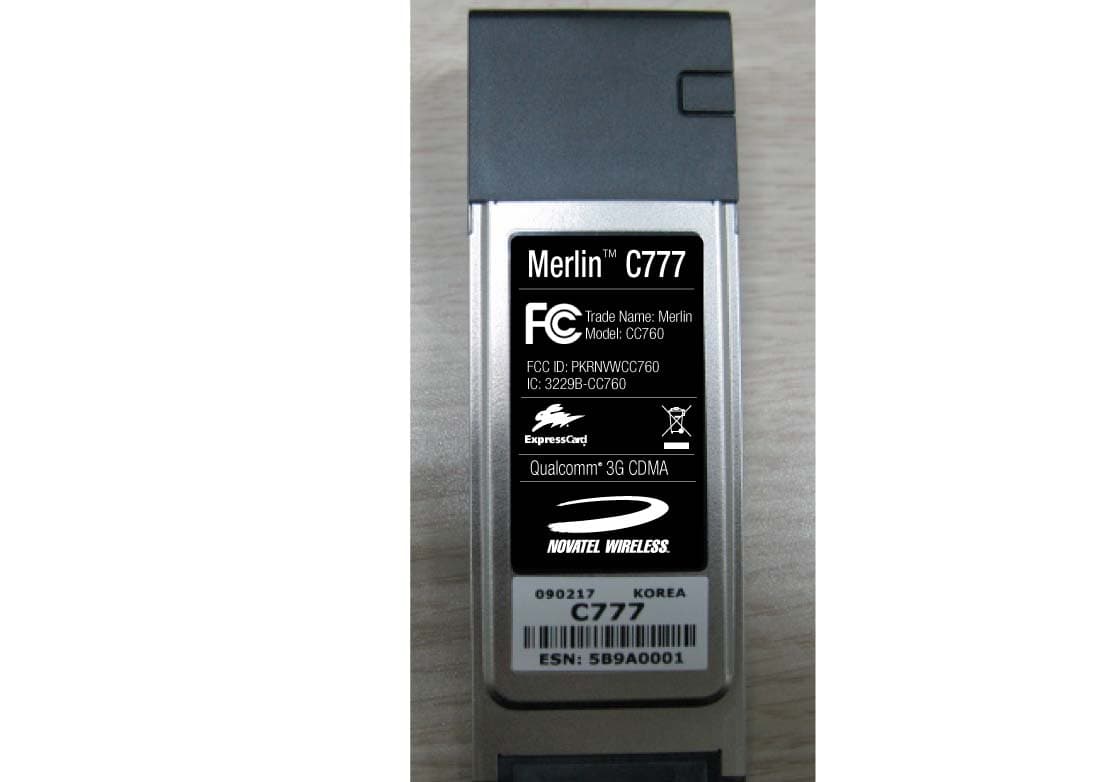

Express Card ® ® 24 mm 41.5 mm 4x R1 XCARD BOTTOM 8 7 6 5 4 3 2 1 D C B A c 41.5 24 24 (0.05) (0.07 WITH ADHESIVE) This document contains proprietary information and may not be reproduced or copied without the express written permission of a duly authorized representative of Novatel Wireless Incorporated. Copyright 2009 Novatel Wireless Incorporated. - All Rights Reserved NOVATEL WIRELESS INCORPORATED. CALGARY - SAN DIEGO - SHANGHAI TITLE: LABEL BOTTOM FCC PC770 VERIZON DRAWING NO.: DM-25016757 REV: A SIZE: D SCALE: 3.000DO NOT SCALESHEET 1 OF 1 ECOAPVDDWNDESCRIPTIONDATEREV P09074BHCWINITIAL RELEASE18-Feb-09A ITEMPART NO.DESCRIPTIONREV.QTY. DRAWING FILENAME: DM-25016757 WINDCHILL LOCATION: MODEL CREATED BY:Clint Wilber18-Feb-09 11:56:57 AM MODEL MODIFIED BY: Clint Wilber 18-Feb-09 01:51:00 PM THIRD ANGLE PROJECTION UNLESS OTHERWISE SPECIFIED DIMENSION UNITS ARE AS NOTED/PER NOTE 2 AND APPLY AFTER SURFACE TREATMENT TOLERANCES LINEARANGULAR MORE THANLESS THAN TOLERANCE EXCL OF SHEET METAL FLANGES
# 0
$15' 0.0063.50
#.13 63.50304.80
#.20 HOLE DIAMETERS 0.34 - 6.35 +0.13 -0.03 6.37 - 12.70 +0.15 -0.03 12.72 - 25.40 +0.25 -0.03 Concept CAD TOOL: Pro/ ENGINEER WILDFIRE 4.0 3D DATA FILE NAMETOOL/PART REVISION 25016757A.3 NOTES - UNLESS OTHERWISE SPECIFIED 1. INTERPRET DRAWING PER ASME Y14.100-2001. 2. ALL DIMENSIONS SHOWN ON THIS DRAWING ARE IN MM (MILLI- METERS). INCH DIMENSIONING IS NOT USED ON THIS DRAWING. 3. INTERPRET DIMENSIONS AND TOLERANCES PER ASME Y14.5M-1994. 4. WORKMANSHIP SHALL BE IN ACCORDANCE WITH NOVATELS' COSMETIC WORKMANSHIP STANDARDS DOC. OPS. 1035. 5. FOR COMPLETE DESIGN DISCLOSURE OF PART(S) DEPICTED HEREON USE THE FOLLOWING IN CONJUNCTION WITH THIS DRAWING: a. STANDARD MINIMUM DIMENSION DRAWING AND ELECTRONIC FILE REQUIREMENTS. b. 3D MODEL FILE(S) SPECIFIED ADJACENT TO TITLE BLOCK. 6. DIMENSIONS DEFINING RADIUSED CORNERS APPLY TO THEORETICAL INTERSECTION OF SURFACES. 7. MATERIAL: 0.025MM, 3M 7830 GLOSS, WHITE POLYESTER LAMINATE: .025MM CLEAR GLOSS POLYESTER ADHESIVE: .020MM ACRYLIC 8. ALL MATERIALS, PLATING, AND PROCESSES USED TO FABRICATE THIS PART MUST COMPLY WITH RoHS DIRECTIVE 2002/95/EC. 9. FOR GRAPHIC IMAGE USE ARTWROK DOCUMENT AW-25016757.

NOVATEL WIRELESS INC. FCC ID: PKRNVWCC760 Model: CC760 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Modem Page 1 of 6 © 2009 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS NOVATEL WIRELESS INC. FCC ID: PKRNVWCC760 Model: CC760 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Modem Page 2 of 6 © 2009 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: PKRNVWCC760 Model: CC760 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Modem Page 3 of 6 © 2009 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: PKRNVWCC760 Model: CC760 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Modem Page 4 of 6 © 2009 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: PKRNVWCC760 Model: CC760 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Modem Page 5 of 6 © 2009 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: PKRNVWCC760 Model: CC760 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Modem Page 6 of 6 © 2009 PCTEST Engineering Laboratory Inc.

© 2009 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 2867 Progress Place, Suite 4D • Escondido, CA 92029 • U.S.A. TEL (760) 737-3131 • FAX (760) 737-9131 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Novatel Wireless Dates of Test: February 13 - 16, 2009 9645 Scranton Road, Suite 205 Test Report Number: SAR.20090201 San Diego, CA 92121 Revision B This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1999 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003, OET Bulletin 65 Supp. C, RSS-102 and Safety Code 6 (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Certificate # 2387.01 FCC ID: PKRNVWCC760 IC Certificate: 3229B-CC760 Model(s): CC760 Test Sample: Engineering Unit Same as Production Serial No.: Eng 8 Equipment Type: Wireless Modem Classification: Portable Transmitter Next to Body TX Frequency Range: 824.7 – 848.5 MHz, 1851.25 – 1908.75 MHz Frequency Tolerance: ± 25 ppm Maximum RF Output: 835 MHz – 24.81 dBm, 1900 MHz – 24.09 dBm Conducted Signal Modulation: CDMA Antenna Type (Length): Internal Application Type: Certification FCC Rule Parts: Part 22, 24 Industr y Canada: RSS-102 FCC ID: PKRNVWCC760 © 2009 RF Exposure Lab, LLC Page 2 of 112 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Table of Contents 1. Introduction ...........................................................................................................................3 SAR Definition [5]......................................................................................................................3 2. SAR Measurement Setup .....................................................................................................4 Robotic System .........................................................................................................................4 System Hardware .....................................................................................................................4 System Description ...................................................................................................................4 E-Field Probe ............................................................................................................................5 3. Robot Specifications .............................................................................................................7 4. Probe and Dipole Calibration ................................................................................................8 5. Phantom & Simulating Tissue Specifications........................................................................9 SAM Phantom ...........................................................................................................................9 Brain & Muscle Simulating Mixture Characterization ................................................................9 Device Holder ...........................................................................................................................9 6. Definition of Reference Points.............................................................................................10 Ear Reference Point................................................................................................................10 Device Reference Points ........................................................................................................10 7. Test Configuration Positions ...............................................................................................11 Positioning for Cheek/Touch [5] ..............................................................................................11 Positioning for Ear / 15 ̊ Tilt [5] ................................................................................................12 Body Worn Configurations ......................................................................................................13 8. ANSI/IEEE C95.1 – 1999 RF Exposure Limits [2]...............................................................14 Uncontrolled Environment.......................................................................................................14 Controlled Environment .......................................................................................................... 14 9. Measurement Uncertainty ...................................................................................................15 10. System Validation ........................................................................................................... 16 Tissue Verification...................................................................................................................16 Test System Verification .........................................................................................................16 11. SAR Test Data Summary................................................................................................17 Procedures Used To Establish Test Signal.............................................................................17 Device Test Condition .............................................................................................................17 12.…

Text truncated - open the document above for the full version.

RF Exposure Report CC760 Equipment: CC760 USB Modem Trade Name: MERLIN CC760 Model No: CC760 FCC ID: PKRNVWCC760 Filing Type: Original Filing Applicant: Novatel Wireless Inc. 9645 Scranton Road San Diego, California 92121 Table of Contents 1.0 Introduction................................................................................................................... 4 1.1. FCC Definitions ....................................................................................................... 4 1.2. MPE Calculation Formula ....................................................................................... 5 1.3. EUT Information...................................................................................................... 5 1.4. Operational Summary .............................................................................................. 6 1.5 .MPE Figures ............................................................................................................ 6 2.0 Conclusion .................................................................................................................... 6 USER RESPONSIBILITY It is the document user’s responsibility to ensure that this document is current and complete if using a printed copy. Any hardcopy may be out of date. Consult the on- line version of the document, or the on-line Master List to verify current revision level, or contact Document Control. REVISION HISTORY Rev. Date Brief Description of Change Originator Approved by 1 13-03-09 Initial Revision JT PCTEST Inc. Document No: MPE-MIFI2352 MPE Exposure Report – CC760 March 13, 2009 4 ©Novatel Wireless 1.0 Introduction This report has been issued to show compliance of the Novatel Wireless CC760 to the FCC Maximum Permissible Exposure limits as specified in CFR 47 §2.1091 when using the external antenna port and defined as Mobile equipment . The CC760 is a Cellular/PCS EV-DO modem that can be used as either PC Card or Express Card. The CC760 is defined as a Mobile configuration as per the FCC Rules, and the user documentation that is available to consumers indicates that the modem must not be used closer than 20 cm to the head or body to ensure safe operation of the device. Also, the maximum gain of an external antenna connected to the antenna port has been defined in the user documentation as 6 dBi in both the Cellular and PCS Bands. Model Names: The CC760 is the designated Model name of the Novatel “generic” model. There are two other models included in this family of product: a) C777 – Sprint Specific b) PC760 – Verizon Specific 1.1. FCC Definitions As per OET Bulletin 65, three (3) categories of transmitters are defined, these are: a) Fixed Installation – Defined as a fixed location for the transmitter and it’s antenna that is physically secured at a permanent location and cannot easily be moved. Typical user distance to the transmitting antenna is ≥ 2 meters. b) Mobile Installation –A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. In this context, the term ‘‘fixed location’’ means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 centimeter separation requirement. c) Portable Installation - A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Document No: MPE-MIFI2352 MPE Exposure Report – CC760 March 13, 2009 5 ©Novatel Wireless The FCC categorizes the use of any device based upon the users awareness and ability to exercise control over exposure. The definitions of exposure categories are as follows: a) Occupational/Controlled Exposure – Applicable to situations where the end users are exposed to RF energy during routine daily workplace conditions and are fully aware of said exposure. b) General Population/Uncontrolled Exposure – Applicable to situations where the end users are do not a have an awareness of the potential exposure to RF energy or have no control of said exposure. For purposes of this investigation, the MC990D is evaluated using the exposure limits for General Population/Uncontrolled Exposure. 1.2. MPE Calculation Formula Per FCC §1.1310, the Power Density limit for General Population/Uncontrolled Exposure is: • For the Cellular Band – 0.558 mW/cm 2 • For the PCS Band – 1.000 mW/cm 2 The calculation is made using the Friis transmission equation: S = EIRP/4πR 2 Where: S = Power Density EIRP – Effective Isotropic Radiated Power R = 20 cm distance 1.3. EUT Information Equipment Under Test: Novatel Merlin CC760 Hardware Revision: 3 Firmware/Software Revision: 1225 Serial Number: N/A (Production Grade Sample) Document No: MPE-MIFI2352 MPE Exposure Report – CC760 March 13, 2009 6 ©Novatel Wireless 1.4. Operational Summary The CC760 is capable of transmitting in the Cellular/PCS frequency bands and features EV-DO modulation schemes for WWAN. For purposes of this report, MPE figures for each band is presented operating in the worst case (highest power) mode. All measurements taken are worst case per band investigated, detailed results can be seen in Report No: 092230325.PKR 1.5 .MPE Figures Maximum Antenna Gain = 6 dBi (as specified in Quick Start guide) Case One: 850 MHz a) Maximum Conducted RF Power Cellular Band: 24.74 dBm + 6 dBi (antenna) = 30. 74 dBm 30.74 dBm = 1185.7687 mW Maximum EIRP Calculated RF Exposure Limit (mw) D = 20 cm (mW/cm 2 ) 1185.768 0.236 mW/cm 2 0.558 Case Two: PCS 1900 a) Maximum Conduc…

Text truncated - open the document above for the full version.

NOVATEL WIRELESS INC. FCC ID: PKRNVWCC760 Model: CC760 Test Set-Up Photos EUT Type: Cellular/PCS CDMA/EvDO Modem Page 1 of 2 © 2009 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS NOVATEL WIRELESS INC. FCC ID: PKRNVWCC760 Model: CC760 Test Set-Up Photos EUT Type: Cellular/PCS CDMA/EvDO Modem Page 2 of 2 © 2009 PCTEST Engineering Laboratory Inc.
