PKRNVWCNN04032G/3G Wireless module

Inseego Corp.
2G/3G Wireless module - FCC ID PKRNVWCNN0403 - Inseego Corp.
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Jul 16, 2013
Application Purpose
Original Equipment
Date of Application
Jul 16, 2013
Equipment Note
2G/3G Wireless module
Frequency Range
1852.40000000 - 1907.60000000
Company
Inseego Corp.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Date: July 01, 2013 Ref: Confidentiality request for FCC ID: PKRNVWCNN0403 FCC ID: Title/model: PKRNVWCNN0403 Wireless modem / CNN0403 To whom it may concern: Pursuant to §0.457(d)(1)(ii) and §0.459 of the Commission’s Rules (47 C.F.R.) and §552 (b)(4) of the Freedom of Information Act, Novatel Wireless Inc. hereby request permanent confidentiality to avoid release of sensitive information of the product to the public. For the product stated above, we request that the following information be withheld from public disclose: - Schematics - Bill of Materials - Tune-up procedure - Operational description - Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to Novatel Wireless Inc. and provide unjustified benefits to our competitors. Novatel Wireless Inc. understand that pursuant to §0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Name: Todd Gallagher Position: Manager, Regulatory Engineering Company: Novatel Wireless Inc. Address: 6715 - 8th Street N.E., Suite 200, Calgary Alberta T2E 7H7 Canada Telephone: 403-295-4891 Fax: 403-295-4801 e-mail [email protected]

Cover Letter(s)

BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Date: July 01, 2013 REF: Short-term confidentiality request for FCC ID: PKRNVWCNN0403 FCC ID: Title/model: PKRNVWCNN0403 Wireless modem / CNN0403 To whom it may concern: Pursuant to §0.457(d)(1)(ii) and §0.459 of the Commission’s Rules (47 C.F.R.) and §552 (b)(4) of the Freedom of Information Act, Novatel Wireless Inc. hereby request short-term confidentiality to avoid premature release of sensitive information prior to marketing or release of the product to the public. For the product stated above, we request that the following information be temporarily withheld from public disclose for an initial period of 180 days: - External photographs - Internal photographs - Test setup photographs - User’s guide It is understood that no extensions of the short-term confidentiality may be requested. Sincerely, Name: Todd Gallagher Position: Manager, Regulatory Engineering Company: Novatel Wireless Inc. Address: 6715 - 8th Street N.E., Suite 200, Calgary Alberta T2E 7H7 Canada Telephone: 403-295-4891 Fax: 403-295-4801 e-mail [email protected]

Cover Letter(s)

BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Date: July 01, 2013 Ref: Modular approval letter for FCC ID: PKRNVWCNN0403 FCC ID: Title/model: PKRNVWCNN0403 Wireless modem / CNN0403 To whom it may concern: The following attestation addresses the fourth requirements to support modular approval:  This device is designed for mobile or fixed operation; portable operation is subject to a Class 2 permissive change application or to a new and separate FCC ID.  The maximum antenna gain is limited to 6.9 dBi for the GSM 850/FDD V frequency band and 2.0 dBi for PCS 1900/FDD II frequency band, as calculated in the RF exposure exhibit.  The product has a FCC ID label on the device itself. Also, the OEM host end product manufacturer will be informed to display a label referring to the enclosed module. The exterior label will read as follows: “Contains Transmitter Module FCC ID: PKRNVWCNN0403” or “Contains FCC ID: PKRNVWCNN0403”.  We request to include in the grant the following words in the device description or grant notes: “modular transmitter” or “transmitter module”. If there are any additional questions or if further information is needed, please contact us. Sincerely, Name: Todd Gallagher Position: Manager, Regulatory Engineering Company: Novatel Wireless Inc. Address: 6715 - 8th Street N.E., Suite 200, Calgary Alberta T2E 7H7 Canada Telephone: 403-295-4891 Fax: 403-295-4801 e-mail [email protected]

Cover Letter(s)

BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Date: July 01, 2013 Authorisation letter We, Novatel Wireless Inc. 6715 - 8th Street N.E., Suite 200 Calgary Alberta T2E 7H7 Canada , hereby authorize AT4 wireless, S.A. Parque Tecnológico de Andalucía C/ Severo Ochoa nº 2 29590 Campanillas - Malaga Spain Ricardo Orejas Phone: +34952619317 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. The present authorization considers the development of documents on behalf of the client, written under his own letterhead and related to the necessary information to be provided on his behalf to complete the certification process. This authorisation is applicable to the product: Type of product: Wireless modem Brand: HS 3002 Model: CNN0403 FCC ID: PKRNVWCNN0403 IC: 3229A-CNN0403 This agreement expires one year from the current date. Sincerely, Name: Todd Gallagher Position: Manager, Regulatory Engineering Company: Novatel Wireless Inc. Address: 6715 - 8th Street N.E., Suite 200, Calgary Alberta T2E 7H7 Canada Telephone: 403-295-4891 Fax: 403-295-4801 e-mail [email protected]

External Photos

NOVATEL WIRELESS, INC. 6715 8th Street NE, Suite 200, Calgary, AB, Canada T2E 7H7 Toll Free: 888.888.9231 Main: 403-295-4800 Fax: 403-295-4801 Internet: www.novatelwireless.com ISO 9001: 2000 CNN0403 External Top Angle NOVATEL WIRELESS, INC. 6715 8th Street NE, Suite 200, Calgary, AB, Canada T2E 7H7 Toll Free: 888.888.9231 Main: 403-295-4800 Fax: 403-295-4801 Internet: www.novatelwireless.com ISO 9001: 2000 CNN0403 External Bottom Angle

Internal Photos

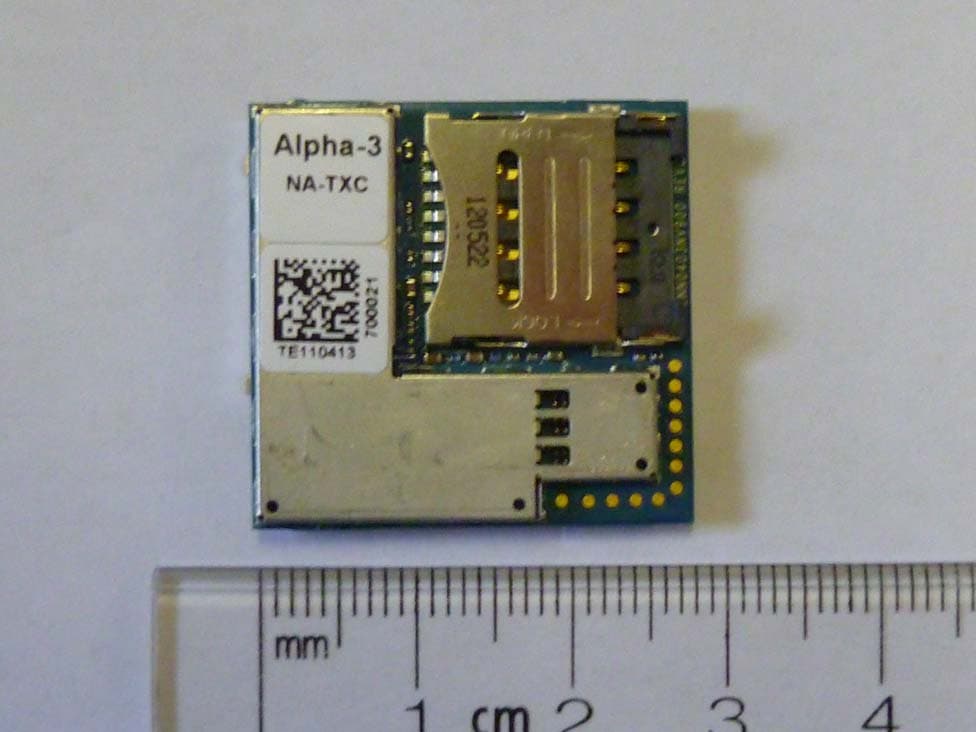

NOVATEL WIRELESS, INC. 6715 8th Street NE, Suite 200, Calgary, AB, Canada T2E 7H7 Toll Free: 888.888.9231 Main: 403-295-4800 Fax: 403-295-4801 Internet: www.novatelwireless.com ISO 9001: 2000 CNN0403 Internal Top Angle NOVATEL WIRELESS, INC. 6715 8th Street NE, Suite 200, Calgary, AB, Canada T2E 7H7 Toll Free: 888.888.9231 Main: 403-295-4800 Fax: 403-295-4801 Internet: www.novatelwireless.com ISO 9001: 2000 CNN0403 Internal Bottom Angle

RF Exposure Info

BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Date: July 01, 2013 RF exposure analysis for the equipment CNN0403 (FCC ID: PKRNVWCNN0403; IC: 3229A-CNN0403) The device (FCC ID: PKRNVWCNN0403; IC: 3229A-CNN0403) is a module designed to be installed in other devices. This device is to be used only for fixed and mobile applications. If the final product after integration is intended for portable use, new applications and FCC and IC are required. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all the persons and must not be co-located or operating in conjunction with any other antenna or transmitter except as under the conditions described KDB 447498 D01 General RF Exposure Guidance. MPE exposure limits The table below is excerpted from Table 1B of 47 CFR 1.1310 titled Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure: Frequency Range (MHz) Power density (mW/cm 2 ) Averaging time (minutes) 300 – 1500 f (MHz) /1500 30 1500 – 100.000 1,0 30 The table below is excerpted from RSS-102, Issue 4, 4.2, titled “RF Limits for Devices used by the General Public”: Frequency Range (MHz) Power density (W/m 2 ) Averaging time (minutes) 300 – 1500 f (MHz) /150 6 1500 – 100.000 10 6 EIRP/ERP limits For 850 MHz frequency band and according to FCC §22.913 the maximum ERP of the device is 7 W (equivalent to 11,48 W EIRP) while IC SRSP-503 defines an EIRP limit of 11,5 W. For 1900 MHz frequency band and according to FCC §24.232 and IC SRSP-510, the maximum EIRP of the device should be lower than 2 W. Using the equation 2 4R PG S π = to calculate the exposure to electromagnetic fields where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) compliance with FCC/IC MPE and EIRP limits is demonstrated following the calculations shown in the following page. GPRS 850 GMSK 33,50 25,0% 0,55 11,48 11,50 20 6,93 7,09 7,10 6,93 EGPRS 850 8PSK 28,00 50,0% 0,55 11,48 11,50 20 9,42 12,59 12,60 9,42 FDD V QPSK 24,00 100,0% 0,55 11,48 11,50 20 10,42 16,59 16,60 10,42 6,93 GPRS 1900 GMSK 31,00 25,0% 1,00 2,00 2,00 20 12,03 2,01 2,01 2,01 EGPRS 1900 8PSK 27,00 50,0% 1,00 2,00 2,00 20 13,02 6,01 6,01 6,01 FDD II QPSK 24,00 100,0% 1,00 2,00 2,00 20 13,01 9,01 9,01 9,01 2,01 Maximun antenna gain to meet all the limits (dBi) Evaluation distance for compliance with MPE limits (cm) Duty cicle (%) FCC/IC MPE limit (mW/cm 2 ) FCC EIRP limit per §22.913 and §24.232 (W) IC EIRP limit per SRSP-503 and SRSP-510 (W) Maximun antenna gain for 850 MHz frequency band: Maximun antenna gain for 1900 MHz frequency band: Band Modulation Maximun antenna gain to meet all the limits per frequency band (dBi) Avg burst Conducted power (dBm) Antenna gain to meet FCC/IC MPE limit (dBi) Antenna gain to meet FCC EIRP limit (dBi) Antenna gain to meet IC EIRP limit (dBi) Yours sincerely, Name: Ricardo Orejas Position: WCS Consultant Company: AT4 wireless, S.A. Address: Parque Tecnologico de Andalucía, C/ Severo Ochoa 2, 29590 Campanillas-Málaga, Spain Telephone: +34 952 619 317 Fax: +34 952 619 113 e-mail [email protected]

Test Report

FCC 47 CFR PART 22H and 24E Test Report Product Type : Wireless Modem Applicant : Novatel Wireless Inc. Address : 6715 - 8th Street N.E., Suite 200 Calgary Alberta T2E 7H7 Canada Trade Name : HS 3002 Model Number : CNN0403 Test Specification : FCC 47 CFR PART 22H: Oct, 2012 FCC 47 CFR PART 24E: Oct, 2012 CANADA RSS-132 ISSUE 3: Jan. 2013 CANADA RSS-133 ISSUE 6: Jan. 2013 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI/TIA-603-C-2004 Application Purpose : Original Receive Date : Jun. 17, 2013 Test Period : Jun. 21 ~ Jun. 25, 2013 Issue Date : Jul. 10, 2013 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l:+886-3-2710188 / Fax:+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. Report Number: 1306FR17-01 1 of 119 A Test Lab Techno Corp. Revision History Rev. Issue Date Revisions Revised By 00 Jul. 03, 2013 Initial Issue 01 Jul. 10, 2013 Revised report infomation Snow Wang Report Number: 1306FR17-01 2 of 119 A Test Lab Techno Corp. Verification of Compliance Issued Date: 07/10/2013 Product Type : Wireless Modem Applicant : Novatel Wireless Inc. Address : 6715 - 8th Street N.E., Suite 200 Calgary Alberta T2E 7H7 Canada Trade Name : HS 3002 Model Number : CNN0403 FCC ID : PKRNVWCNN0403 IC : 3229A-CNN0403 EUT Rated Voltage : DC 5.0V (USB Interface) Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 22H: Oct, 2012 FCC 47 CFR PART 24E: Oct, 2012 CANADA RSS-132 ISSUE 3: Jan. 2013 CANADA RSS-133 ISSUE 6: Jan. 2013 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI/TIA-603-C-2004 Application Purpose : Original Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l:+886-3-2710188 / Fax:+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 22H, Part 24E. The test results of this report relate only to the tested sample identified in this report. Approved By : Reviewed By : (Manager) (Murphy Wang) (Testing Engineer) (Fly Lu) Report Number: 1306FR17-01 3 of 119 A Test Lab Techno Corp. TABLE OF CONTENTS 1 General Information ....................................................................................................................................... 6 1.1. EUT Description ..................................................................................................................................... 6 1.2. Mode of Operation.................................................................................................................................. 7 1.3. EUT Exercise Software.......................................................................................................................... 7 1.4. Configuration of Test System Details ..................................................................................................... 7 1.5. Test Site Environment ............................................................................................................................ 8 1.6. Summary of Test Result ......................................................................................................................... 8 2 RF Output Power Test ................................................................................................................................... 9 2.1. Limit ........................................................................................................................................................ 9 2.2. Test Instruments ..................................................................................................................................... 9 2.3. Test Setup............................................................................................................................................... 9 2.4. Test Procedure ....................................................................................................................................... 9 2.5. Uncertainty ............................................................................................................................................. 9 2.6. Test Result............................................................................................................................................ 10 3 Effective Radiated Power / Equivalent Isotropic Radiated Power Test .................................................. 13 3.1. Limit ...................................................................................................................................................... 13 3.2. Test Instruments ................................................................................................................................... 13 3.3. Setup .................................................................................................................................................... 13 3.4. Test Procedure ..................................................................................................................................... 15 3.5. Uncertainty ......................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Part 22H & Part 24E Test Setup Photographs Radiated Emissions Test Configuration: Description: Front View of Radiated Emission Test _ Below 1GHz Description: Back View of Radiated Emission Test _ Below 1GHz A Test Lab Techno Corp. Report Number: 1306FR17-01 1 of 3 Description: Front View of Radiated Emission Test _ Above 1GHz Description: Back View of Radiated Emission Test _ Above 1GHz A Test Lab Techno Corp. Report Number: 1306FR17-01 2 of 3 Close View A Test Lab Techno Corp. Report Number: 1306FR17-01 3 of 3

Contact Information

Applicant

Roman Olmos(Sr. Staff Regulatory Engineer)
[email protected]858-812-3400Fax: 858-408-4345

Test Firm

Eurofins E&E Wireless Taiwan Co., LtdFly LU
[email protected]886-3-2710188Fax: 886-3-2710190

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
624E1.85 GHz - 1.91 GHz203.00 mW4M17F9W1 ppm
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single Modular Approval. Power listed is conducted. The maximum antenna gain including cable loss for compliance with radiated power limits, RF exposure requirements and the categorical exclusion requirements of 2.1091 is 6.93 dBi for 850MHz bands, 2.01 dBi and for 1900 MHz bands. The antenna(s)used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operated in conjunction with any antenna or transmitter not described under this FCC id, except in accordance with FCC multi-transmitter product procedures.This module can only be used with a host antenna circuit trace layout design in strict compliance with the OEM instructions provided. Compliance of this device in all final product configurations is the responsibility of the Grantee. Installation of this device into specific final products may require the submission of a Class II permissive change application containing data pertinent to RF Exposure, spurious emissions, ERP/EIRP, and host/module authentication, or new application if appropriate.
