PKRNVWE362Cellular/ PCS GSM/ EDGE/ WCDMA/ CDMA and 700 MHz LTE Module

10/26/2010 1 of 6 Novatel Wireless, Inc. PCI Express Mini-card User Guide – Expedite E362 Version 2.0 10/26/2010 2 of 6 Notice: Restricted Proprietary Information © Copyright Novatel Wireless, Inc. (2010) The information contained in this document is the exclusive property of Novatel Wireless, Inc. All rights reserved. Unauthorized reproduction of this manual in any form without the expressed written approval of Novatel Wireless, Inc. is strictly prohibited. This manual may not, in whole or in part, be copied, reproduced, translated, or reduced to any electronic or magnetic storage medium without the written consent of a duly authorized officer of Novatel Wireless Inc. The information contained in this document is subject to change without notice and should not be construed as a commitment by Novatel Wireless Inc. unless such commitment is expressly given in a covering document. Novatel Wireless Inc. makes no warranties, either expressed or implied, regarding this document, its merchantability, or its fitness, for any particular purpose. Printed and produced in United States of America. Document Revision History Rev. Date Brief Description of Change Originator Approved by 1.0 September 29, 2010 Initial Draft Todd Gallagher 2.0 October 26, 2010 Updates based on TCB review. Todd Gallagher Novatel Wireless Inc. Version 2.0 10/26/2010 3 of 6 Integrator Design Elements: Antennas Antenna Host Antenna Requirements When designing the antenna system for the E362 the gain of the host antenna must not exceed the following: LTE (700MHz) Band: 9.92dBi Cell (800MHz) Band: 7.42dBi PCS (1900MHZ) Band: 3.0dBi Novatel Wireless Inc. Version 2.0 10/26/2010 4 of 6 E362 Regulatory Notice Safety Warning The E362 may not be used in an environment where radio frequency equipment is prohibited or restricted in its use. This includes aircraft/airports, hospitals, and other sensitive electronic areas. Do not operate RF devices in an environment that may be susceptible to radio interference resulting in danger, specifically: • Areas where prohibited by the law Follow any special rules and regulations and obey all signs and notices. Always turn off the host device when instructed to do so, or when you suspect that it may cause interference or danger. • Where explosive atmospheres may be present Do not operate your modem in any area where a potentially explosive atmosphere may exist. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Be aware and comply with all signs and instructions. • Users are advised not to operate the modem while at a refueling point or service station. Users are reminded to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants or where blasting operations are in progress. • Areas with a potentially explosive atmosphere are often but not always clearly marked. Potential locations can include gas stations, below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine. • Near Medical and life support equipment Do not operate your modem in any area where medical equipment, or life support equipment may be located, or near any equipment that may be susceptible to any form of radio interference. In such areas, the host communications device must be turned off. The modem may transmit signals that could interfere with this equipment. • On an aircraft, either on the ground or airborne In addition to FAA requirements, many airline regulations state that you must suspend wireless operations before boarding an airplane. Please ensure that the host device is turned off and your modem is removed from the card slot prior to boarding aircraft in order to comply with these regulations. The modem can transmit signals that could interfere with various onboard systems and controls. • While operating a vehicle The driver or operator of any vehicle should not operate a wireless data device. Doing so will detract from the driver or operator's control and operation of that vehicle. In some countries, operating such communication devices while in control of a vehicle is an offence. Novatel Wireless Inc. Version 2.0 10/26/2010 5 of 6 Under extended operation the E362 modem will generate a noticeable amount of heat. Like all PC Cards, the modem generates heat during normal operation and will be heated by the host computer. For this reason it is recommended that after extended periods of operation, prior to removal and handling, you allow the modem to cool down. FCC (Federal Communication Commission) The E362 is compliant to the relevant sections of the FCC rules: • FCC CFR47 Part 2 (General Rules and Regulations, RF Exposure Evaluation) • FCC CFR47 Part 15 (All Radio Frequency Devices) • FCC CFR47 Part 24 (Narrow and wideband PCS modules) • FCC CFR47 Part 22 (Cellular Service) • FCCCFR47 Part 27 (Wireless Communications Services) Labeling Notice for End Use Products For any end use product that the Novatel E362 modem is used in, a label containing the following information must be placed visibly on the outside of the product. This device contains FCC ID: PKRNVWE362 and IC: 3229B-E362 All instructions relating to the integration of the module described on the FCC Grant notes must be followed. Radio Frequency Exposure Requirements Per §2.1091 of the FCC rules, embedded modules are defined as “mobile devices” At least 20cm (8 inches) of separation between the antenna and the users body must be maintained at all times. If this device is intended for use in a portable device, you (the integrator) are responsible for separate approval to satisfy the SAR (RF Exposure) requirements of FCC Part 2.1093 and Industry Canada RSS-102/Safety Code 6. Novatel Wireless Inc. Version 2.0 1…

Text truncated - open the document above for the full version.

3/7/2011 1 of 9 Novatel Wireless, Inc. PCI Express Mini-card Installation Guidelines – Expedite E362 Version 3.1 3/7/2011 2 of 9 Notice: Restricted Proprietary Information © Copyright Novatel Wireless, Inc. (2011) The information contained in this document is the exclusive property of Novatel Wireless, Inc. All rights reserved. Unauthorized reproduction of this manual in any form without the expressed written approval of Novatel Wireless, Inc. is strictly prohibited. This manual may not, in whole or in part, be copied, reproduced, translated, or reduced to any electronic or magnetic storage medium without the written consent of a duly authorized officer of Novatel Wireless Inc. The information contained in this document is subject to change without notice and should not be construed as a commitment by Novatel Wireless Inc. unless such commitment is expressly given in a covering document. Novatel Wireless Inc. makes no warranties, either expressed or implied, regarding this document, its merchantability, or its fitness, for any particular purpose. Printed and produced in United States of America. 3/7/2011 3 of 9 Document Revision History Rev. Date Brief Description of Change Originator Approved by 1.0 September 29, 2010 Initial Draft Todd Gallagher 2.0 October 26, 2010 Updates based on TCB review. Todd Gallagher 3.0 February 15, 2011 Updates based on FCC recommendations following KDB pub 616217 Supplemental Todd Gallagher 3.1 February 24, 2011 Additional updates to antenna gain tables. Added new information relating to the collocation of transmitting antennas. Todd Gallagher Novatel Wireless Inc. Version 3.1 3/7/2011 4 of 9 E362 Module Installation and Collocation Guidelines for Host Devices 1.0 Introduction This document provides module and antenna installation guidelines for notebook computers to be authorized for use with the E362 module through a FCC Class I or Class II Permissive Change process. As the grantee Novatel Wireless is responsible for all integrations and must be consulted on all regulatory matters involving the E362. The module was originally granted by the FCC as a mobile device with respect to RF Exposure compliance. This document outlines what RF Exposure considerations are required when integrating the E362 into a laptop type device. The following installation host configurations are addressed in this document. 1) The E362 module can be installed as a standalone transmitter in notebooks meeting the following conditions: a. Mobile notebooks where >20cm separation distance is provided between the E362 transmitting antenna and the end user. The technical parameters for mobile measurements are defined in Section 2.1. b. Portable notebooks where ≤20cm separation distance is provided between the E362 transmitting antenna that meet the technical parameters defined in Section 3.0. Devices require SAR evaluation and consultation by the grantee (Novatel Wireless) is required. 2) Collocated transmitters that can operate simultaneously with the E362 module is only allowed if the technical requirements defined in Section 3.0 are satisfied. 3) Should end-user installation be available module/notebook Two-Way Authentication is required. Please contact Novatel Wireless and section 2.4.1 for additional details. 4) The FCC and Industry Canada IDs must be permanently affixed on the exterior of the notebook or readily accessible under a panel or battery pack of the host device that cannot be separated from the host device itself. The label must state: This device contains FCC ID: PKRNVWE362 5) These installation guidelines are not applicable to non-notebook host devices or tablet PCs. The installation guidelines are applicable for notebook computers where the E362 and collocated antennas are located in the display portion of a notebook computer. SAR evaluation is completed with the display open at a ninety-degree angle as defined in KDB pub 616217 and Section 4 of KDB pub 447498. Novatel Wireless Inc. Version 3.1 3/7/2011 5 of 9 2.0 Module Installation Guidelines This section defines host installation limitations for mobile and portable hosts. 2.1 Installation Guidelines 2.1.1 Mobile Hosts (WWAN to user separation distance >20cm) The E362 module can be installed for use in any authenticated mobile host device as long as the antenna gain of the host antenna does not exceed the gain listed in table 1. (See section 4.0 for the measurement guidelines of separation between the transmitting antenna and the user.) The modem must not be collocated with other antennas or transmitters unless the guidelines are followed within this document. Please section 3 for collocated information. The maximum E362 conducted power and host antenna gain is listed in Table 1. Table 1 Technology Frequency (MHz) Maximum Conducted Power (dBm) Conducted Power (W) Maximum Antenna Gain (dBi) LTE Band 13 (5MHZ) 779.5 24.25 0.266 LTE Band 13 (5MHz) 784.5 24.25 0.266 LTE Band 13 (10MHz) 782 24.25 0.266 GPRS 1 UL 824 33.00 1.99 CDMA2000 824 24.50 0.282 UMTS 824 24.50 0.282 GPRS 1 UL 1850 30.00 1.0 CDMA2000 1850 24.50 0.282 UMTS 1850 24.50 0.282 2.1.2 Portable Hosts (WWAN to user separation distance ≤20cm) The E362 module can be installed for use in a portable host device with the WWAN antenna limitation. This type of installation requires a Class II permissive change specifically if the antennas are not documented or if the conditions in section 1, 5) are not met. RF Exposure compliance is required using KDB pub 447498 or KDB pub 616217 methods. See section 4 to determine the antenna measurement of the laptop to define the device as ‘portable’. 2.1.4 End User Installation Two-way authentication documentation is required to be submitted as part of a Class II or Class I permissive change allowing end-user installation into notebooks that utilize the method of authentication. 2.1.5 User Instructions Installers and end user must be provided with specific information to satisfy FCC RF exposure requirements for Mobile or portabl…

Text truncated - open the document above for the full version.

From: Todd Gallagher Sent: Thursday, October 28, 2010 9:59 AM To: PCTEST TCB/CB Cc: Andrea Zaworski - PCTEST Subject: RE: Questions Regarding FCC ID: PKRNVWE362 ~ Amended Response ~ Point number 5 has been amended from the original re s ponse below (October 26, 2010). I have the following responses to the questions below. 1 . UMTS 700MHz band is not available on the product. The schematic has been modified to address this confusion. Please see page 4 of the attached document. 2. Changes have been made to the Cell/PCS references as well as the antenna gain information. A new Integration guide is attached. The change can be found on page 3. 3. The wording required for integrators has been updated and a new Integration guide has been attached with this change. The change can be found on page 5. 4. The tested tuning range is correct and a revised Theo ry of operation guide is attached. 5. The module as tested does not support EvDO Rev.B or a n upload capability of HSPA release 7 or 8. The revised Theory of operation guide is attached. Let me know if further clarification is required. Thank you. Best regards, Todd Gallagher Manager – Regulatory Engineering Novatel Wireless From: Todd Gallagher Sent: Tuesday, October 26, 2010 11:07 AM To: PCTEST TCB/CB Subject: RE: Questions Regarding FCC ID: PKRNVWE362 He llo Greg, I have the following responses to the questions belo w. 6 . UMTS 700MHz band is not available on the product. The schematic has been modified to address this confusion. Please see page 4 of the attached document. 7. Changes have been made to the Cell/PCS references as well as the antenna gain information. A new Integration guide is attached. The change can be found on page 3. 8. The wording required for integrators has been updated and a new Integration guide has been attached with this change. The change can be found on page 5. 9. The tested tuning range is correct and a revised Theo ry of operation guide is attached. 10. The module as tested does not support EvDO Rev.B or a n upload capability of HSPA release 8. The revised Theory of operation guide is attached. The module does support an upload capability of HSPA release 7. Let me know if further clarification is required. Thank you. Best regards, Todd Gallagher Manager – Regulatory Engineering Novatel Wireless From: PCTEST TCB/CB S ent: Friday, October 15, 2010 5:23 PM To: Todd Gallagher Subject: Questions Regarding FCC ID: PKRNVWE362 T o: Mr. Todd Gallagher / Novatel Wireless Inc. From: Mr. Gregory Czumak / PCTEST TCB RE: FCC ID: PKRNVWE362 Applicant: Novatel Wireless Inc. Correspondence Reference Number: PKR101138 C o nfirmation Number: 1Y1009131138 Date of Original Email: October 15, 2010 Subject: Request for additional information In regards to your recent TCB application referenced a bove, we kindly request that you provide the following additional information. 1. The schematic diagrams appear to show 700 MHz WCDMA ( UMTS) capability- please confirm that this is not implemented in the EUT. 2. Page 1 of the Module Integration Guide lists “PCS (80 0MHz)” and “Cell (1900MHz)”. Please correct. Please note that the maximum permissible antenna gains will be changing with needed revisions to the MPE report- the test lab will inform you of the new values. 3. In the Module Integration Guide, p. 3 of 4, under RF E xposure Requirements, please change “...you (the user) are responsible for separate approval...” to “...you (the integrator) are responsible for separate approval...” and resubmit the Guide. 4. Page 10 of 22 of the Theory of Operation, Section 4.3 .3, lists a frequency tuning range for LTE that exceeds the tested tuning range. Please revise to show the actual tested tuning range and resubmit. 5. The Theory of Operation lists EvDO RevB, as well as H SPA Rel 7+ and Rel 8. Are any of these implemented in the EUT? None were tested, and all require a TCB PbA. Please clarify. The items indicated above must be submitted before pr ocessing can continue on the above referenced application. Sincerely, Gregory Czumak S en ior Certification Engineer Quality Manager PCTEST TCB/CB Tel. 1.410.290.6652 Fa x. 1.410.290.6654 [email protected] www.pctesttcb.com
Please consider the environment before printing this e-mail . This communication and its attachments contain information from PCTEST TCB/CB and are i ntended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you.

Novatel Wireless Inc. FCCID: PKRNVWE362 CRN: 96659/ 96660 1. The grantee is aware that the option to utilize procedures referenced in KDB pub 616217 SUPPLEMENT is available to them and had requested guidance prior to testing through KDB inquiry 689615. Given that there were no reference laptops available suitable to the E362 module (with LTE functionality) this option was not selected. For this program the grantee prefers to test each host in the most conservative mode as outlined in KDB pub 616216 SUPPLEMENT and proceed with Class I changes on subsequent similar platforms. The applicable sections of KDB 447498 will be followed. The Integration guide has been updated to provide additional details with respect to the rules and FCC references. All future module applications that can be used in a portable configuration will be evaluated according to KDB pub 616217 Supplement 2. The integration guide has been updated to address the following statements: Comment Response A grantee knows their own product, and filings need to provide appropriate information to support and demonstrate how integrators and users will be able to comply with RF exposure compliance requirements. The grantee is responsible and must ensure its OEM integrators and distributors are provided with and following the necessary installation and implementation instructions/requirements and relevant grant restrictions to incorporate the approved transmitters and antennas. Please refer to the revised integration guide. Section 1 covers general integration guidelines. FCC Grant Conditions: • This device is mobile with respect to RF Exposure compliance: pg 4 • The antenna must be used at a distance of 20cm: pg 4 • Must not be collocated: Guidelines pg 4 • Specific guidelines regarding RF Exposure: pg 4 • Host responsibility: pg 4 • Antenna gain information: pg5 The instructions must clearly identify the minimum antenna-to-user separation distances applicable to all qualified host products, in terms of general and/or specific and/or example configurations and the relevant antenna installation locations and orientations required and/or acceptable for the allowed host product configurations. Please refer to the revised integration guide. Section 1 covers general integration guidelines. Section 3.0 of the revised installation guide details collocation and other radiating antennas. Section 4 covers antenna distance measurements for portable/mobile designations. Other appropriate information must be provided to support compliance for the simple and basic "keep 20 cm away" condition. Please refer to the revised integration guide. Section 1 covers general integration guidelines for portable and mobile conditions. Section 4 covers antenna distance measurements with respect to 20cm. As described in FCC-TCB conference presentations at minimum in the past year, for device types like this operating with external antennas, where instructions and/or RF exposure compliance exhibits have not provided appropriate general and/or specific and/or example antenna and cabling descriptions, and typical or specific means to install and operate to maintain mobile device conditions, then pursuant to 2.1091(d)(4) filings need to address SAR compliance for portable device conditions and operations, i.e. using KDB pub 447498 or KDB pub 616217 methods. Please revise relevant portions of this filing as appropriate. Please refer to the revised integration guide. Section 1 covers general integration guidelines for portable and mobile conditions. Section 2 covers specific details of mobile and portable examples. 3. The integration guide has been updated to address the following statements: The install/operating instructions exhibit includes the text: "All instructions relating to the integration of the module described on the FCC Grant notes must be followed." This seems inconsistent with 2.909(a) grantee's compliance responsibility, i.e. install/operating instructions should be explicit about ALL device requirements, and must not rely on cross-reference to whatever are "FCC Grant notes." Please revise relevant portions of this filing as appropriate. See the response in number 2 for specific grant note details. Please refer to the revised integration guide. 4. The integration guide has been updated to address the following statements: The install/operating instructions exhibit includes the text: "Per §2.1091 of the FCC rules, embedded modules are defined as "mobile devices"" - this appears to be a misinterpretation of 2.1091 - in conjunction with the considerations of item 2) above, please revise relevant portions of this filing as appropriate. Please refer to the revised integration guide. A detailed response is available in section 2 of this communication. 5. The integration guide has been updated to address the following statements: To permit inevitable use in typical modern mullti- transmitter products and applications, if not in filing already please revise/amend to provide install/operating requirements to address KDB pub. 447498 D01 item 8) conditions. Other appropriate information must be provided to support compliance beyond a simple and basic bygone-era "must not be co-located" statement. Please refer to the revised integration guide. Section 1 covers general integration guidelines and collocation reference.. Section 3.0 of the revised installation guide details collocation and other radiating antenna information 6. MPE exhibit sec. 1.2 first and second lines seem mutually inconsistent, i.e. second line mentions device is only CDMA/EvDO and LTE capable - please revise relevant portions of this filing as appropriate. PCTEST Response: This typo was the result of an oversight on the part of PCTEST TCB. The test lab has corrected the typo. 7. MPE pg 5 shows 266 mW, but f-731 shows 233 mW => apparently there may be fundamental TCB Q/C issue; please adjust TCB processing procedures where appropriate Please revise relevant portions of this filing as appropriate…

Text truncated - open the document above for the full version.

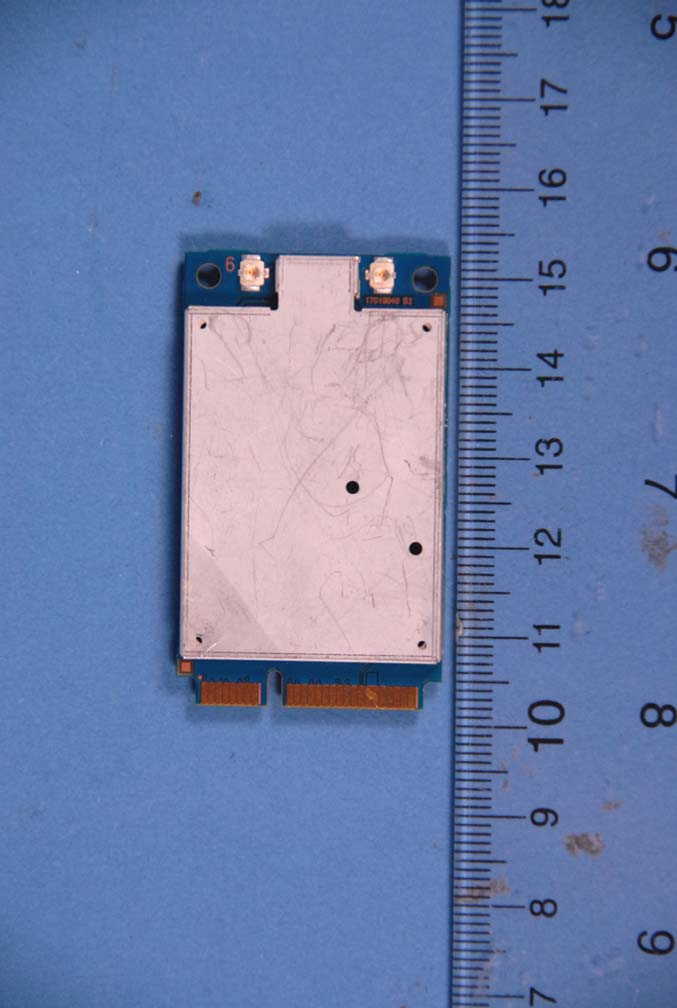

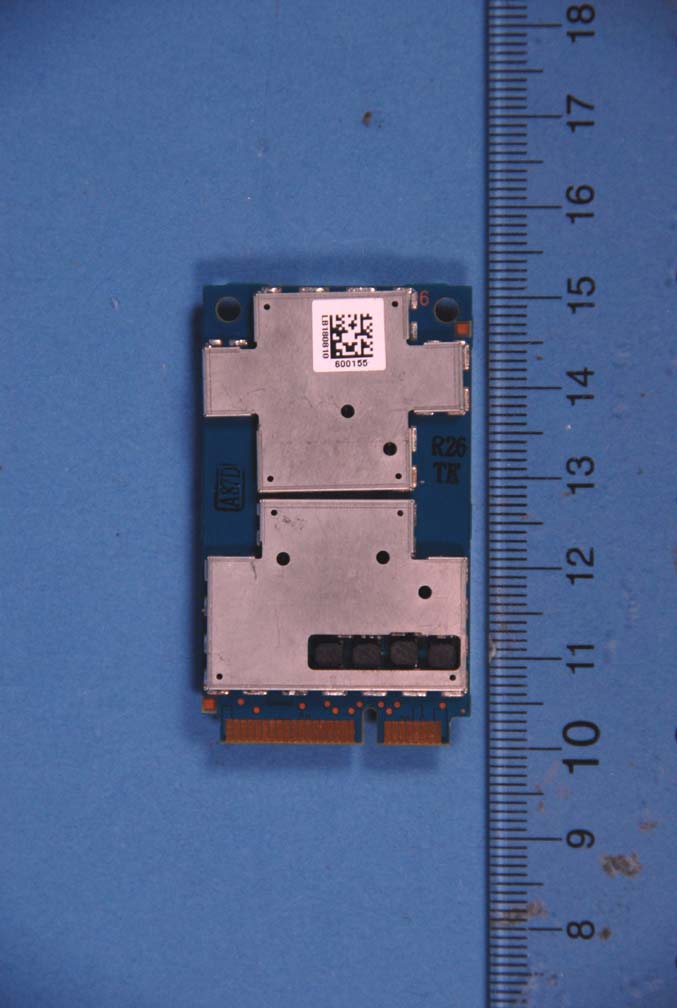

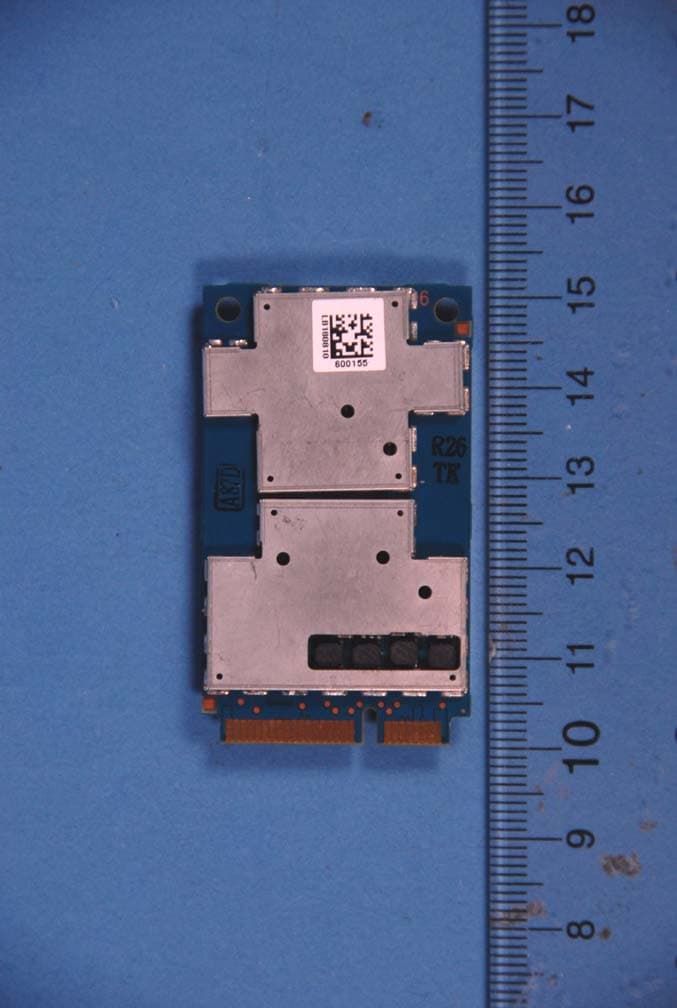

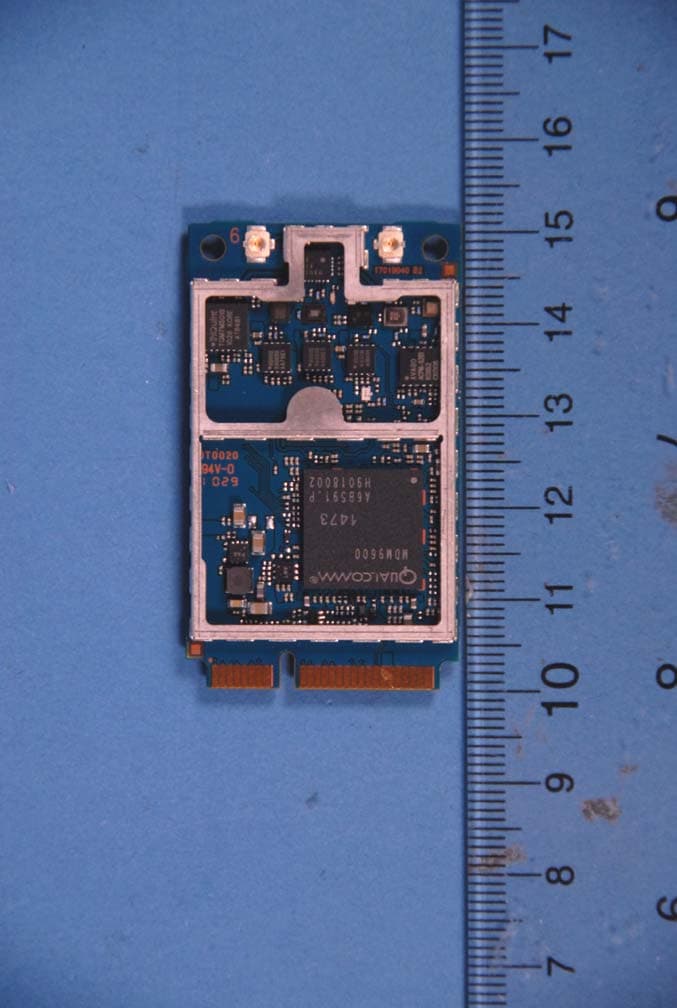

NOVATEL WIRELESS INC. FCC ID: PKRNVWE362 Model: E362 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/CDMA/EvDO and 700MHz LTE USB Module Page 1 of 4 © 2010 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS NOVATEL WIRELESS INC. FCC ID: PKRNVWE362 Model: E362 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/CDMA/EvDO and 700MHz LTE USB Module Page 2 of 4 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: PKRNVWE362 Model: E362 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/CDMA/EvDO and 700MHz LTE USB Module Page 3 of 4 © 2010 PCTEST Engineering Laboratory Inc. PKRNVWE362 - Label Location The label will be located in the following location.

LABEL ASSY, ESN-FCC-IC, E362, VZW Part Number: DA.01019 XXX Rev A Chuck Morningstar May 26, 2010 Novatel Wireless, Inc. ESN-HEXExample: “ XXXXXXXX ” DataMatrix18 X 18ECC type: 20018 mil 11.5 mm 24 mm Blank Label Stock 25015894 White 24 mm X 11.5 mm Text: “ ESN: ???????? ” ESN-HEX of modemVerdana 5pt Bold Model Type:“E362”Verdana 9pt Bold TEXT : “IC: 3229B-E362”“FCC ID:PKRNVWE362”Verdana 3 pt, Bold TEXT : “MADE IN KOREA”Verdana 3 pt, Bold

NOVATEL WIRELESS INC. FCC ID: PKRNVWE362 Model: E362 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/CDMA/EvDO and 700MHz LTE USB Module Page 4 of 4 © 2010 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: PKRNVWE362 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1009131542.PKR September 22, 2010 850/1900 GSM/GPRS/EDGE/WCDMA/CDMA/EvDO and 700MHz LTE Module Page 1 of 7 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 Applicant Name: Date of Testing: Novatel Wireless Inc. September 22, 2010 9645 Scranton Road, Suite 205 Test Site/Location: San Diego, CA 92121-3030 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1009131542.PKR FCC ID: PKRNVWE362 APPLICANT: Novatel Wireless Inc. EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/CDMA/EvDO and 700MHz LTE Module FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: PCS Licensed Transmitter (PCB) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION (MAXIMUM PERMISSIBLE EXPOSURE) Reviewed by: FCC ID: PKRNVWE362 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1009131542.PKR September 22, 2010 850/1900 GSM/GPRS/EDGE/WCDMA/CDMA/EvDO and 700MHz LTE Module Page 2 of 7 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) .........................3 1.1 INTRODUCTION ................................................................................................................................... 3 1.2 EUT DESCRIPTION .............................................................................................................................. 3 1.3 MPE REQUIREMENTS OVERVIEW..................................................................................................... 4 1.4 PROCEDURE........................................................................................................................................ 5 1.5 SUMMARY OF RESULTS ..................................................................................................................... 6 2.0 CONCLUSION..................................................................................................................................7 Reviewed by: FCC ID: PKRNVWE362 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1009131542.PKR September 22, 2010 850/1900 GSM/GPRS/EDGE/WCDMA/CDMA/EvDO and 700MHz LTE Module Page 3 of 7 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of Novatel Wireless Inc. to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The Novatel 850/1900 GSM/GPRS/EDGE/WCDMA/CDMA/EvDO and 700MHz LTE Module FCC ID: PKRNVWE362 is capable of transmitting in either CDMA/EvDO or LTE mode. Simultaneous transmission of signals using both CDMA/EvDO and LTE technologies is not possible. For this MPE evaluation the RF exposure is determined by calculating the maximum permissible antenna gain based on the maximum transmitter conducted power in CDMA/EvDO and LTE modes. EUT: Model: E362 Grantee: Novatel Wireless Inc. FCC ID: PKRNVWE362 Reviewed by: FCC ID: PKRNVWE362 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1009131542.PKR September 22, 2010 850/1900 GSM/GPRS/EDGE/WCDMA/CDMA/EvDO and 700MHz LTE Module Page 4 of 7 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.3 MPE Requirements Overview Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be eas…
