PKRNVWE725Dual-Band CDMA/ EVDO Modem Card

TITLE: User Interface Document for MobiLink 2.0 Novatel Wireless Inc. DOCUMENT NO: PAGE: 1 of 40 REV: 0 User Guide for MobiLink 2.0™ TITLE: User Interface Document for MobiLink 2.0 Novatel Wireless Inc. DOCUMENT NO: PAGE: 2 of 40 REV: 0 RESTRICTED PROPRIETARY INFORMATION The information disclosed herein is the exclusive property of Novatel Wireless, Inc. and is not to be disclosed without the written consent of Novatel Wireless, Inc. No part of this publication may be reproduced or transmitted in any form or by any means including electronic storage, reproduction, execution or transmission without the prior written consent of Novatel Wireless, Inc. The recipient of this document, by its retention and use, agrees to respect the security status of the information contained herein. This document is intended for limited circulation. The information contained in this document is subject to change without notice and should not be construed as a commitment by Novatel Wireless, Inc. unless such commitment is expressly given in a covering document. © 2003 Novatel Wireless, Inc. All rights reserved. TITLE: User Interface Document for MobiLink 2.0 Novatel Wireless Inc. DOCUMENT NO: PAGE: 3 of 40 REV: 0 TABLE OF CONTENTS 1 Introduction .......................................................................................................................................... 5 1.1 Purpose .......................................................................................................................................... 5 1.2 Applicable Documents.................................................................................................................... 5 2 Overview ............................................................................................................................................... 6 3 General Features.................................................................................................................................. 7 3.1 General User Interface Functions .................................................................................................. 7 3.1.1 Layout...................................................................................................................................... 7 3.1.2 Mouse Over ............................................................................................................................. 8 3.1.3 Snap to Edge........................................................................................................................... 8 3.1.4 Hot Swapping .......................................................................................................................... 8 3.1.5 Skinning Customization........................................................................................................... 8 3.1.6 Localization ........................................................................................................................... 10 3.1.7 Help File ................................................................................................................................ 11 4 MobiLink™ Features ......................................................................................................................... 12 4.1 Main Display Window ................................................................................................................... 12 4.1.1 Indicators ............................................................................................................................... 16 4.1.2 Connect/Disconnect Button................................................................................................... 17 4.2 Menu ............................................................................................................................................. 17 4.2.1 Profile Manager..................................................................................................................... 18 4.2.2 Configuration ......................................................................................................................... 22 4.2.3 Properties Menu .................................................................................................................... 28 4.2.4 Report Log............................................................................................................................. 30 4.2.5 Transparency ........................................................................................................................ 31 4.2.6 About ..................................................................................................................................... 31 4.2.7 SIM/Lock Management......................................................................................................... 32 4.2.8 Quick Access Buttons ...........................................................................................................32 4.2.9 Software Web Upgrade......................................................................................................... 33 4.3 SMS Client.................................................................................................................................... 33 4.3.1 SMS Mailboxes ..................................................................................................................... 35 4.3.2 Menu Bar ............................................................................................................................... 35 4.3.3 Toolbar .................................................................................................................................. 36 4.3.4 Status Bar.............................................................................................................................. 36 4.3.5 Compose Message Window................................................................................................. 36 4.…

Text truncated - open the document above for the full version.

Federal Communications Commission, EQUIPMENT APPROVAL SERVICES, P. O. Box 358315 Pittsburgh, PA 15251-5315 ATTN: Authorization & Evaluation Division PER: 47 CFR 0.457 and 0.459 RE: PKRNVWE725 (E725) Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application as listed below, i.e. Schematic Block Diagrams Theory of Operation Parts Lists Alignment/Tune-Up Procedures Internal Photographs "short term confidentiality only" These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Novatel Wireless, Inc. John Jiang Senior Manager 10/27/06

NOVAEL FCC ID: PKRNVWE725 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA/ EvDO Module Model: E725 NOVAEL FCC ID: PKRNVWE725 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA/ EvDO Module Model: E725 NOVAEL FCC ID: PKRNVWE725 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA/ EvDO Module Model: E725 NOVAEL FCC ID: PKRNVWE725 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA/ EvDO Module Model: E725

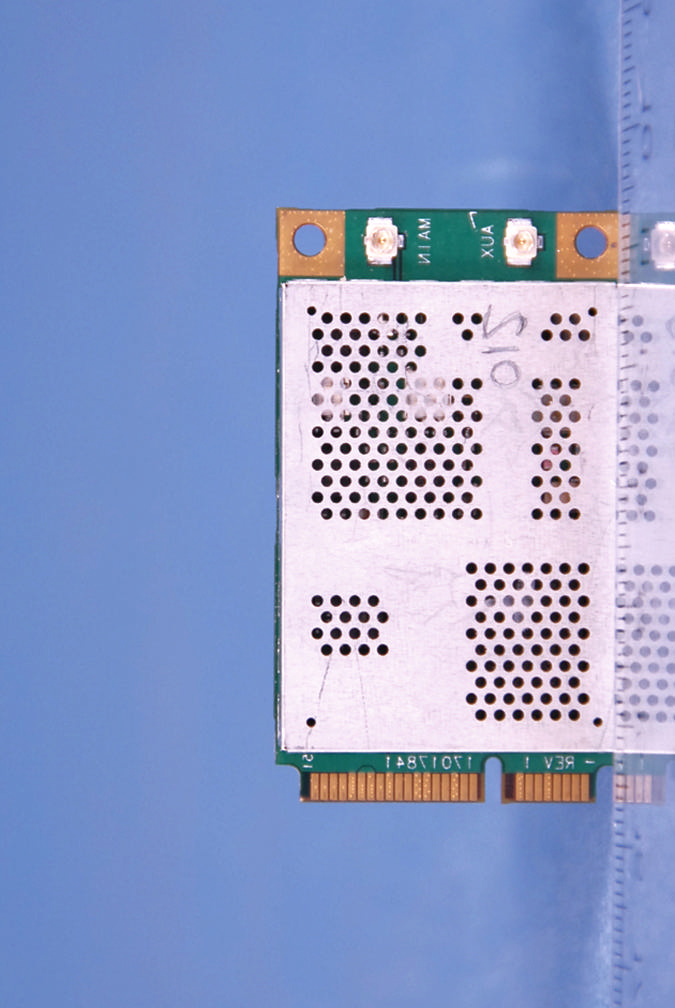

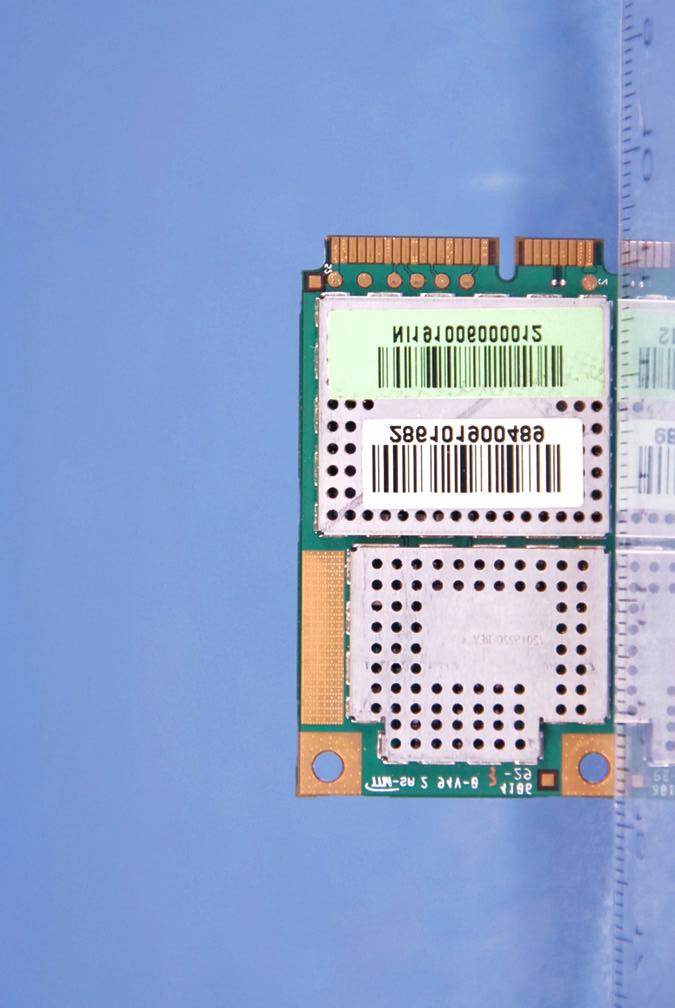

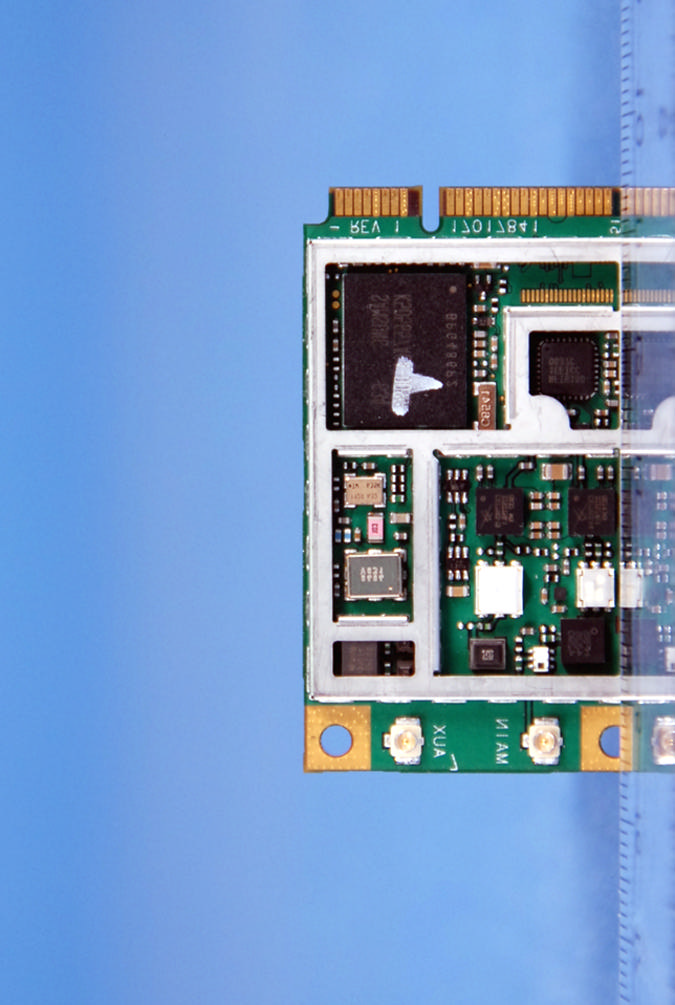

E725 - Top side with shields E725 - Bottom side with shields E725 - Top side without shields E725 - Bottom side with shields

Reviewed by: FCC ID: PKRNVWE725 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0611070988 November 9-10, 2006 Dual-Band CDMA/EvDO Module Page H1 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 2.5 RF Exposure Evaluation – Maximum Permissible Exposure (MPE) Introduction This document attempts to prove the safety of radiation generated by RF devices to the human body. The limit for Maximum Permissible Exposure (MPE), specified in FCC 1.1210, is listed below. The power generated by this product is measured by a power meter. Through use of the Friis transmission formula and the maximum gain of the antenna, the distance from the product at which compliance with the MPE limit is achieved may be calculated. Alternatively, near field measurements may be performed to demonstrate compliance at a specific measurement distance. Near field probe: Wandel & Goltermann EMR-300. RF Exposure Limit According to FCC 1.1310: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table H-1. Limits For Maximum Permissible Exposure (MPE) Friis Transmission Formula Friis transmission formula: P d = (P out *G) / (4πr 2 ) Where, P d = Power Density (mW/cm 2 ) P out = output power to antenna (mW) G = gain of antenna in linear scale π = 3.1416 r = distance between observation point and center of the radiator (cm) EUT Operating Condition Software provided by the client enabled the EUT to transmit and receive data at lowest, middle, and highest channels individually. Reviewed by: FCC ID: PKRNVWE725 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0611070988 November 9-10, 2006 Dual-Band CDMA/EvDO Module Page H2 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 2.5 Climate Condition The temperature and relative humidity: 22 ̊C and 78% RH Measurement Calculation Analysis 1013824.7285.80202.000.1140.550 384836.52291.10201.900.1100.558 777848.31269.80201.980.1060.566 251851.25278.00202.100.1161.000 6001880277.30201.960.1081.000 11751908.75289.70201.820.1051.000 Antenna Gain Power Density (mW/cm 2 ) Exposure Limit (mW/cm 2 ) Measurement Distance (cm) Power Output (mW) Band Cellular CDMA PCS CDMA Frequency (MHz) Channel Table H-2. MPE Calculation Analysis Result Note: Measurements is made while transmitter is on. Conclusion The device meets the mobile 20cm separation distance as specified in Section 2.1091 of the FCC Rules. An appropriate RF exposure compliance statement will be placed in the user’s manual.

Reviewed by: FCC ID: PKRNVWE725 FCC Pt. 22/24 CDMA MEASUREMENT REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0611070988 November 9-10, 2006 Dual-Band CDMA/EvDO Module Page 1 of 26 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 3.74 Applicant Name: Date of Testing: Novatel Wireless Inc. November 9-10, 2006 9645 Scranton Road, Suite 205 Test Site/Location: San Diego, CA 92121-3030 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0611070988 FCC ID: PKRNVWE725 APPLICANT: NOVATEL WIRELESS INC. Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: Dual-Band CDMA/EvDO Module Model(s): E725 Tx Frequency Range: 824.70 - 848.31MHz (Cell. CDMA) / 1851.25 - 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 - 893.31MHz (Cell. CDMA) / 1931.25 - 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.572W (27.573 dBm) / 0.588W (27.681 dBm) Emission Designator(s): 1M26F9W (CDMA) / 1M26F9W (PCS) Test Device Serial No.: identical prototype [S/N: NI191006000012] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted for Part 22 and Part 24.. SAR compliance for body-worn operating configuration is based on a separation distance of between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: PKRNVWE725 FCC Pt. 22/24 CDMA MEASUREMENT REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0611070988 November 9-10, 2006 Dual-Band CDMA/EvDO Module Page 2 of 26 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 3.74 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 MEASUREMENT PROCEDURE .............................................................................................................................. 4 1.2 SCOPE ...................................................................................................................................................................... 4 1.3 TESTING FACILITY .................................................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION ................................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ................................................................................................ 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 OCCUPIED BANDWIDTH EMISSION LIMITS ......................................................................................................... 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ............................................................................................................ 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ........................................................................................................ 6 3.4 PCS - BASE FREQUENCY BLOCKS ....................................................................................................................... 7 3.5 PCS - MOBILE FREQUENCY BLOCKS ................................................................................................................... 7 3.6 FREQUENCIES ........................................................................................................................................................ 7 3.7 RADIATED SPURIOUS AND HARMONIC EMISSIONS .......................................................................................... 7 3.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ...................................................................................... 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 CONDUCTED OUTPUT POWER ........................................................................................................................... 12 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ................................................................................................ 13 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA......................................................................... 14 6.4 CELLULAR CDMA RADIATED MEASUREMENTS..…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: PKRNVWE725 FCC Pt. 22/24 CDMA MEASUREMENT REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0611070988-R1 November 9-10, 2006 Dual-Band CDMA/EvDO Module Page 1 of 26 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 3.74 Applicant Name: Date of Testing: Novatel Wireless Inc. November 9-10, 2006 9645 Scranton Road, Suite 205 Test Site/Location: San Diego, CA 92121-3030 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0611070988-R1 FCC ID: PKRNVWE725 APPLICANT: NOVATEL WIRELESS INC. Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: Dual-Band CDMA/EvDO Module Model(s): E725 Tx Frequency Range: 824.70 - 848.31MHz (Cell. CDMA) / 1851.25 - 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 - 893.31MHz (Cell. CDMA) / 1931.25 - 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.572W (27.573 dBm) / 0.588W (27.681 dBm) Emission Designator(s): 1M26F9W (CDMA) / 1M26F9W (PCS) Test Device Serial No.: identical prototype [S/N: NI191006000012] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted for Part 22 and Part 24. Antennas under this FCC ID must operate in mobile RF exposure conditions to provide a separation distance of at least 20 cm from all persons. . PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: PKRNVWE725 FCC Pt. 22/24 CDMA MEASUREMENT REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0611070988-R1 November 9-10, 2006 Dual-Band CDMA/EvDO Module Page 2 of 26 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 3.74 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 MEASUREMENT PROCEDURE .............................................................................................................................. 4 1.2 SCOPE ...................................................................................................................................................................... 4 1.3 TESTING FACILITY .................................................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION ................................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ................................................................................................ 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 OCCUPIED BANDWIDTH EMISSION LIMITS ......................................................................................................... 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ............................................................................................................ 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ........................................................................................................ 6 3.4 PCS - BASE FREQUENCY BLOCKS ....................................................................................................................... 7 3.5 PCS - MOBILE FREQUENCY BLOCKS ................................................................................................................... 7 3.6 FREQUENCIES ........................................................................................................................................................ 7 3.7 RADIATED SPURIOUS AND HARMONIC EMISSIONS .......................................................................................... 7 3.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ...................................................................................... 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 CONDUCTED OUTPUT POWER ........................................................................................................................... 12 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ................................................................................................ 13 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA......................................................................... 14 6.4 CELLULAR CDMA RADIATED MEASUREMENTS................................................................................................ 15 6.5 PCS CDMA RADIATED MEASUREMENTS ..........................…

Text truncated - open the document above for the full version.

NOVAEL FCC ID: PKRNVWE725 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA/ EvDO Module Model: E725 NOVAEL FCC ID: PKRNVWE725 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA/ EvDO Module Model: E725
