PKRNVWEM120Cellular/ PCS CDMA PCI Express Mini Card

Novatel Wireless Inc. Version 1.4 1/19/2010 1 of 4 Integrator Design Elements: Antennas Antenna Host Antenna Requirements When designing the antenna system for the EM120 the gain of the host antenna must not exceed the following: PCS Band: 8.44 dBi Cell Band: 9.99 dBi Novatel Wireless Inc. Version 1.4 1/19/2010 2 of 4 EM120 Regulatory Notice Safety Warning The EM120 may not be used in an environment where radio frequency equipment is prohibited or restricted in its use. This includes aircraft/airports, hospitals, and other sensitive electronic areas. Do not operate RF devices in an environment that may be susceptible to radio interference resulting in danger, specifically: • Areas where prohibited by the law Follow any special rules and regulations and obey all signs and notices. Always turn off the host device when instructed to do so, or when you suspect that it may cause interference or danger. • Where explosive atmospheres may be present Do not operate your modem in any area where a potentially explosive atmosphere may exist. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Be aware and comply with all signs and instructions. • Users are advised not to operate the modem while at a refueling point or service station. Users are reminded to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants or where blasting operations are in progress. • Areas with a potentially explosive atmosphere are often but not always clearly marked. Potential locations can include gas stations, below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine. • Near Medical and life support equipment Do not operate your modem in any area where medical equipment, or life support equipment may be located, or near any equipment that may be susceptible to any form of radio interference. In such areas, the host communications device must be turned off. The modem may transmit signals that could interfere with this equipment. • On an aircraft, either on the ground or airborne In addition to FAA requirements, many airline regulations state that you must suspend wireless operations before boarding an airplane. Please ensure that the host device is turned off and your modem is removed from the card slot prior to boarding aircraft in order to comply with these regulations. The modem can transmit signals that could interfere with various onboard systems and controls. • While operating a vehicle The driver or operator of any vehicle should not operate a wireless data device. Doing so will detract from the driver or operator's control and operation of that vehicle. In some countries, operating such communication devices while in control of a vehicle is an offence. Novatel Wireless Inc. Version 1.4 1/19/2010 3 of 4 Under extended operation the EM120 modem will generate a noticeable amount of heat. Like all PC Cards, the modem generates heat during normal operation and will be heated by the host computer. For this reason it is recommended that after extended periods of operation, prior to removal and handling, you allow the modem to cool down. FCC (Federal Communication Commission) The EM120 is compliant to the relevant sections of the FCC rules: • FCC CFR47 Part 2 (General Rules and Regulations, RF Exposure Evaluation) • FCC CFR47 Part 15 (All Radio Frequency Devices) • FCC CFR47 Part 24 (Narrow and wideband PCS modules) • FCC CFR47 Part 22 (Cellular Service) Labeling Notice for End Use Products For any end use product that the Novatel EM120 modem is used in, a label containing the following information must be placed visibly on the outside of the product. This device contains FCC ID: PKRNVWEM120 and IC: 3229B-EM120 All instructions relating to the integration of the module described on the FCC Grant notes must be followed. Radio Frequency Exposure Requirements Per §2.1091 of the FCC rules, embedded modules are defined as “mobile devices” At least 20cm (8 inches) of separation between the antenna and the users body must be maintained at all times. If this device is intended for use in a portable device, the installer is responsible for a separate approval to satisfy the SAR (RF Exposure) requirements of FCC Part 2.1093 and Industry Canada RSS-102/Safety Code 6. Novatel Wireless Inc. Version 1.4 1/19/2010 4 of 4 Federal Communications Commission Notice (FCC—United States) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Contact your service provider for help. Notice to Consumers: Changes or modifications made to this equipment not expressly approved by Novatel Wireless may void the FCC authorization to operate this equipment. This device complies with Part 15 of the FCC Rules and with Industry Canada ICES-003. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accep…

Text truncated - open the document above for the full version.

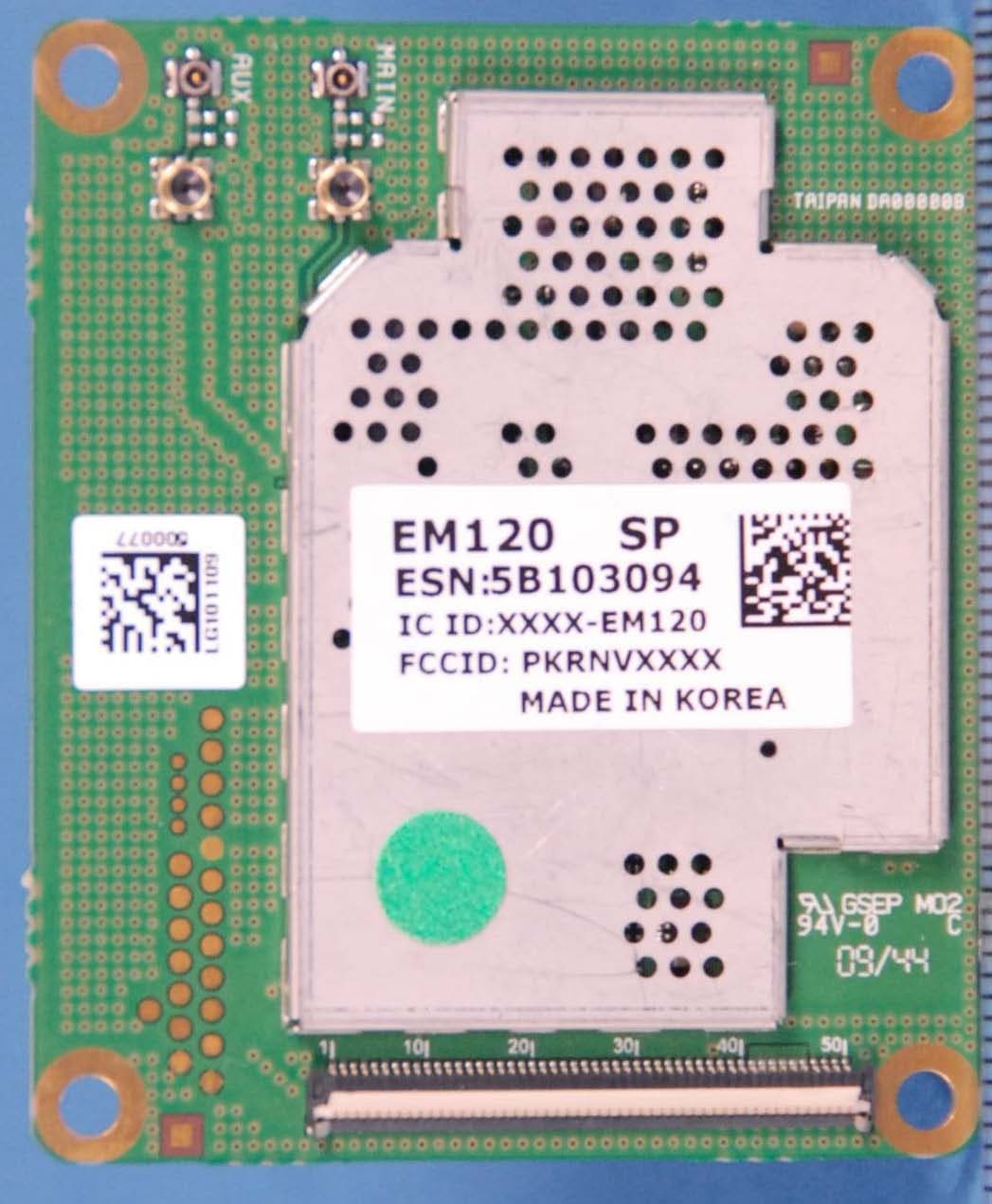

Novatel FCC ID: PKRNVWEM120 Model: EM120 External Photos EUT Type: PCI Express Mini Card Page 1 of 4 © 2009 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Novatel FCC ID: PKRNVWEM120 Model: EM120 External Photos EUT Type: PCI Express Mini Card Page 2 of 4 © 2009 PCTEST Engineering Laboratory Inc. FCC ID LABEL AND LOCATION

LABEL ASSEMBLY, ESN-FCC-IC EM12 0 Part Number: DA.01018922 Rev 1A Chuck Morningstar “Novatel Wireless Inc. MADE IN KOREA” Verdana 3pt Bold 11.5 mm 24 mm FCC ID Number“ FCCID: PKRNVWE M 120 ” Verdana 4pt Bold “ EM120 ” Verdana 8pt Canada IC Number“ IC ID: 3229B-E M 120 ” Verdana 4pt Novatel Wireless, Inc. January 15, 2010 Blank Label Stock 25015894White ( 24 mm X 11.5 mm) Place label on modem as seen in picture. ESN-HEX DATA “ XXXXXXXX ” DataMatrix18 X 18 Text:“ ESN: XXXXXXXX ” ESN-HEX of modemVerdana 4pt Bold

Reviewed by: FCC ID: PKRNVWEM120 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1001150079.PKR January 18, 2010 PCI Express Mini Card Page 1 of 7 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 Applicant Name: Date of Testing: Novatel Wireless Inc. January 18, 2010 9645 Scranton Road, Suite 205 Test Site/Location: San Diego, CA 92121-3030 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1001150079.PKR FCC ID: PKRNVWEM120 APPLICANT: Novatel Wireless Inc. EUT Type: PCI Express Mini Card FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: PCS Licensed Transmitter (PCB) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION (MAXIMUM PERMISSIBLE EXPOSURE) Reviewed by: FCC ID: PKRNVWEM120 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1001150079.PKR January 18, 2010 PCI Express Mini Card Page 2 of 7 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE).......................3 1.1 INTRODUCTION...................................................................................................................................................3 1.2 EUT DESCRIPTION.............................................................................................................................................3 1.3 MPE REQUIREMENTS OVERVIEW.................................................................................................................4 1.4 PROCEDURE........................................................................................................................................................5 1.5 SUMMARY OF RESULTS...................................................................................................................................6 2.0 CONCLUSION.......................................................................................................................7 Reviewed by: FCC ID: PKRNVWEM120 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1001150079.PKR January 18, 2010 PCI Express Mini Card Page 3 of 7 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of Novatel Wireless Inc. to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The Novatel Model: EM120 is a PCI Express Mini Card containing Cellular/PCS CDMA/EvDO. For this MPE evaluation the device is set to transmit from the antenna terminal and the RF exposure is evaluated based on conducted output power. EUT: Model: EM120 Grantee: Novatel Wireless Inc. FCC ID: PKRNVWEM120 Reviewed by: FCC ID: PKRNVWEM120 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1001150079.PKR January 18, 2010 PCI Express Mini Card Page 4 of 7 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.3 MPE Requirements Overview Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. o Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, ar…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: PKRNVWEM120 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1001040001.PKR January 5, 2010 PCI Express Mini Card Page 1 of 35 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.0C 05/13/2009 Applicant Name: Date of Testing: Novatel Wireless Inc. January 5, 2010 9645 Scranton Road, Suite 205 Test Site/Location: San Diego, CA 92121-3030 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1001040001.PKR FCC ID: PKRNVWEM120 APPLICANT: NOVATEL WIRELESS INC. Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: PCI Express Mini Card Model(s): EM120 Tx Frequency Range: 824.70 - 848.31MHz (Cell. CDMA) / 1851.25 - 1908.75MHz (PCS CDMA) Max. Cond. Output Power: 0.281 W Cellular CDMA (24.48 dBm) 0.286 W PCS CDMA (24.56 dBm) Emission Designator(s): 1M28F9W (CDMA) / 1M28F9W (PCS) Test Device Serial No.: identical prototype [S/N: 5B1030C2] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: PKRNVWEM120 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1001040001.PKR January 5, 2010 PCI Express Mini Card Page 2 of 35 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.0C 05/13/2009 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................3 1.0 INTRODUCTION....................................................................................................................4 1.1 SCOPE..................................................................................................................................................................4 1.2 TESTING FACILITY............................................................................................................................................4 2.0 PRODUCT INFORMATION.....................................................................................................5 2.1 EQUIPMENT DESCRIPTION...........................................................................................................................5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS....................................................................................5 2.3 LABELING REQUIREMENTS...........................................................................................................................5 3.0 DESCRIPTION OF TESTS......................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................................6 3.2 OCCUPIED BANDWIDTH EMISSION LIMITS...............................................................................................6 3.3 CELLULAR - BASE FREQUENCY BLOCKS.................................................................................................6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS.............................................................................................7 3.5 PCS - BASE FREQUENCY BLOCKS..............................................................................................................7 3.6 PCS - MOBILE FREQUENCY BLOCKS.........................................................................................................7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL...................................................7 3.8 RADIATED SPURIOUS AND HARMONIC EMISSIONS..............................................................................8 3.9 PEAK-AVERAGE RATIO...................................................................................................................................8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION.........................................................................8 4.0 TEST EQUIPMENT CALIBRATION DATA...............................................................................9 5.0 SAMPLE CALCULATIONS....................................................................................................10 6.0 TEST RESULTS...................................................................................................................11 6.1 SUMMARY.........................................................................................................................................................11 6.2 CONDUCTED OUTPUT POWER..................................................................................................................12 6.3 CELLULAR CDMA RADIATED MEASUREMENTS....................................................................................13 6.4 PCS CDMA RADIATED MEASUREMENTS................................................................................................16 6.5 CELLULAR CDMA FREQUENCY STABILITY MEASUREMENTS.................................................…

Text truncated - open the document above for the full version.

Novatel FCC ID: PKRNVWEM120 Model: EM120 Test Set-Up Photos EUT Type: PCI Express Mini Card Page 1 of 2 © 2009 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Novatel FCC ID: PKRNVWEM120 Model: EM120 Test Set-Up Photos EUT Type: PCI Express Mini Card Page 2 of 2 © 2009 PCTEST Engineering Laboratory Inc.
