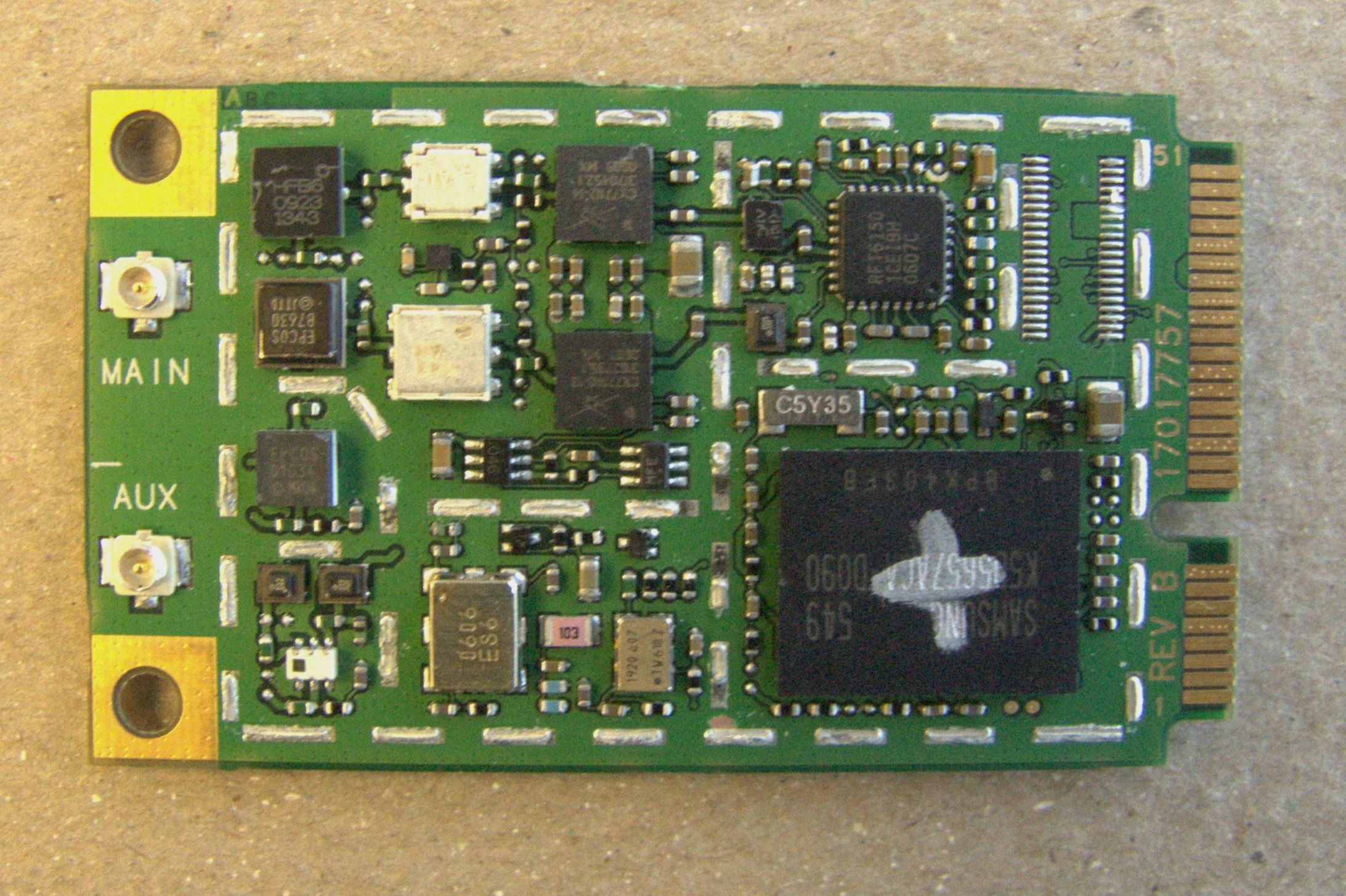

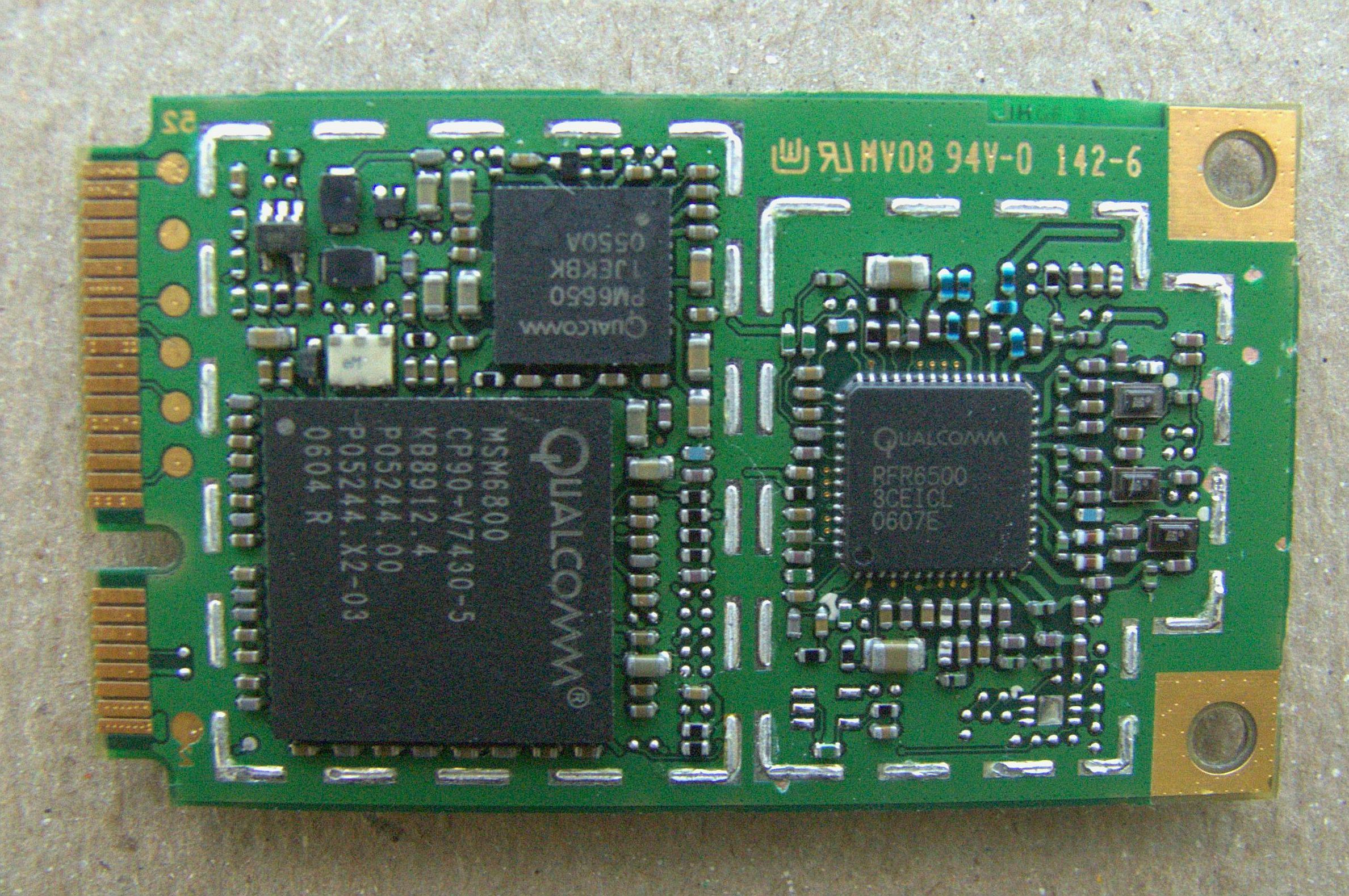

PKRNVWES720CDMA CELL-PCS MODULE

TITLE: User Interface Document for MobiLink 2.0 Novatel Wireless Inc. DOCUMENT NO: PAGE: 1 of 40 REV: 0 User Guide for MobiLink 2.0™ TITLE: User Interface Document for MobiLink 2.0 Novatel Wireless Inc. DOCUMENT NO: PAGE: 2 of 40 REV: 0 RESTRICTED PROPRIETARY INFORMATION The information disclosed herein is the exclusive property of Novatel Wireless, Inc. and is not to be disclosed without the written consent of Novatel Wireless, Inc. No part of this publication may be reproduced or transmitted in any form or by any means including electronic storage, reproduction, execution or transmission without the prior written consent of Novatel Wireless, Inc. The recipient of this document, by its retention and use, agrees to respect the security status of the information contained herein. This document is intended for limited circulation. The information contained in this document is subject to change without notice and should not be construed as a commitment by Novatel Wireless, Inc. unless such commitment is expressly given in a covering document. © 2003 Novatel Wireless, Inc. All rights reserved. TITLE: User Interface Document for MobiLink 2.0 Novatel Wireless Inc. DOCUMENT NO: PAGE: 3 of 40 REV: 0 TABLE OF CONTENTS 1 Introduction .......................................................................................................................................... 5 1.1 Purpose .......................................................................................................................................... 5 1.2 Applicable Documents.................................................................................................................... 5 2 Overview ............................................................................................................................................... 6 3 General Features.................................................................................................................................. 7 3.1 General User Interface Functions .................................................................................................. 7 3.1.1 Layout...................................................................................................................................... 7 3.1.2 Mouse Over ............................................................................................................................. 8 3.1.3 Snap to Edge........................................................................................................................... 8 3.1.4 Hot Swapping .......................................................................................................................... 8 3.1.5 Skinning Customization........................................................................................................... 8 3.1.6 Localization ........................................................................................................................... 10 3.1.7 Help File ................................................................................................................................ 11 4 MobiLink™ Features ......................................................................................................................... 12 4.1 Main Display Window ................................................................................................................... 12 4.1.1 Indicators ............................................................................................................................... 16 4.1.2 Connect/Disconnect Button................................................................................................... 17 4.2 Menu ............................................................................................................................................. 17 4.2.1 Profile Manager..................................................................................................................... 18 4.2.2 Configuration ......................................................................................................................... 22 4.2.3 Properties Menu .................................................................................................................... 28 4.2.4 Report Log............................................................................................................................. 30 4.2.5 Transparency ........................................................................................................................ 31 4.2.6 About ..................................................................................................................................... 31 4.2.7 SIM/Lock Management......................................................................................................... 32 4.2.8 Quick Access Buttons ...........................................................................................................32 4.2.9 Software Web Upgrade......................................................................................................... 33 4.3 SMS Client.................................................................................................................................... 33 4.3.1 SMS Mailboxes ..................................................................................................................... 35 4.3.2 Menu Bar ............................................................................................................................... 35 4.3.3 Toolbar .................................................................................................................................. 36 4.3.4 Status Bar.............................................................................................................................. 36 4.3.5 Compose Message Window................................................................................................. 36 4.…

Text truncated - open the document above for the full version.

Date: July 31, 2006 Federal Communications Commission, EQUIPMENT APPROVAL SERVICES, P. O. Box 358315 Pittsburgh, PA 15251-5315 ATTN: Authorization & Evaluation Division PER: 47 CFR 0.457 and 0.459 RE: Request for Confidentiality FCC ID: PKRNVWES720 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application as listed below, i.e. 1. Schematics 2. Theory of operation 3. Alignment Procedure 4. Bill of Materials 5. Block Diagram These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Kwun Ho Project Manager Novatel Wireless Inc. (P) 858-812-0653

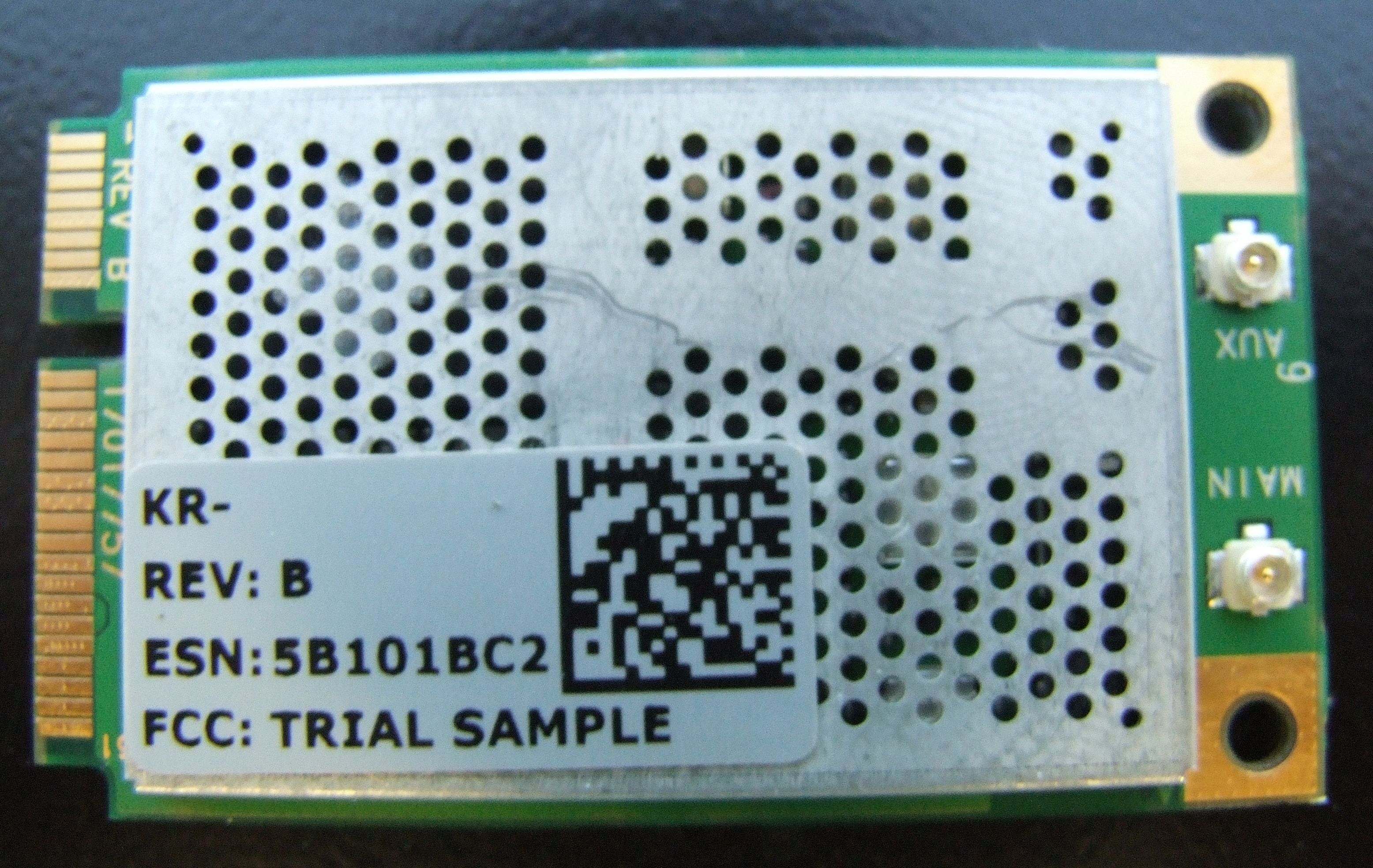

Q u a l c o m m 3 G C D M A E S7 20 TM THIS PRODUCT COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION SUBJECT TO THE CONDITION THAT THIS DEVICE DOES NOT CAUSE HARMFUL INTERFERENCE. FCC ID: PKRNVWES720 IC:3229B-ES720 Novatel Wireless Technologies Ltd. Suite 200, 6715 - 8th St NE Calgary, AB Canada T2E 7H7 Phone: 403 295 4800 TITLE: LABEL FCC EXPEDITE ES720 P/N: 250XXXXX >Rev.A 08/04/06 - Bob Hertlein - INITIAL DRAFT HISTOR Y: (indicate: REV / DATE / ARTIST / REV. CHANGES) ECO: NOTES: 1. MECHANICAL DRAWING ON HIDDEN LAYER CONTAINS MATERIALAND DIE CUT INFORMATION.

M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: PKRNVWES720 (480) 926-3100 phone, fax (480) 926-3598 MFA p0660009, d0670026 Environmental Assessment for Mobiles/Fixed Base Station for Mini-Card Module Model: ES720 to Federal Communications Commission 47 CFR 1.1310 (MPE) Radiofrequency Radiation Exposure Limits Date Of Report: July 25, 2006 On the Behalf of the Applicant: Novatel Wireless Inc. At the Request of: Novatel Wireless Inc. 9645 Scranton Rd, Suite 205 San Diego, CA 92121 Attention of: John Jiang, Project Manager 888-888-9231; FAX:-2888 Email: [email protected] Supervised By: Hoosamuddin S. Bandukwala, Lab Director M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: PKRNVWES720 (480) 926-3100 phone, fax (480) 926-3598 MFA p0660009, d0670026 Table of Contents Rule Description Page . Test Report 1 . Identification of the Equipment Under Test 2 . Standard Test Conditions and Engineering Practices 3 M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Page 1 of 4 Chandler, Arizona 85225-7176 FCC ID: PKRNVWES720 (480) 926-3100 phone, fax (480) 926-3598 MFA p0660009, d0670026 Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report (Supplemental) b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0670026 d) Client: Novatel Wireless Inc. 9645 Scranton Rd, Suite 205 San Diego, CA 92121 e) Identification: Mini-Card FCC ID: PKRNVWES720 Description: CDMA Cell-PCS Module f) EUT Condition: Not required unless specified in individual tests. g) Report Date: July 25, 2006 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Hoosamuddin S. Bandukwala, Lab Director n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Page 2 of 4 Chandler, Arizona 85225-7176 FCC ID: PKRNVWES720 (480) 926-3100 phone, fax (480) 926-3598 MFA p0660009, d0670026 Identification of the Equipment Under Test (EUT) Name and Address of Applicant: Novatel Wireless Inc. 9645 Scranton Rd, Suite 205 San Diego, CA 92121 Manufacturer: Novatel Wireless Inc. 9645 Scranton Rd, Suite 205 San Diego, CA 92121 FCC ID: PKRNVWES720 Model Number: ES720 (Mini-Card Module) Description: CDMA Cell-PCS Module Type of Emission: 1M28F9W Frequency Range, MHz: 824.7 to 848.3 1851.3 to 1908.7 Power Rating, Watts: 0.295 (Cell) & 0.282 (PCS) Switchable X Variable N/A Modulation: AMPS TDMA X CDMA OTHER Antenna: Helical X Monopole Whip Other Note: For RF Safety test antenna gain taken at the upper range of expected gain (i.e. 3 dBi) and RF Power set to highest nominal power across all channels. M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Page 3 of 4 Chandler, Arizona 85225-7176 FCC ID: PKRNVWES720 (480) 926-3100 phone, fax (480) 926-3598 MFA p0660009, d0670026 Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI C63.4-1992/2000, section 6.1.9, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104 °F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Prior to testing, the EUT was tuned up in accordance with the manufacturer's alignment procedures. All external gain controls were maintained at the position of maximum and/or optimum gain throughout the testing. Measurement results, unless otherwise noted, are worst-case measurements. A2LA “A2LA has accredited M. Flom Associates, Inc. Chandler, AZ for technical competence in the field of Electrical Testing. The accreditation covers the specific tests and types of tests listed on the agreed scope of accreditation. This laboratory meets the requirements of ISO/IEC 17025 – 1999 ‘General Requirements for the Competence of Testing and Calibration Laboratories’ and any additional program requirements in the identified field of testing.” Certificate Number: 2152-01 M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Page 4 of 4 Chandler, Arizona 85225-7176 FCC ID: PKRNVWES720 (480) 926-3100 phone, fax (480) 926-3598 MFA p0660009, d0670026 Name of test: Environmental Assessment Specification: FCC: 47 CFR 1.1310 S = PG/4?R 2 Where, S: power density (mW/cm 2 ) P: output power at the antenna terminal (mW) G: gain of transmit antenna (numeric) R: distance from transmitting antenna (cm) Cellular CDMA MPE Calculated Frequency 836.52 MHz S (Limit) f/1500 = 0.5577 mW/cm² P 295 mW G = max gain of antenna 3 dBi Emission Limit at 20 cm (295.0 X 3) / (4? X 20^2) = 0.176 mW/cm 2 PCS CDMA MPE Calculated Frequency 1880 MHz Limit 1.0 mW/cm² Power 282.0 mW Emission Limit at 20cm (282.0 X 3) / (4? X 20^2) = 0.168 mW/cm² Calculated By: David McPherson, Compliance Engineer M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: PKRNVWES720 (480) 926-3100 phone, fax (480) 926-3598 MFA p0660009, d0670026 (The following will be placed in the Instruction Manual) Mandatory Safety Instructions to Installers & Users Use only manufacturer or dealer supplied antenna. Antenna Minimum Safe Distance: 20 cm. Antenna Gain: 3 dBi referenced to a dipole. The Federal Communications Commission has adopted a safety standard for human exposure to RF (Radio Frequency) energy which is below the OSHA (Occupational Safety and Health Act) limits. Antenna Mounting: …

Text truncated - open the document above for the full version.

Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: PKRNVWES720 (866) 311-3268 phone, (480) 926-3598 fax MFA p0660009, d0660020 Transmitter Certification of Mini-Card Module Model: ES720 to Federal Communications Commission Rule Part(s) 22H, 24E, and Confidentiality Date Of Report: June 20, 2006 On the Behalf of the Applicant: Novatel Wireless Inc. At the Request of: Novatel Wireless Inc. 9645 Scranton Rd, Suite 205 San Diego, CA 92121 Attention of: John Jiang, Project Manager 888-888-9231; FAX:-2888 Email: [email protected] Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: PKRNVWES720 (866) 311-3268 phone, (480) 926-3598 fax MFA p0660009, d0660020 The Applicant has been cautioned as to the following: 15.21 Information to the User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: PKRNVWES720 (866) 311-3268 phone, (480) 926-3598 fax MFA p0660009, d0660020 Table of Contents Rule Description Page . Test Report 2 2.1033(c) General Information Required 3 2.1033(c)(14) Rule Summary 6 . General Information 7 . Standard Test Conditions and Engineering Practices 8 2.1046(a) Carrier Output Power (Conducted) 9 2.1046(a) . Carrier Output Power (Radiated) 11 2.1049(c)(1), 22 Emission Masks (Occupied Bandwidth) 14 2.1053(a) Field Strength of Spurious Radiation 21 2.1055(a)&(b) Frequency Stability (Temperature & Voltage Variation) 26 2.202(g) Necessary Bandwidth and Emission Bandwidth 29 15.109 Receiver Spurious Emissions (Radiated) 31 Flom Test Labs 3356 N. San Marcos Place, Suite 107 Page 2 of 35 Chandler, Arizona 85225-7176 FCC ID: PKRNVWES720 (866) 311-3268 phone, (480) 926-3598 fax MFA p0660009, d0660020 Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0660020 d) Client: Novatel Wireless Inc. 9645 Scranton Rd, Suite 205 San Diego, CA 92121 e) Identification: Mini-Card FCC ID: PKRNVWES720 Description: CDMA Cell-PCS Module f) EUT Condition: Not required unless specified in individual tests. g) Report Date: June 20, 2006 EUT Received: h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Hoosamuddin S. Bandukwala n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. Accessories used during testing: Type Quantity Manufacturer Model Serial No. FCC ID Test Jig 1 Novatel EV620 Jig NSN NONE Antenna 1 Antenna Specialists ASPRDM1994 NSN NONE Flom Test Labs 3356 N. San Marcos Place, Suite 107 Page 3 of 35 Chandler, Arizona 85225-7176 FCC ID: PKRNVWES720 (866) 311-3268 phone, (480) 926-3598 fax MFA p0660009, d0660020 List of General Information Required for Certification In Accordance with FCC Rules and Regulations, Volume II, Part 2 and to 22H, 24E, Modular Approval and Confidentiality Sub-Part 2.1033 (c)(1): Name and Address of Applicant: Novatel Wireless Inc. 9645 Scranton Rd, Suite 205 San Diego, CA 92121 Manufacturer: Novatel Wireless Inc. 9645 Scranton Rd, Suite 205 San Diego, CA 92121 (c)(2): FCC ID: PKRNVWES720 Model Number: ES720 (Mini-Card Module) Serial Number: 23606010053 / LI010606200031 (c)(3): Instruction Manual(s): Please See Attached Exhibits (c)(4): Type of Emission: 1M28F9W (c)(5): FREQUENCY RANGE, MHz: 824.70 to 848.30 1851.25 to 1908.75 (c)(6): Power Rating, Watts: 0.295 Switchable X Variable N/A (c)(7): Maximum Power Rating, Watts: 2.0 Flom Test Labs 3356 N. San Marcos Place, Suite 107 Page 4 of 35 Chandler, Arizona 85225-7176 FCC ID: PKRNVWES720 (866) 311-3268 phone, (480) 926-3598 fax MFA p0660009, d0660020 Subpart 2.1033 (continued) (c)(8): Voltages & Currents in All Elements in Final RF Stage, Including Final Transistor or Solid State Device: Collector Current, A = 0.450 (max) Collector Voltage, Vdc = 3.3 Supply Voltage, Vdc = 3.3 (c)(9): Tune-Up Procedure: Please See Attached Exhibits (c)(10): Circuit Diagram/Circuit Description: Including description of circuitry & devices provided for determining and stabilizing frequency, for suppression of…

Text truncated - open the document above for the full version.

Radiated Emission Part 22.917(a) Part 24.238(a)&(b) TIA/EIA 603 or TIA/EIA-102.CAAA RSS 118 RSS 132, 133 - Substitution Method Out of band limit 43+10log(P) E - Tests performed at one operating frequency at maximum power outp - 3 places in the band (not necessa if antenna conducted performed at places in the band.) Antenna Conducted Emissions Part 22.917(a) Part 24.238(a) &(b), TIA/EIA 603 or TIA/EIA-102.CAAA RSS 118 RSS 132, 133 - Not required for device with int e antenna - Highest and lowest power output levels at one operating frequency - 3 places in the band Band-edges (upper and lower) - Part 22.917 (a) - Part 22.917(b), - Part 24.238(a) & (b) meas. Procedure - RSS 118 with 30kHz for Analog mod. - RSS 132, 133 Conducted or Radiated method Peak Power Output Part 22.913 RSS 118, RSS 132, 133 - ERP or conducted - 3 places in the band Spurious emissions in base station band RSS 118 only Limit is –80dBm in 869-894MHz Temperature Stability Part 22.355, RSS 118 TIA/EIA 603 RSS 132, 133 Occupied Bandwidth Part 2.1049 TIA/EIA 603 or TIA/EIA-102.CAAA RSS 118 RSS 132, 133 “A discussion on the measurement of occupied bandwidth” by Brian Kasper - voice at M=2.5k - Supervisory Audio Tone (SAT) a M=6k - Signaling tone (ST) at M=10k - Wideband data M=10k - For other digital mod. Provide 9 9 BW Attestation – AMPS compatibility requirements Part 22.901(b)(1) ANSI TIA/EIA-553-A RSS 118 FCC: AMPS phones must mainta i compatibility for 5 years after Feb 18, 2003 Attestation - Dial 911 Call processing Part 22.921 Modulation Requirements: AFR, LPF R, limiting plots - DELETED from FCC rules after Feb. 18, 2003 - RSS 118 - DELETED from FCC rules afte r Feb. 18, 2003 - IC: maximum deviation will be recorded and verified to be +/-10 % voice =12k, SAT =2k, ST = 8k, an WBD = 8k Rx: Radiated spurious emissions RSS 118, RSS 132, 133 3 places in the band Rx: Antenna Conducted spurious Emissions RSS 118 sec. 9.6 RSS 132, 133 20 nW or -47 dBm ; Subscriber unit is10 pW or -80 dB 3 places in the band ESN RSS 118 only RSS 118 only
