NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, California USA, 92121 Toll Free: 888.888.9231 Main: 858.812.3400 Fax: 858.812.3402 Internet: www.novatelwireless.com ISO 9001: 2000 Date: September 16, 2013 MIVGSM0308 Declaration The MIVGSM0308 module that is to be integrated into the host (PKRNVWGSM2398) is electrically identical to the MIVGSM0308 module that was originally approved. The original test results continue to be representative. Sincerely, Todd Gallagher Manager, Regulatory Engineering

NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, California USA, 92121 Toll Free: 888.888.9231 Main: 858.812.3400 Fax: 858.812.3402 Internet: www.novatelwireless.com ISO 9001: 2000 GSM2398 DUTY FACTOR ATTESTATION To whom it may concern; The firmware of the GSM2398 is designed to allow the user to set a maximum of 1 location or event report every 2 seconds, each report sent over the wireless network takes under 200ms. It is not possible to request the device more frequently than this. The GSM2398 supports a maximum of 1 transmit timeslot (GPRS Multi-slot class 8) in the GPRS mode of operation, this Multi-slot class is configured in the factory during manufacturing and it is not possible for a user or installer to configure the GSM2398 to use more than 1 transmit time slot. Sincerely, Todd Gallagher Manager – Regulatory Engineering Novatel Wireless, Inc.

NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, California USA, 92121 Toll Free: 888.888.9231 Main: 858.812.3400 Fax: 858.812.3402 Internet: www.novatelwireless.com ISO 9001: 2000 Date (13/Sept/2013) TUV SUD BABT TCB Octagon House, Concorde Way Segensworth Road N, Fareham, PO15 5RL Dear Sir or Madam, We, NOVATEL WIRELESS, INC., 9645 Scranton Road, Suite 205, San Diego, California USA, hereby authorize TÜV SÜD America Inc, 10040 Mesa Rim Road, San Diego, CA 92121, 858- 678-1415, to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on March 1, 2014. Sincerely, Company Officer: Todd Gallagher, Manager - Regulatory Engineering Telephone Number: 403-295-4891 Email: [email protected]

NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, California USA, 92121 Toll Free: 888.888.9231 Main: 858.812.3400 Fax: 858.812.3402 Internet: www.novatelwireless.com ISO 9001: 2000 Date (25/Sept/2013) TUV SUD BABT TCB Octagon House, Concorde Way Segensworth Road N, Fareham, PO15 5RL Confidentiality Request FCC ID: PKRNVWGSM2398 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, NOVATEL WIRELESS, INC. hereby requests permanent confidential treatment of information accompanying this application as outlined below: 1) Schematic Diagrams contained in electronic file: a. DS-01019927_REVC_31MAY13 (1).pdf 2) Block Diagrams located in electronic file: a. GSM2398-00 Block Diagram.pdf 3) Bill of Materials (BOM) located in electronic file: a. GSM2398-00 BOM revE.pdf 4) Tune-Up Procedure (module) located in electronic file: a. Tune Up Procedure.pdf 5) Operational Description (host) located in electronic file: a. GSM2398-00 Operational Description.pdf 6) Antenna Drawing (host) located in electronic file: a. DM-12015156-REV-1.pdf NOVATEL WIRELESS, INC. also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: 1) External and Internal Photographs (host) contained in electronic files: a. GSM2398-00 External Photographs.pdf b. GSM2398-00 Internal Photographs.pdf 2) User’s Guide (host) contained in electronic file: a. EMT3060UG001MT3060UserGuide.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, California USA, 92121 Toll Free: 888.888.9231 Main: 858.812.3400 Fax: 858.812.3402 Internet: www.novatelwireless.com ISO 9001: 2000 The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Todd Gallagher, Manager - Regulatory Engineering Telephone Number: 403-295-4891 Email: [email protected]

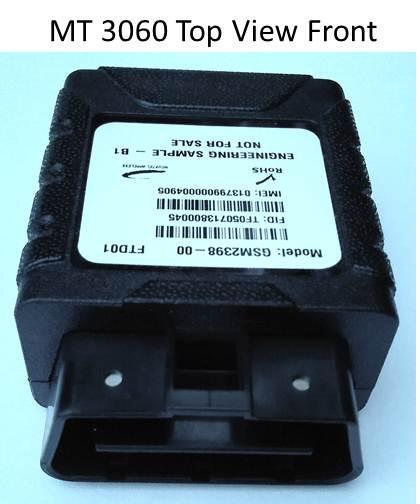

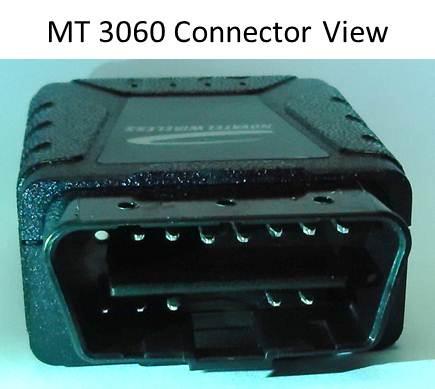

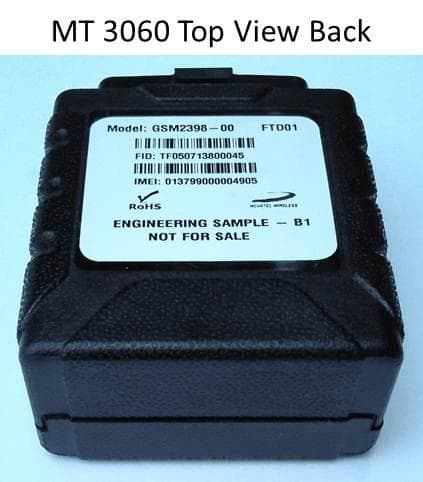

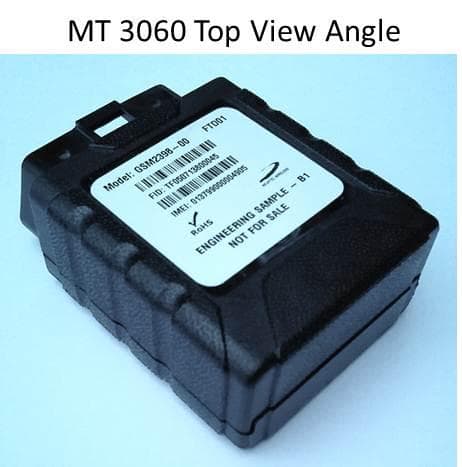

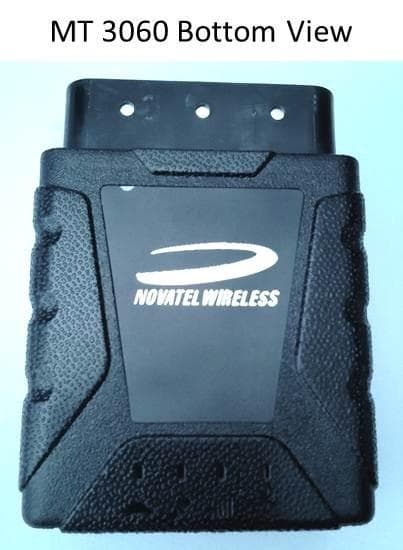

NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, California USA, 92121 Toll Free: 888.888.9231 Main: 858.812.3400 Fax: 858.812.3402 Internet: www.novatelwireless.com ISO 9001: 2000 GSM2398-00 (MT3060) External Photographs NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, California USA, 92121 Toll Free: 888.888.9231 Main: 858.812.3400 Fax: 858.812.3402 Internet: www.novatelwireless.com ISO 9001: 2000 NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, California USA, 92121 Toll Free: 888.888.9231 Main: 858.812.3400 Fax: 858.812.3402 Internet: www.novatelwireless.com ISO 9001: 2000

NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, California USA, 92121 Toll Free: 888.888.9231 Main: 858.812.3400 Fax: 858.812.3402 Internet: www.novatelwireless.com ISO 9001: 2000 GSM2398-00 Label Location 1. Label Placement 2. Label Label position Housing bottom Label position

NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, California USA, 92121 Toll Free: 888.888.9231 Main: 858.812.3400 Fax: 858.812.3402 Internet: www.novatelwireless.com ISO 9001: 2000 GSM2398-00 Top Inside Top Inside (Modem Off) NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, California USA, 92121 Toll Free: 888.888.9231 Main: 858.812.3400 Fax: 858.812.3402 Internet: www.novatelwireless.com ISO 9001: 2000 Bottom Inside Bottom Inside (Top of Shield Off) NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, California USA, 92121 Toll Free: 888.888.9231 Main: 858.812.3400 Fax: 858.812.3402 Internet: www.novatelwireless.com ISO 9001: 2000 Bottom Inside (Inside Ribs of Shield Off) GSM0308 Top NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, California USA, 92121 Toll Free: 888.888.9231 Main: 858.812.3400 Fax: 858.812.3402 Internet: www.novatelwireless.com ISO 9001: 2000 GSM0308 Bottom GSM0308 Internal

NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, California USA, 92121 Toll Free: 888.888.9231 Main: 858.812.3400 Fax: 858.812.3402 Internet: www.novatelwireless.com ISO 9001: 2000 Date: September 13, 2013 GSM2398 Source Based Time Average Transmitter Power The GSM2398 (MT 3060) supports a maximum of 1 transmit timeslot (GPRS Multi-Slot class 8) in the GPRS mode of operation. This Multi-Slot class is configured in the factory during manufacturing and it is not possible for a user or installer to configure the GSM2398 to use more than 1 transmit time slot. Therefore a source based time average calculation is used to reduce calculated average transmit power. Since the number of GSM/GPRS timeslots available in a single burst is 8 and only 1 of these are used the average power would be 1/8 of the measured ERP/EIRP. In addition the GSM2398 is controlled by SW to only support the user to set a maximum of one location or event every 2 seconds. Each report sent over the wireless network takes under 200ms. Therefore; • GPRS Class 8 operation duty factor = 1/8 = 0.125 = 12.5% • Source based time averaged duty factor = 0.2/2=0.1=10% • Maximum duty factor = 0.1*0.125 = 0.0125 or 1.25% maximum duty factor Test Separation Distance The GSM2398 is mounted in vehicles and plugs into the vehicle’s OBD II connector, which is mounted within the dashboard region. It is not body-worn and therefore does not come into direct contact with the user. A test separation distance of 10mm is therefore sufficiently conservative to support the operational separation distance required by the device and its antenna. SAR Test Exclusion Calculation From KDB 447498 D01, The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where; NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, California USA, 92121 Toll Free: 888.888.9231 Main: 858.812.3400 Fax: 858.812.3402 Internet: www.novatelwireless.com ISO 9001: 2000 • f(GHz) is the RF channel transmit frequency in GHz, • Power and distance are rounded to the nearest mW and mm before calculation, • The result is rounded to one decimal place for comparison Therefore; For 850 MHz band, Maximum power (34 dBm or 2512mW) · Maximum duty factor (0.0125) = 31.4mW Maximum time-averaged power. [(31mW)/(10mm)] · [√f(.85)] = 2.9 For 1900 MHz band, Maximum power (32 dBm or 1585mW) · Maximum duty factor (0.0125) = 19.8mW Maximum time-averaged power. [(20mW)/(10mm)] · [√f(1.91)] = 2.8 Conclusion For both the 850 MHz and 1900 MHz bands, SAR test is not required since the results are below the ≤ 3.0 1-g SAR limit.

This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 1 of 63 Certification Test Report CFR 47 FCC Part 22 and Part 24 Model: GSM0308-10 B2BRF GSM0308-11 B2BRF w/sim GSM0308-70 coax RF GSM0308-71 coax RF w/sim FCC ID NO. MIVGSM0308 Report Code: W7005-1 Revision: 2 Prepared for: Enfora, Inc. 661 E. 18 th St. Plano, TX 75074-5601 Author: Tom Tidwell, Manager of Wireless Services Issued: 9 February 2007 1701 E. Plano Parkway, Suite 150 Plano, Texas 75074 Phone: (972) 509-2566 Fax: (972) 509-0073 Model: GSM0308-10 B2BRF GSM0308-11 B2BRF w/ sim GSM0308-70 coax rf GSM0308-71 coax rf w/ sim Compliance Test Report FCC ID NO. MIVGSM0308 This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 2 of 63 Report Summary NTS Plano Accreditation Numbers: FCC: 101741 IC: 46405-4319 File # IC-4319A Applicant: Enfora, Inc. 661 E. 18 th St. Plano, TX 75074-5601 Customer Representative: Rob Holden EUT Description: EUT Description Manufacturer Model RevisionSerial Number The EUT is a wireless transceiver that operates in the GSM 850 and GSM1900 bands in North America Enfora, Inc. GSM0308-10 B2BRF GSM0308-11 B2BRF w/sim GSM0308-70 coax RF GSM0308-71 coax RF w/sim X X Model: GSM0308-10 B2BRF GSM0308-11 B2BRF w/ sim GSM0308-70 coax rf GSM0308-71 coax rf w/ sim Compliance Test Report FCC ID NO. MIVGSM0308 This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 3 of 63 Test Summary Deviations from: Appendix Test/Requirement Description Base Standard Test Basis NTS Procedure Pass / Fail Applicable Rule Parts A RF Power Output No No No PASS CFR 47, Part 2, Para. 2.1046 CFR 47, Part 22, Para. 22.913 CFR 47, Part 24, Para.24.232 B Modulation Characteristics No No No PASS CFR 47, Part 2, Para. 2.1047 C Occupied Bandwidth No No No PASS CFR 47, Part 2, Para. 2.1049 CFR 47, Part 22, Para. 22.917 CFR 47, Part 24, Para. 24.238 D Spurious Emissions at Antenna Terminals No No No PASS CFR 47, Part 2, Para. 2.1051 CFR 47, Part 22, Para. 22.917 CFR 47, Part 24, Para. 24.238 E Field Strength of Spurious Radiation No No No PASS CFR 47, Part 2, Para. 2.1053 CFR 47, Part 22, Para. 22.917 CFR 47, Part 24, Para. 24.238 F Frequency Stability No No No PASS CFR 47, Part 2, Para. 2.1055 CFR 47, Part 22, Para. 22.355 CFR 47, Part 24, Para. 24.235 Test Result: The product presented for testing complied with test requirements as shown above. This is to certify that the preceding report is true and correct to the best of my knowledge. Robert Stevens, Tom Tidwell, Quality Assurance Manager Wireless Test Engineer Model: GSM0308-10 B2BRF GSM0308-11 B2BRF w/ sim GSM0308-70 coax rf GSM0308-71 coax rf w/ sim Compliance Test Report FCC ID NO. MIVGSM0308 This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 4 of 63 Table of Contents REPORT SUMMARY .......................…

Text truncated - open the document above for the full version.

Report No. SC1308862B_Rev1.0 September 2013 America Report On Partial Application for Grant of Equipment Authorization of the Novatel Wireless Inc. MT 3060 Asset locating and diagnostic data reporting device FCC CFR 47 Part 2, Part 22 and Part 24 IC RSS‐Gen, RSS‐132 and RSS‐133 FCC ID PKRNVWGSM2398 IC: 3229A‐GSM2398 Report No. SC1308862B_Rev1.0 REPORT ON TEST REPORT NUMBER PREPARED FOR Radio Testing of the Novatel Wireless Inc. Asset locating and diagnostic data reporting device SC1308862B_Rev1.0 Novatel Wireless Inc. 9645 Scranton Road, Suite 205 San Diego, CA 92121‐3030 USA CONTACT PERSON Daryl Therens Technical Specialist, Regulatory. (403) 516‐5503 [email protected] PREPARED BY Juan Manuel Gonzalez Name Title: EMC Engineer APPROVED BY Chip Fleury Name Authorized Signatory Title: EMC Manager DATED September30 th ,2013 FCC ID PKRNVWGSM2398 IC: 3229A‐GSM2398 Report No. SC1308862B_Rev1.0 Page 3 of 29 Revision History SC1308862B_Rev1.0 Novatel Wireless Inc. MT 3060 Asset locating and diagnostic data reporting device DATE OLD REVISION NEW REVISION REASON PAGES AFFECTED APPROVED BY 09/13/2013 Initial Release Fleury Chip 09/30/13 Initial Release 1.0 Remove reference in related documents section: UNII KDB N/A 6 Fleury Chip FCC ID PKRNVWGSM2398 IC: 3229A‐GSM2398 Report No. SC1308862B_Rev1.0 Page 4 of 29 CONTENTS Section Page No 1 REPORT SUMMARY ................................................................................................................. 5 1.1 Introduction ................................................................................................................................ 6 1.2 Brief Summary of Results ........................................................................................................... 7 1.3 Product Information .................................................................................................................... 8 1.4 EUT Test configuration ............................................................................................................. 10 1.5 Deviations from the Standard ................................................................................................... 12 1.6 Modification Record ................................................................................................................. 12 1.7 Test methodology ..................................................................................................................... 12 1.8 Test facility ............................................................................................................................... 12 1.9 Sample calculations ................................................................................................................. 13 2 TEST DETAILS ........................................................................................................................ 14 2.1 TRANSMITTER Conducted Power measurements .................................................................. 15 2.2 Peak-average ratio ................................................................................................................... 17 3 TEST EQUIPMENT USED ....................................................................................................... 25 3.1 Test Equipment Used ............................................................................................................... 26 3.2 Measurement Uncertainty ........................................................................................................ 27 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT .......................................................... 28 4.1 Accreditation, Disclaimers and Copyright ................................................................................. 29 FCC ID PKRNVWGSM2398 IC: 3229A‐GSM2398 Report No. SC1308862B_Rev1.0 Page 5 of 29 SECTION 1 REPORT SUMMARY Radio Testing of the Novatel Wireless Inc. Asset locating and diagnostic data reporting device FCC ID PKRNVWGSM2398 IC: 3229A‐GSM2398 Report No. SC1308862B_Rev1.0 Page 6 of 29 1.1 INTRODUCTION The information contained in this report is intended to show verification of the Novatel Wireless Inc. Asset locating and diagnostic data reporting device to the requirements of the following: FCC CFR 47 Part 2, Part 22 and Part 24 Objective To perform limited Radio Testing to determine the Equipment Under Test's (EUT’s) compliance with the Test Specification, for the series of tests carried out. Note.‐ This is a partial report and Only covering PAR measurements to complement reports W7005‐1 and W7005‐2 from the original modular approval performed from NTS Labs . RF Power Output at antenna terminal were also recalculated to obtain Average values from Peak values from original reports by using the maximum PAR obtained in this report. Manufacturer Novatel Wireless Inc. Model Number(s) GSM2398‐00 FCC ID Number PKRNVWGSM2398 IC Number 3229A‐GSM2398 Serial Number(s) Engineering Sample Number of Samples Tested 1 Test Specification/Issue/Date  FCC CFR 47 Part 2, Part 22 and Part 24 (October 1, 2011).  RSS‐132 ‐ Cellular Telephones Employing New Technologies Operating in the Bands 824‐849 MHz and 869‐894 MHz (Issue 2, September 2005).  RSS‐133 – 2 GHz Personal Communications Services (Issue 5, February 2009).  RSS‐Gen ‐ General Requirements and Information for the Certification of Radio Apparatus (Issue 3, December 2010). Start of Test September 13, 2013 Finish of Test September 13, 2013 Name of Engineer(s) Juan Manuel Gonzalez Related Document(s)  Supporting documents for EUT certification are separate exhibits. FCC ID PKRNVWGSM2398 IC: 3229A‐GSM2398 Report No. SC1308862B_Rev1.0 Page 7 of 29 1.2 BRIEF SUMMARY OF RESULTS A brief summary of the limited tests carried out in accordance with FCC CFR 47 Part 2, Part 22 and Part 24 with cross‐reference to the corresponding IC RSS standard is shown below. Section FCC Part Sections(s) RSS Section(s) Test Description Result 2.1 2.1046 RSS‐…

Text truncated - open the document above for the full version.

FCC ID: PKRNVWGSM2398 IC ID: 3229A-GSM2398 EUT PAR Test Setup Radiated Emissions <1GHz Test Setup Radiated Emissions >1GHzTest Setup
