PKRNVWMC551Cellular/ PCS CDMA and 700 MHz LTE USB Modem

PN 14316186_R1 CAUTION CAUTION: This USB modem is approved for use in normal-size laptop computers only. To comply with FCC RF exposure requirements, this modem should not be used in configurations that cannot maintain at least 5 mm from users and bystanders. For example, this modem should not be used in certain laptop and tablet computers and configurations where the USB con- nectors are unable to provide or ensure the necessary separa- tion is available between the modem and its users to satisfy compliance. See detailed operating requirements in User Manual. 145 mm 101.6 mm NovatelWir elessTechnologies Ltd. Suite 200, 6715 - 8th St NE Calgary, ABCanadaT2E 7H7 Phone: 403 295 4800 TITLE: FCC RF Insert, MC551 Generic P/N: 14316186 NOTES: 10/28/10 - Rev.1 - Anette Farrell - INITIAL RELEASE ECO 70# uncoated paper 3 color: CMYK Text is 100% K CAUTION is red : 0/100/100/0 Magenta does not print

©2010 Novatel Wireless, Inc. All rights reserved. The information contained in this document is subject to change without notice and should not be construed as a commitment by Novatel Wireless, Inc. Patents and Licenses Visit www.novatelwireless.com/patents for a complete list of all Novatel Wireless patents. Software License Proprietary Rights Provisions: The software drivers provided with this product are copyrighted by Novatel Wireless and/or Novatel Wireless’ suppliers. Although copyrighted, the software drivers are unpublished and embody valuable trade secrets proprietary to Novatel Wireless and/or Novatel Wireless’ suppliers. The disassembly, decompilation, and/or Reverse Engineering of the software drivers for any purpose is strictly prohibited by international law. The copying of the software drivers, except for a reasonable number of back-up copies is strictly prohibited by international law. It is forbidden by international law to provide access to the software drivers to any person for any purpose other than processing the internal data for the intended use of the software drivers. U.S. Government Restricted Rights Clause: The software drivers are classified as “Commercial Computing device Software” and the U.S. Government is acquiring only “Restricted Rights” in the software drivers and their Documentation. U.S. Government Export Administration Act Compliance Clause: It is forbidden by US law to export, license or otherwise transfer the software drivers or Derivative Works to any country where such transfer is prohibited by the United States Export Administration Act, or any successor legislation, or in violation of the laws of any other country. Trademarks and Service Marks Novatel Wireless is a trademark of Novatel Wireless, Inc., and the other trademarks, logos, and service marks (collectively the “Trademarks”) used in this user manual are the property of Novatel Wireless or their respective owners. Nothing contained in this user manual should be construed as granting by implication, estoppel, or otherwise, a license or right of use of Novatel Wireless or any other Trademark displayed in this user manual without the written permission of Novatel Wireless or its respective owners. • Ovation, the Ovation logo, Novatel Wireless, and the Novatel Wireless logo are all trademarks of Novatel Wireless, Inc. • M obiLink TM is a trademark of Novatel Wireless. • Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft® Corporation in the United States and/or other countries. • Apple® and Mac® are registered trademarks of Apple, Inc., registered in the U.S. and other countries. • LTE™ is a trademark of ETSI. The names of actual companies and products mentioned in this user manual may be the trademarks of their respective owners. FCC ID: PKRNVWMC551 IC ID: 3229B-MC551 PN: xxxxxxxx_R1_Dr aftE_15Nov2010 Please visit www.novatelwireless.com for the latest information about your device. Contents Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Package Contents . ...................................................................... 2 S ystem Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Components . ............................................................................... 3 LED States. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Caring for Your Device .......................................................................5 Using the MC551 Modem. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Using the Device for the First Time ...........................................................7 Install the 4G SIM Card*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Install the Software ......................................................................9 P roperly Insert the Device in Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Set Up the Software ....................................................................11 A ctivate Your Device .................................................................... 11 P roperly Remove the Device from Your Computer . ...................................... 12 U sing the Device After Setup is Complete ...................................................13 Connect To and Disconnect From the Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Lanyard Accessory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Accessing the User Guides . ................................................................. 15 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Common Problems and Solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Technical Support ..........................................................................19 Product Specific…

Text truncated - open the document above for the full version.

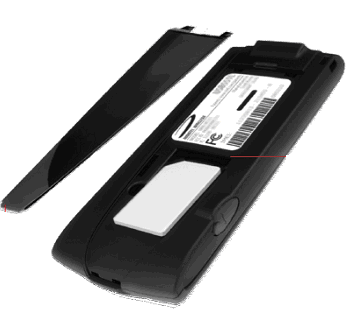

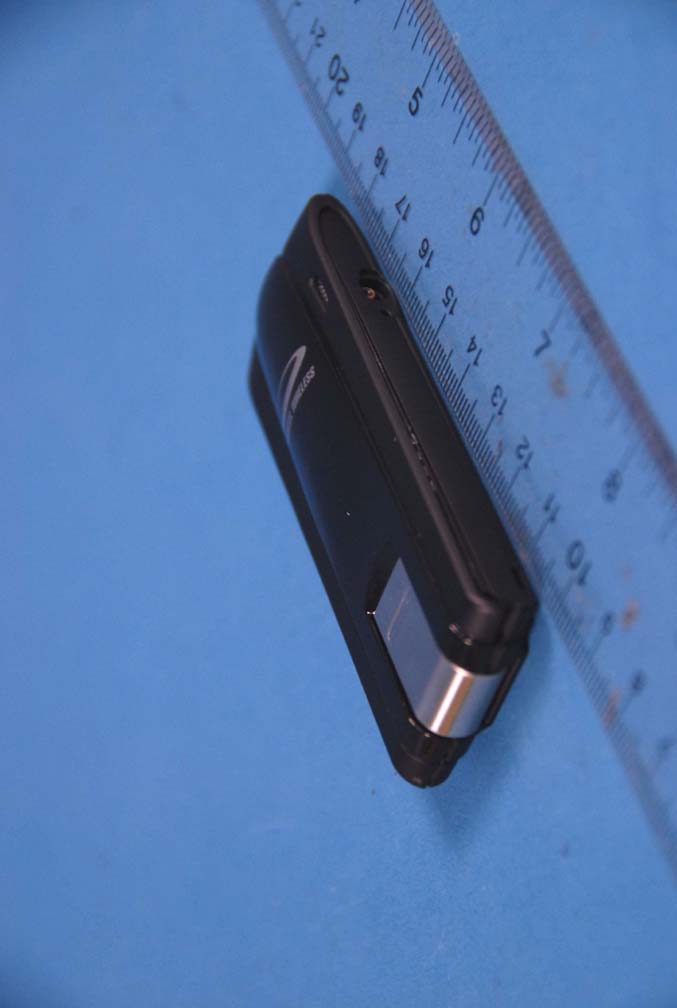

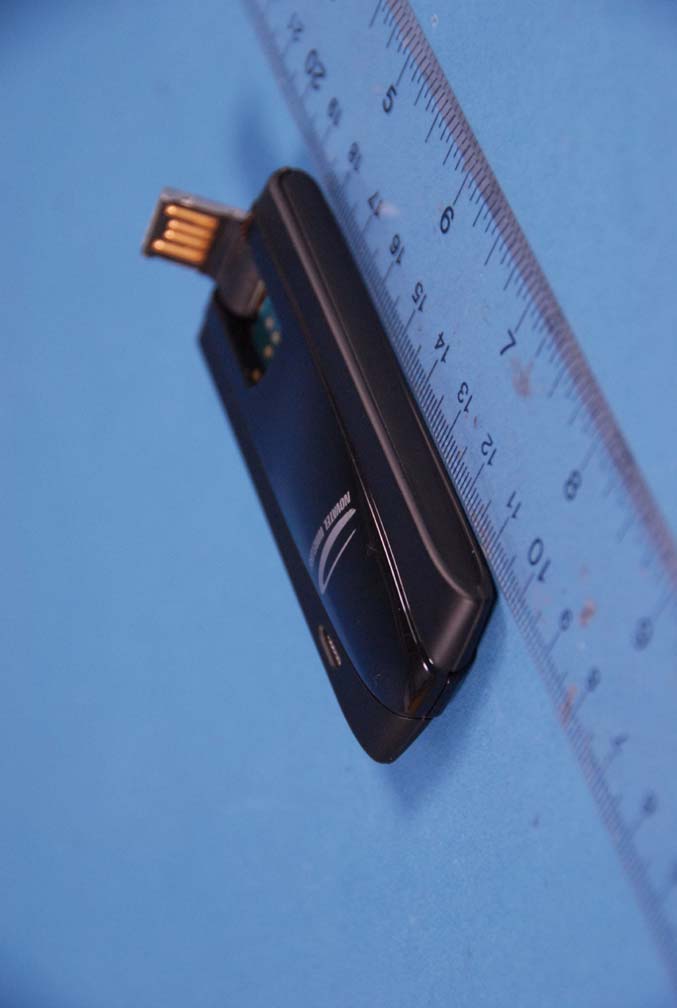

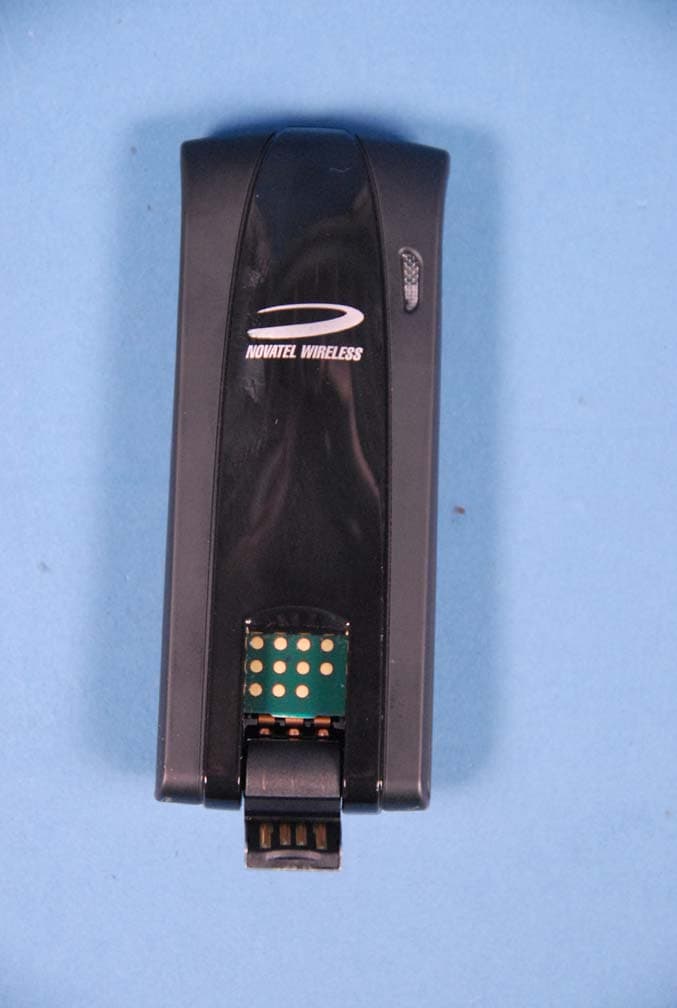

NOVATEL WIRELESS INC. FCC ID: PKRNVWMC551 Model: MC551 External Photos EUT Type: Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Page 1 of 5 © 2010 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS NOVATEL WIRELESS INC. FCC ID: PKRNVWMC551 Model: MC551 External Photos EUT Type: Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Page 2 of 5 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: PKRNVWMC551 Model: MC551 External Photos EUT Type: Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Page 3 of 5 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: PKRNVWMC551 Model: MC551 External Photos EUT Type: Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Page 4 of 5 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: PKRNVWMC551 Model: MC551 External Photos EUT Type: Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Page 5 of 5 © 2010 PCTEST Engineering Laboratory Inc. PKRNVWMC551 - Label Location The label will be located with the SIM Card on the back of the device.

PKRNVWMC551 - Label Location

NOVATEL WIRELESS INC. FCC ID: PKRNVWMC551 Model: MC551 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Page 1 of 8 © 2010 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS NOVATEL WIRELESS INC. FCC ID: PKRNVWMC551 Model: MC551 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Page 2 of 8 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: PKRNVWMC551 Model: MC551 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Page 3 of 8 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: PKRNVWMC551 Model: MC551 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Page 4 of 8 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: PKRNVWMC551 Model: MC551 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Page 5 of 8 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: PKRNVWMC551 Model: MC551 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Page 6 of 8 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: PKRNVWMC551 Model: MC551 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Page 7 of 8 © 2010 PCTEST Engineering Laboratory Inc. NOVATEL WIRELESS INC. FCC ID: PKRNVWMC551 Model: MC551 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Page 8 of 8 © 2010 PCTEST Engineering Laboratory Inc.

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: MC551; Type: Cellular/PCS CDMA/EVDO and 700 LTE Modem; Serial: #1 Communication System: Cellular CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: 835 Muscle Medium parameters used (interpolated): f = 824.7 MHz; σ = 0.95 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 Phanto m section: Flat Section; Space: 0.5 cm Test Date: 09-15-2010; Ambient Temp: 23.9°C; Tissue Temp: 23.2°C Probe: EX3DV4 - SN3550; ConvF(8.3, 8.3, 8.3); Calibrated: 1/26/2010 Sensor-Surface: 5mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/22/2010 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: Cellular CDMA, Body SAR, Horizontal-Down, Low Ch. Area Scan (8x13x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Refere nce Value = 32.9 V/m Peak SAR (extrapolated) = 1.65 W/kg SAR(1 g) = 0.998 mW/g; SAR(10 g) = 0.629 mW/g 0 dB = 0.996mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: MC551; Type: Cellular/PCS CDMA/EVDO and 700 LTE Modem; Serial: #1 Communication System: Cellular CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: 835 Muscle Medium parameters used (interpolated): f = 824.7 MHz; σ = 0.95 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 Phanto m section: Flat Section; Space: 0.5 cm Test Date: 09-15-2010; Ambient Temp: 23.9°C; Tissue Temp: 23.2°C Probe: EX3DV4 - SN3550; ConvF(8.3, 8.3, 8.3); Calibrated: 1/26/2010 Sensor-Surface: 5mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/22/2010 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: Cellular CDMA, Body SAR, Vertical Front, Low Ch. Area Scan (6x12x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Refere nce Value = 34.5 V/m Peak SAR (extrapolated) = 1.49 W/kg SAR(1 g) = 0.950 mW/g; SAR(10 g) = 0.587 mW/g 0 dB = 0.950mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: MC551; Type: Cellular/PCS CDMA/EVDO and 700 LTE Modem; Serial: #1 Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Muscle Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.964 mho/m; ε r = 55.4; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.5 cm Test Date: 09-15-2010; Ambient Temp: 23.9°C; Tissue Temp: 23.2°C Probe: EX3DV4 - SN3550; ConvF(8.3, 8.3, 8.3); Calibrated: 1/26/2010 Sensor-Surface: 5mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/22/2010 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: Cellular CDMA, Body SAR, Vertical-Back, Mid. Ch. Area Scan (6x12x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 37.2 V/m Peak SAR (extrapolated) = 1.89 W/kg SAR(1 g) = 1.07 mW/g; SAR(10 g) = 0.614 mW/g 0 dB = 1.07mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: MC551; Type: Cellular/PCS CDMA/EVDO and 700 LTE Modem; Serial: #1 Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Muscle Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.964 mho/m; ε r = 55.4; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.5 cm Test Date: 09-15-2010; Ambient Temp: 23.9°C; Tissue Temp: 23.2°C Probe: EX3DV4 - SN3550; ConvF(8.3, 8.3, 8.3); Calibrated: 1/26/2010 Sensor-Surface: 5mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/22/2010 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: Cellular CDMA, Body SAR, Vertical-Back, Mid. Ch. Area Scan (6x12x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 37.2 V/m Peak SAR (extrapolated) = 1.89 W/kg SAR(1 g) = 1.07 mW/g; SAR(10 g) = 0.614 mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: MC551; Type: Cellular/PCS CDMA/EVDO and 700 LTE Modem; Serial: #1 Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Muscle Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.964 mho/m; ε r = 55.4; ρ = 1000 kg/m 3 Phanto m section: Flat Section; Space: 0.5 cm Test Date: 09-15-2010; Ambient Temp: 23.9°C; Tissue Temp: 23.2°C Probe: EX3DV4 - SN3550; ConvF(8.3, 8.3, 8.3); Calibrated: 1/26/2010 Sensor-Surface: 5mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/22/2010 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: Cellular CDMA, Body SAR, Tip, Mid. Ch Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Refere nce Value = 14.4 V/m Peak SAR (extrapolated) = 0.343 W/kg SAR(1 g) = 0.171 mW/g; SAR(10 g) = 0.093 mW/g 0 dB = 0.167mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: MC551; Type: Cellular/PCS CDMA/EVDO and 700 LTE Modem; Serial: #1 Communication System: PCS CDMA; Frequency: 1908.75 MHz;Duty Cycle: 1:1 Medium: 1900 Muscle Medium parameters used(interpolated): f = 1908.75 MHz; σ = 1.567 mho/m; ε r = 5 1.1; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.5 cm Test Date: 09-13-2010; Ambient Temp: 23.6°C; Tissue Temp: 23.3°C Probe: EX3DV4 - SN3550; ConvF(6.63, 6.63, 6.63); Calibrated: 1/26/2010 Sensor-Surface: 5mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/22/2010 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: PCS CDMA, Body SAR, Horizontal-Down, High Ch. Area Scan (8x13x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Referen ce Value = 33.9 V/m Peak SAR (extrapolated) = 2.51 W/kg SAR(1 g) = 1.…

Text truncated - open the document above for the full version.

FCC ID: PKRNVWMC551 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 39 0Y1009131544-R2.PKR 09/13/10 - 09/15/10 Cellular/PCS CDMA/EVDO and LTE USB Modem © 2010 PCTEST Engineering Laboratory, Inc. REV 8.5M 8/17/2010 Applicant Name: Date of Testing: Novatel Wireless Inc. 09/13/10 - 09/15/10 9645 Scranton Road, Suite 205 Test Site/Location: San Diego, CA 92121-3030 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1009131544-R2.PKR FCC ID: PKRNVWMC551 APPLICANT: NOVATEL WIRELESS INC. EUT Type: Cellular/PCS CDMA/EVDO and LTE USB Modem Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] FCC Classification: PCS Licensed Transmitter (PCB) Model(s): MC551 Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) 779.5 - 784.5 MHz (Band 13, 5 MHz BW) 782 MHz (Band 13, 10 MHz BW) Conducted Power: 24.2 dBm Cell. CDMA 23.84 dBm PCS CDMA 24.46 dBm LTE Band 13 Max. SAR Measurement: 1.07 W/kg Cell. CDMA Body SAR 1.50 W/kg PCS CDMA Body SAR 1.23 W/kg LTE Band 13 Body SAR Test Device Serial No.: Pre-Production [S/N: #1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: PKRNVWMC551 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 39 0Y1009131544-R2.PKR 09/13/10 - 09/15/10 Cellular/PCS CDMA/EVDO and LTE USB Modem © 2010 PCTEST Engineering Laboratory, Inc. REV 8.5M 8/17/2010 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES ...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 11 8 TEST CONFIGURATION POSITIONS AND KDB INQUIRIES ..................................................... 12 9 RF EXPOSURE LIMITS ................................................................................................................ 22 10 MEASUREMENT UNCERTAINTIES ............................................................................................ 23 11 SYSTEM VERIFICATION .............................................................................................................. 24 12 FCC 3G MEASUREMENT PROCEDURES FOR EVDO .............................................................. 26 13 4G SAR PROBE LINEARITY ANALYSIS ..................................................................................... 29 14 SAR DATA SUMMARY ................................................................................................................. 30 15 EQUIPMENT LIST ......................................................................................................................... 33 16 CONCLUSION ............................................................................................................................... 34 17 REFERENCES .............................................................................................................................. 35 18 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 37 FCC ID: PKRNVWMC551 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 39 0Y1009131544-R2.PKR 09/13/10 - 09/15/10 Cellular/PCS CDMA/EVDO and LTE USB Modem © 2010 PCTEST Engineering Laboratory, Inc. REV 8.5M 8/17/2010 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz[2] and Health Canada RF Exposure Guidelines Safety Code 6 [26]. The measurement procedure described in IEEE/ANSI C95.3-2002 Recomm…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: PKRNVWMC551 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1009131545.PKR September 15 - 17, 2010 Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Page 1 of 37 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.2CFI 04/19/2010 Applicant Name: Date of Testing: Novatel Wireless Inc. September 15 - 17, 2010 9645 Scranton Road, Suite 205 Test Site/Location: San Diego, CA 92121-3030 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1009131545.PKR FCC ID: PKRNVWMC551 IC CERTIFICATION NO.: 3229B-MC551 APPLICANT: NOVATEL WIRELESS INC. Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 EUT Type: Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Model(s): MC551 Tx Frequency Range: 824.70 - 848.31MHz (Cell. CDMA) / 1851.25 - 1908.75MHz (PCS CDMA) Max. RF Output Power: 0.235 W ERP Cell. CDMA (23.71 dBm), 0.413 W EIRP PCS CDMA (26.16 dBm) Emission Designator(s): 1M27F9W (CDMA) / 1M27F9W (PCS) Test Device Serial No.: identical prototype [S/N: N/A] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: PKRNVWMC551 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1009131545.PKR September 15 - 17, 2010 Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Page 2 of 37 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.2CFI 04/19/2010 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH ................................................................................................................... 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 7 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY......................................................................................................................................... 11 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 12 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA .................................................... 13 6.4 CELLULAR CDMA RADIATED MEASUREMENTS........................................................................... 14 6.5 PCS CDMA RA…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: PKRNVWMC551 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1009131546.PKR September 13 - 17, 2010Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Page 1 of 37 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.1LTE 09/13/10 Applicant Name: Date of Testing: Novatel Wireless Inc. September 13 - 17, 2010 9645 Scranton Road, Suite 205 Test Site/Location: San Diego, CA 92121-3030 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1009131546.PKR FCC ID: PKRNVWMC551 APPLICANT: NOVATEL WIRELESS INC. Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §27 EUT Type: Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Model(s): MC551 Tx Frequency Range: 779.5MHz - 784.5MHz (5MHz BW LTE - Band 13) 782MHz (10MHz BW LTE - Band 13) Max. RF Output Power: 0.131 W ERP (5MHz BW - QPSK) (21.17 dBm) 0.13 W ERP (5MHz BW - 16-QAM) (21.14 dBm) 0.138 W ERP (10MHz BW - QPSK) (21.4 dBm) 0.137 W ERP (10MHz BW - 16-QAM) (21.37 dBm) Emission Designator(s): 4M49G7D (5MHz BW, QPSK), 4M49W7D (5MHz BW, 16-QAM), 8M95G7D (10MHz BW, QPSK), 8M95W7D (10MHz BW, 16-QAM) Test Device Serial No.: identical prototype [S/N: N/A] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 27. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 27 LTE Reviewed by: FCC ID: PKRNVWMC551 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1009131546.PKR September 13 - 17, 2010Cellular/PCS CDMA/EvDO and 700MHz LTE USB Modem Page 2 of 37 © 2010 PCTEST Engineering Laborat…

Text truncated - open the document above for the full version.
