PKRNVWMC620NVWMC620

Inseego Corp.

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: May 06, 2015
Application Purpose: Original Equipment
Date of Application: May 05, 2015
Equipment Note: NVWMC620
Frequency Range: 782.00000000 - 782.00000000
Company: Inseego Corp.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Guide ©2015 Verizon Wireless, Inc. All rights reserved. The information contained in this document is subject to change without notice and should not be construed as a commitment by Verizon Wireless, Inc. Patents and Licenses Visit www.novatelwireless.com/patents for a complete list of all Novatel Wireless patents. Software License Proprietary Rights Provisions: The software drivers provided with this product are copyrighted by Novatel Wireless and/or Novatel Wireless’ suppliers. Although copyrighted, the software drivers are unpublished and embody valuable trade secrets proprietary to Novatel Wireless and/or Novatel Wireless’ suppliers. The disassembly, decompilation, and/or Reverse Engineering of the software drivers for any purpose is strictly prohibited by international law. The copying of the software drivers, except for a reasonable number of back-up copies is strictly prohibited by international law. It is forbidden by international law to provide access to the software drivers to any person for any purpose other than processing the internal data for the intended use of the software drivers. U.S. Government Restricted Rights Clause: The software drivers are classified as “Commercial Computing device Software” and the U.S. Government is acquiring only “Restricted Rights” in the software drivers and their Documentation. U.S. Government Export Administration Act Compliance Clause: It is forbidden by US law to export, license or otherwise transfer the software drivers or Derivative Works to any country where such transfer is prohibited by the United States Export Administration Act, or any successor legislation, or in violation of the laws of any other country. Trademarks and Service Marks Verizon Wireless is a trademark of Verizon Wireless, Inc., and the other trademarks, logos, and service marks (collectively the “Trademarks”) used in this user manual are the property of Verizon Wireless or their respective owners. Nothing contained in this user manual should be construed as granting by implication, estoppel, or otherwise, a license or right of use of Verizon Wireless or any other Trademark displayed in this user manual without the written permission of Verizon Wireless or its respective owners. •Novatel Wireless, and the Novatel Wireless logo are trademarks of Novatel Wireless, Inc. •Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft® Corporation in the United States and/or other countries. •Apple® and Mac® are registered trademarks of Apple, Inc., registered in the U.S. and other countries. •LTE™ is a trademark of ETSI. The names of actual companies and products mentioned in this user manual may be the trademarks of their respective owners. Novatel Wireless Revision History Part NumberRevisionDescriptionDate 90029147R1Initial release30 Apr 2015 FCC ID: PKRNVWMC620 IC ID: 3229B-MC620 PN: 90029147 R1 DRAFTA Regulatory 30Apr2015 Please visit www.verizonwireless.com for the latest information about your device. Contents Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Package Contents .......................................................................2 System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Components ................................................................................3 Status & Data LED Indicators .............................................................4 Caring for Your Device .......................................................................5 Using the MiFi U630L. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Using the MiFi U620L Modem for the First Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Install the 4G LTE SIM Card ...............................................................8 Properly Insert the Device in Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Using the Device After Setup is Complete ...................................................12 Connect To and Disconnect From the Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Accessing the MiFi Web User Interface (UI). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 MiFi Web UI Content/Screens TBD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Common Problems and Solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Technical Support ..........................................................................18 Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Data Technical Support .................................................................18 Product Specifications and Regulatory Information ......................19 Product Specifications ......................................................................20 General ................................................................................20 Technology/Bands. . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Cover Letter(s)

NOVATEL WIRELESS, INC. 9645 Scranton Road Suite 205, San Diego CA 92121 Toll Free: 888.888.9231 Main 858.812.3400  Fax 858.812.3402 www.novatelwireless.com NASDAQ: MIFI Date: April 28, 2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: PKRNVWMC620 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Novatel Wireless Inc. hereby requests permanent confidential treatment of information accompanying this application as outlined below: 1. BOM (Bill of Material) 2. Tuning Procedure 3. Schematics Diagrams 4. Theory of Operation 5. Block Diagram 6. Assembly Drawing Novatel Wireless Inc. also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: 1. External and Internal Photos 2. Test photos 3. User Guide The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Roman Olmos Hardware Engineer II/Regulatory Engineering Novatel Wireless Inc.

External Photos

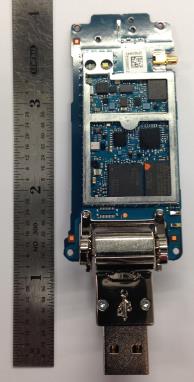

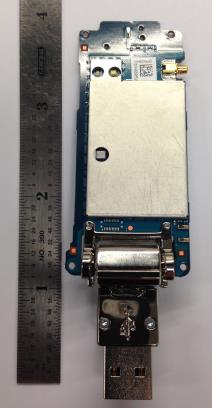

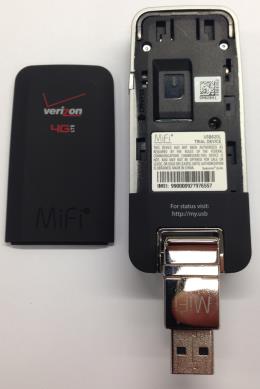

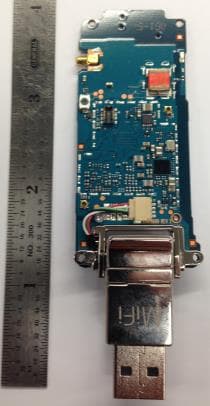

NOVATEL WIRELESS, INC. 9645 Scranton Road Suite 205, San Diego CA 92121 Toll Free: 888.888.9231 Main 858.812.3400  Fax 858.812.3402 www.novatelwireless.com NASDAQ: MIFI MC620 EUT Internal & External Photos I. Internal EUT PCB Photos a. Top Side (w/Shields) (without Shields) b. Bottom Side (w/Shields) (without Shields) NOVATEL WIRELESS, INC. 9645 Scranton Road Suite 205, San Diego CA 92121 Toll Free: 888.888.9231 Main 858.812.3400  Fax 858.812.3402 www.novatelwireless.com NASDAQ: MIFI II. External EUT Photos Top View Bottom View Side Edge View Top Side View NOVATEL WIRELESS, INC. 9645 Scranton Road Suite 205, San Diego CA 92121 Toll Free: 888.888.9231 Main 858.812.3400  Fax 858.812.3402 www.novatelwireless.com NASDAQ: MIFI USB Fully Extended View Battery Cover Removed View

ID Label/Location Info

22 18 R1 USB620L PROCESS BLACK (0/0/0/100) TITLE: LABEL REGULATORY METCALF VZW P/N: 25018946 Rev.1 03/24/15 - AGaven- INITIAL DRAFT ECO: COXXXX Novatel Wir eless 9645 Scranton Road San Diego, CA 92121 Phone: 858 812 3400 FONTS MYRIAD PRO CONDENSED FILES 25018946 Rev 1 MASTER Label Regulatory METCALF VZW.AI (AI CC) 25018946 Rev 1 PRINT Label Regulatory METCALF VZW.PDF MATERIAL/FINISH: MATERIAL IMFORMATION PROVIDED ON MECHANICAL DRAWING DM-25018944 MAGENTA DOES NOT PRINT CYAN TEXT AND BARCODE ARE DYNAMIC INFORMATION AND NEED TO BE REPLACED WITH ACTUAL IMEI INFORMATION AT PRINT WHITE LABEL COLOR: 1C BACKGROUND IS OPAQUE WHITE TEXT IS RICH BLACK NOTES MODEL: MC620 FCC ID: PKRNVWMC620 IC: 3229A - MC620 Designed in California. Made in China. QUALCOMM 3G/4G MMDDYY IMEI:XXXXXXXXXXXXXXX DATE OF MANUFACTURE - Verdana 4 pt Bold TEXT: MM = Year - Verdana 4 pt Bold TEXT: DD= Month - Verdana 4 pt Bold TEXT: YY = Day - Verdana 4 pt Bold IMEI Readable TEXT: “XXXXXXXXXXXXXXX” SW030RSN IMEI Barcode Code 128 - 3mm Data: “NNNNNNNNNNNNNN” www.nvtl.com/patents

ID Label/Location Info

Internal Photos

RF Exposure Info

802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Novatel Wireless Dates of Test: April 10 – 15, 2015 9645 Scranton Road, Suite 205 Test Report Number: SAR.20150402 San Diego, CA 92121 Revision A This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and IEC 62209-2:2010 (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application is subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Certificate # 2387.01 FCC ID: PKRNVWMC620 IC Certificate: 3229A-MC620 Model(s): USB620L Test Sample: Engineering Unit Same as Production FID Number: SP0703159000047 Equipment Type: Wireless USB Modem Classification: Portable Transmitter Next to Body TX Frequency Range: 777 – 787 MHz, 824 – 848 MHz; 1850 – 1910 MHz; 1710 – 1755 MHz Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 750 MHz (LTE) – 24.0 dBm, 850 MHz (GSM) – 33.0 dBm, 850 MHz (WCDMA) – 24.0 dBm, 850 MHz (CDMA) – 24.5 dBm, 850 MHz (LTE) – 24.0 dBm, 1900 MHz (GSM) – 30.0 dBm, 1900 MHz (WCDMA) – 23.0 dBm, 1900 MHz (CDMA) – 24.0 dBm 1900 MHz (LTE) – 24.0 dBm, 1735 MHz (LTE) – 23.0 dBm Conducted Signal Modulation: WCDMA, GMSK, 8-PSK, CDMA, QPSK, 16QAM Antenna Type: WWAN – Novatel Wireless, P/N NVTL 12023208 (Main) Application Type: Certification FCC Rule Parts: Part 2, 22, 24, 27 KDB Test Methodology: KDB 447498, KDB 941225 D01, D02, D03 & D05 Industry Canada: RSS-102, Safety Code 6 Max. Stand Alone SAR Value: 1.40 W/kg Reported Separation Distance: 5 mm © 2015 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Report Number: SAR.20150402 Table of Contents 1. Introduction ................................................................................................................................... 3 SAR Definition [5] .............................................................................................................................. 4 2. SAR Measurement Setup .............................................................................................................. 5 Robotic System ................................................................................................................................. 5 System Hardware .............................................................................................................................. 5 System Electronics ............................................................................................................................ 6 Probe Measurement System ............................................................................................................. 6 3. Probe and Dipole Calibration ....................................................................................................... 14 4. Phantom & Simulating Tissue Specifications ............................................................................... 15 Head & Body Simulating Mixture Characterization .......................................................................... 15 5. ANSI/IEEE C95.1 – 1992 RF Exposure Limits [2] ........................................................................ 16 Uncontrolled Environment ............................................................................................................... 16 Controlled Environment ................................................................................................................... 16 6. Measurement Uncertainty............................................................................................................ 17 7. System Validation ........................................................................................................................ 18 Tissue Verification ........................................................................................................................... 18 Test System Verification .................................................................................................................. 18 8. LTE Document Checklist ............................................................................................................. 19 9. SAR Test Data Summary ............................................................................................................ 23 Procedures Used To Establish Test Signal ..................................................................................... 23 Device Test Condition ..................................................................................................................... 23 Figure 10.1 .......................................................................................................................................... 25 10. FCC 3G Measurement Procedures .......................................................................................... 26 10.1 Procedures Used to Establish RF Signal for SAR ................................................................ 26 10.2 SAR Measurement Conditions for CDMA2000, 1xEV-DO .................................................... 26 10.3 SAR Measurement Conditions for WCDMA/HSDPA/HSUPA ............................................... 28 10.4 SAR Measurement …

Text truncated - open the document above for the full version.

Test Report

Report No. SD72104197-0315A April 2015 America Report On Application for Grant of Equipment Authorization of the Novatel Wireless Inc. USB620L MC620 USB Modem FCC CFR 47 Part 2 and Part 27: 2014 RSS‐139: 2009 and RSS‐130: 2013 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 2 of 96 REPORT ON TEST REPORT NUMBER PREPARED FOR Radio Testing of the Novatel Wireless Inc. MC620 USB Modem SD72104197‐0315A Novatel Wireless Inc. 9645 Scranton Road, Suite 205 San Diego, CA 92121 CONTACT PERSON Roman Olmos Hardware Engineer II & ISO‐17025 Technical Manager (858) 812‐3400 [email protected] PREPARED BY XiaoyingZhang Name Authorized Signatory Title: EMC/Wireless Test Engineer APPROVED BY Ferdinand S. Custodio Name Authorized Signatory Title: EMC/Senior Wireless Test Engineer DATED April30, 2015 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 3 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 Revision History SD72104197‐0315A Novatel Wireless Inc. USB620L MC620 USB Modem DATE OLD REVISION NEW REVISION REASON PAGES AFFECTED APPROVED BY 04/30/2015 Initial Release Ferdinand Custodio FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 4 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 CONTENTS Section Page No 1 REPORT SUMMARY ............................................................................................................................ 5 1.1 Introduction .............................................................................................................................................. 6 1.2 Brief Summary of Results .......................................................................................................................... 7 1.3 Product Information ................................................................................................................................. 8 1.4 EUT Test configuration ........................................................................................................................... 10 1.5 Deviations From The Standard ................................................................................................................ 12 1.6 Modification Record ............................................................................................................................... 12 1.7 Test Methodology .................................................................................................................................. 12 1.8 Test Facility Location .............................................................................................................................. 12 1.9 Test Facility Registration ......................................................................................................................... 13 1.10 Sample Calculations ................................................................................................................................ 14 2 TEST DETAILS .................................................................................................................................... 15 2.1 Transmitter Conducted Power Measurements ....................................................................................... 16 2.2 Equivalent Isotropic Radiated Power ...................................................................................................... 20 2.3 Peak‐Average Power Ratio ...................................................................................................................... 23 2.4 Occupied Bandwidth............................................................................................................................... 29 2.5 Band Edge ............................................................................................................................................... 47 2.6 Conducted Spurious Emissions ............................................................................................................... 65 2.7 Field Strength Of Spurious Radiation ...................................................................................................... 78 2.8 Frequency Stability ................................................................................................................................. 84 3 TEST EQUIPMENT USED .................................................................................................................... 87 3.1 Test Equipment Used .............................................................................................................................. 88 3.2 Measurement Uncertainty ..................................................................................................................... 89 4 DIAGRAM OF TEST SETUP ................................................................................................................. 90 4.1 Test Setup Diagram ................................................................................................................................ 91 5 ACCREDITATION, DISCLAIMERS AND COPYRIGHT .............................................................................. 95 5.1 Accreditation, Disclaimers and Copyright ............................................................................................... 96 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 5 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 SECTION 1 REPORT SUMMARY Radio Testing of the Novatel Wireless Inc. USB Modem FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 6 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 1.1 INTRODUCTION The information contained in this report is intended to show verification of the Novatel Wireless In…

Text truncated - open the document above for the full version.

Test Report

FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 51 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 LTE Band 4 (3 MHz BW)/Low Channel (19965) Band Edge @ 1710 MHz Date: 21.APR.2015 16:25:33 Date: 21.APR.2015 16:25:57 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 52 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 LTE Band 4 (3 MHz BW)/High Channel (20385) Band Edge @ 1755 MHz Date: 21.APR.2015 16:34:01 Date: 21.APR.2015 16:35:46 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 53 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 LTE Band 4 (5 MHz BW)/Low Channel (19975) Band Edge @ 1710 MHz Date: 21.APR.2015 16:23:43 Date: 21.APR.2015 16:24:13 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 54 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 LTE Band 4 (5 MHz BW)/High Channel (20375) Band Edge @ 1755 MHz Date: 21.APR.2015 16:37:03 Date: 21.APR.2015 16:36:21 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 55 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 LTE Band 4 (10 MHz BW)/Low Channel (20000) Band Edge @ 1710 MHz Date: 21.APR.2015 16:22:31 Date: 21.APR.2015 16:21:33 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 56 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 LTE Band 4 (10 MHz BW)/High Channel (20350) Band Edge @ 1755 MHz Date: 21.APR.2015 16:38:19 Date: 21.APR.2015 16:38:45 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 57 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 LTE Band 4 (15 MHz BW)/Low Channel (20025) Band Edge @ 1710 MHz Date: 21.APR.2015 16:18:50 Date: 21.APR.2015 16:19:19 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 58 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 LTE Band 4 (15 MHz BW)/High Channel (20325) Band Edge @ 1755 MHz Date: 21.APR.2015 16:39:50 Date: 21.APR.2015 16:39:21 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 59 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 LTE Band 4 (20 MHz BW)/Low Channel (20050) Band Edge @ 1710 MHz Date: 21.APR.2015 16:15:51 Date: 21.APR.2015 16:16:41 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 60 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 LTE Band 4 (20 MHz BW)/High Channel (20300) Band Edge @ 1755 MHz Date: 21.APR.2015 16:40:40 Date: 21.APR.2015 16:41:11 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 61 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 LTE Band 13 (5 MHz BW)/Low Channel (23205) Band Edge @ 777 MHz Date: 21.APR.2015 14:35:52 Date: 21.APR.2015 14:35:13 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 62 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 LTE Band 13 (5 MHz BW)/High Channel (23255) Band Edge @ 787 MHz Date: 21.APR.2015 14:41:14 Date: 21.APR.2015 14:39:17 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 63 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 LTE Band 13 (10 MHz BW)/Channel (23230) Band Edge @ 777 MHz and 787 MHz Date: 21.APR.2015 14:47:57 Date: 21.APR.2015 14:46:46 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 64 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 Date: 21.APR.2015 14:47:23 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315A Page 65 of 96 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 2.6 CONDUCTED SPURIOUS EMISSIONS 2.6.1 Specification Reference FCC 47 CFR Part 2, Clause 2.1051 FCC 47 CFR Part 27, Clause 27.53 (h)(1) FCC 47 CFR Part 27, Clause 27.53(c)(2) RSS‐139, Clause 6.5 RSS‐130, Clause 4.6 2.6.2 Standard Applicable FCC Part 27: Clause 27.53 (c)(2) On any frequency outside the 776–788 MHz band, the power of any emission shall be attenuated outside the band below the transmitter power (P) by at least 43 + 10 log (P) dB; (5) Compliance with the provisions of paragraphs (c)(1) and (c)(2) of this section is based on the use of measurement instrumentation employing a resolution bandwidth of 100 kHz or greater. However, in the 100 kHz bands immediately outside and adjacent to the frequency block, a resolution bandwidth of at least 30 kHz may be employed; Clause 27.53 (h) AWS emission limits—(1) General protection levels. Except as otherwise specified below, for operations in the 1710‐1755 MHz, 2110‐2155 MHz, 2000‐2020 MHz, 2180‐2200 MHz, 1915‐ 1920 MHz, and 1995‐2000 MHz bands, the power of any emission outside a licensee's frequency block shall be attenuated below the transmitter power (P) by at least 43 + 10 log10(P) dB. (3) Measurement procedure. (i) Compliance with this provision is based on the use of measurement instrumentation employing a resolution bandwidth of 1 megahertz or greater. However, in the 1 megahertz bands immediately outside and adjacent to the licensee's frequency block, a resolution bandwidth of at least one percent of the emission bandwidth of the fundamental emission of the transmitter may be employed. The emission bandwidth is defined as the width of the signal between two points, one below the carrier center frequency and one above the carrie…

Text truncated - open the document above for the full version.

Test Report

Report No. SD72104197-0315B April 2015 America Report On Application for Grant of Equipment Authorization of the Novatel Wireless Inc. USB620L MC620 USB Modem FCC CFR 47 Part 2, Part 22 and Part 24: 2014 RSS‐132 issue 3: 2013 and RSS‐133 issue 6: 2013 FCC ID: PKRNVWMC620 IC: 3229A‐MC620 Report No. SD72104197‐0315B REPORT ON TEST REPORT NUMBER PREPARED FOR Radio Testing…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Roman Olmos(Sr. Staff Regulatory Engineer)

[email protected]858-812-3400Fax: 858-408-4345

Test Firm

TUV SUD America Inc.Mac Elliott

[email protected]813-284-2736Fax: 978 977 0182

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
44	27	782 MHz - 782 MHz	260.00 mW	8M92W7D	9.82 Hz

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for Part 22H and EIRP for Parts 24E & 27. SAR compliance has been established for direct laptop/tablet and USB cable plug-in configurations with a separation distance of 5mm between the particular dongle orientation and flat phantom. This device was tested for SAR compliance for use in notebook computers with connector configurations as described in this filing, and can be used with notebook computers with the same operating configurations and exposure conditions, with only minor configuration and construction differences. End-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. The highest reported SAR level is 1.40 W/kg.
